Replacing 560SL Brake Rotors: A Simple Guide

Many classic car enthusiasts cherish their Mercedes-Benz 560SL for its timeless design and robust performance. However, like any vehicle, regular maintenance is key to keeping it in top condition. One common maintenance task that often raises questions is the replacement of brake rotors. If you're a proud owner of a 560SL and are wondering whether the caliper needs to be removed to access and replace the brake rotors, the answer is a resounding no, at least not in the way you might expect for some other vehicles. The process is remarkably straightforward, making it an accessible DIY job for many owners. Let's delve into the specifics of how this task is accomplished on your iconic 560SL.

Understanding the 560SL Brake System

The Mercedes-Benz 560SL, particularly from the R107 generation, is renowned for its engineering prowess. The braking system is a crucial component of its safety and driving dynamics. When it comes to rotor replacement, the design of the hub and caliper assembly on these models simplifies the process considerably. Unlike some vehicles where intricate steps are involved, the 560SL's setup allows for a relatively uncomplicated rotor change.

Tools and Materials You'll Need

Before you begin, ensure you have the necessary tools and materials to carry out the job safely and efficiently. Having everything ready will save you time and prevent frustration. Here's a comprehensive list:

• New brake rotors (ensure they are the correct ones for your specific 560SL model year)
• New brake pads
• Jack and jack stands
• Lug wrench or socket set for lug nuts
• Socket wrench and appropriate sockets for caliper bolts and caliper bracket bolts (if applicable, though often not needed for rotor removal itself)
• Hex wrench (Allen key) for the rotor retaining screw
• C-clamp or brake caliper press
• Brake cleaner
• Wire brush
• Gloves and safety glasses
• Torque wrench
• Penetrating oil (optional, for stubborn screws)
• Brake lubricant

Step-by-Step Guide to Replacing 560SL Brake Rotors

The process is designed to be as user-friendly as possible. Here’s a breakdown of the steps involved:

1. Preparation and Safety First

Begin by parking your 560SL on a level surface and engaging the parking brake. Loosen the lug nuts on the wheel you'll be working on before jacking up the car. Once loosened, use your jack to lift the vehicle and secure it with jack stands. Never work under a car supported only by a jack. Remove the wheel completely.

2. Accessing the Rotor

On the 560SL, the brake caliper typically does not need to be removed from its mounting bracket to slide the rotor off the hub. The rotor is secured to the hub by a small hex screw. This screw is often the only thing holding the rotor in place, apart from the wheel studs.

3. Removing the Rotor Retaining Screw

Locate the small hex screw. This screw is usually found on the face of the rotor, near the edge or sometimes on the outer perimeter. Insert the correct size hex wrench (Allen key) into the screw and turn it counter-clockwise to remove it. If the screw is tight or corroded, a drop of penetrating oil can help. Be careful not to strip the head of the screw.

4. Removing the Old Rotor

Once the hex screw is removed, the rotor should be able to slide off the wheel hub. The rotor fits over two hub studs, which are part of the hub assembly. Sometimes, the rotor can be stuck due to rust or corrosion. If this is the case, you might need to gently persuade it. Tapping around the rotor hat with a rubber mallet or a piece of wood can help loosen it. Avoid hitting the braking surface directly, as this could damage the new rotor if you were to interchange them. In some instances, you might need to use a rotor puller, but for most 560SLs, gentle persuasion is enough.

5. Inspecting the Hub and Bearings

With the rotor removed, take the opportunity to inspect the wheel hub and bearings. Check for any signs of damage, wear, or excessive play in the bearings. If the bearings feel rough, noisy, or if there's noticeable play, it's advisable to replace them while you have everything apart. This is a separate, more involved process that usually requires removing the hub assembly itself.

6. Installing the New Rotor

Clean the mounting surface of the hub with a wire brush to ensure a clean and flat surface for the new rotor. This is crucial for proper seating and to prevent vibrations. Place the new rotor onto the hub, aligning the holes with the two hub studs. Ensure the rotor sits flush against the hub face.

7. Securing the New Rotor

Insert the hex screw back into its original location and tighten it clockwise with your hex wrench. Again, don't overtighten, but ensure it's snug. This screw prevents the rotor from shifting before the wheel is installed.

8. Reassembling the Brake System

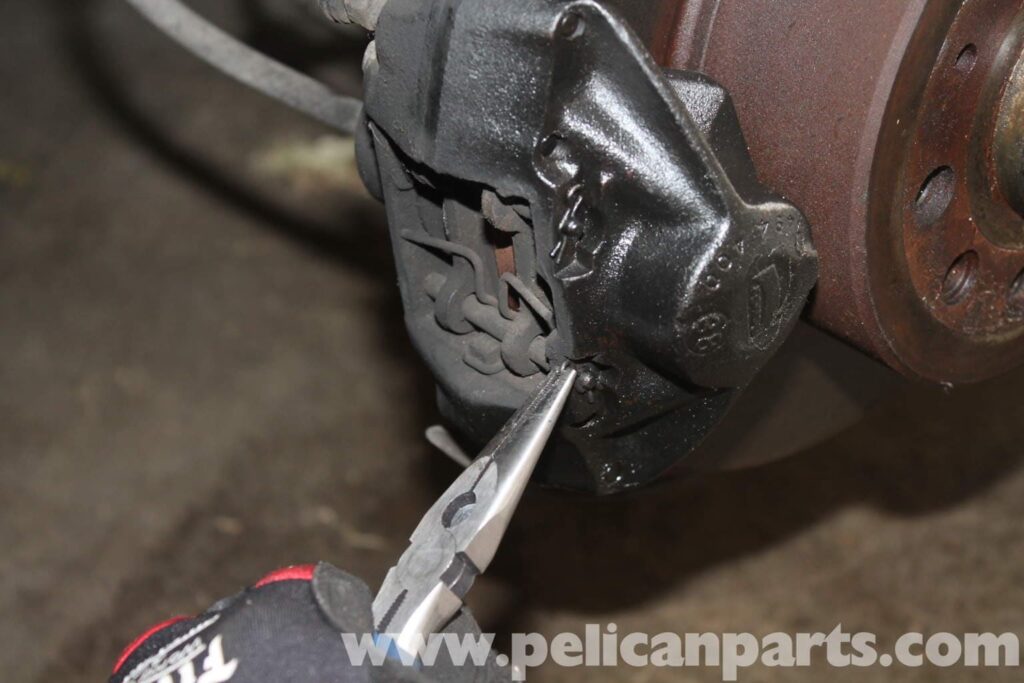

While the caliper didn't need removal, it's good practice to inspect the brake pads. If they are worn, this is the ideal time to replace them. You might need to compress the caliper pistons slightly to accommodate the thicker new pads. Use a C-clamp or a brake caliper press for this. Apply a small amount of brake lubricant to the appropriate contact points on the caliper and pads as per your new brake pad manufacturer's instructions. Reinstall the wheel, tightening the lug nuts by hand first. Lower the vehicle and then torque the lug nuts to the manufacturer's specifications using a torque wrench.

9. Final Checks

After replacing the rotors and pads (if done concurrently), pump the brake pedal several times before driving to ensure the brake system is firm and the pads are seated against the rotors. Check the brake fluid level and top it up if necessary. It's also a good idea to bed in your new brake pads and rotors according to the pad manufacturer's recommendations. This typically involves a series of moderate stops from increasing speeds, allowing the brakes to cool down between stops.

When Might Caliper Removal Be Necessary?

While the basic rotor replacement on a 560SL generally doesn't require caliper removal, there are specific circumstances where you might need to detach the caliper or at least its bracket:

• Brake Pad Replacement: If you are replacing the brake pads without replacing the rotors, you will almost certainly need to unbolt the caliper to slide the old pads out and the new ones in.
• Deep Cleaning or Servicing: For a more thorough cleaning of the caliper, bracket, or brake lines, or if you are servicing the caliper itself (e.g., replacing seals), removal will be necessary.
• Stubborn Rotors: In very rare cases, if a rotor is exceptionally corroded and won't budge even with persuasion, you might need to remove the caliper bracket to gain better access or leverage, or to allow more room for tools. However, this is uncommon for routine rotor changes.
• Hub/Bearing Service: As mentioned, if you are performing work on the wheel bearings or the hub assembly, the caliper and its bracket will definitely need to be removed.

Comparison: 560SL Rotor Replacement vs. Other Vehicles

The simplicity of the 560SL's rotor replacement process is a testament to Mercedes-Benz engineering of that era. Many modern vehicles, and even some older ones, require the brake caliper to be unbolted and often swung out of the way or completely removed to allow the rotor to clear the caliper assembly. This often involves dealing with caliper bolts, sometimes with anti-seize or thread-locking compounds, and ensuring the caliper is properly supported to avoid stressing the brake lines. The 560SL's design, relying on a single retaining screw and a rotor that slides directly off the hub studs, bypasses these extra steps, making it significantly easier for DIY mechanics.

Frequently Asked Questions (FAQs)

Q1: How often should I replace my 560SL brake rotors?

Brake rotors are typically replaced when they reach a minimum thickness specification or if they develop significant warping, cracks, or deep grooves. This is usually done in conjunction with brake pad replacement. Regular inspection during tire rotations or brake checks will help determine their condition.

Q2: Can I just replace the brake pads without replacing the rotors on my 560SL?

Yes, you can replace brake pads without replacing rotors, provided the rotors are still within their service thickness and are not significantly grooved or warped. However, if the rotors are close to minimum thickness or show signs of wear, it's best practice to replace them simultaneously with the pads for optimal braking performance and to prevent premature wear of the new pads.

Q3: What is the purpose of the small hex screw holding the rotor on?

The hex screw, often referred to as a retaining screw or pilot screw, primarily serves to hold the rotor in place on the hub during assembly and manufacturing. It prevents the rotor from rattling or shifting slightly before the wheel is torqued down. While it helps keep things aligned, it's not the primary component responsible for holding the wheel or rotor under braking forces; that's the job of the wheel studs and lug nuts.

Q4: Do I need to bleed the brakes after replacing the rotors?

No, you do not need to bleed the brake system if you are only replacing the rotors and pads, and you haven't opened any brake lines or removed the caliper pistons significantly. Bleeding is only necessary if air has entered the hydraulic system.

Q5: What torque specification should I use for the rotor retaining screw?

The torque specification for the rotor retaining screw is typically quite low, often in the range of 10-20 Nm (7-15 ft-lbs). It's important not to overtighten this small screw, as it can strip the threads in the hub or snap the screw. Refer to your Mercedes-Benz service manual for the exact specification for your 560SL model year.

Conclusion

Replacing the brake rotors on a Mercedes-Benz 560SL is a relatively simple procedure that doesn't typically require the removal of the brake caliper. By following these steps, you can confidently undertake this maintenance task, ensuring your classic continues to stop as effectively as it performs. Always prioritise safety, use the correct tools, and consult your vehicle's service manual for specific torque values and procedures. Enjoy the drive!
