Bent Car Frame? Spot the Critical Signs

Being involved in a car accident, even a seemingly minor one, is always a distressing experience. Beyond the immediate shock, a pressing concern for any driver is the safety and integrity of their vehicle afterwards. While external dents and scratches are often obvious, the true danger can lie hidden beneath the surface: damage to your car's frame. This foundational structure is paramount to your vehicle's safety, handling, and overall performance. Even a slight bend can compromise critical systems, making your car unsafe to drive and potentially leading to more severe issues down the line. If you've never had to consider frame damage before, knowing what to look for can be challenging. This comprehensive guide will equip you with the knowledge to identify potential frame damage and understand why a professional inspection is always the safest next step.

The Unseen Threat: Why Frame Integrity Matters

Your car's frame, often referred to as the chassis, is its skeletal system. It supports the engine, transmission, suspension, and body panels, and is designed to absorb impact energy in a collision, protecting the occupants. When this critical structure is compromised, even by a subtle misalignment, it can lead to a cascade of problems that affect everything from tyre wear to steering responsiveness. A bent frame can throw off your vehicle's geometry, leading to unsafe driving conditions and potentially accelerating wear on other components. Recognising the signs early is crucial for both your safety and your vehicle's longevity.

Conducting Your Own Visual Inspection

The first step in assessing potential frame damage is a thorough visual inspection. While some signs might be glaringly obvious, others can be subtle and require a keen eye. Always conduct this inspection in a well-lit area, ideally on a level surface, and use a torch to illuminate hard-to-reach areas, especially underneath the vehicle.

Misaligned Body Panels: The Gaps That Give It Away

Take a step back and scrutinise your vehicle's body panels. Look for any uneven gaps or misalignment between components such as the doors, bonnet, boot lid, and wings. For instance, do the gaps around a door seem wider at the top than the bottom? Does the bonnet not sit flush with the front wings? Are the headlights or tail lights crooked? Uneven panel gaps or panels that don't line up correctly are often a primary indicator that the underlying frame has shifted or been twisted. You can often feel this misalignment by running your hand along the seams; a smooth transition suggests proper alignment, while a sudden ridge or dip indicates a problem.

Uneven Tyre Wear: A Telltale Sign

Inspect all four of your tyres closely. Pay particular attention to the tread pattern. If you notice that one side of a tyre is wearing down significantly faster than the other, or if different tyres show vastly different wear patterns, it can strongly suggest frame misalignment. A bent frame can alter the vehicle's geometry, affecting wheel alignment (camber, caster, and toe angles). This forces tyres to drag rather than roll perfectly, leading to premature and uneven wear. Not only does this cost you money in replacement tyres, but it also severely impacts your vehicle's grip and handling, especially in adverse weather conditions.

Suspension Sag: Is Your Car Leaning?

Park your car on a perfectly level surface and step back to observe its stance. Does it appear to lean to one side, or does one corner seem to sit lower than the others? You can also measure the distance from the centre of each wheel hub to the bottom edge of the wheel arch. Significant discrepancies in these measurements can indicate frame damage that has caused the suspension mounting points to shift or the frame itself to sag. Even if the suspension components themselves are intact, a compromised frame can put undue stress on them, leading to an uneven ride height and affecting the vehicle's balance.

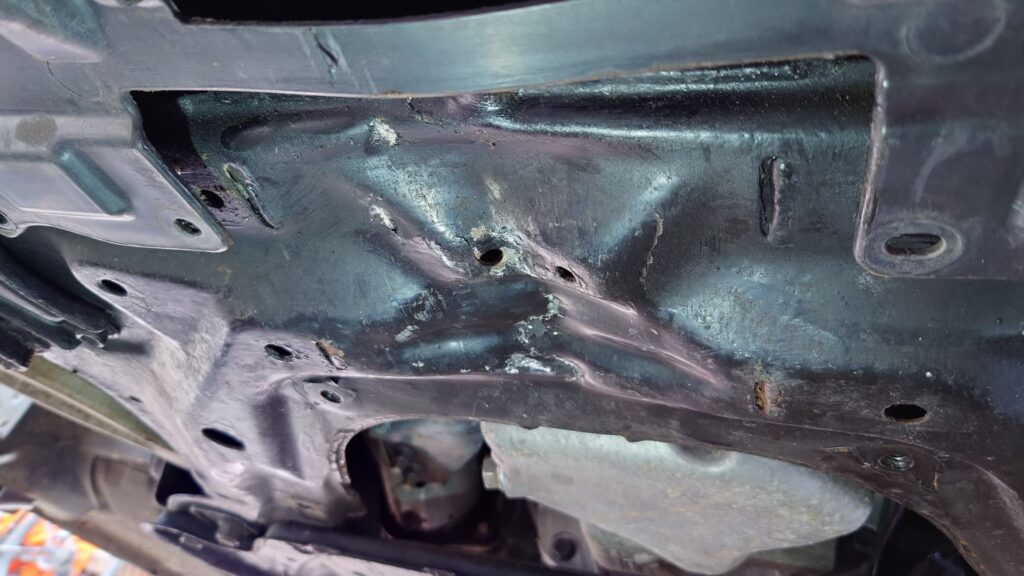

Visible Damage Beneath: A Closer Look at the Undercarriage

This is where the torch becomes invaluable. Carefully examine your vehicle's undercarriage for any visible signs of damage or distortion to the frame structure. Look for dents, creases, bends, or ripples in the chassis rails, crossmembers, and subframes. Pay particular attention to areas near the impact point, but also check the entire frame, including the front and rear sections, as impact forces can travel throughout the structure. Sometimes, fresh undercoating or paint in unusual spots can be a sign that damage has been hastily covered up. Any cracks or tears in the steel are also critical indicators of severe structural compromise. Also, check all welded joints; they should be sound and free from cracks or breaks.

Driving Dynamics: What a Bent Frame Feels Like

Even if visual signs are subtle, a bent frame will almost certainly manifest itself through changes in how your car drives. Pay close attention to these sensations when behind the wheel.

Steering Woes: Pulling and Constant Correction

One of the most common symptoms of frame damage is steering issues. If your car consistently pulls to one side, even when the steering wheel is held straight on a level road, it's a strong indicator of frame misalignment affecting wheel alignment. You might find yourself constantly having to correct the steering to maintain a straight line, which can be exhausting and dangerous. The steering might also feel vague, loose, or unresponsive, making precise control difficult.

Unsettling Vibrations and Shaking

Excessive vibrations or shaking felt through the steering wheel, floorboards, or seats, particularly at certain speeds, can point towards frame damage. A misaligned frame means your car's weight is no longer distributed evenly across its axles and wheels, leading to an imbalance that causes vibrations. While vibrations can also stem from unbalanced tyres or worn suspension components, if they appeared suddenly after an impact, frame damage should be a primary suspect. These vibrations can make driving uncomfortable and reduce your ability to maintain control.

Compromised Handling and Stability

A bent car frame significantly affects your vehicle's handling and overall stability. You might experience a general feeling of looseness or instability, especially when driving around corners or at higher speeds. The car might feel less responsive to steering inputs, or you may notice excessive body roll. Braking can also become unstable, with the car veering or feeling unsettled. This reduced control directly impacts your ability to manoeuvre the vehicle effectively, particularly in emergency situations, making it a severe safety concern.

Listening for Trouble: Auditory Clues of Frame Damage

Unusual sounds emanating from your vehicle can provide valuable clues if you suspect frame damage or related issues. Listen carefully while driving, especially over bumps or during turns.

• Creaking or Groaning Noises: These sounds, often emanating from the chassis or suspension, can indicate stressed metal, shifting components, or failing welds on the frame or subframe.
• Grinding or Scraping: If you hear grinding or scraping noises, especially when going over bumps, making turns, or braking, it could suggest that misaligned components are rubbing against each other due to a distorted frame.
• Clunking or Knocking Sounds: These sharp, impactful noises, particularly when driving over rough surfaces or during sudden changes in direction, might point to loose or damaged frame mounts, suspension components under strain, or even a bent driveshaft making contact with other parts.
• Rattling Sounds: A persistent rattling sound from beneath the vehicle could be caused by loose components that have become dislodged or are vibrating against the frame due to a change in its structure or mounting points.
• Abnormal Tyre Noises: Beyond just uneven wear, a bent frame can cause tyres to hum or whir excessively, even on smooth roads, due to altered alignment angles forcing the tyres to work harder or scrub against the road surface abnormally.

MOT Implications and Structural Integrity

In the UK, the MOT test places a significant emphasis on your vehicle's structural integrity. A bent car frame, or any significant structural damage, is almost certain to result in a failure. Here's why and what specific aspects are scrutinised:

Understanding Vehicle Structure Checks

The MOT test assesses the vehicle's main body structure, including subframes and crossmembers. Any area within 30cm of a safety-related item (like steering, suspension, or brake mountings) is particularly critical. The test also considers any part deemed to play a role in supporting the vehicle as a whole. Excessive corrosion, damage, or inadequately carried out repairs in these areas will lead to a fail.

Common Areas for Damage: Chassis Legs, Sills, Subframes

Testers will meticulously check:

• Chassis Legs: These run along both sides of the engine bay and should be in sound condition and securely fastened. Distortion here, often from frontal impacts, is a clear sign of frame damage.
• Inner Sills and Floor: These areas, especially around joints and seatbelt/handbrake mounting points, are prone to corrosion or damage that compromises structural integrity.
• Suspension Mounts: Any corrosion, distortion, or fracturing within 30cm of suspension mounting points that significantly reduces the original strength will cause a fail. This includes spring hangers and subframe mounts at the rear.
• Subframes: If your car has a separate subframe, it will be checked for corrosion or damage, especially near its mounting points to the main body.
• Under the Bonnet and Boot: Inner wings, bulkhead (especially around steering/braking component mounts), front crossmember, inner wheel arches, and the boot floor are all inspected for corrosion or distortion.

The Importance of Professional Structural Repairs

If structural repairs have been carried out, they must adequately replace the strength lost through damage or corrosion. Patch repairs must be welded completely around their circumference (unless originally spot-welded by the manufacturer, where stitch welds are acceptable). No other form of repair will pass the MOT. A bent driveshaft, while not the frame itself, is also checked for distortion or damage, as it can be a secondary consequence of a frame impact or indicative of related structural issues affecting its alignment. Excessive play in a driveshaft's support bearing or damage to CV joint boots (allowing dirt in) would also lead to an MOT failure, often stemming from underlying frame or suspension misalignment.

When to Seek Professional Expertise

While your own visual and driving checks can provide strong indications, diagnosing and repairing a bent car frame requires specialised equipment and expert knowledge. Professional auto repair shops utilise advanced laser measuring systems and frame straightening machines (frame jigs) to accurately assess the extent of the damage and meticulously pull the frame back into its factory specifications. This precision is impossible to achieve with DIY methods.

Trusting an experienced auto repair technician ensures that any frame damage is appropriately assessed and repaired. Timely and correct repairs are paramount not only for your immediate safety but also to prevent further issues, maintain your vehicle's value, and ensure it passes future MOT tests. Don't take chances with your car's foundational structure; if you suspect frame damage, a professional inspection is the only definitive solution.

Comparative Symptoms Table

Frequently Asked Questions (FAQs)

Q: Can a minor accident really bend a car frame?

A: Absolutely. Even seemingly minor collisions can transmit significant force through the vehicle's structure. Modern cars are designed with crumple zones to absorb energy, but this absorption can sometimes result in the frame bending or twisting, even if the visible exterior damage seems minimal. The impact angle, speed, and specific point of contact all play a role.

Q: Is it safe to drive with a bent car frame?

A: No, it is generally not safe to drive with a bent car frame. A compromised frame affects the vehicle's structural integrity, its ability to absorb future impacts, and its handling characteristics. It can lead to unpredictable steering, braking issues, accelerated wear on other components, and significantly increases the risk of serious injury in another collision. It will also fail an MOT test.

Q: How is frame damage repaired?

A: Frame repair typically involves using specialised equipment in a professional body shop. This includes a frame straightening machine, or 'frame jig', which uses hydraulic rams to carefully pull the bent sections of the frame back into their original dimensions and alignment. Laser measurement systems are used to ensure precision. In severe cases, sections of the frame may need to be cut out and replaced (sectioning) or reinforced with new metal.

Q: Will a bent car frame fail an MOT?

A: Yes, a bent car frame will almost certainly cause your vehicle to fail its MOT test. The MOT specifically checks the structural integrity of the vehicle, particularly the chassis, subframes, and any areas within 30cm of safety-critical components. Any significant damage, excessive corrosion, or inadequate repairs to the structure will result in a failure, as it compromises the vehicle's safety and roadworthiness.

Q: What does frame repair cost?

A: The cost of frame repair varies significantly depending on the extent and location of the damage, the type of vehicle, and the labour rates of the repair shop. Minor bends might cost a few hundred pounds, while extensive damage requiring sectioning or significant pulling can run into thousands. It's crucial to get a detailed estimate from a reputable body shop, as repair costs can sometimes approach or exceed the vehicle's market value, in which case it might be deemed a write-off by insurers.

Q: How can I prevent frame damage in an accident?

A: The most effective way to prevent frame damage is to avoid accidents altogether by driving safely, maintaining a safe distance from other vehicles, and adhering to speed limits. While you can't always control external factors, defensive driving is your best defence. If an accident does occur, even at low speed, always assume potential hidden damage and have your vehicle professionally inspected.
