Batch vs Timed Fuel Injection Explained

When delving into the intricacies of modern engine management, understanding the various fuel injection strategies is paramount. Two prominent methods that often spark discussion are batch fired injection and timed injection. While both aim to deliver fuel to the combustion chamber, their operational philosophies and resultant effects can differ significantly. This article aims to demystify these concepts, exploring their mechanics, performance implications, and practical considerations for enthusiasts and everyday drivers alike.

What is Batch Fired Injection?

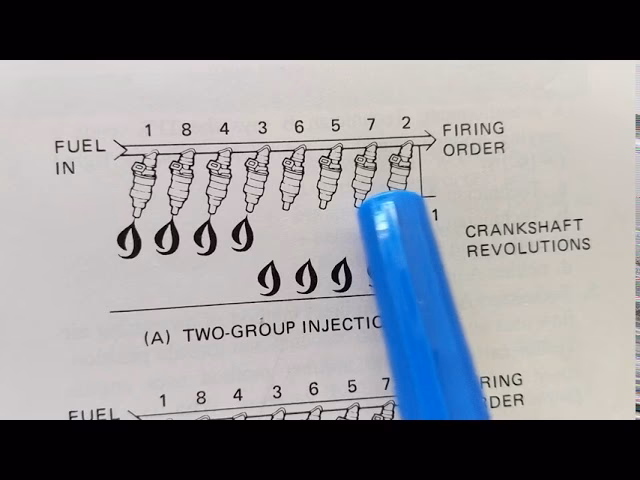

Batch fired injection, also known as simultaneous injection, is a method where a group of injectors, or in some cases, all injectors, are triggered to fire at the same time. This firing event is not precisely synchronised with the opening of individual intake valves. Instead, the fuel is sprayed into the intake manifold runners, and the air that will eventually enter the cylinder carries this fuel mixture as the intake valve opens. Think of it as a more generalised fuel delivery, where the fuel waits for the air's cue to enter the cylinder.

Historically, batch firing was a common and effective strategy. Many Bosch and Bosch derivative Electronic Fuel Injection (EFI) systems sold throughout the 1960s, 70s, and 80s employed this method. Even modern systems like the SDS (Sequential Diesel System, though the principle applies to petrol EFI too) utilise a form of batch firing. The beauty of batch firing lies in its simplicity and proven reliability. It’s a robust concept that has powered millions of vehicles successfully.

What is Timed Injection?

Timed injection, often referred to as sequential injection when it's truly individual to each cylinder, is a more refined approach. The core idea behind timed injection is to synchronise the fuel spray with the opening of the intake valve for each specific cylinder. The goal here is to introduce the fuel precisely when there is airflow present in the intake runner, promoting better atomisation and mixing of fuel and air. This technique aims to minimise fuel clinging to the intake manifold walls, a phenomenon known as "manifold wall wetting," which can lead to less efficient combustion and increased emissions, especially at lower engine speeds and throttles.

The term "sequential" is sometimes debated, as all EFI systems, in a broader sense, are sequential by restarting the injection cycle after all cylinders have been fired. However, "timed" more accurately captures the essence of this strategy: the start and end of the injection pulse are carefully timed with the intake valve's open period. This precision is particularly beneficial for meeting stringent emissions regulations and passing specific testing cycles, which often involve low RPM and part-throttle operation.

Key Differences and Performance Implications

The fundamental difference lies in the timing of the fuel spray relative to the intake valve event. Batch firing sprays fuel in groups, while timed injection sprays fuel individually, precisely when the intake valve is open.

In performance applications, the nuances become more pronounced. High-revving engines with aggressive camshafts present a different set of challenges and opportunities:

• Injection Window: As engine RPM increases, the time available for each injection event shrinks dramatically. A batch fired system can, in theory, inject fuel for a longer duration of the crankshaft rotation compared to a timed system, which is limited by the actual airflow period determined by the camshaft's duration.
• Camshaft Influence: A performance camshaft with significant intake duration (e.g., 220 degrees at 0.050" lift) means the intake valve is only open for a fraction of the total engine cycle. A truly timed sequential system, therefore, has less time to inject the required fuel compared to a batch fired system, which can inject over a broader period.
• Injector Sizing: To achieve the same fuel delivery at high RPM, a timed sequential system will typically require larger injectors than a batch fired system due to the reduced injection window.
• "Negating" Advantages: While timed injection aims for optimal mixing, starting injection too early or finishing too late can partially diminish its theoretical benefits. At very high RPMs, the available milliseconds for injection are fleeting.
• Batch Firing at High RPM: Conversely, as RPMs climb in a batch fired system, the duration the fuel sits in the port before the valve opens also decreases.
• Top-End Horsepower: Interestingly, when comparing well-tuned systems, there is often little to no significant difference in peak horsepower at wide-open throttle between batch fired and timed sequential injection. The engine's ability to breathe and the fuel delivery capacity of the injectors are often the limiting factors.
• Fuel Economy: Similarly, significant differences in fuel economy between the two strategies are not commonly observed in practice.
• Emissions: Timed injection generally offers superior performance in terms of emissions, particularly at part throttle and lower RPMs, which aligns with its development goals. Batch firing might not be as efficient in these specific scenarios.

Complexity and Cost Considerations

The differences extend beyond just the engine's operation; they also impact the complexity and cost of the EFI system:

• Software and Hardware: Batch fired systems are inherently less complex from both a software and hardware perspective. This translates to lower purchase costs and often simpler programming.
• Required Sensors and Inputs: Timed sequential systems necessitate more sophisticated inputs for the Engine Control Unit (ECU). This typically includes camshaft position information (from a camshaft sensor or derived from crankshaft sensor signals) to precisely time the injections.
• Component Count: A timed system requires individual drive transistors for each injector, separate trigger wires for each, knowledge of camshaft specifications, injector response times, and cylinder firing order. The ECU software must be capable of processing all this data.
• Programming Expertise: Tuning a timed sequential system demands a higher level of expertise. The tuner must understand how all these parameters inter-relate to achieve optimal performance and reliability. Misinterpreting or omitting any of these steps can render the "timed" aspect ineffective.
• Wiring: The wiring harness for a timed sequential system is considerably more complex due to the individual injector wiring.
• Batch Firing Simplicity: In contrast, a batch fired system typically only requires a tachometer frequency signal. For every ignition pulse, there's often a fuel pulse. This means fewer wires, simpler wiring runs, and no complex timing software to decipher.

Comparative Table

Frequently Asked Questions (FAQs)

Is batch fired injection inherently bad?

No, batch fired injection is not inherently bad. It's a proven and effective strategy that powered millions of vehicles reliably. Its "drawbacks" are primarily in comparison to the refined emission control capabilities of timed systems, particularly in specific operating conditions.

Does timed injection always mean better performance?

Not necessarily. While timed injection offers advantages in precise fuel delivery and emissions control, especially at part throttle, the ultimate performance difference at wide-open throttle and high RPM can be minimal between well-executed batch and timed systems. Other factors like injector flow rate, fuel pressure, and overall engine tuning play a more significant role in peak power.

Which system is better for a performance build?

For many performance builds, especially those prioritising simplicity, cost-effectiveness, and robust operation, batch firing is an excellent choice. If the absolute priority is the most refined emissions control and potentially marginal gains in fuel atomisation at very specific low-load conditions, a timed system might be considered. However, the complexity and cost of a timed system often outweigh the benefits for typical performance applications where peak power is the main objective.

Can I convert my batch fired system to timed sequential?

Yes, it is technically possible to convert a batch fired system to a timed sequential one. However, this is a complex undertaking that requires significant modifications, including adding a camshaft position sensor, upgrading the ECU or replacing it with one capable of sequential injection, rewiring for individual injector control, and extensive tuning. It's often more practical to select an aftermarket EFI system that natively supports sequential injection if that is the desired outcome.

In conclusion, both batch fired and timed fuel injection systems have their merits. Batch firing offers a simpler, more cost-effective, and robust solution, while timed injection provides greater precision for emissions control and potentially improved fuel atomisation under specific conditions. The choice between them often depends on the application's priorities, whether it be cost, simplicity, emissions compliance, or ultimate high-RPM performance. Understanding these differences empowers you to make informed decisions about your vehicle's fuel system.
