EPB Pad Replacement: A UK Guide

The Electronic Parking Brake (EPB) has become a common feature in modern vehicles, offering convenience and enhanced safety over traditional handbrakes. However, like all braking components, the EPB pads will eventually require replacement. This guide, tailored for the UK automotive enthusiast, will walk you through the process, highlighting key considerations and the specific procedures often required, particularly when dealing with VAG (Volkswagen Audi Group) vehicles, as indicated by the provided information.

Understanding the EPB System

Unlike older cable-operated handbrakes, EPBs utilise an electric motor to apply and release the rear brakes. This motor is typically integrated into the brake caliper itself. When you engage the EPB, a signal is sent to this motor, which then forces the brake pads against the brake disc. This electronic operation allows for features like automatic application when the engine is switched off and automatic release when the vehicle is set in motion, assuming certain conditions are met.

The EPB system is sophisticated and requires specific procedures for maintenance, especially when it comes to replacing the brake pads. Simply forcing the caliper pistons back, as you might with a conventional brake system, can damage the EPB's internal servo mechanism. This is a critical point to remember, as highlighted in the provided Ross-Tech Wiki information: "If you push pistons back by hand (without open electric part by vag-com) you broke servo mechanism of parking brake!"

When to Consider EPB Pad Replacement

Several signs might indicate that your EPB pads need attention:

• Squealing or Grinding Noises: Unusual sounds when the EPB is applied or released can signal worn-out pads.
• Reduced Stopping Power: If the EPB doesn't hold the vehicle firmly on a slope, or if it takes longer to engage, the pads may be worn.
• EPB Warning Light: A persistent warning light on the dashboard is a clear indication of a system fault, which could be due to worn pads or other issues within the EPB.
• Increased Pedal Travel (if applicable): While less common with EPBs, some systems might still have a manual override or indicator that shows increased resistance or travel.
• Visual Inspection: If you have access to the rear brakes, a visual inspection of the pad material thickness can be performed. However, accessing EPB calipers often requires specialised tools or procedures to retract the pistons safely.

Tools and Preparation

Before you begin, ensure you have the necessary tools and safety equipment:

• New EPB Brake Pads: Ensure they are compatible with your vehicle's make and model.
• Jack and Axle Stands: For safely lifting and supporting the vehicle.
• Wheel Chocks: To prevent the vehicle from rolling.
• Socket Set and Wrenches: For removing caliper bolts and other components.
• Torque Wrench: Crucial for tightening bolts to the manufacturer's specifications.
• Wire Brush: For cleaning caliper carriers and mating surfaces.
• Brake Cleaner: For cleaning components.

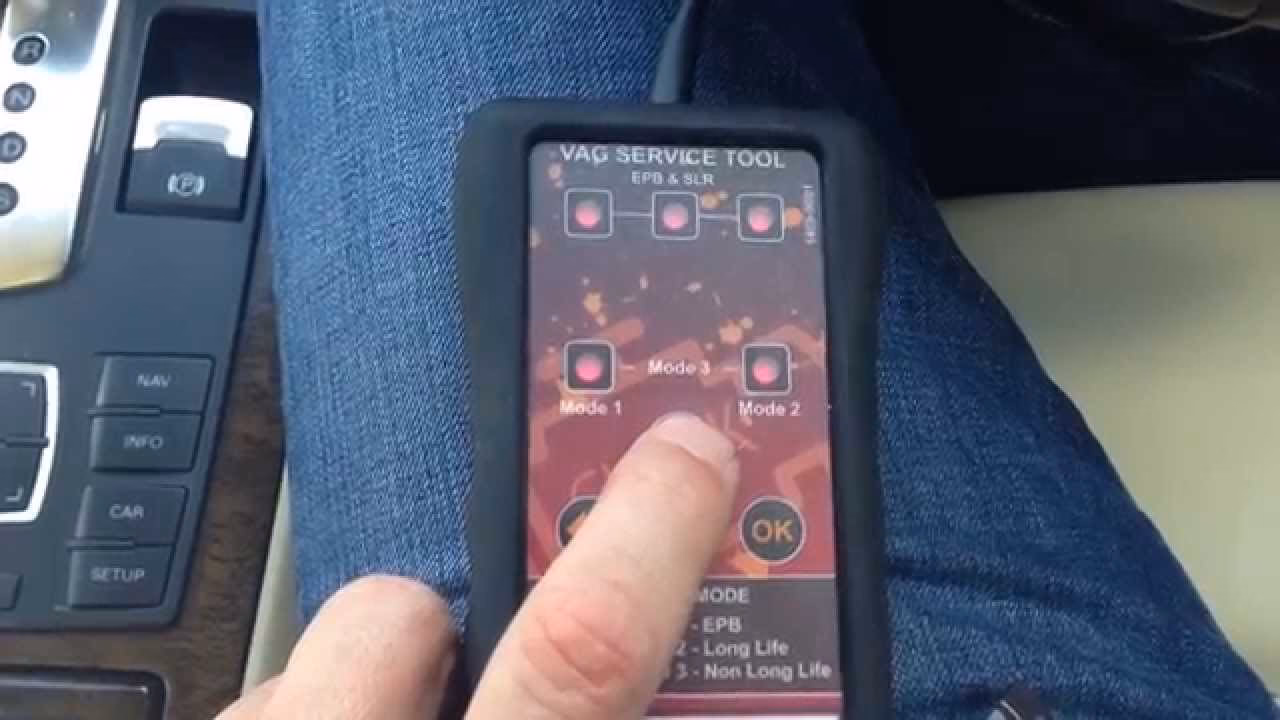

• Diagnostic Scan Tool (e.g., VCDS for VAG vehicles): Essential for retracting and re-engaging the EPB mechanism electronically.
• Battery Charger: To maintain a stable voltage during the electronic procedures.
• Gloves and Safety Glasses: For personal protection.

The EPB Pad Replacement Procedure (VAG Focus)

The following steps are based on the information provided for VAG vehicles, which often require diagnostic tools for EPB maintenance. Always consult your vehicle's specific service manual for precise instructions.

Step 1: Preparation and Safety

1. Park the vehicle on a level surface and engage the parking brake (if it's not already engaged).
2. Apply the wheel chocks to the front wheels for added safety.
3. Connect a battery charger to ensure a stable power supply throughout the process. This is vital as electronic systems can be sensitive to voltage fluctuations.
4. Cycle the parking brake ON, then OFF once. This primes the system for the diagnostic procedure.

Step 2: Retracting the EPB Caliper Pistons

This is the most critical step and requires a diagnostic tool.

1. Connect your diagnostic scan tool (e.g., VCDS) to the vehicle's OBD-II port.
2. Navigate to the correct module. For VAG vehicles, this is typically the '53 - Parking Brake' module.
3. Select '[Basic Settings - 04]'.
4. For Pad Change: Choose Group 005. The information states: "Open Rear Parking Brake for Pad Change".
5. Activate the Basic Setting by following the tool's prompts, usually by clicking '[Go!]', then '[ON/OFF/Next]'.
6. The system will confirm that the brake pads are now opening (retracting).
7. Once complete, select '[Done, Go Back]' and then '[Close Controller, Go Back - 06]'.

Important Note: If your vehicle is not a VAG model, the procedure for retracting the EPB pistons may differ. Some vehicles may have a manual release lever or a specific sequence of button presses. Always refer to your manufacturer's documentation. Never force the pistons back manually without first electronically retracting them.

Step 3: Removing the Old Pads

With the EPB retracted, you can now proceed with the physical pad replacement:

1. Loosen and remove the wheel nuts for the rear wheels.
2. Carefully lift the vehicle using a jack and secure it with axle stands.
3. Remove the rear wheels.
4. Locate the brake caliper. You will typically need to remove the caliper carrier bolts to gain access to the pads. The number and location of these bolts vary by manufacturer.
5. Once the carrier bolts are removed, you may be able to pivot the caliper upwards or remove it entirely. If removing, it's advisable to support its weight to avoid straining the brake hose.
6. Slide out the old EPB pads. Note their orientation for correct installation of the new ones.
7. Clean the caliper carrier and any mounting points with a wire brush to remove rust and debris. This ensures a good fit for the new pads.

Step 4: Installing the New Pads

1. Insert the new EPB pads into the caliper carrier, ensuring they are seated correctly and in the same orientation as the old ones. Some pads may come with shims or clips that need to be installed.
2. If necessary, clean the caliper piston face (the part that contacts the brake pad) and apply a thin layer of brake grease, being careful not to get any on the pad friction material or disc surface.
3. Re-position the brake caliper over the new pads and rotor.
4. Reinstall and tighten the caliper carrier bolts to the manufacturer's specified torque. This is crucial for safety.
5. Reinstall the wheels and tighten the wheel nuts to the recommended torque.

Step 5: Re-engaging the EPB and Post-Replacement Checks

This step also requires the diagnostic tool:

1. Lower the vehicle safely.
2. Reconnect the diagnostic scan tool.
3. Navigate back to the '53 - Parking Brake' module.
4. Select '[Basic Settings - 04]'.
5. For Closing the Brake: Choose Group 006. The information states: "Close Rear Parking Brake".
6. Activate the Basic Setting by clicking '[Go!]', then '[ON/OFF/Next]'.
7. The system will confirm that the brake pads are now closing (applying).
8. Once complete, select '[Done, Go Back]' and then '[Close Controller, Go Back - 06]'.

Step 6: Adaptation and Function Test

After replacing the pads, it's essential to inform the EPB control module about the new pad thickness and perform a function test.

1. Adaptation (Pad Thickness):
• Navigate to '[Adaptation - 10]'.
• Select Channel 006. The information specifies: "Pad Thickness".
• Enter the measured thickness of the new pads (excluding the back panel). Round down to the next lowest integer. The range is typically 3 - 14 mm.
• Save the new value.
2. Function Test:
• With the EPB cycled ON and OFF once, return to '[Basic Settings - 04]'.
• Choose Group 010. The information states: "Function Test".
• Activate the Basic Setting. The brake pads will cycle ON and OFF three times.
• Wait at least 30 seconds after the brakes stop making noise before proceeding.
• Select '[Done, Go Back]' and then '[Close Controller, Go Back - 06]'.

Step 7: Longitudinal Acceleration Sensor (G251) Check (Optional but Recommended)

The provided information also includes a procedure for the Longitudinal Acceleration Sensor (G251). While not directly related to pad replacement, it's good practice to ensure all related systems are functioning correctly.

1. Ensure system voltage is at least 12.0 V and the car is parked on a level surface.
2. Do NOT move or rock the car while performing this basic setting.
3. Navigate to '[Select] > [53 - Parking Brake] > [Basic Settings - 04]'.
4. Choose Group 020.
5. Activate the Basic Setting. The status of the G251 sensor will be displayed.
6. Select '[Done, Go Back]'.

Troubleshooting and Common Issues

• EPB Warning Light Remains On: This could indicate that the adaptation procedure was not successful, the pistons were not fully retracted, or there's another fault within the EPB system. Re-check all connections and repeat the retraction, replacement, and re-engagement procedures.
• Stiff or Unresponsive EPB Lever/Button: Ensure the battery voltage is sufficient. If the issue persists, there might be an electrical fault or mechanical binding.
• Noise After Replacement: New pads may bed in over time. However, persistent grinding or squealing could indicate incorrect installation or a faulty component.

Conclusion

Replacing EPB brake pads is a more involved process than with traditional handbrakes, primarily due to the electronic actuation. The use of a diagnostic scan tool is often indispensable, especially for VAG vehicles, to retract and re-engage the caliper pistons correctly. By following these steps meticulously, paying close attention to safety, and utilising the correct procedures, you can successfully replace your EPB pads and ensure the continued safe operation of your vehicle's parking brake system. Always remember to consult your vehicle's specific service manual for the most accurate and detailed instructions for your particular model.

Frequently Asked Questions

Q1: Can I replace EPB pads without a diagnostic tool?

A1: For many modern vehicles, especially those from VAG, attempting to replace EPB pads without a diagnostic tool to electronically retract the pistons is highly discouraged. Forcing the pistons back can irreversibly damage the EPB's servo mechanism, leading to costly repairs. Some older or simpler EPB systems might have manual release mechanisms, but this is not common.

Q2: How tight should the caliper bolts be?

A2: Caliper bolt torque specifications are critical for safety. Always refer to your vehicle's service manual for the exact torque values. Overtightening can strip threads, while undertightening can lead to the caliper coming loose.

Q3: Do I need to bleed the EPB system after changing pads?

A3: Typically, EPB systems do not require bleeding in the same way as hydraulic brake systems, as they are electronically actuated. The process involves retracting and extending the electric motor within the caliper.

Q4: How long does it take to bed in new EPB pads?

A4: New brake pads generally require a bedding-in period, which can involve a series of moderate stops from around 30-40 mph. The exact procedure can vary, so it's best to check the pad manufacturer's recommendations. The EPB system itself will also undergo an initial self-calibration.

Q5: What is the significance of the 'Pad Thickness' adaptation?

A5: The 'Pad Thickness' adaptation (often Channel 006 on VAG vehicles) informs the EPB control module about the new pad dimensions. This allows the system to correctly calibrate the motor's travel and apply the appropriate clamping force. Without this adaptation, the EPB may not function correctly, potentially triggering warning lights.
