Audi A6 C6 Brake Fixes: A Comprehensive UK Guide

Your Audi A6 C6, a true symbol of refined German engineering, demands a braking system that matches its performance and ensures your safety on every journey. The brakes are arguably the most critical safety feature on your vehicle, and any compromise in their function can have serious consequences. For Audi A6 C6 models manufactured between 2011 and 2016, understanding and addressing common brake issues is essential for maintaining both performance and peace of mind. While a professional mechanic can always assist, many common brake problems, such as worn pads and rotors, can be efficiently resolved with a bit of know-how and the right tools. This comprehensive guide will walk you through diagnosing typical brake concerns and provide detailed instructions on how to replace key components yourself, ensuring your Autobahn cruiser retains the stopping power to match its speed.

Understanding Your Audi A6 C6's Braking System

The braking system in your Audi A6 C6 is a sophisticated network designed for optimal stopping performance and stability. It typically comprises disc brakes at all four corners, featuring calipers, brake pads, and rotors (discs). The C6 generation also notably utilises an electronic parking brake (EPB), which operates differently from traditional mechanical handbrakes. Recognising how these components interact is the first step towards effective troubleshooting and maintenance.

Common Signs of Brake Trouble

Before diving into repairs, it's crucial to correctly identify the symptoms of a failing braking system. Ignoring these warning signs can lead to more severe damage or, worse, a dangerous driving situation.

• Squealing or Chirping Noises: Often the first indication of worn brake pads. Many pads have a small metal tab that makes noise when they are nearing the end of their lifespan.
• Grinding Sounds: A much more serious sign, indicating that the brake pads are completely worn down, and the metal backing plates are grinding against the rotors. This causes significant damage to the rotors and can severely reduce braking effectiveness.
• Vibration or Pulsation: If you feel a shuddering or pulsing sensation through the brake pedal or steering wheel when braking, it usually points to warped brake rotors. Uneven rotor surfaces cause the caliper to grab inconsistently.
• Spongy or Soft Brake Pedal: A pedal that feels soft or goes to the floor without much resistance can indicate air in the brake lines, low brake fluid, a master cylinder issue, or even a leaking brake line.
• Vehicle Pulling to One Side: If your car consistently pulls to the left or right when you apply the brakes, it could mean a caliper is seized, a brake hose is failing, or there's uneven wear between the brakes on one side.
• Warning Lights: Modern Audis are equipped with sensors that will illuminate a warning light on your dashboard when brake pads are excessively worn or there's a fault with the EPB system.

Essential Tools and Materials for DIY Brake Repair

Before you begin any work, gather all the necessary tools and replacement parts. Having everything ready will streamline the process and prevent interruptions.

Tools You'll Need:

• Hydraulic jack and jack stands
• Wheel chocks
• Lug wrench or impact gun with appropriate socket
• Brake caliper piston compression tool
• Torx bits and sockets (various sizes, depending on caliper bolts)
• Metric spanner set and socket set
• Wire brush
• Brake cleaner spray
• High-temperature brake grease (for contact points, not friction surfaces)
• Torque wrench
• Safety glasses and gloves

Parts You'll Need:

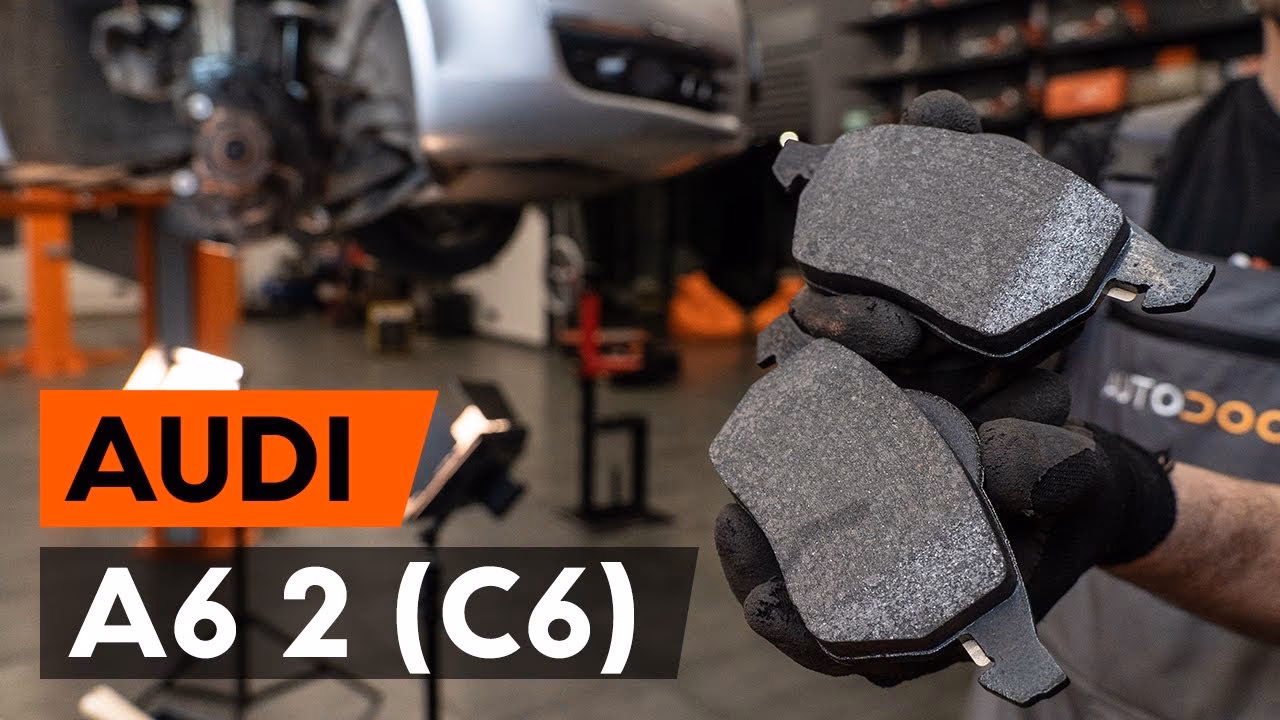

• New brake pads (front and/or rear)
• New brake rotors (front and/or rear – it's highly recommended to replace rotors when replacing pads)
• Optional: New brake calipers (if yours are seized or leaking)
• Brake fluid (if bleeding is required)

When it comes to purchasing parts, reputable online retailers like AUTODOC are excellent sources for disc brake pads and other components for your Audi A6. For specific models, such as the 2012 Audi A6, you might find that high-performance options like EBC® Yellowstuff Rear Brake Pads are available, offering an excellent balance of street performance and enhanced grip thanks to their Aramid fiber compound.

Step-by-Step Guide: Replacing Brake Pads and Rotors

This procedure generally applies to both front and rear brakes, though there might be minor differences in caliper design or bolt locations. Always work on one wheel at a time to use the opposite side as a reference.

1. Prepare the Vehicle and Ensure Safety

Park your Audi on a flat, level surface. Engage the electronic parking brake (EPB). If you are working on the rear brakes, you will need to put the EPB into service mode (consult your owner's manual or a diagnostic tool for this, as simply disengaging it might not be enough for caliper retraction). Loosen the wheel lug bolts slightly while the car is still on the ground. Place wheel chocks behind the wheels that will remain on the ground. Use your hydraulic jack to lift the front or rear of the vehicle, then securely place it on jack stands. Never work under a vehicle supported only by a jack.

2. Remove the Wheel

Once the car is safely on jack stands, fully remove the loosened lug bolts and carefully take off the wheel and tyre assembly. Set it aside in a safe location.

3. Disconnect and Remove the Caliper

Locate the brake caliper. You'll typically find two guide pin bolts (often Torx or hex) that hold the caliper to its bracket. Carefully remove these bolts. Be mindful of any brake pad wear sensors – these will need to be disconnected. Once the bolts are out, gently slide the caliper off the rotor. Do not let the caliper hang by its brake hose, as this can damage the hose. Use a bungee cord or a strong wire to suspend the caliper from the suspension component, ensuring there's no strain on the hose.

4. Remove the Brake Pads and Caliper Bracket

With the caliper out of the way, you can now remove the old brake pads from the caliper bracket. They usually slide out. Next, locate the two larger bolts that secure the caliper bracket to the steering knuckle (front) or axle housing (rear). These bolts are often very tight and may require a breaker bar. Once removed, take off the caliper bracket.

5. Remove the Brake Rotor

The brake rotor usually slides off the wheel hub once the caliper bracket is removed. There might be a small retaining screw holding it in place, or it might be slightly seized to the hub due to rust. If it's stuck, a few gentle taps with a rubber mallet on the rotor's surface (away from the hub) can help loosen it. Clean the wheel hub surface thoroughly with a wire brush to ensure the new rotor sits perfectly flat.

6. Install the New Rotor

Carefully slide the new brake rotor onto the wheel hub. If there was a retaining screw, re-install it now. Ensure the rotor is seated flush against the hub. You might want to spray a thin layer of brake cleaner on the new rotor to remove any protective oils from manufacturing.

7. Reinstall the Caliper Bracket

Clean the caliper bracket, especially the areas where the brake pads slide. Apply a thin layer of high-temperature brake grease to these contact points and on the guide pins (if applicable) to ensure smooth movement. Position the bracket back onto the steering knuckle or axle housing and tighten its two large bolts to the manufacturer's specified torque settings using your torque wrench. This is a critical step for safety.

8. Install New Brake Pads and Compress the Piston

Insert the new brake pads into the caliper bracket. They should slide in smoothly. Now, using your brake caliper piston compression tool, slowly and evenly push the caliper piston back into the caliper body. This step is essential to create space for the thicker new pads. Be careful not to damage the dust boot around the piston. If you are working on the rear calipers with an EPB, you may need a diagnostic tool (like VCDS or OBDeleven) to retract the piston electronically before you can compress it manually, or the caliper compression tool might have a winding action designed for EPB calipers.

Reconnect any brake pad wear sensors to the new pads.

9. Reinstall the Caliper

Carefully slide the caliper back over the new pads and rotor assembly. Align the caliper with the guide pin holes and re-install the guide pin bolts. Tighten these bolts to the manufacturer's specified torque. Ensure the brake hose is not twisted or kinked.

10. Repeat for Other Wheels and Bleed Brakes (If Necessary)

Repeat the entire process for the remaining wheels. After all brakes are replaced, it's a good practice to check your brake fluid reservoir level. If you opened any brake lines or replaced a caliper, you will absolutely need to bleed the brake system to remove any air that entered the lines. Bleeding involves a specific sequence and often requires a second person. Consult your Audi's service manual for the correct bleeding procedure and sequence.

11. Bedding in New Brakes

Once everything is reassembled, start the car and pump the brake pedal several times until it feels firm. This will seat the pads against the rotor and push the caliper piston out. Before driving, double-check all lug bolts and ensure they are torqued correctly. New brake pads and rotors require a "bedding-in" process to ensure optimal performance and longevity. This typically involves several moderate stops from medium speeds (e.g., 60-10 km/h) without coming to a complete stop, allowing the brakes to cool between cycles, followed by a few harder stops. Avoid heavy braking or emergency stops for the first few hundred kilometres.

Addressing Electronic Parking Brake (EPB) Issues

The C6 generation Audi A6 uses an electronic parking brake, which can sometimes present different kinds of malfunctions compared to mechanical systems. Common issues include the EPB failing to engage or disengage, or warning lights appearing on the dashboard. While the prompt mentions "hacks" for automatic release, focusing on malfunctions is more appropriate for a maintenance guide. If your EPB is malfunctioning, it's often due to:

• Faulty EPB Motors: Each rear caliper has an electric motor that operates the parking brake. These can fail over time.
• Wiring Issues: Damaged or corroded wiring to the EPB motors or control module.
• Control Module Faults: The EPB control module itself can develop issues.
• Low Battery Voltage: Sometimes, a low car battery can cause the EPB to behave erratically.

Diagnosis of EPB issues usually requires a diagnostic scan tool (like VCDS) to read fault codes and perform activation tests. Replacing EPB motors is a common repair, but it's often best left to a professional if you're not comfortable with electrical diagnostics. Remember, for any rear brake pad or rotor replacement on an A6 C6, you must disengage the EPB via diagnostic software before compressing the caliper pistons.

When to Consider Caliper Replacement

While often not necessary with every brake service, there are clear signs that your brake calipers might need replacing:

• Seized Piston: If the piston cannot be retracted or is stuck in an extended position, the caliper is likely seized and needs replacement.
• Fluid Leaks: Any visible brake fluid leaking from around the caliper piston or bleed nipple indicates a seal failure, requiring a new or reconditioned caliper.
• Damaged Guide Pins: If the guide pins are bent, corroded, or the rubber boots are torn, preventing smooth caliper movement, it might be more cost-effective to replace the caliper or its bracket than to attempt repair.

Replacing a caliper involves disconnecting the brake hose and bleeding the entire brake system afterwards. This makes it a more involved job, potentially requiring more advanced tools and knowledge of brake fluid systems.

Brake Fluid: The Unsung Hero

Brake fluid is hydraulic fluid that transfers the force from your brake pedal to the calipers. It's hygroscopic, meaning it absorbs moisture from the air over time. This moisture reduces the fluid's boiling point, leading to a spongy pedal under hard braking, and can also cause internal corrosion in the brake system. It's generally recommended to replace brake fluid every two years, regardless of mileage. Regularly check the fluid level in the reservoir; a low level could indicate a leak or severely worn pads (as the fluid fills the space behind the extended pistons).

Choosing the Right Brake Components

The market offers a vast array of brake pads and rotors. Understanding the differences can help you make an informed decision for your Audi A6 C6.

For a 2012 Audi A6, as mentioned, EBC® Yellowstuff Rear Brake Pads are a popular performance-oriented choice, offering racing-grade characteristics suitable for spirited street use. Always ensure the parts you select are specifically compatible with your Audi A6 C6's year and engine variant.

Frequently Asked Questions (FAQs)

How often should I replace my Audi A6 C6 brake pads?

Brake pad lifespan varies greatly depending on driving style, road conditions, and pad material. Generally, front pads last 40,000-80,000 km (25,000-50,000 miles), while rear pads can last longer, often 60,000-100,000 km (37,000-62,000 miles). Always inspect them regularly, especially during tyre rotations.

Do I need to replace rotors every time I replace pads?

While not strictly mandatory if your rotors are still within minimum thickness specifications and show no signs of warping or deep scoring, it is highly recommended. New pads bed in better on new, perfectly flat rotor surfaces, ensuring optimal performance and preventing premature wear or noise.

Why is my Audi A6 C6's brake pedal soft after replacing pads?

A soft pedal immediately after brake service usually means air is trapped in the brake lines. You will need to bleed the brake system to remove the air. Also, ensure you've pumped the pedal several times to seat the pads against the rotors before driving.

Can I drive with the brake warning light on?

Driving with a brake warning light on is highly risky. It indicates a significant issue with your braking system. While it might just be a worn pad sensor, it could also signal low brake fluid, a master cylinder fault, or an EPB malfunction. Get it checked and repaired immediately.

What's the purpose of brake grease?

Brake grease (high-temperature, synthetic) is applied to specific metal-to-metal contact points, such as caliper guide pins, the back of the brake pads where they meet the caliper piston, and the ears of the pads where they slide into the caliper bracket. It helps prevent corrosion, ensures smooth movement of components, and reduces noise. Never apply grease to the friction surfaces of the pads or rotors.

By understanding the signs of brake trouble, having the right tools, and following these detailed steps, you can confidently address many common brake issues on your Audi A6 C6. Remember, safety is paramount. If you ever feel unsure about any step or suspect a more complex problem, it is always best to consult a qualified mechanic. Regular maintenance and prompt attention to brake symptoms will ensure your Audi remains a reliable and safe vehicle for years to come.
