Handbrake Adjustment Guide

Understanding Your Handbrake and How to Adjust It

The handbrake, also known as the parking brake or emergency brake, is a crucial safety feature on any vehicle. While often overlooked until a problem arises, a properly functioning handbrake is essential for securing your car when parked and can even act as a backup in an emergency braking situation. Over time, the cables that operate the handbrake can stretch, leading to reduced effectiveness. This guide will walk you through the process of adjusting your handbrake, addressing common issues, and ensuring your vehicle remains safe and secure.

Why Does a Handbrake Need Adjusting?

Several factors can contribute to a handbrake losing its effectiveness. The most common reason is the natural stretching of the handbrake cables over time and use. As the cables elongate, more travel is required at the lever or pedal to engage the rear brakes. Additionally, wear on the rear brake pads and shoes can also impact handbrake performance. If the brake pads or shoes are significantly worn, there's less material to press against the brake drum or disc, meaning the handbrake will need to be applied more forcefully or with more travel to achieve the same stopping power. In some cases, a sticking caliper or a problem with the handbrake mechanism itself can also be the culprit. Ignoring a loose handbrake can be dangerous, as it might not hold your vehicle securely on inclines, potentially leading to unintended movement and accidents. It's also a common reason for failing an MOT (Ministry of Transport) test in the UK.

Signs Your Handbrake Needs Adjustment

Recognising the symptoms of a poorly adjusted handbrake is key to maintaining safety. Look out for the following:

• Excessive Lever Travel: If you find yourself pulling the handbrake lever up much higher than usual before it feels secure, it's a strong indicator that it needs adjusting. For a pedal-operated handbrake, this would mean the pedal needs to be pressed much further down.
• Vehicle Rolling on Inclines: If your car doesn't feel completely secure when parked on a slight hill, or if you notice it creeping, the handbrake is not engaging sufficiently.
• Handbrake Warning Light: While this light can indicate various brake system issues, it can also illuminate if the handbrake is not fully disengaged or if there's a problem with the system.
• Uneven Braking: If you notice that the handbrake seems to apply more pressure to one rear wheel than the other, this could be due to cable adjustment or uneven wear.
• Foul Smell or Overheating: In severe cases of an over-tightened or dragging handbrake, you might notice a burning smell from the rear wheels or feel excessive heat after driving. This is a critical issue that needs immediate attention.

Common Handbrake Adjustment Points

The method for adjusting a handbrake can vary slightly depending on the make and model of your vehicle. However, there are generally two primary adjustment points:

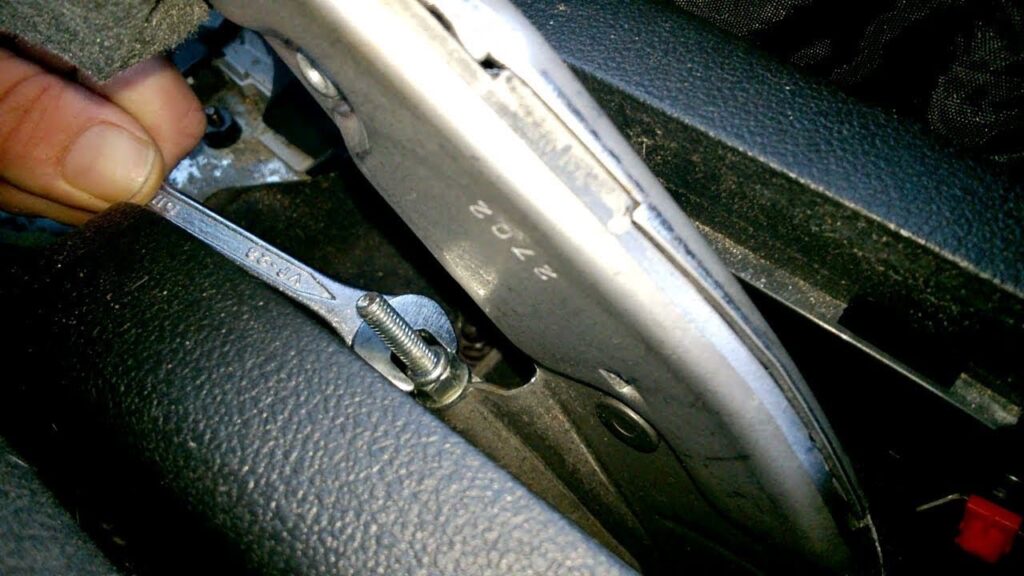

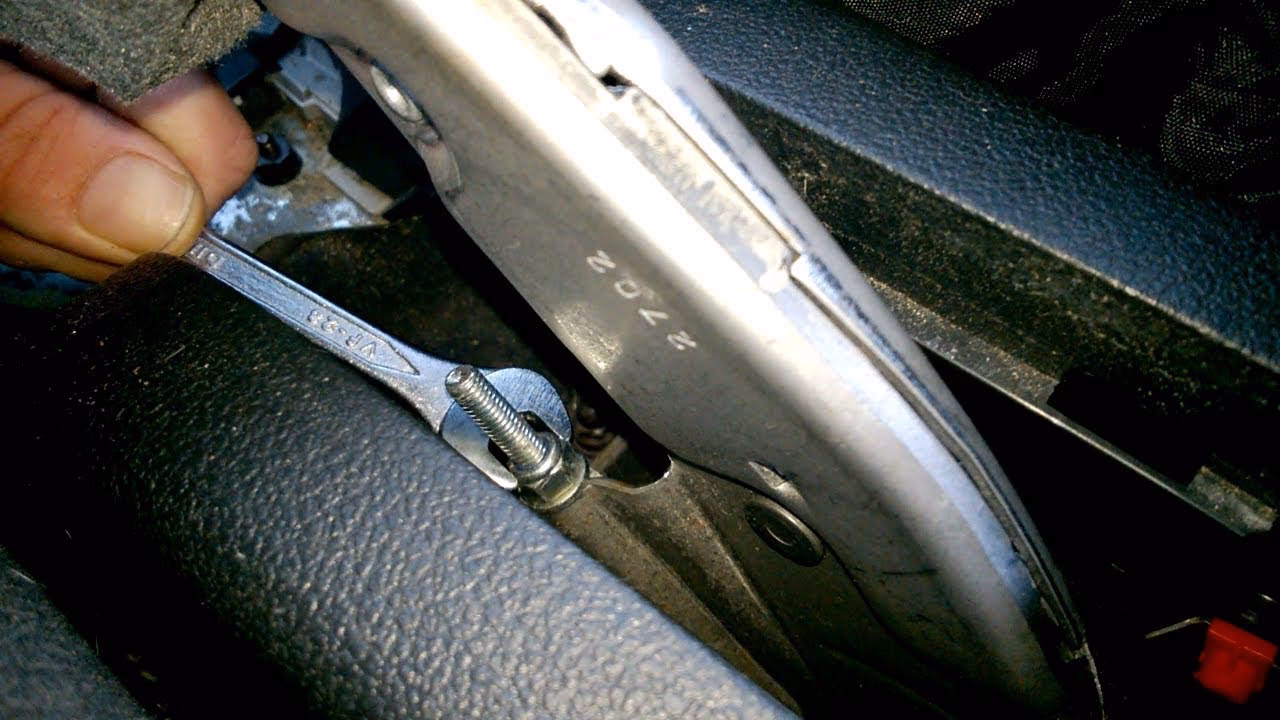

1. Interior Adjustment (Lever or Pedal)

Many vehicles have an adjustment mechanism located within the car, typically under the handbrake lever or near the brake pedal. This is often the most accessible adjustment point.

Procedure:

1. Access the Mechanism: You may need to remove a plastic cover or trim piece around the handbrake lever or pedal assembly to expose the adjustment nut or screw. Consult your vehicle's owner's manual or a repair guide for specific instructions on how to access this area for your car.
2. Loosen the Locknut: You will typically find a locknut and an adjusting nut. First, loosen the locknut.
3. Adjust the Nut: Turn the adjusting nut. Tightening this nut will pull the handbrake cables tighter, reducing the travel needed to engage the brake. Conversely, loosening it will slacken the cables.
4. Test and Refine: After making a small adjustment, reassemble the cover and test the handbrake. It should engage firmly with about 3-5 clicks (or a similar amount of pedal travel) and hold the vehicle securely. If it's still too loose, repeat the adjustment process. If it feels too tight (i.e., the brake is slightly dragging when released), loosen the adjusting nut slightly.
5. Tighten the Locknut: Once you're satisfied with the adjustment, ensure you tighten the locknut to prevent the adjusting nut from moving.

2. Rear Drum or Disc Adjustment (Cable Ends)

On some vehicles, particularly older models or those with rear drum brakes, the adjustment is made at the point where the handbrake cables connect to the brake mechanism at the rear wheels. This often involves adjusting the length of the cables themselves.

Procedure:

1. Access the Rear Brakes: This will involve removing the rear wheels. If you have disc brakes, you may need to remove the brake caliper and disc to access the handbrake shoes (if present) or mechanism. For drum brakes, you'll need to remove the drum.
2. Locate the Cable Connection: Identify where the handbrake cable attaches to the brake shoe or caliper mechanism. There is usually an adjusting point here, often a threaded rod with a nut.
3. Adjust the Cable: Similar to the interior adjustment, you'll turn a nut to lengthen or shorten the cable. Lengthening the cable (by tightening the nut on the threaded rod) will increase the handbrake's engagement.
4. Test and Refine: Ensure the handbrake is fully released and that the rear wheels can spin freely without any drag. Then, apply the handbrake a few clicks and check if it starts to engage the brakes. Adjust until you achieve the desired holding power and travel.
5. Reassemble: Once adjusted, reassemble the brake components and wheels.

Important Considerations and Tips

• Vehicle Manual: Always refer to your vehicle's specific owner's manual or a reputable repair manual for the precise adjustment procedure and locations for your car.
• Safety First: Ensure the vehicle is parked on a level surface and the parking brake is fully engaged before starting any work. If you're working under the car, always use jack stands for support.
• Gradual Adjustments: Make small, incremental adjustments and test the handbrake frequently. Over-tightening can cause the brakes to drag, leading to premature wear, reduced fuel efficiency, and potentially overheating.
• Check for Wear: While adjusting, it's a good opportunity to inspect your rear brake pads and discs (or shoes and drums) for wear and tear. If they are significantly worn, as the user in the provided text experienced with their Astra, they should be replaced along with the adjustment. Replacing worn brake components is crucial for overall braking performance.
• Cable Condition: Inspect the handbrake cables for any signs of damage, corrosion, or fraying. If the cables are damaged, they will need to be replaced rather than just adjusted.
• Professional Help: If you're uncomfortable performing this adjustment yourself, or if the problem persists after adjustment, it's best to seek assistance from a qualified mechanic.

Troubleshooting Common Handbrake Issues

Issue: Handbrake feels loose, requires too much pull/pedal travel.
Solution: Adjust the cables at the interior or rear mechanism to take up slack. Check rear brake pad/shoe wear.

Issue: Handbrake is too tight, causing brakes to drag.
Solution: Loosen the adjustment nut to create a small amount of slack when the handbrake is fully released. Ensure the rear wheels spin freely.

Issue: Handbrake warning light stays on.
Solution: Check that the handbrake lever/pedal is fully disengaged. Inspect the switch that activates the warning light. There may also be a problem with the brake fluid level or other brake system components.

Issue: Handbrake only works on one side.
Solution: This often indicates a seized cable or an issue with the brake mechanism on one of the rear wheels. This requires a more in-depth inspection and potentially replacement of components.

Frequently Asked Questions

Q1: How often should I check my handbrake?
A: It's a good practice to check your handbrake's effectiveness periodically, perhaps every few months, or if you notice any changes in its operation. Regular checks during your vehicle's service are also recommended.

Q2: Can a worn handbrake cause my car to fail its MOT?
A: Yes, absolutely. A handbrake that doesn't meet the required performance standards for holding the vehicle on a gradient is a common reason for MOT failure.

Q3: What is the 'click' count for a good handbrake?
A: While there's no universal rule, a common guideline is that the handbrake lever should engage firmly within 3 to 5 clicks. For pedal-operated systems, it's about the amount of pedal travel before it feels secure.

Q4: My rear brake discs are badly worn, what should I do?
A: As seen in the user's experience, severely worn brake discs need immediate replacement. Driving with excessively worn discs is dangerous and can lead to brake failure. It's best to replace them and then adjust the handbrake accordingly.

Q5: Do I need special tools to adjust my handbrake?
A: Typically, you will need basic hand tools such as spanners or wrenches of various sizes, and potentially a socket set. Some vehicles might have specific nuts that require unique tools, but common tools are usually sufficient for most adjustments.

Maintaining your handbrake is a vital aspect of vehicle safety. By understanding how it works and knowing how to perform basic adjustments, you can ensure your vehicle remains secure and reliable on the road. Remember to always prioritise safety and consult a professional if you have any doubts.
