Appion G5Twin: Your Ultimate Guide to Refrigerant Recovery

The Appion G5Twin represents a significant advancement in refrigerant recovery technology, designed to deliver swift and dependable performance for a range of refrigerants. Whether you're a seasoned HVAC technician or new to the field, understanding the nuances of this powerful machine is crucial for efficient and safe operation. This manual serves as a comprehensive resource, delving into every aspect of the G5Twin, from initial setup and operational procedures to vital maintenance and troubleshooting tips. Proper handling and knowledge are paramount when working with refrigerants under pressure, and this guide is crafted to ensure you can harness the full capabilities of your G5Twin while prioritising safety.

Understanding the Appion and G5Twin Trademarks

Before diving into the operational aspects, it's important to clarify the branding. As stated in the official documentation, Appion™ and G5Twin™ are indeed registered trademarks of Appion Inc. This signifies that these names are legally protected and exclusively associated with the products and services offered by Appion Inc. Using these trademarks without authorisation is prohibited.

Safety First: Navigating Hazards with the G5Twin

Working with refrigerants inherently involves risks, and the G5Twin manual places a strong emphasis on safety. It's imperative to read and understand all warnings and safety information before operation. Key hazards highlighted include:

• Explosion or Fire Risk: This is primarily due to potential sparks from electrical components igniting flammable refrigerant vapours or air/hydrocarbon mixtures. Prevention involves using the machine in well-ventilated areas, avoiding proximity to flammable substances, and strictly adhering to the guidelines regarding extension cord usage (12AWG or 10AWG). Crucially, the G5Twin is *not* to be used with hydrocarbons.
• Breathing Hazards (Asphyxiation): Refrigerant vapours can be harmful or toxic when inhaled, and compressed air from the unit may contain these vapours or carbon monoxide. Adequate ventilation and avoiding the use of this machine's air for human consumption are essential.
• Moving Components: The high-speed fan and motor pose a risk of injury if foreign objects are inserted into the vents or if the machine is mishandled while running. Always ensure the area is clear and the machine is unplugged before accessing internal parts.
• Unattended Operation: Refrigerant recovery is a dynamic process. Always remain with the machine while it's operating, observing changes in pressure, temperature, and the environment.
• Noise: Prolonged exposure to the noise generated by the machine can lead to hearing loss. Always wear certified hearing protection.

Refrigerant Storage Container Safety: A Critical Component

The safe handling and storage of recovered refrigerant are paramount. The manual stresses the importance of using only DOT CFR 49 or UL-approved storage containers. Overfilling these containers is a significant danger, as refrigerant expands when heated, potentially leading to venting or explosion. While the G5Twin has a 550psi shut-off switch, it is not a substitute for accurate measurement. Relying solely on "80% shut-off switches" can be misleading, as they only cut power and do not stop refrigerant flow due to siphoning or temperature-induced migration. A refrigerant scale is the most reliable method for monitoring fill levels, and containers should not be filled beyond 80% capacity. Transportation regulations also mandate that cylinders not be filled beyond 80%.

Getting Started: Essential Preparations

Before powering up the G5Twin, several steps are crucial for optimal performance and safety:

• Power Source: Always use a grounded outlet that meets the machine's voltage requirements. Avoid portable power generators.
• Valves: Open all valves slowly to ensure safety and check for leaks.
• Accessory Equipment: Use the correct hoses (short, 3/8" diameter is recommended) and ensure they are in good condition. Avoid "quick disconnect" or "auto-shut-off" hoses as they can halt recovery. Utilize Valve Core Removal Tools (VCRTs) with ball valves to remove system access valve cores, preventing restrictions.
• Recovery Cylinder: Ensure the recovery cylinder is properly evacuated (500 microns or better) and has sufficient capacity.
• Scales and Gauges: Verify the accuracy and proper operation of your refrigerant scale and external manifold gauges.
• Filter Dryer: For dirty refrigerant, use a new inline filter dryer and replace it after each use to protect the machine.
• Sight Glass: A sight glass can help verify liquid flow and aid in troubleshooting. Ensure it is leak-free.
• Debris Screen: Clean the debris screen at the inlet fitting before each job.
• Voltage Check: Confirm that your power source provides adequate voltage (within 10% of rated power) to the machine while it is running. Refer to extension cord sizing guidelines if applicable.

Machine Usage: Mastering Recovery Procedures

The G5Twin offers several recovery methods, each suited for different scenarios:

Standard Recovery Procedure

This is the most common method. It involves connecting the system's liquid and vapor ports to a manifold, then connecting the manifold's center port to the G5Twin's input. The G5Twin's output connects to the recovery cylinder's vapor port. The process involves opening valves sequentially, starting the machine, and then slowly opening the manifold's high-side valve for liquid recovery, followed by the low-side valve for vapor recovery, until the required vacuum is achieved.

Key Steps:

1. Connect system to manifold, manifold to G5Twin, and G5Twin to cylinder vapor port.
2. Close manifold valves.
3. Open G5Twin valves, VCRT ball valves (if used), and cylinder vapor port valve.
4. Turn on G5Twin.
5. Slowly open manifold high-side valve.
6. Once liquid is removed, open manifold low-side valve.
7. Continue until EPA-required vacuum is achieved.
8. Close manifold valves.
9. Turn off G5Twin, close its output valve.
10. Close G5Twin input valve, cylinder valves, and disconnect hoses.

High-Speed Direct Liquid Recovery Procedure

This method prioritises the fastest possible liquid recovery. The system's liquid port connects directly to the G5Twin input, the G5Twin output connects to the cylinder's liquid port, and the cylinder's vapor port connects back to the system's vapor port. A compound pressure gauge is connected to the system's vapor port. The procedure involves opening all relevant valves and the VCRT, then starting the G5Twin. Both VCRT ball valves are opened to begin liquid recovery. Once liquid is recovered, the cylinder vapor valve is closed, and recovery continues until the vacuum is met.

Standard Recovery with Inline Cooling

This alternative procedure allows for a blend of standard and direct liquid recovery, useful for managing cylinder temperatures, especially with R410A or high ambient conditions. The setup is similar to standard recovery, but the G5Twin output connects to the cylinder's liquid port, and the cylinder's vapor port connects back to the system's vapor port. The process begins with liquid recovery (manifold high-side open) and can transition to vapor recovery (manifold low-side open) as needed, with the cylinder's vapor port connection helping to manage back-pressure and cooling.

Push/Pull Recovery Procedure

This method uses the G5Twin to induce a siphon for recovering large amounts of liquid directly into the recovery cylinder. It's best suited for large systems with easily accessible liquid. The system's vapor port connects to the G5Twin output, the system's liquid port to the cylinder's liquid port, and the G5Twin input to the cylinder's vapor port. After slowly opening valves and starting the machine, the system and tank valves are opened to initiate the siphon. It's crucial to close all valves once liquid transfer is complete, as the siphon can continue even after the machine is off. Remaining vapor can then be recovered using the standard procedure.

Additional Machine Usage and Maintenance

Purging Non-Condensables

If a recovery cylinder's pressure is unexpectedly high, non-condensable gases might be present. After allowing the cylinder to stand for 24 hours for these gases to rise, they can be purged by connecting the cylinder's vapor port to another cylinder via a manifold. By referencing a refrigerant pressure/temperature chart and comparing it to the cylinder's temperature, excess pressure can be slowly bled off until it is approximately 5 psi above the chart's reading.

Changing Between Refrigerant Types

While the G5Twin is designed to minimise refrigerant in the compressor crankcase, trace vapours may remain when switching refrigerant types. To prevent cross-contamination, draw any residual refrigerant into an evacuated cylinder. Subsequently, connect a vacuum pump to the G5Twin's output port (with the input valve closed and output valve open) to evacuate any remaining trace vapours.

Storing the Machine Between Uses

To minimise wear during storage, especially in warm conditions, leave both valves on the G5Twin open. Port caps can be used for protection from dirt, but they must not create an airtight seal.

Helpful Hints for Maximising Performance

Appion provides valuable tips to enhance recovery speed and efficiency:

• Tip #1: Output Restrictions: "Hammering" or "knocking" sounds during liquid recovery often indicate output restrictions (e.g., closed cylinder valves, core depressors in hoses). Removing these prevents high-pressure shutdowns and prolongs equipment life.
• Tip #2: Input Restrictions: Slow recovery or hot cylinders suggest input restrictions (e.g., core depressors, non-VCRT valves, worn hoses). These prevent liquid flow, causing inefficient vaporisation and heat build-up. Removing these is crucial for fast, cool recovery.
• Tip #3: Cylinder Cooling: Recovering large amounts of vapour, especially in warm weather, can increase cylinder temperature and back-pressure. Using an External Cooling Accessory (ECA) in an ice water bath can significantly speed up the process. The guide provides detailed instructions on constructing and using an ECA.
• Tip #4: Restrictions at Valves, Fittings & Hoses: Standard AC/R system components often restrict flow. Removing Schrader valve cores with a VCRT, using open-ended hoses, and opting for 3/8" hoses over restrictive fittings are key to faster recovery.
• Tip #5: Extension Cords and Low Voltage: Ensure adequate voltage reaches the machine (100-105% of rated power). Long or thin extension cords can cause voltage drop, leading to motor overheating. Adhere to the specified extension cord sizing guidelines.

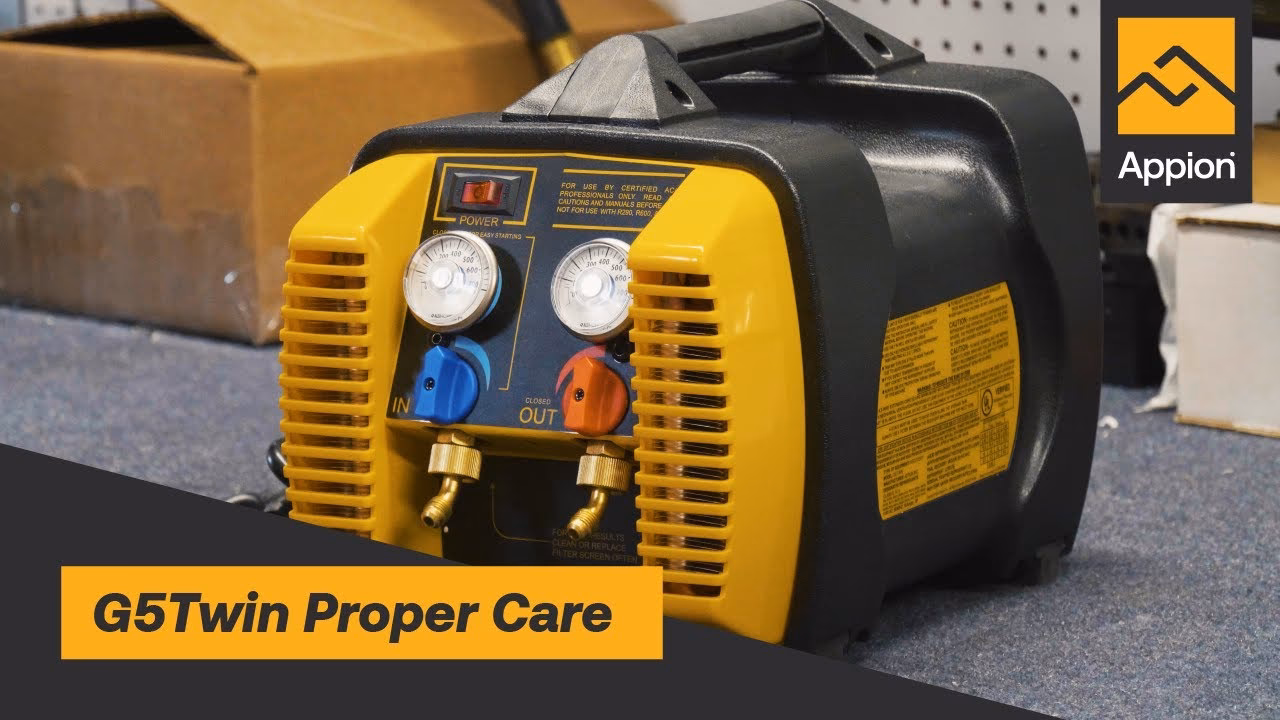

Care and Maintenance: Keeping Your G5Twin in Peak Condition

Regular maintenance ensures the longevity and optimal performance of your G5Twin:

• Inline Filter Dryers: Always use a new inline filter dryer when pumping dirty refrigerant to prevent compressor damage and voiding the warranty. Replace it regularly based on the filter's capacity.
• Screen Cleaning and Replacement: Clean the debris screen inside the input fitting before each use. Replace it if worn or damaged. The manual provides step-by-step instructions for cleaning and reassembly.
• Planned Maintenance: Using standard refrigeration oil to scavenge dirt and recondition seals can be beneficial, especially after recovering from burnout systems. Run the machine with oil in the input port (no hoses attached, valves open).
• 1-Minute Bench Test: Periodically perform this test to ensure the unit is functioning correctly. With the input valve open and output valve closed, the unit should pressure up and cut off at approximately 550 psi in under one minute.

Troubleshooting Common Issues

The manual includes a comprehensive troubleshooting guide for common symptoms:

Machine Specifications and Support

The G5Twin is available in both 115V (USA) and 230V (International) configurations, with detailed dimensions and weight provided. Performance specifications, including push-pull and direct liquid recovery rates for various refrigerants, are listed, along with residual refrigerant loss and vacuum capabilities. The manual also provides part numbers for essential repair kits and related accessories, such as filter dryers and valve core removal tools, ensuring you can maintain and enhance your equipment.

Manufacturer's Limited Warranty

Appion Inc. provides a one-year limited warranty against defects in materials and workmanship under normal use. The warranty covers repair or replacement of parts, provided the user notifies Appion, obtains return authorisation, and returns the equipment with prepaid transportation. The warranty is voided by modifications, improper use of chemicals, or unauthorised service. Appion disclaims all other warranties, express or implied, including merchantability and fitness for a particular purpose. The exclusive remedy is limited to the replacement of defective parts, and Appion is not liable for indirect, special, incidental, consequential, or punitive damages.

By adhering to the guidelines and procedures outlined in this comprehensive manual, you can ensure the safe, efficient, and long-lasting operation of your Appion G5Twin refrigerant recovery machine, making it an invaluable tool in your professional arsenal.
