Few things are as frustrating as a car alarm that simply won't behave. Whether it's blaring incessantly at all hours or has gone completely silent when you need it most, a malfunctioning alarm system can be a major headache for any Volvo owner. Often, the culprit is the dreaded 'Volvo Alarm System Required' message on your dashboard, a clear indicator that something isn't quite right with your vehicle's security. This issue is almost universally linked to a failing battery within the alarm siren module, leading to a cascade of annoying symptoms. But fear not, as this comprehensive guide will walk you through understanding, diagnosing, and ultimately fixing this common Volvo problem, ensuring your peace of mind and your neighbours' quiet nights.
Understanding Your Volvo's Alarm System
Before diving into the fixes, it's essential to grasp how your Volvo's alarm system functions and what the various warning messages signify.
What is "Volvo Alarm System Required"?
The 'Volvo Alarm System Required' or 'Alarm System Malfunction' message displayed on your dashboard is your car's way of telling you that its anti-theft system needs attention. This sophisticated system relies on a network of sensors strategically placed throughout your vehicle, including door sensors, motion sensors, and glass monitoring sensors. Their collective job is to detect any unauthorised intrusion or movement around the vehicle and, if necessary, alert passers-by with a high-pitched siren.
When the 'Volvo Alarm System Required' message appears, it points to an underlying issue within this intricate system. While there are several potential causes, the most frequent offender is a fault with the siren module itself. Should components within this module become faulty, this persistent message will illuminate your dashboard, often accompanied by a continuous alarm sound that cannot be easily silenced. Although there's typically no immediate mechanical impact on your Volvo's driving ability, a never-ending siren is undeniably inconvenient and can quickly drain your main car battery.
The Siren's Role
The alarm siren is a crucial component of your Volvo's security system. It's the part that produces the loud, attention-grabbing sound when an intrusion is detected. Think of it as the voice of your car's security. It contains its own internal power source – a small, rechargeable battery – which is vital for its operation. This self-contained unit ensures the siren can still function even if the main car battery is disconnected or tampered with by a thief. However, this internal battery is also the system's Achilles' heel, as its eventual failure is the root cause of most alarm system woes.
Why Your Volvo Alarm Siren Fails
While the symptom might be a blaring or silent alarm, the underlying causes are usually quite specific, with one standing out above the rest.
The Primary Culprit: Siren Module Battery
The overwhelming majority of 'Volvo Alarm System Required' issues, particularly those identified by the UEM-0004 fault code, stem from a failed battery within the alarm siren module. This internal battery, typically designed to last around ten years, eventually loses its ability to hold a charge. When this happens, the power supply to the alarm system is compromised, triggering the error message and often causing the alarm to sound continuously without interruption.
What makes this issue particularly problematic is that over time, a failing or dead battery can leak its corrosive electrolyte. This corrosion can then spread to the module's printed circuit board (PCB), causing irreversible damage. Once the PCB is corroded, simply replacing the battery might not be enough; the entire siren module may need to be replaced.
Other Potential Causes
While the siren module battery is the most common reason, other issues can also trigger alarm system malfunctions:
- Faulty Sensors: Your Volvo's alarm system relies on various sensors (door, motion, glass monitoring). If any of these sensors become faulty, they can send incorrect signals to the alarm module, leading to false alarms or system failures.
- Key Fob Issues: A low or dead battery in your key fob can prevent it from properly communicating with the car's immobiliser and alarm system, making it impossible to deactivate the alarm or even start the vehicle. A mismatched or defective key also falls into this category.
- Wiring Problems: Damaged, frayed, or loose wiring and connectors within the alarm system's circuit can disrupt communication and power supply, leading to erratic behaviour or complete system failure.
- Blown Fuses & Faulty Relays: Fuses protect electrical components from short-circuiting, while relays manage power flow. A blown fuse or a faulty relay within the alarm circuit can cut off power to the system, rendering it inoperable or causing a malfunction.
- Door Lock Malfunctions: A defective door lock, whether due to aging or mechanical/electrical issues, can sometimes trigger the alarm system if it doesn't correctly register as locked or unlocked.
- Faulty Alarm Module (General): Beyond the battery, the alarm module itself can simply fail due to internal component degradation or water ingress.
Recognising the Symptoms
Identifying the symptoms early can help you address the alarm issue before it escalates.
Dashboard Warnings

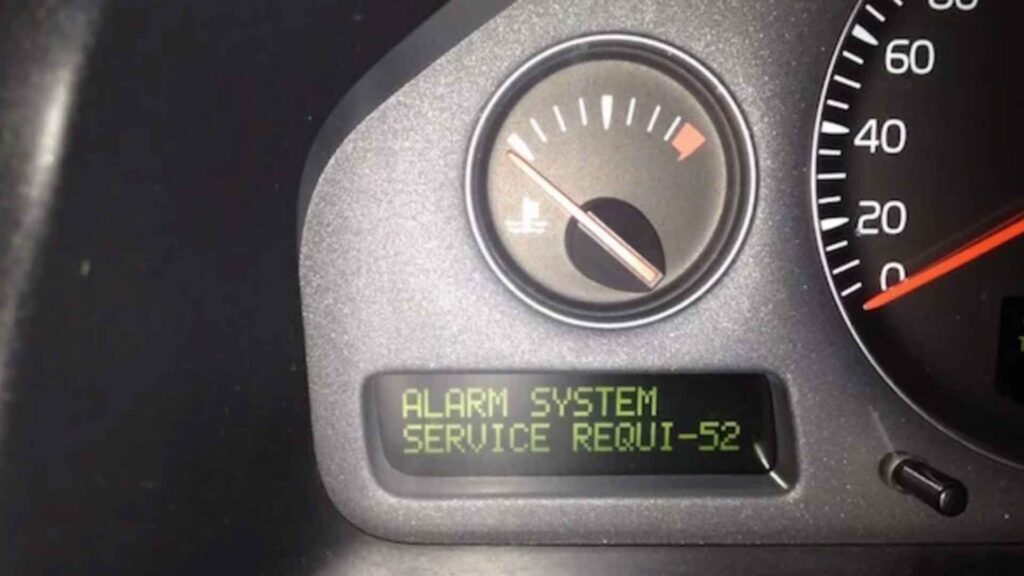

The most obvious sign of an alarm system problem is the appearance of a warning message on your dashboard. This will typically be 'Volvo Alarm System Required' or 'Alarm System Malfunction'. These messages indicate that the system has detected a fault and needs attention. An OBD-II scanner can often retrieve specific fault codes, such as UEM-0004, which directly points to the siren module communication fault.
The Persistent Siren
Another common and highly irritating symptom is a continuous alarm sound that simply won't turn off. This often occurs when the internal battery in the siren module fails. The module attempts to draw power from the main car battery, but its internal logic becomes confused, leading to the never-ending wail. This can quickly drain your main car battery, leaving you stranded.
Wider Vehicle Impacts
While primarily a security issue, a malfunctioning alarm system can have broader implications:
- Battery Drain: The constant siren sound or an active fault can continuously draw power, leading to a flat main car battery.
- Vehicle Won't Start: If the alarm system is actively triggered and the immobiliser is engaged, your Volvo may refuse to start. Pressing the unlock button on your key fob should deactivate the alarm and allow the engine to start, but if the key fob or alarm system itself is faulty, this might not work.
- Doors Cannot Unlock or Lock: In some cases, if the alarm system is in a state of active malfunction, it might prevent the central locking system from functioning correctly, making it difficult to lock or unlock your doors.
Diagnosing the Problem
Before reaching for your toolbox, a systematic approach to diagnosis can save you time and effort.
Utilising OBD-II Scanners
The first and most effective step is to use an OBD-II scanner. Connect it to your car's diagnostic port (usually located under the dashboard) and read any stored fault codes. As mentioned, UEM-0004 is a strong indicator of a siren module battery issue. Other codes might point towards specific sensor or communication faults. A good scanner will not only read codes but also allow you to clear them temporarily, which can sometimes resolve minor glitches.
Initial Checks
Beyond scanning, perform these simple visual and functional checks:
- Check Key Fob Battery: Ensure your key fob has a fresh battery. A weak key fob can mimic alarm system issues.
- Listen to the Alarm: Does it sound weak, intermittent, or continuous? This can provide clues.
- Check for Visual Damage: Look for any obvious signs of physical damage to sensors or wiring harnesses if accessible.
Fixing Your Volvo Alarm Siren: DIY Solutions
Once you've diagnosed the problem, there are several ways to fix it, ranging from temporary solutions to permanent repairs.
Temporary Relief: The Fuse Method
If your alarm is blaring non-stop and you need immediate relief, you can temporarily silence it by removing its fuse. Consult your Volvo's owner's manual to locate the fuse box (often under the bonnet or dashboard) and identify the specific fuse for the alarm system. Removing this fuse will cut power to the siren, stopping the noise. Be aware that this also disables the alarm system entirely, leaving your vehicle unsecured.
Permanent Solutions: Replacement Options
For a lasting fix, you generally have two main approaches:
- Replacing the Entire Siren Module: This is often the most straightforward and guaranteed solution, especially if the internal battery has leaked and caused corrosion to the circuit board. A new unit typically costs around £200-£250.
- Replacing Just the Battery: This is a more budget-friendly option, but it's also more involved and only viable if the circuit board within the module hasn't been damaged by battery leakage. It requires carefully opening the sealed unit and soldering in a new battery.
Comparison Table: Module vs. Battery Replacement
| Feature | Replacing Entire Module | Replacing Just the Battery |
|---|---|---|
| Cost | Higher (approx. £200-£250 for unit) | Lower (approx. £10-£20 for batteries) |
| Difficulty | Relatively straightforward | More complex, requires precision and soldering |
| Tools Required | Basic sockets, drill, ratchet | Saw/grinder, soldering iron, specific battery cells |
| Risk of Damage | Low (if done carefully) | Higher (risk of damaging circuit board when opening/soldering) |
| Guaranteed Fix | High (new unit, no existing corrosion) | Only if circuit board is not corroded |
| Time Required | 1-2 hours | 2-3 hours (more if complications arise) |
Step-by-Step Guide: Replacing the Alarm Siren Module
This procedure is generally applicable to many Volvo models, including P2 platform cars (S60, S80, V70 from the early 2000s).
Tools and Equipment You'll Need:
- 19mm socket and ratchet (for wheel nuts)
- 10mm socket (for wheel arch liner nuts)
- Drill with a 5mm bit (for rivet removal)
- Pliers (for rivet removal)
- Punch and hammer, or Dremel with cutting disc and flathead screwdriver (for shear-head bolt)
- New M6 10mm bolt (recommended for replacement)
- New alarm siren unit
- Jack and jack stands
Procedure:
- Prepare Your Vehicle: Park on a level surface, engage the handbrake. Jack up the front of your car and secure it safely on jack stands.
- Remove the Wheel: Using your 19mm socket, loosen and remove the wheel on the side where the siren module is located. For many UK Volvo models, especially P2, this is often the passenger's side (left-hand side), though some models may have it on the driver's side.
- Access the Siren Module: The siren module is typically located behind the wheel arch liner. You'll need to remove the liner to gain access. Start by drilling out the centre of the plastic rivets securing the liner to the bumper and wing, then pull them out with pliers. Next, use your 10mm socket to remove any plastic nuts (usually three) holding the liner to the inner chassis. Carefully pull the wheel arch liner away and out of the way.
- Locate and Unplug the Module: The siren module is a black box, often encased in a metal security case, mounted to the chassis. Unplug the electrical connector from the module.
- Remove the Old Module: The module is usually secured by a single shear-head bolt. These bolts are designed to snap off when tightened, preventing easy removal by thieves. To remove it, you can either:
- Use a punch and hammer to repeatedly tap the edge of the smooth bolt head in an anti-clockwise direction until it starts to loosen.
- Carefully cut a slot into the bolt head with a Dremel tool and then use a flathead screwdriver to turn it.
Once the bolt is removed, carefully pull the old siren unit out.
- Install the New Module: Position the new siren unit in place. Thread in the new M6 10mm bolt by hand, then use a T40 bit socket to tighten it until the head snaps off (as designed). Reconnect the electrical plug to the new module.
- Test (Optional but Recommended): Before reassembly, you might want to test the basic functionality if possible. However, full functionality and error message clearing often require a software download using Volvo's VIDA system by a professional technician.
- Reassemble: Re-fit the wheel arch liner, ensuring all nuts and new rivets are securely in place. Re-mount the wheel and tighten the wheel nuts to the manufacturer's specifications.
- Lower Vehicle: Carefully lower your vehicle off the jack stands.
Step-by-Step Guide: Replacing the Siren Battery
This method is more intricate and should only be attempted if you are confident in your soldering skills and the circuit board is not corroded.
Tools and Equipment You'll Need:
- All tools from the module replacement guide (to remove the unit)
- Saw or grinder (e.g., Dremel with a cutting disc)
- Flat bit/screwdriver
- Soldering iron and solder
- Wire strippers
- Heat shrink tubing or electrical tape
- New AA rechargeable batteries (e.g., NiMH) or button cell batteries, summing up to around 7.2V-7.4V (often 6x 1.2V AA cells or similar). Check your original battery pack configuration.
Procedure:
- Remove the Alarm Module: Follow steps 1-4 from the 'Replacing the Entire Siren Module' guide to remove the old alarm module from your vehicle.

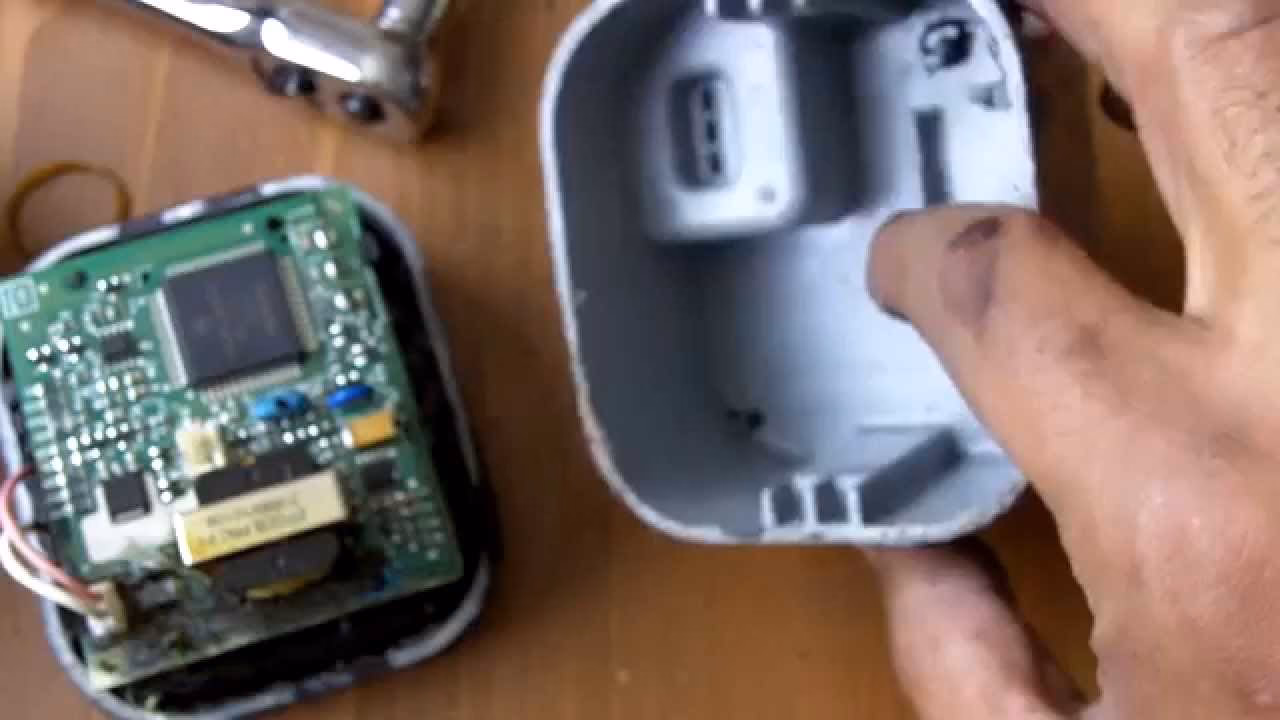

- Open the Alarm Unit: The alarm unit is typically a sealed plastic case, often inside a metal security shell. You'll need to carefully cut open the plastic unit to access the internal components. Start cutting slightly below the bottom grey plastic seam. Use a saw or grinder to make a clean, continuous cut around the perimeter. Be extremely careful not to cut too deep and damage the circuit board or internal components.
- Access and Disconnect the Old Battery: Once opened, you will see the circuit board and the old battery pack. Note how the old battery is connected (polarity). Desolder the wires connecting the old battery pack to the circuit board. Be mindful of any corrosion that may have occurred around the battery terminals on the PCB. If there's significant corrosion, this repair might not be viable.
- Prepare and Connect the New Battery: If using individual AA batteries, you may need to create a new battery pack by soldering them together in series to achieve the correct voltage (e.g., 6 x 1.2V AA batteries for 7.2V). Ensure you use rechargeable batteries. Attach the wires from your new battery pack to the correct points on the circuit board, matching the polarity of the old battery. Use your soldering iron for a secure connection. Apply heat shrink tubing or electrical tape to any exposed solder joints for insulation.
- Secure the New Battery: New batteries, especially AA cells, might be larger than the original pack. You may need to break or modify the original battery chamber/cage within the unit to accommodate the bigger batteries. Secure the new battery pack firmly within the unit, perhaps using strong double-sided tape or hot glue, ensuring it doesn't move or short-circuit.
- Reassemble the Unit: Carefully close the alarm unit. You'll need to secure the two halves back together. Strong electrical tape, high-strength adhesive, or even small screws can be used to hold it tightly. Once the plastic unit is sealed, place it back into its metal security case.
- Reinstall and Test: Re-attach the alarm module back into its position in the wheel arch. Refit the wheel arch liner and the wheel. Lower your vehicle. Test the alarm siren system to ensure it functions perfectly.
Beyond the Siren: General Troubleshooting Tips
Even if the siren module is the primary suspect, it's always good practice to perform broader checks.
- Battery Health Check: Use a battery tester or multimeter to check your main car battery's voltage. A voltage below 12.4 volts indicates a weak battery that might be contributing to electrical gremlins, including alarm issues. Ensure your key fob battery is also fresh.
- Wiring & Connection Inspection: Visually inspect any accessible wiring harnesses and connectors, especially around the main battery, alternator, and fuse boxes. Look for signs of looseness, fraying, corrosion, or burns. Loose connections can often be simply pushed back into place, while damaged wires may require replacement.
- Fuse Examination: Check all fuses related to the alarm system and central locking in your vehicle's fuse box. A damaged or melted fuse indicates an electrical issue. Always replace blown fuses with new ones of the exact same amperage. Never use a higher amperage fuse, as this can lead to serious electrical damage.
- System Reset: For minor glitches, sometimes a system reset can clear a warning light or error message. You can try disconnecting the car's main battery negative terminal for 30 minutes, or use an OBD-II scan tool to clear the fault codes.
Frequently Asked Questions (FAQs)
How can I prevent battery discharging if I have a faulty alarm?
To prevent your main 12V car battery from draining due to a continuously sounding or faulty alarm, you can temporarily disconnect the negative terminal of your 12V battery. You can then use the mechanical key (often hidden within your key fob) to manually lock and unlock your vehicle's doors. Be aware that this disables all electrical systems.
Will my Volvo start if the alarm system is disabled?
Yes, your vehicle can typically start if the alarm system is disabled (e.g., by removing its fuse). However, it's not advisable to drive with the alarm system permanently disabled, as it significantly increases the risk of theft and your vehicle will not be secured.
Can the vehicle be started if the siren is removed?
Removing the siren module itself will not solve the issue if the alarm system is in an 'active' or 'triggered' mode, as the immobiliser might still prevent the engine from starting. You can only start the vehicle once the alarm system is properly deactivated, usually by pressing the unlock button on your key fob or resolving the underlying fault.
How do I unlock my Volvo with a defective key while the alarm is active?
If your key fob isn't working to unlock the vehicle and deactivate the alarm, first try replacing the key fob battery. If that doesn't work, use the emergency key blade typically found inside your key fob. This mechanical key will unlock the driver's door manually, but it will likely not stop the alarm sound if it's already triggered. You'll then need to address the key fob or alarm system issue promptly.
What does it mean if my alarm activates unexpectedly?
If your Volvo's alarm activates without an obvious reason, it means the system's sensors (motion, door, glass) have detected something. First, check your vehicle for any signs of attempted theft or intrusion. Sometimes, it can be triggered accidentally if the alarm button on your key fob is pressed in your pocket, or by environmental factors like strong winds, vibrations, or even an insect inside the cabin if motion sensors are sensitive. However, frequent false alarms can also indicate a faulty sensor or module.
Conclusion
Dealing with a faulty Volvo alarm siren can be a nuisance, but as we've explored, it's a common issue with well-understood causes and clear solutions. The overwhelming majority of cases point to the failing internal battery of the alarm siren module. Whether you opt for a full module replacement or the more intricate battery swap, resolving this problem will not only silence that relentless siren but also improve your vehicle's overall battery life and restore its crucial security functions. While some of the repair steps, particularly those involving cutting and soldering, might seem daunting for the novice, they are entirely achievable for the keen DIY enthusiast. If you're unsure, however, don't hesitate to consult a professional Volvo technician. Ultimately, fixing your alarm system means a more comfortable ride, a secured vehicle, and finally, peace and quiet.
