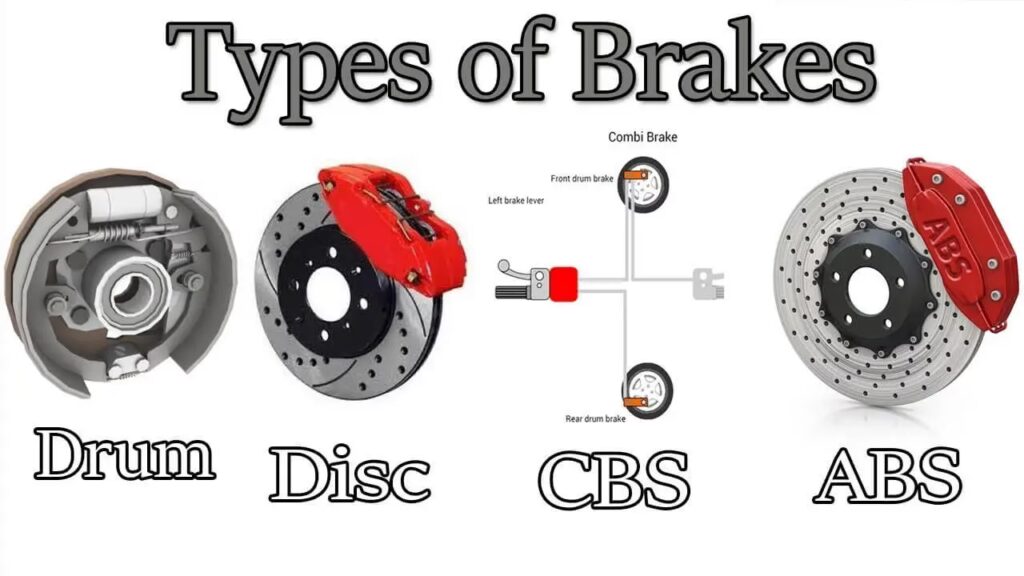

Brakes are arguably the most vital safety feature on any vehicle, and understanding how they operate is crucial for both maintenance and safe driving. While most people are aware that different vehicle types employ different braking technologies, the specifics can be a bit murky. This article aims to demystify the world of automotive braking by delving into the core differences between hydraulic and pneumatic brake systems, exploring their mechanisms, applications, and inherent benefits and drawbacks. At their heart, both hydraulic and pneumatic brakes share a common objective: to decelerate or completely halt a vehicle. They both rely on the principle of friction, utilising components like brake drums, pads, and shoes connected to the wheel axles to achieve this. However, the fundamental distinction lies in the medium used to transmit the stopping force from the driver's input to the braking mechanism at each wheel.
Hydraulic Brake Systems: The Workhorse of Passenger Cars
Hydraulic brake systems are the ubiquitous choice for passenger cars and light trucks. The term 'hydraulic' itself hints at their operational principle: the use of fluid to transmit force. These systems leverage brake fluid, a specially formulated liquid, to transfer the pressure applied to the brake pedal to the braking components at the wheels. When you depress the brake pedal, you are activating a master cylinder. This cylinder, filled with brake fluid, pushes the fluid through a network of brake lines. Because liquids are virtually incompressible, the pressure applied at the master cylinder is transmitted directly and equally to the wheel cylinders located at each wheel. Inside these wheel cylinders, pistons are forced outwards, pushing the brake shoes or pads against the brake drums or discs, thereby creating the friction needed to slow the vehicle.
How Hydraulic Brakes Work in Detail:
- Brake Pedal Input: The driver applies force to the brake pedal.
- Master Cylinder Activation: This force pushes a piston within the master cylinder.
- Fluid Displacement: The master cylinder forces brake fluid into the brake lines.
- Pressure Transmission: Due to the incompressibility of brake fluid, the pressure is transmitted equally and instantaneously throughout the hydraulic lines.
- Wheel Cylinder Action: In each wheel assembly, the fluid pressure acts on pistons within the wheel cylinders.
- Brake Actuation: These pistons push the brake pads or shoes against the rotor or drum, generating friction.
- Stopping: The friction converts kinetic energy into heat, slowing the vehicle.
Hydraulic systems are favoured for smaller vehicles due to their light construction and compact design. They require less space for their components compared to pneumatic systems, making them an ideal fit for the confined spaces within a typical car chassis. The lack of compressibility in brake fluid also ensures a responsive and immediate braking action, which is crucial for everyday driving. However, hydraulic brakes have limitations, particularly in heavy-duty applications. While robust for their intended purpose, they may not offer the sheer stopping power required for very heavy vehicles. Furthermore, a significant drawback is their vulnerability to leaks. A breach in the brake lines or a faulty master cylinder can lead to a loss of brake fluid, rendering the brakes inoperative. This is because the system is not inherently engaged; it relies on the presence and flow of fluid to function.Pneumatic Brake Systems: The Powerhouses of Heavy Vehicles
Pneumatic brake systems, often referred to as air brakes, are the standard for heavy-duty vehicles such as buses, tractor-trailers, and locomotives. The primary reason for their adoption in these applications is their immense stopping power and inherent safety features. Pneumatic systems operate on the principle of compressed air. Instead of brake fluid, these systems use air pressure to activate the brakes. Heavy vehicles, often weighing over 26,000 pounds, require a more robust and powerful braking mechanism, which air brakes provide.
How Pneumatic Brakes Work:
- Air Compressor: An engine-driven air compressor generates compressed air.
- Air Reservoir: The compressed air is stored in reservoirs.
- Brake Pedal/Valve: When the driver applies the brakes, a valve opens, allowing compressed air to flow from the reservoir to the brake chambers.
- Brake Chamber Actuation: The air pressure in the brake chambers pushes a diaphragm or piston.
- Slack Adjuster: This movement is transmitted through a slack adjuster to the S-cam or wedge mechanism.
- Brake Application: The S-cam or wedge forces the brake shoes outwards against the brake drum, creating friction.
- Brake Release: When the driver releases the brake pedal/valve, the compressed air is released from the brake chambers, and powerful springs return the brake shoes to their original position, disengaging the brakes.
A key characteristic of pneumatic brake systems is their 'fail-safe' design. They are typically held in the 'off' position by air pressure. If there is a loss of air pressure (e.g., a leak in a line), the brakes automatically engage due to the force of powerful return springs. This inherent safety mechanism makes them far more reliable in emergency situations compared to hydraulic systems. Heavy vehicles often incorporate several distinct air brake systems working in concert:
- Service Brakes: These are the primary brakes used during normal driving, activated by the brake pedal. They use compressed air to force the brake linings against the drums.
- Parking Brakes: These are typically spring-applied and air-released. They are activated by a separate valve, usually located on the dashboard. Pulling this valve releases the air pressure from the brake chambers, allowing the springs to engage the brakes and hold the vehicle stationary.
- Emergency Brakes: These systems are designed to activate in the event of a failure in the primary service brake system. They often utilise the parking brake mechanism or a portion of the service brake system to provide stopping power.
Hydraulic vs. Pneumatic Brakes: A Comparative Overview
| Feature | Hydraulic Brakes | Pneumatic Brakes |
|---|---|---|
| Working Medium | Brake Fluid | Compressed Air |
| Primary Use | Passenger Cars, Light Trucks | Heavy Trucks, Buses, Locomotives |
| Stopping Power | Good for lighter loads | Excellent, superior stopping power |
| Response Time | Very quick, direct | Slower due to air travel and compression |
| Complexity | Simpler system | More complex with compressor, reservoirs, air lines |
| Maintenance | Fluid checks, line integrity | Air system checks, leak detection, component wear |
| Safety (Failure) | Risk of brake failure due to fluid leaks | Fail-safe design; brakes engage on air loss |
| Cost | Generally lower initial cost | Generally higher initial cost |
| Weight/Space | Lighter and more compact | Heavier and requires more space for components |
Advantages and Disadvantages:
Hydraulic Brakes:* Advantages: Responsive, provides good feel, simpler design, lower cost, compact. * Disadvantages: Vulnerable to leaks, less stopping power for heavy loads, fluid contamination can be an issue. Pneumatic Brakes:* Advantages: Superior stopping power, fail-safe operation enhances safety, robust for heavy loads. * Disadvantages: Slower response time (brake lag), more complex system, higher initial cost, requires more maintenance for air system components.
Other Important Braking Enhancements:
Beyond the fundamental type of brake system, several other technologies can significantly enhance a vehicle's braking performance and safety: * Exhaust Brakes: Primarily found on diesel engines, exhaust brakes work by restricting the exhaust flow from the engine. This creates back pressure, which helps to slow the engine's rotation and, consequently, the vehicle. They are effective as a supplementary braking system, reducing wear on the primary service brakes, particularly during downhill descents. * Anti-Lock Braking Systems (ABS): ABS is a standard safety feature on most modern vehicles, regardless of whether they use hydraulic or pneumatic brakes. ABS prevents wheel lock-up during heavy braking by rapidly pulsing the brake pressure. This allows the driver to maintain steering control and significantly reduces stopping distances on most surfaces. Many insurance providers offer discounts for vehicles equipped with ABS.
Frequently Asked Questions:
- Why do trucks use air brakes and cars use hydraulic brakes?Trucks require significantly more stopping power due to their heavy loads, and air brakes provide this superior force. Passenger cars, being lighter, benefit from the responsiveness and compact design of hydraulic systems.
- What happens if a hydraulic brake line breaks?If a hydraulic brake line breaks, the brake fluid will leak out, and the brake system will lose pressure, rendering the brakes inoperative. This is a critical safety failure.
- What happens if an air brake line breaks on a truck?Due to their fail-safe design, if an air brake line breaks, the air pressure will be lost, and the brakes will automatically engage, stopping the vehicle. This is a key safety advantage.
- Can you convert a hydraulic system to pneumatic or vice versa?While technically possible, it is highly impractical and not recommended. The systems are fundamentally different and designed for specific vehicle types and load capacities. Such a conversion would be extremely complex and costly.
Conclusion:
Understanding the differences between hydraulic and pneumatic braking systems is essential for any vehicle owner or operator, especially those dealing with commercial vehicles. While hydraulic brakes are perfectly suited for the demands of passenger cars, pneumatic brakes offer the robust stopping power and safety features necessary for heavy-duty applications. By recognising the strengths and weaknesses of each system, drivers and fleet managers can make informed decisions regarding maintenance, troubleshooting, and the selection of vehicles with appropriate braking technologies.
