Setting Up Your Vehicle Diagnostic Unit: The Essential Toolkit
Embarking on the journey of vehicle diagnostics requires a well-equipped arsenal. Whether you're a seasoned mechanic or a budding enthusiast looking to understand your car's inner workings, having the right equipment is paramount. This guide will walk you through the fundamental components, specialised tools, and indispensable software that form the backbone of any effective vehicle diagnostic unit. From understanding the intricacies of engine management systems to pinpointing electrical faults, the right diagnostic equipment empowers you to diagnose and resolve issues with precision and confidence. Let's delve into what you'll need to create a truly functional and efficient diagnostic setup.
Core Diagnostic Equipment: The Foundation
At the heart of any diagnostic operation lies a set of core equipment that forms the foundation of your capabilities. These are the tools you'll reach for time and time again to get a baseline understanding of a vehicle's health.

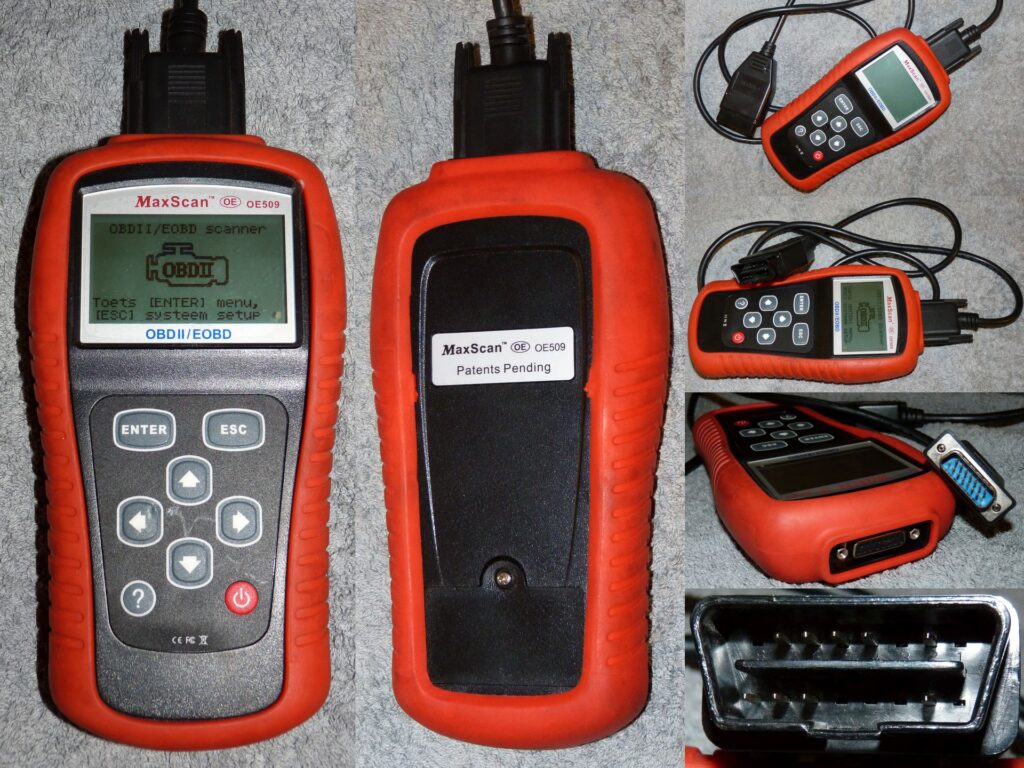

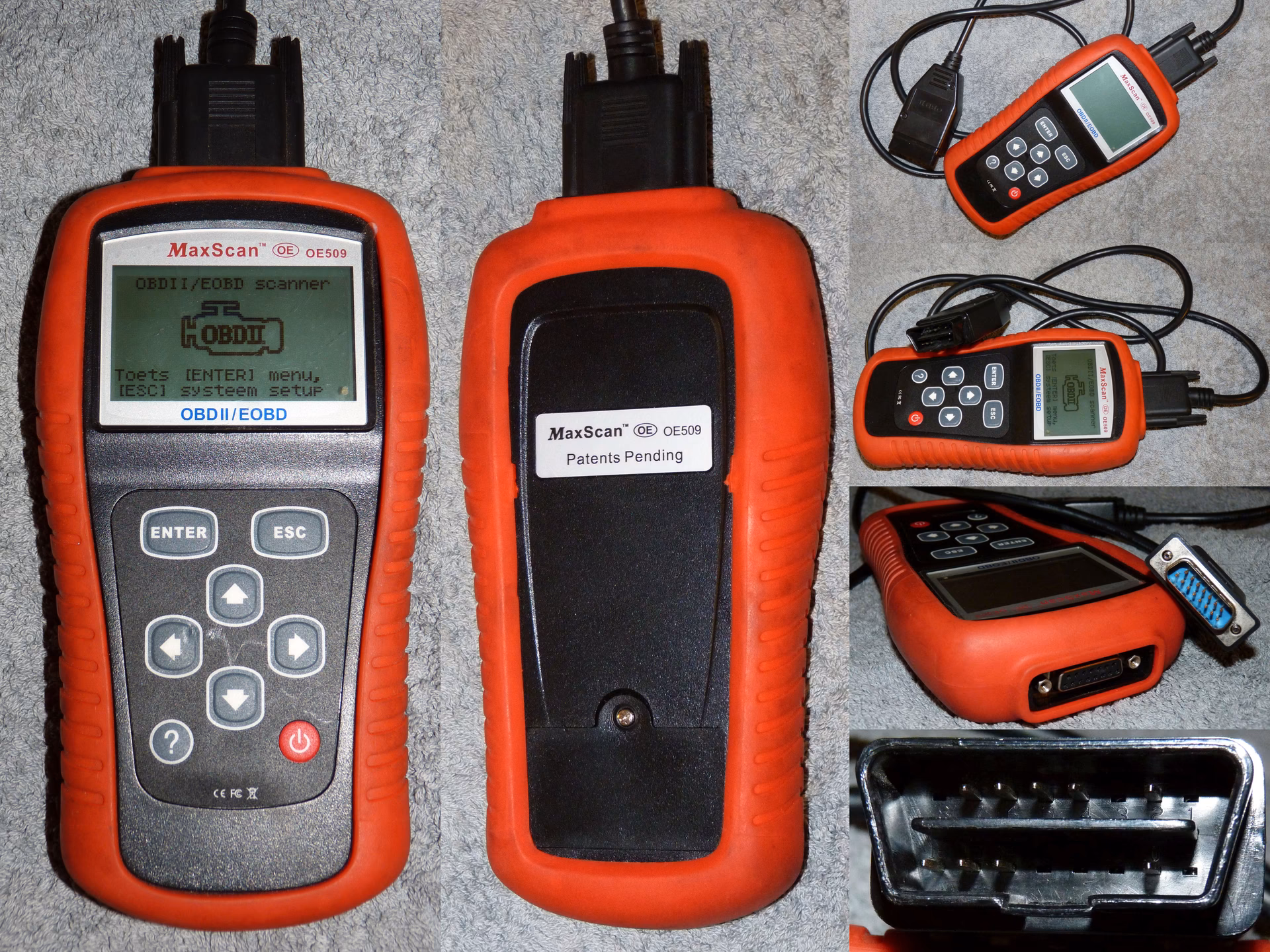

1. Diagnostic Scan Tools (OBD-II Scanners)
The On-Board Diagnostics II (OBD-II) system is a universal standard in modern vehicles, designed to monitor engine performance and emissions. A high-quality OBD-II scanner is your primary gateway to this system. These devices plug into the OBD-II port, typically located under the dashboard, and can read diagnostic trouble codes (DTCs) that indicate a problem. More advanced scanners can also retrieve live data streams from various sensors, perform component tests, and even reset certain vehicle systems.
When choosing a scanner, consider:
- Code Reading and Clearing: The basic function of any scanner.
- Live Data: The ability to view real-time sensor data (e.g., engine RPM, coolant temperature, throttle position) is crucial for diagnosing intermittent faults.
- Freeze Frame Data: Captures a snapshot of sensor data at the moment a DTC is triggered, providing valuable context.
- Bi-directional Control: Allows you to command specific components (e.g., fans, injectors) to test their functionality.
- Manufacturer-Specific Coverage: Some advanced scanners offer deeper access to manufacturer-specific modules and functions.
2. Multimeter
A reliable digital multimeter is an indispensable tool for any automotive technician. It allows you to measure voltage, current, and resistance in electrical circuits. This is vital for troubleshooting electrical issues, checking battery health, verifying sensor readings, and ensuring proper circuit continuity. Look for a multimeter with a good range of functions, including AC/DC voltage, AC/DC current, and resistance, as well as a continuity tester with an audible beep.
3. Oscilloscope
While a multimeter tells you the static value of an electrical signal, an oscilloscope displays it as a waveform over time. This makes it invaluable for diagnosing complex electrical and electronic problems. An automotive oscilloscope can help you visualise the performance of sensors (like crank or cam position sensors), ignition system components, and communication bus signals (like CAN bus). Understanding these waveforms allows for a much deeper level of diagnosis than is possible with a multimeter alone.
4. Jumper Wires and Test Leads
A good set of jumper wires and a variety of test leads with different connector types are essential for safely connecting your diagnostic equipment to various vehicle circuits and components. Ensure you have insulated alligator clips, probe tips, and back-probing tools to avoid short circuits and damage to sensitive electronic modules.
Specialised and Manufacturer-Specific Equipment
Beyond the core tools, many diagnostic tasks require specialised equipment tailored to specific vehicle systems or manufacturers. This ensures you can perform in-depth tests and maintenance procedures accurately.
1. Fuel Pressure Gauge
A fuel pressure gauge is used to measure the pressure within the fuel system. Low or fluctuating fuel pressure can lead to poor engine performance, misfires, and starting issues. You'll need a gauge with appropriate adapters to connect to various fuel rail ports found in different vehicles.
2. Compression Tester
A compression tester measures the pressure built up inside each cylinder during the compression stroke. Low compression in one or more cylinders can indicate issues like worn piston rings, damaged valves, or a blown head gasket. This tool is crucial for diagnosing engine mechanical problems.
3. Vacuum Gauge
A vacuum gauge measures the vacuum created in the engine's intake manifold. It can help diagnose issues related to intake leaks, exhaust restrictions, valve timing, and piston ring condition. Different vehicles have different vacuum levels at idle, so understanding typical readings is important.
4. Smoke Machine
A smoke machine introduces a dense, visible smoke into the intake or exhaust system. This allows you to easily identify leaks, particularly in the intake manifold, vacuum lines, and exhaust system, which can be difficult to detect visually. Leaks can cause rough idling, poor performance, and check engine lights.
5. Battery and Charging System Tester
While a multimeter can give you basic battery voltage, a dedicated battery and charging system tester provides a more comprehensive analysis. These testers can assess the battery's state of health (CCA - Cold Cranking Amps), check the alternator's output, and test the voltage regulator. A faulty battery or charging system can cause a myriad of electrical problems.
6. Manufacturer-Specific Diagnostic Software and Hardware
For deeper diagnostics, especially on newer or more complex vehicles, you may need manufacturer-specific diagnostic software and hardware interfaces. These tools provide access to advanced functions, such as module programming, key coding, software updates, and detailed system-specific tests that generic OBD-II scanners cannot perform. Examples include dealer-level diagnostic tools like VCDS (for VAG Group), ISTA (for BMW), or Techstream (for Toyota).
Supporting Equipment and Software
Beyond the primary diagnostic tools, several other items and software are crucial for an efficient and effective diagnostic unit.
1. Service Manuals and Technical Information
Access to up-to-date service manuals and technical information is non-negotiable. These resources provide detailed specifications, diagnostic procedures, wiring diagrams, and component locations specific to each vehicle model. Online subscription services or digital copies of manuals are invaluable.
2. Laptop or Tablet
Most modern diagnostic software runs on a laptop or tablet. This device will be used to run the diagnostic software, interpret data, research technical information, and potentially store diagnostic reports.
3. Assorted Hand Tools
You'll need a comprehensive set of hand tools, including sockets, wrenches, screwdrivers, pliers, and trim removal tools, to access various components and sensors for testing.
4. Safety Equipment
Safety first! Always have appropriate personal protective equipment (PPE) on hand, including safety glasses, gloves, and sturdy footwear. A fire extinguisher should also be readily accessible.
5. Diagnostic Software Updates
Ensure your diagnostic software and scan tools are kept up-to-date. Manufacturers frequently release updates to improve functionality, add new vehicle coverage, and address emerging issues.
Table: Essential Diagnostic Equipment Comparison
| Equipment | Primary Function | Key Benefits | When to Use |
|---|---|---|---|
| OBD-II Scanner | Read/Clear DTCs, Live Data | Quick fault identification, basic monitoring | Check Engine Light illuminated, performance issues |
| Multimeter | Measure Voltage, Current, Resistance | Diagnose electrical circuits, sensor checks | Electrical faults, battery checks, circuit testing |
| Oscilloscope | Visualize electrical signals as waveforms | Advanced electrical diagnosis, sensor waveform analysis | Intermittent electrical issues, sensor signal faults |
| Fuel Pressure Gauge | Measure fuel system pressure | Diagnose fuel delivery problems | Poor engine performance, starting issues, fuel system concerns |
| Compression Tester | Measure cylinder compression | Diagnose engine mechanical health | Engine power loss, misfires, rough running |
Frequently Asked Questions
Q1: Do I need a different diagnostic tool for every car brand?
A1: While a universal OBD-II scanner can read basic codes for most vehicles manufactured after 1996, many manufacturers have proprietary systems. For advanced diagnostics, module programming, and specific tests, manufacturer-specific tools or advanced multi-system scanners are often necessary.
Q2: How often should I update my diagnostic software?
A2: It's recommended to update your diagnostic software whenever new updates are released by the manufacturer. These updates often include new vehicle coverage, improved functionality, and bug fixes that are crucial for accurate diagnostics.
Q3: Is an oscilloscope really necessary for a home mechanic?
A3: While not strictly essential for basic tasks, an oscilloscope significantly enhances your ability to diagnose complex electrical and electronic issues that a multimeter cannot. If you're serious about in-depth automotive diagnostics, it's a highly valuable investment.
Q4: What's the difference between a code reader and a professional diagnostic scanner?
A4: A basic code reader typically only reads and clears DTCs. A professional diagnostic scanner offers much more functionality, including live data streaming, freeze frame data, bi-directional control, component testing, and access to manufacturer-specific systems.
Conclusion
Building a comprehensive vehicle diagnostic unit is an investment in your ability to understand and maintain vehicles effectively. By gathering the essential core equipment, supplementing it with specialised tools as needed, and ensuring you have access to up-to-date technical information, you'll be well-equipped to tackle a wide range of diagnostic challenges. Remember that continuous learning and staying current with automotive technology are as important as the tools themselves. With the right setup and knowledge, you can confidently diagnose and resolve even the most complex vehicle issues.
