Toyota 4Runner Oil Change: A DIY Guide

Maintaining your Toyota 4Runner is key to its longevity, and perhaps no task is more fundamental yet often overlooked than the regular oil change. While modern vehicles often feature complex digital oil life indicators, the classic 1st (1984-1989) and 2nd (1990-1995) Generation Toyota 4Runners, revered for their rugged simplicity, rely on good old-fashioned mileage tracking. This comprehensive guide will walk you through everything you need to know to perform a thorough oil and filter change on your beloved 4Runner, ensuring it continues to serve you faithfully on and off the road. By tackling this vital maintenance yourself, you not only save on garage fees but also gain a deeper understanding and appreciation for your vehicle.

The Crucial Role of Engine Oil

Engine oil is the lifeblood of your vehicle. It performs several critical functions: it lubricates moving parts, reducing friction and wear; it helps cool the engine by carrying heat away from hot areas; it cleans the engine by suspending dirt and contaminants, preventing sludge build-up; and it protects against rust and corrosion. Over time, oil degrades due to heat, oxidation, and contamination from combustion by-products. This degradation reduces its effectiveness, leading to increased wear, reduced fuel efficiency, and potentially severe engine damage. Regular oil changes are therefore non-negotiable for preserving your 4Runner's engine health.

Understanding Your 4Runner's Oil Needs

The first and second generation Toyota 4Runners were offered with either a 2.4L I4 (four-cylinder) engine or, from 1987 onwards, a 3.0L V6 engine. While some later 2nd Gen models might have approved synthetic oils (e.g., 0W-30), most of these early 4Runners typically use a conventional multi-grade oil, such as SAE 10W-30 or 10W-40.

Conventional vs. Synthetic vs. Blends:

• Conventional Oils: These are petroleum-based and have been the standard for decades. They are generally more affordable but break down faster under extreme conditions like high heat or heavy towing, as they contain impurities that refining cannot completely remove.
• Synthetic Oils: Man-made in laboratories, synthetic oils offer superior performance, especially in extreme hot and cold temperatures. They resist breakdown much better than conventional oils, offering extended change intervals. While typically more expensive, their long-term benefits can outweigh the initial cost.
• Synthetic Blends: As the name suggests, these are a mix of conventional and synthetic oils. They aim to provide some of the benefits of synthetic oil at a more accessible price point, offering a good compromise. Modern synthetic oils are generally compatible with conventional oils, meaning mixing them (e.g., topping up with a different type) is not usually an issue, provided the SAE grade and API service category remain consistent.

API Service Categories:

The American Petroleum Institute (API) sets standards for motor oil quality. Since 2001, several "service categories" have been introduced to accommodate engine advancements: SJ (pre-2001), SL (pre-2004), SM (pre-2010), and the current category, SN (from October 2010). Each upgrade improves upon the last, designed for modern engine requirements like higher internal temperatures, turbocharging, and ethanol-containing fuels. These categories are backward compatible but not forward compatible. For your older 4Runner, using an oil with the current SN rating is generally a safe and beneficial choice, even if an older rating is listed in your handbook.

Viscosity Grades:

The "W" in 10W-30 stands for "winter," indicating the oil's viscosity (thickness) at low temperatures. The second number denotes its viscosity at operating temperature. For most climates, 10W-30 is an excellent all-around choice for the 1st and 2nd Gen 4Runner. If you operate your vehicle in consistently warmer climates, a slightly higher viscosity like 10W-40 might be considered, though many modern service centres opt for lighter grades across the board. The most important rule is to ensure all the oil you use for a change is of the same grade, service category, and ideally, the same brand.

Oil Capacities:

Always consult your vehicle's handbook for the precise oil capacity, as variations can occur. However, general guidelines for these generations are:

• 2.4L I4 (22R or 22R-E): Approximately 4.5 quarts (4.26 litres)
• 3.0L V6 (3VZ-E): Approximately 5 quarts (4.73 litres)

It's often recommended to add slightly less than the full capacity initially (e.g., 4.8 quarts for the V6) and then top up gradually after checking the dipstick, allowing for oil expansion when the engine reaches operating temperature.

Change Intervals:

For conventional petroleum-based oils, a change every 5,000 miles (approximately 8,000 km) is typically recommended, or every 3,000 miles (approximately 4,800 km) for harsh driving conditions (e.g., frequent towing, off-roading, extreme temperatures). With synthetic oils, intervals can extend to 10,000 miles (16,000 km) or more in some modern vehicles. However, for older, hard-working 4x4s like the 4Runner, many experienced owners still advocate for a 5,000-mile interval, even with synthetics, to ensure optimal protection.

Essential Tools and Materials

Before you begin, gather everything you'll need. Having the right tools makes the job much smoother and safer.

Step-by-Step Oil Change Procedure

Safety First: Always ensure your vehicle is on a level surface, the parking brake is engaged, and the engine is off before working underneath it. If using a jack, always support the vehicle with sturdy jack stands.

Step 1: Warm Up Engine and Prepare

Start the engine and let it run for a few minutes. You want the oil to be warm, not scalding hot. Warm oil flows more easily, allowing contaminants to drain out effectively. Hot oil is a burn hazard. Once warm, switch off the engine. Open the bonnet and secure it with the prop rod. Loosen or remove the oil filler cap located on the engine's valve cover. This helps the oil drain more freely by preventing a vacuum.

Step 2: Drain the Engine Oil

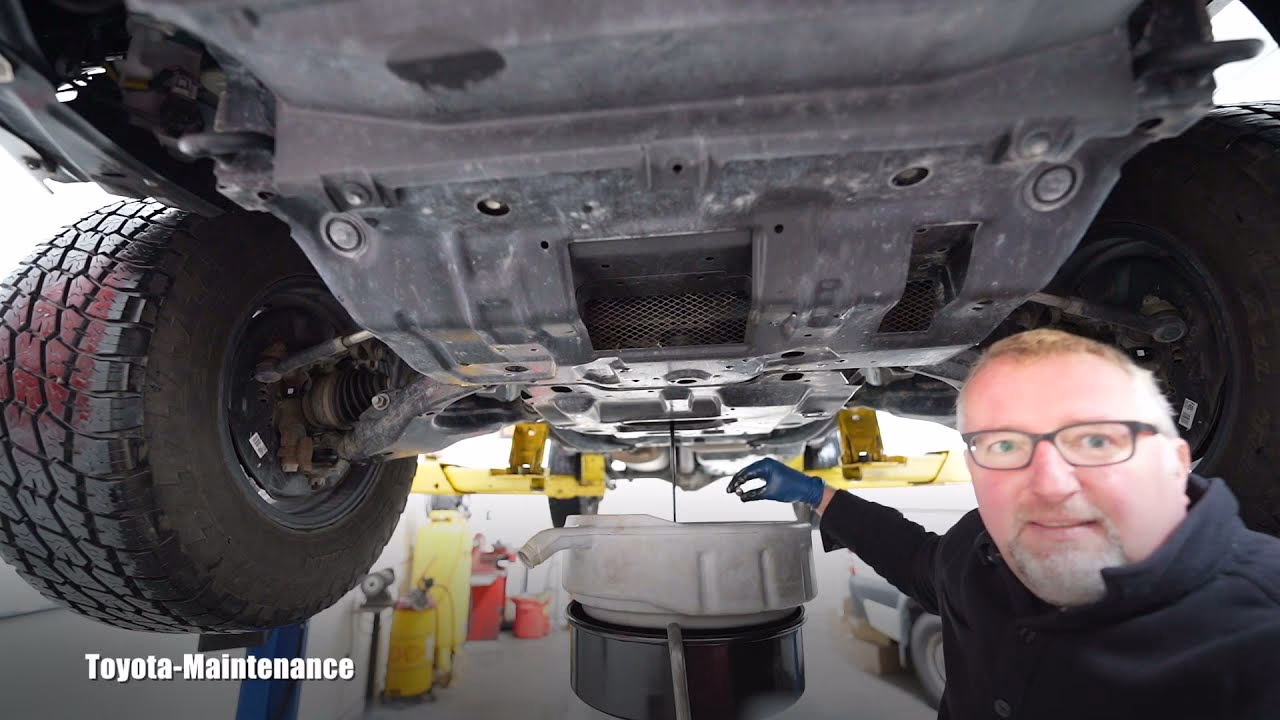

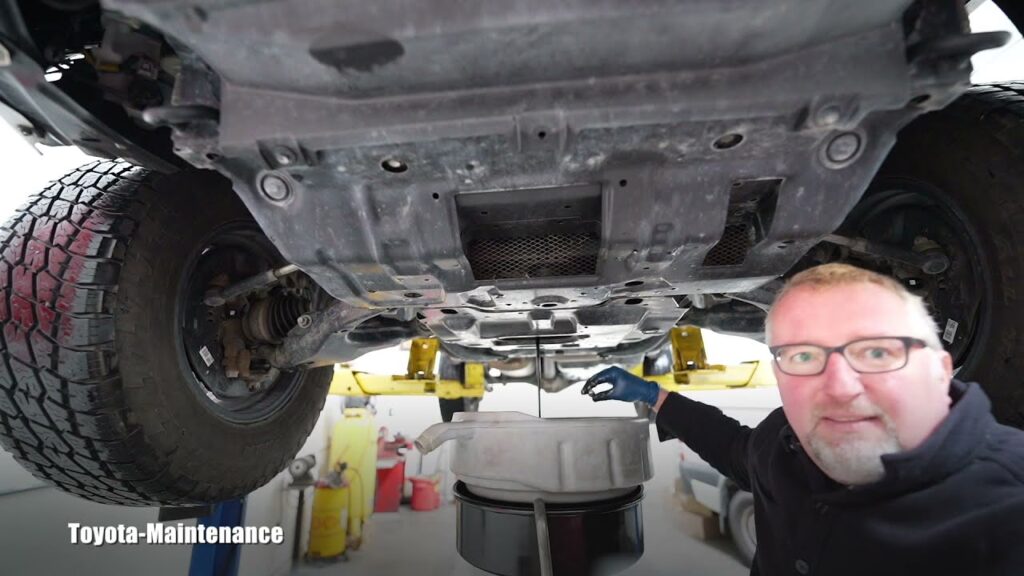

Locate the oil pan drain plug. On your 4Runner, it's typically on the driver's side, at the lowest point of the oil pan. Position your oil drain pan directly underneath the plug. Using a 14mm box wrench, carefully loosen the drain plug. Once loose, quickly remove the plug by hand to minimise spillage. Be prepared for the oil to gush out. Let the oil drain completely for several minutes until it's reduced to a slow drip. Don't forget to retrieve the crush washer or gasket seal from the drain plug; this should ideally be replaced with a new one to ensure a leak-free seal.

Step 3: Remove the Front Skid Plate

The oil filter on these 4Runners is located behind the front skid plate, which needs to be removed for access. Supporting the skid plate with one hand, use a 12mm socket wrench to remove the four bolts securing it to the undercarriage. Carefully lower the skid plate and set it aside.

Step 4: Remove the Oil Filter

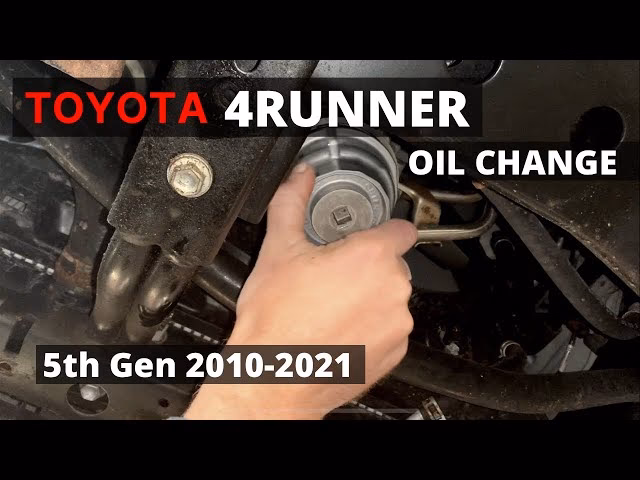

The oil filter is also on the driver's side of the engine block, above the oil pan. Access can be tight. Position a second catch pan (or carefully move your main drain pan if the oil flow has stopped from the drain plug and you've replaced it) directly under the oil filter. Using your 73mm/14-flute cap-style oil filter wrench with a 3/8" socket wrench and extension, loosen the oil filter. Once loose, carefully unscrew it by hand. Be aware that more oil will drain from the filter as you remove it. Place the old filter open-end down into your drain pan to capture any remaining oil.

Step 5: Install the New Oil Filter and Replace Drain Plug

Before installing the new filter, use a clean rag to wipe down the oil filter attachment location on the engine block. Dip a finger in some clean, new engine oil and smear a thin bead of oil onto the rubber gasket seal of the new filter. This lubrication is crucial as it helps create a tight seal and prevents the gasket from sticking, making future removal easier. Carefully engage the threads of the new filter and screw it on by hand until it's snug. Then, give it another 1/8 to 1/4 of a turn with your cap wrench. Be careful not to overtighten, as this can deform the filter and make removal extremely difficult next time. If you removed the drain plug earlier, ensure the new crush washer is on it and re-install the plug into the oil pan. Tighten it securely, but do not overtighten. For the 2.4L I4, approximately 18 lb/ft (25 Nm) is sufficient, and for the 3.0L V6, around 33 lb/ft (44.5 Nm).

Step 6: Refill with New Oil

With the new filter installed and the drain plug tightened, it's time to add the fresh oil. Place a clean funnel into the oil filler hole on the valve cover. Refer to the capacities mentioned earlier: approximately 4.5 quarts for the 2.4L I4 and 5 quarts for the 3.0L V6. Pour in the new oil slowly. Once you've added most of the required amount (e.g., 4 quarts for the I4, 4.5 quarts for the V6), replace the oil filler cap. Start the engine and let it run for about a minute to circulate the new oil, then switch it off. Wait a few minutes for the oil to settle, then pull out the dipstick, wipe it clean, reinsert it fully, and pull it out again to check the oil level. Add small amounts of oil as needed until the level is between the 'low' and 'full' marks on the dipstick. Remember, it's better to be slightly under the full mark than over, as oil expands when hot. If you raised the front of the vehicle, ensure it's back on level ground before checking the final oil level for accuracy.

Step 7: Check for Leaks and Reinstall Skid Plate

With the oil level confirmed, let the engine run for a few more minutes while you visually inspect underneath the vehicle for any leaks around the drain plug or the oil filter seal. If no leaks are detected, switch off the engine. Reinstall the front skid plate using the four 12mm bolts you removed earlier. Tighten them securely.

Congratulations! You've successfully completed an oil and filter change on your Toyota 4Runner.

Frequently Asked Questions (FAQs)

How often should I change my oil?

For conventional oil, every 5,000 miles (8,000 km) or 3,000 miles (4,800 km) if you drive under harsh conditions. For synthetic oil, while some manufacturers suggest longer intervals, many 4Runner enthusiasts recommend sticking to the 5,000-mile mark due to the age and typical usage of these vehicles.

Can I mix different brands or types of oil?

While generally not recommended as a regular practice, modern oils (especially those with the same SAE grade and API service category) are typically compatible for mixing, such as when topping up. However, for a full oil change, it's best to use the same brand and type of oil to ensure consistent performance and protection.

What happens if I overfill the engine oil?

Overfilling your engine with oil can be as damaging as underfilling. Too much oil can cause aeration (foaming) as the crankshaft whips it up, leading to reduced lubrication and increased wear. It can also create excessive pressure within the engine, potentially damaging seals and gaskets, leading to leaks.

Why is removing the skid plate necessary?

The front skid plate protects vital components underneath your 4Runner, including the oil filter. Due to the tight access and the location of the oil filter behind this plate, removing it is essential to gain adequate access for both removal of the old filter and installation of the new one without unnecessary difficulty or damage.

How do I reset the oil life indicator on my 4Runner?

It's important to note that the 1st (1984-1989) and 2nd (1990-1995) Generation Toyota 4Runners, which this article primarily addresses, do not typically feature a digital "oil life indicator" that requires a complex electronic reset. Instead, owners of these classic vehicles track their oil change intervals based on mileage using the odometer or a simple logbook. The "reset" for these models is simply acknowledging the previous oil change and noting the mileage for the next scheduled service. For newer 4Runner models, the reset procedure involves specific button presses on the dashboard, but this functionality is not present in the earlier generations discussed here.

By following these steps, you'll ensure your Toyota 4Runner remains a reliable and capable companion for many more miles and adventures. Regular maintenance, especially oil changes, is the cornerstone of a long-lasting vehicle.
