The Enduring Appeal of Toyota's 22RE Engine
In the realm of automotive engineering, certain powerplants achieve a status that transcends mere mechanical function; they become legends. Toyota's 22R series, and particularly its fuel-injected iteration, the 22RE, is undoubtedly one such engine. Debuting in 1981, with the sophisticated fuel-injected 22RE following closely in 1982, this 2.4-litre, four-cylinder engine quickly established a reputation for robust construction and unwavering reliability. Its production run, spanning from 1981 through 1995, saw it power some of Toyota's most iconic vehicles, cementing its place in automotive history as a true workhorse.
A Legacy of Innovation and Dependability
The 22RE was essentially an evolution of the carburetted 22R, incorporating advanced (for its time) electronic fuel injection. This upgrade significantly improved fuel efficiency, throttle response, and overall performance compared to its predecessor. The engineers at Toyota designed this engine with longevity and simplicity in mind, a philosophy that resonated deeply with consumers who valued vehicles that could withstand the rigors of daily use and off-road adventures. The commitment to quality and a straightforward design meant that the 22RE was not only powerful but also relatively easy to maintain and repair, contributing to its enduring popularity.
Key Specifications and Variations
The core of the 22RE engine is its 2.4-litre displacement. Throughout its production, the engine maintained a consistent bore of 3.62 inches and a stroke of 3.50 inches, resulting in a total displacement of approximately 2.4 litres (2366 cc). The compression ratio remained steadfast at 9.3-to-1, a figure that balanced power output with the ability to run on standard unleaded petrol. The fuel-injected 22RE and its emissions-compliant sibling, the 22REC (which met strict California emissions standards), typically produced between 105 and 112 horsepower. Torque figures generally ranged from 187 to 192 foot-pounds, providing ample grunt for hauling loads and tackling challenging terrain. These figures, while modest by today's standards, were highly competitive for a four-cylinder engine of its era and were delivered with a smooth, consistent power band.
Engine Design and Features:
The 22RE is an inline-four cylinder engine featuring an overhead camshaft (OHC) driven by a timing chain. The use of a timing chain, rather than a belt, is a significant factor in the engine's renowned durability, as chains are generally designed to last the lifetime of the engine, unlike belts which require periodic replacement. The engine block was typically constructed from cast iron, known for its strength and heat dissipation properties, while the cylinder head was made of aluminium for weight savings and improved thermal efficiency. The fuel injection system, a crucial component of the 22RE, was a multi-point fuel injection (MPFI) system, delivering fuel precisely to each cylinder for optimal combustion.
Turbocharged Variants:
For those seeking a bit more excitement, Toyota also offered turbocharged versions of the 22R series. Designated as the 22RET or 22RTE, these engines featured a turbocharger that boosted performance significantly. However, these turbocharged models had a shorter production run, available only from 1985 to 1988. While offering increased power, the turbo variants were often considered slightly less robust than their naturally aspirated counterparts due to the added stress on internal components. Nevertheless, they provided a thrilling driving experience for enthusiasts.
Vehicles Equipped with the 22RE
The versatility of the 22RE engine allowed Toyota to install it in a wide array of its popular vehicles. Its most common applications include:
- Toyota Hilux (North America): From 1985 to 1995, many Hilux pickup trucks were powered by the 22RE, making them incredibly popular for both work and recreation.
- Toyota 4Runner: This iconic SUV, from its early generations (1985-1995), relied heavily on the 22RE for its go-anywhere capability and dependable performance.
- Toyota Celica: Certain models of the Celica coupe, specifically from 1983 to 1985, also featured the 22RE, offering a blend of sporty design and reliable daily transport.
- Toyota Pickup (North America): Beyond the Hilux badging in some markets, the 22RE was a staple in Toyota's compact pickup truck line-up in North America throughout the 1980s and 1990s.
Common Issues and Maintenance Tips
While the 22RE is renowned for its reliability, like any engine, it can develop issues over time, especially with age and mileage. Understanding these common problems can help owners proactively maintain their engines.
1. Head Gasket Failures:
Perhaps the most frequently discussed issue with the 22RE is head gasket failure. Over time, the original head gasket can degrade, leading to coolant leaks into the combustion chamber or oil passages. Symptoms include white smoke from the exhaust (coolant burning), oil in the coolant, or coolant in the oil. A preventative head gasket replacement with a quality aftermarket part is often recommended for higher-mileage engines.
2. Timing Chain Slap:
Although the timing chain is designed for longevity, the tensioner can wear out, leading to a rattling or slapping noise, particularly on startup. This is often accompanied by a loss of low-end torque. While not always an immediate failure, it's advisable to address this by replacing the timing chain, tensioner, and guides to prevent potential valve-to-piston contact if the chain were to jump a tooth.

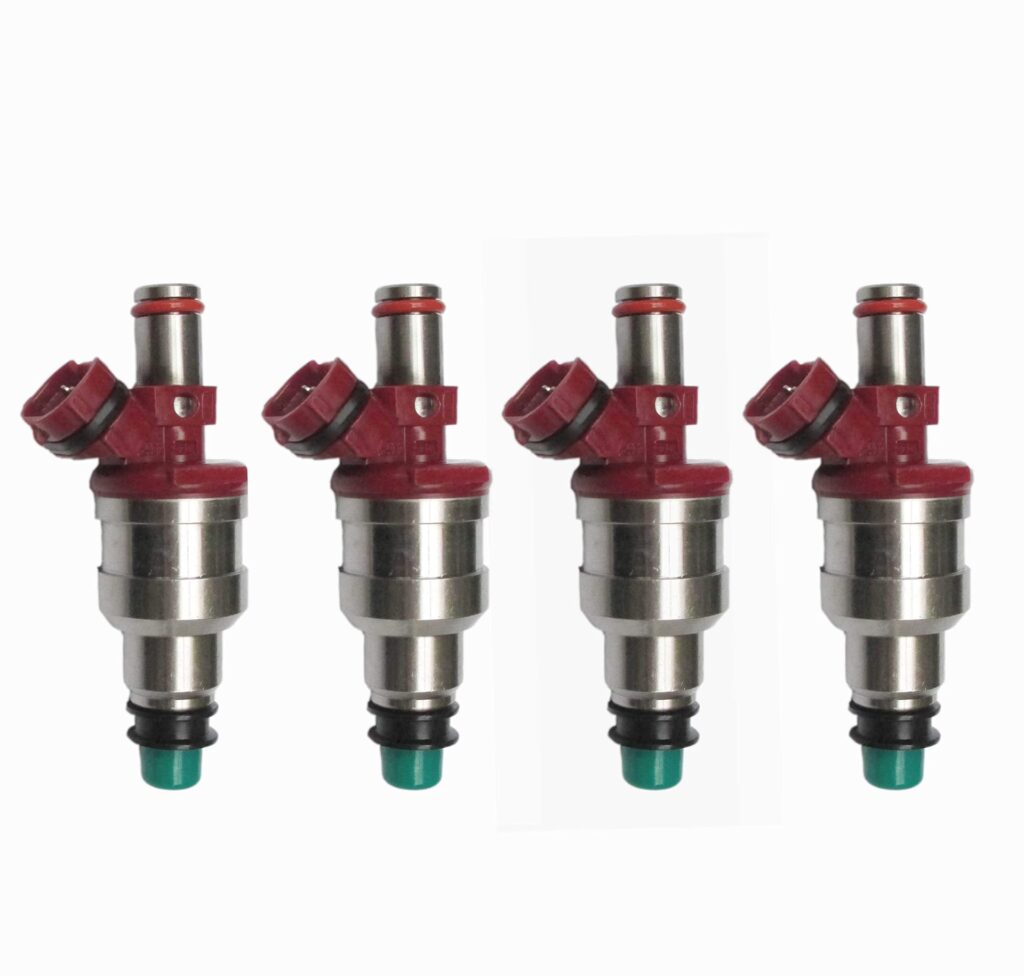

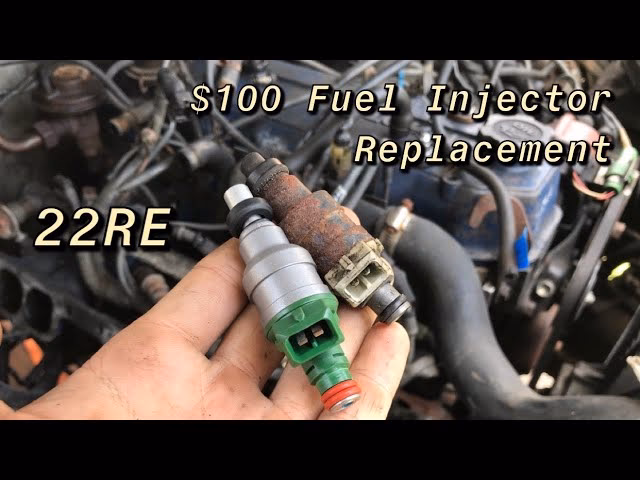

3. Fuel Injector Issues:
Like any fuel injection system, the injectors on the 22RE can become clogged or fail over time. This can result in rough idling, misfires, or a general loss of power. Cleaning or replacing the fuel injectors can resolve these symptoms.
4. Oil Leaks:
Common areas for oil leaks on the 22RE include the valve cover gasket, oil pan gasket, and the front and rear main seals. These are typically addressed during routine maintenance or when other work is being done on the engine.
5. Overheating:
While not solely an engine issue, the cooling system is vital. Radiator leaks, failing water pumps, or clogged coolant passages can lead to overheating. Regular coolant flushes and inspections of the cooling system components are essential.
Maintenance Schedule:
Adhering to a regular maintenance schedule is crucial for keeping your 22RE running smoothly for years to come. Here’s a general guideline:
| Maintenance Item | Recommended Interval |
|---|---|
| Oil and Filter Change | Every 3,000-5,000 miles (or as per owner's manual) |
| Coolant Flush | Every 30,000 miles or 2 years |
| Spark Plugs | Inspect every 30,000 miles, replace as needed |
| Timing Chain and Guides | Inspect for noise/wear, replace proactively around 100,000-150,000 miles if possible |
| Fuel Filter | Every 30,000 miles |
| Belts (Alternator, Power Steering) | Inspect for wear and tension regularly, replace as needed |
Why the 22RE is Still Coveted Today
The enduring appeal of the 22RE engine in the modern automotive landscape can be attributed to several factors. Its mechanical simplicity makes it a favourite among DIY mechanics and custom builders. Furthermore, its inherent robustness means that many of these engines are still operational with hundreds of thousands of miles on the odometer, a testament to Toyota's engineering prowess. Enthusiasts often seek out vehicles equipped with the 22RE for their overland builds, off-road projects, and daily drivers, valuing its dependable nature and the associated community support. The availability of aftermarket parts and the wealth of knowledge shared within the Toyota community further contribute to the engine's lasting legacy.
Frequently Asked Questions (FAQs)
- Is the 22RE an interference or non-interference engine?
The 22RE is generally considered a non-interference engine. This means that if the timing belt (or chain) were to break, the pistons would not collide with the valves, preventing catastrophic internal damage. However, it's always best to maintain the timing system diligently. - What is the typical lifespan of a 22RE engine?
With proper maintenance, a 22RE engine can easily last 300,000 miles or more. Many examples have exceeded 400,000 and even 500,000 miles. - Can I upgrade my 22R to a 22RE?
Yes, it is possible to convert a carburetted 22R to a fuel-injected 22RE, but it involves significant modifications, including the fuel system, wiring harness, and ECU. - What kind of oil should I use in my 22RE?
Consult your owner's manual for the specific oil viscosity. Typically, a 10W-30 or 10W-40 conventional or synthetic oil is recommended, depending on climate and driving conditions. - Are parts still available for the 22RE?
Yes, parts for the 22RE are widely available, both from dealerships (for some items) and a robust aftermarket industry that caters specifically to these engines.
Conclusion
The Toyota 22RE engine stands as a paragon of automotive engineering, embodying the principles of reliability, durability, and practical performance. Its widespread use in beloved Toyota trucks and SUVs, coupled with its ability to withstand the test of time, has earned it a devoted following. Whether you're a seasoned mechanic or a new owner, understanding the nuances of the 22RE will ensure that this legendary powerplant continues to serve you faithfully for many years to come.
