190E Wiring & Drivetrain Explained

The Mercedes-Benz 190E, a stalwart of automotive engineering from the 1980s, continues to capture the hearts of enthusiasts with its timeless design and robust build quality. For those looking to maintain or enhance these classic machines, understanding their intricacies is paramount. This guide delves into two key areas often pondered by 190E owners: the vehicle's wiring system and the practicalities of modifying its drivetrain, specifically focusing on the driveshaft. Whether you're embarking on a restoration, a performance upgrade, or simply troubleshooting an electrical gremlin, this information aims to provide clarity and actionable insights.

Understanding the 1985 190E Wiring

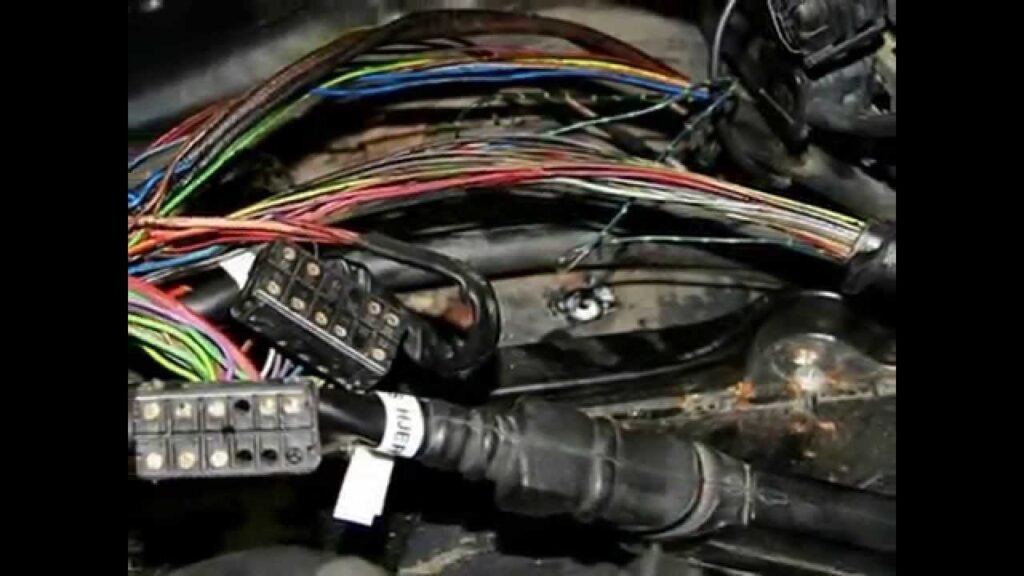

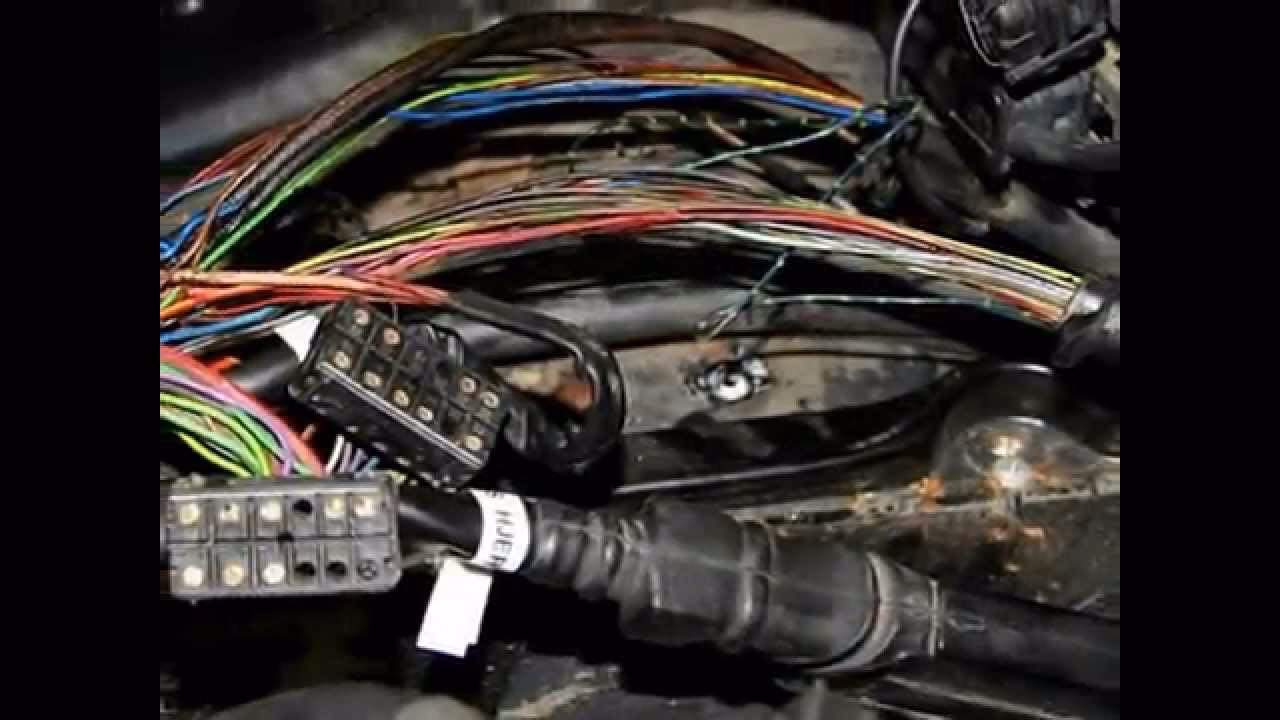

The electrical architecture of a 1985 Mercedes-Benz 190E, while sophisticated for its era, can present challenges for modern mechanics. These vehicles, often designated by chassis codes like W201, feature a complex network of wiring harnesses designed to manage everything from engine control to interior lighting. Reliability is a hallmark, but age can introduce issues like brittle insulation, corroded connections, and failing components.

Common Wiring Issues and Solutions

Several common electrical gremlins can affect a 190E:

• Frayed or Corroded Wires: Over time, the insulation on wiring harnesses can degrade, leading to short circuits or intermittent failures. Inspecting harnesses, particularly in high-moisture areas or near heat sources, is crucial. Repairing frayed wires often involves carefully stripping the insulation, cleaning the conductor, and using heat-shrink tubing or quality electrical tape for insulation. For corroded connections, cleaning with a contact cleaner and a brass brush, followed by a dielectric grease application, can restore conductivity.
• Faulty Ground Points: Poor grounding is a frequent cause of electrical problems. Ensure all ground straps and connections are clean, tight, and free from corrosion. Common ground points include the engine block, chassis, and battery terminals.
• Ignition System Wiring: Problems with the ignition system, such as misfires or no-start conditions, can often be traced back to wiring faults in the distributor, ignition coil, or related sensors.
• Lighting and Accessory Circuits: Issues with headlights, taillights, or interior accessories might stem from faulty switches, relays, or wiring within those specific circuits.

Accessing Wiring Diagrams

To effectively diagnose and repair wiring issues, access to the correct wiring diagrams is indispensable. These diagrams illustrate the colour coding of wires, the function of each component, and the routing of the wiring harnesses. You can typically find these in factory service manuals or reputable online automotive repair databases. Having the correct diagram for your specific model year and engine is essential for accurate troubleshooting.

Drivetrain Modifications: The Driveshaft Challenge

The mention of splicing a driveshaft on a 190E often arises in the context of engine and transmission swaps, particularly when integrating more powerful or different drivetrains. The user's reference to using a 6-speed transmission from an R170 SLK and planning for an M104 engine swap with a turbo setup and standalone ECU highlights a common upgrade path. This involves ensuring the drivetrain components can handle increased power and torque.

Why Modify the Driveshaft?

When swapping a transmission or engine, the length and/or diameter of the original driveshaft may no longer be suitable. A driveshaft that is too long or too short can lead to vibration, premature wear on universal joints (UJs), or even catastrophic failure. For performance applications, a stronger driveshaft might be necessary to cope with higher horsepower and torque outputs.

Driveshaft Splicing: A Technical Overview

Driveshaft splicing, in essence, involves modifying an existing driveshaft or fabricating a new one to achieve the correct length and, sometimes, to accommodate different UJ sizes or mounting flanges. This is a precision job that requires specialized tools and expertise.

The Process (General):

1. Measurement: Accurate measurement of the required driveshaft length is the first critical step. This is typically done with the engine and transmission installed and the suspension at its normal ride height.
2. Material Selection: If fabricating or significantly modifying a driveshaft, selecting the appropriate tubing material (often seamless steel or aluminium) is important for strength and weight.
3. Cutting and Preparation: The original driveshaft (or the tubing for a new one) is cut to the precise length. The ends must be prepared for welding or joining, ensuring a clean and true surface.
4. Joining: This is the most critical stage. The two sections of the driveshaft are precisely aligned and joined, typically through welding. For strength and to maintain balance, a strong, high-quality weld is paramount. Often, an internal sleeve is used to reinforce the joint.
5. Balancing: Once joined, the driveshaft *must* be dynamically balanced. An unbalanced driveshaft will cause severe vibrations at speed, potentially destroying the transmission, differential, and UJs. Professional driveshaft shops have the equipment to balance driveshafts to very high tolerances.

Considerations for the 190E Drivetrain Swap

As noted by the user, integrating a 6-speed from an R170 SLK into a 190E is a popular choice. These transmissions are known for their durability and ability to handle increased power, especially when paired with engines like the M104. When performing such a swap:

• Transmission Mounts: Custom transmission mounts will likely be required.
• Driveshaft Adaptation: The UJ and flange at the transmission end will need to match the SLK gearbox, while the UJ and flange at the differential end will need to match the 190E differential (or any upgraded differential being used). This often necessitates a custom driveshaft.
• Differential: The stock 190E differential might not be strong enough for a turbocharged M104. Upgrading to a stronger differential, possibly from a different Mercedes model, might be necessary, which in turn could affect the required driveshaft companion flange.
• Engine Management: As mentioned, a standalone ECU is a wise choice for managing a modified engine, especially a turbocharged one, allowing for precise fuel and ignition control.

Alternative to Splicing: Custom Driveshafts

While splicing can be a cost-effective method, many enthusiasts opt for having a completely custom driveshaft made by a specialist. This involves providing the specialist with precise measurements and specifications, and they will fabricate a new driveshaft from scratch using appropriate materials and ensuring it is perfectly balanced. This is often the safest and most reliable option for high-performance applications.

Frequently Asked Questions

Q: Can I just buy an aftermarket driveshaft for a 190E engine/transmission swap?
A: While some aftermarket companies might offer driveshafts for popular swaps, it's often not the case for more unique combinations. Custom fabrication or modification is usually required.

Q: How much does it cost to have a driveshaft modified or custom-made?
A: Costs vary significantly depending on your location, the complexity of the job, and whether you're modifying an existing shaft or having one made from scratch. Expect anywhere from a few hundred pounds for basic modifications to over £500 for a fully custom, balanced unit.

Q: Is it safe to splice a driveshaft myself?
A: Unless you have professional welding equipment, a deep understanding of metallurgy, and access to a dynamic balancing machine, it is strongly advised against attempting to splice a driveshaft yourself. The risks of catastrophic failure are extremely high.

Q: What are the signs of a failing driveshaft?
A: Common signs include vibrations that increase with speed, a clunking noise when shifting into gear or accelerating, and excessive play in the UJs.

In conclusion, while the 1985 Mercedes-Benz 190E is a well-engineered vehicle, modifications, especially those involving drivetrain swaps, demand careful attention to detail. Understanding the intricacies of its wiring and the precise requirements for driveshaft adaptation is key to a successful and reliable build. For critical components like the driveshaft, professional expertise and equipment are highly recommended to ensure safety and performance.
