VW 1.9 TDI: A Deep Dive

The Volkswagen 1.9 TDI engine is a name synonymous with durability, economy, and robust performance in the automotive world. From its inception in the early 1990s, this diesel powerplant has graced countless models across the Volkswagen Group, including Audi, Skoda, and SEAT, and even found its way into Ford vehicles. Revered for its longevity and its ability to offer impressive fuel efficiency without sacrificing drivability, the 1.9 TDI has cemented its place as one of the most successful and widely appreciated diesel engines ever produced. This article delves into the intricacies of this remarkable engine, exploring its technical heart, its various iterations, and the reasons behind its enduring appeal.

The Genesis: Early 1.9 TDI and the AAZ

Volkswagen's foray into turbodiesel technology saw the introduction of the 1.9 TDI engine in 1991, initially appearing in the Volkswagen Passat B3. These early iterations laid the groundwork for what would become a legendary engine family. The core of these early engines featured a robust cast iron cylinder block, a forged crankshaft with a stroke of 95.5 mm, and pistons with a diameter of 79.5 mm, resulting in the characteristic 1.9-litre displacement (1896 cc).

The answer to the specific query about the first AAZ turbodiesel is that it utilised an aluminium single-shaft 8-valve cylinder head with pre-combustion chambers. This design featured intake valves measuring 36mm in diameter and exhaust valves of 31mm, with a valve stem diameter of 8mm. These early engines were typically paired with turbochargers like the Garrett TB0261 or the KKK K03, often without an intercooler, operating at a boost pressure of around 0.7 bar. They produced approximately 75 horsepower and 150 Nm of torque, featuring a mechanical fuel injection system and a compression ratio of 22.5.

Evolution of Direct Injection: The 1Z and Beyond

The evolution of the 1.9 TDI saw a significant shift towards direct injection technology, beginning with engines like the 1Z. This marked a departure from the pre-combustion chamber design, adopting a direct injection cylinder head. These heads featured slightly different valve dimensions: 35.9mm for intake and 31.5mm for exhaust, with a reduced valve stem diameter of 7mm. The 1Z engine, produced between 1991 and 1996, introduced electronic fuel injection, different piston designs, and a lower compression ratio of 19.5. It was equipped with a Garrett GT1544S turbocharger and an intercooler, boosting power to 90 hp and torque to 202 Nm at 1900 rpm, with a higher boost pressure of 0.95 bar. This move to direct injection significantly improved efficiency and performance.

Key 1.9 TDI Engine Variants and Their Specifications

The 1.9 TDI engine family is vast, with numerous codes denoting specific configurations and emissions standards. Here's a look at some of the most prominent:

Power and Torque Figures

The versatility of the 1.9 TDI is evident in its varied power outputs. Across the different models and years, power figures ranged from a modest 68 hp at 3,700 rpm to a more potent 110 hp at 4,150 rpm. Torque also saw a significant spread, from 140 Nm available across a wider band of 2000-3000 rpm in some variants, to a strong 235 Nm delivered at a low 1900 rpm in the higher-output models. This broad spectrum of performance allowed the 1.9 TDI to be adapted for everything from small hatchbacks to larger saloons and MPVs.

Fuel Economy: A Hallmark of the TDI

One of the most celebrated aspects of the 1.9 TDI is its exceptional fuel efficiency. For a vehicle like the Volkswagen Golf Mk3 equipped with this engine, the figures were remarkably low. In urban driving, consumption typically hovered around 6.8 litres per 100 km. On the open road, this could drop to an impressive 4.4 litres per 100 km, resulting in a combined cycle figure of approximately 5.0 litres per 100 km. These figures, particularly for their time, set a benchmark for diesel economy and contributed significantly to the engine's popularity among cost-conscious drivers.

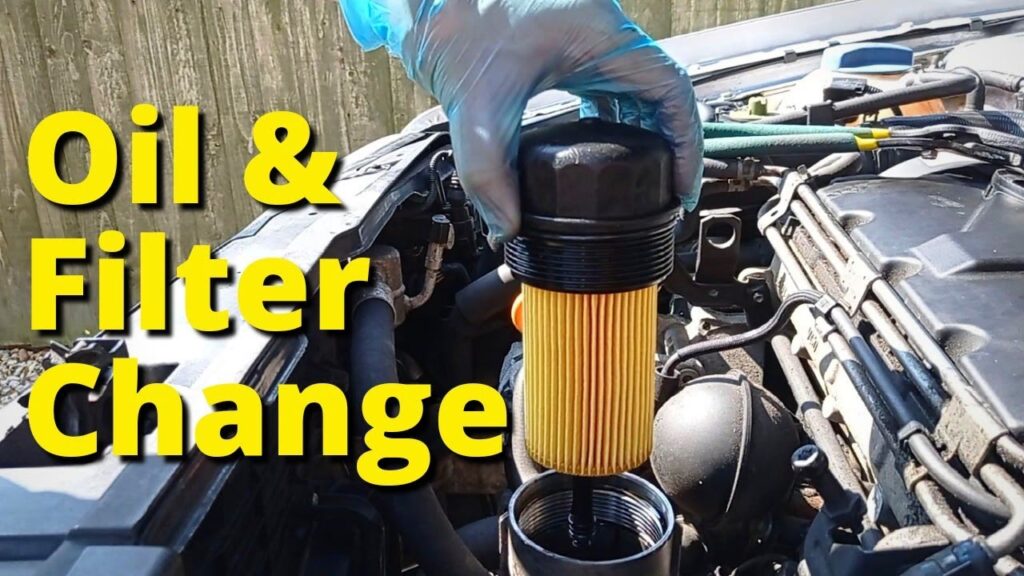

Oil and Maintenance Essentials

Proper maintenance is key to unlocking the full potential and longevity of any engine, and the 1.9 TDI is no exception. The recommended engine oils typically include viscosities such as 5W-30, 5W-40, and 10W-40. The engine's oil capacity is generally around 4.3 litres. The oil change interval can vary, but a common recommendation is between 7,500 and 15,000 km, depending on driving conditions and the specific oil used. While these engines are known for their robustness, it's worth noting that oil consumption can be up to 500 grams per 1000 km, which is within acceptable limits for a well-used diesel engine.

Crucially, the timing belt, which drives the camshaft, requires regular replacement. This is a critical maintenance item, and failure to adhere to the recommended schedule (often around 60,000 km) can lead to catastrophic engine damage. The timing belt is driven by a toothed belt, a common feature in many modern engines.

Reliability and Longevity: The 400,000 km Club

The 1.9 TDI's reputation for reliability is legendary. While manufacturers rarely specify an exact engine lifespan, anecdotal evidence and owner experiences consistently show these engines surpassing 400,000 kilometres, and often much more, with diligent maintenance. This incredible longevity is a testament to the robust engineering and quality of components used in their construction. They are generally not overly sensitive to fuel quality, though using reputable fuels is always advisable.

Common Issues and Troubleshooting

Despite their overall reliability, like any engine, the 1.9 TDI can develop specific issues over time:

• White Smoke in AAZ engines: This particular symptom on the older AAZ models is often attributed to cracks in the cylinder head. Replacing the cylinder head is typically the required solution.
• Loss of Traction/Power: A common cause for a noticeable drop in performance is a fault with the boost control solenoid valve, often referred to as the N75 valve. If this component fails or becomes clogged, it can prevent the turbocharger from delivering optimal boost pressure. If replacing the N75 valve doesn't resolve the issue, a more in-depth diagnostic check is necessary, as wear and tear on various engine components can contribute to power loss.
• Turbocharger Wear: While the turbochargers are generally robust, they can eventually suffer from wear, leading to reduced boost or oil consumption.
• Glow Plugs: Like all diesel engines, glow plugs can fail, leading to hard starting in cold weather.

Tuning the 1.9 TDI

The inherent strength of the 1.9 TDI makes it a popular choice for enthusiasts looking to enhance performance through tuning. Chip tuning, which involves reprogramming the engine control unit (ECU), can yield significant gains. For the 110 hp variants (like the AFN), a well-executed chip tune can often increase power to 140-150 hp and boost torque beyond 300 Nm. Even the 90 hp models can typically be tuned to around 110 hp with torque figures in the 250-260 Nm range. While more extreme tuning is possible, it's often considered that beyond these levels, the gains may not justify the potential stress on older components, especially in cars that have already covered substantial mileage.

Applications Across the Board

The widespread adoption of the 1.9 TDI engine is a testament to its success. It powered a vast array of vehicles, including:

• Volkswagen: Caddy, Golf, Vento/Bora, Passat, Polo, Sharan
• Audi: A3, A4, A6, Cabrio
• Skoda: Octavia
• SEAT: Alhambra, Cordoba, Ibiza, Leon, Toledo
• Ford: Galaxy

The Enduring Legacy

The Volkswagen 1.9 TDI engine represents a golden era of diesel technology. Its blend of impressive fuel economy, robust build quality, and remarkable longevity has earned it a dedicated following. While newer technologies have emerged, the 1.9 TDI remains a benchmark for reliable, efficient, and enjoyable diesel motoring. For many, it's not just an engine; it's a symbol of enduring quality and a powerplant that truly stood the test of time.

Key Takeaways:

• The first AAZ turbodiesel used an 8-valve aluminium head with pre-combustion chambers.
• The 1.9 TDI evolved from pre-chamber to direct injection, improving efficiency.
• Variants like the AFN introduced Variable Geometry Turbochargers (VNT) for better response.
• These engines are renowned for their exceptional reliability and long service life.
• Common issues include the N75 valve for power loss and potential cylinder head cracks on older AAZ models.
