ZZR600 Brake Upgrade: Ditching OE Tokicos

For many owners of the venerable Kawasaki ZZR600, particularly models from the late 90s and early 2000s, the topic of front braking performance often comes with a sigh of resignation. The original equipment (OE) Tokico calipers, while functional in theory, have gained a notorious reputation for being, well, frankly, a bit rubbish. Riders frequently report issues ranging from sticky pistons to an infuriating inability to bleed them properly, leading to a spongy lever and a distinct lack of confidence when it matters most. If you've been living with this frustration, constantly squeezing your brake lever halfway back to the bars just to get some discernible stopping power, then you're not alone. The good news is, there's a highly effective and popular solution that can transform your ZZR600's braking from a liability into a genuine asset.

The common consensus among ZZR600 enthusiasts is that the OE Tokico calipers are often problematic. Many owners have diligently attempted to restore them, embarking on multiple strip-downs, thorough cleaning sessions, and even full seal replacements, including dust seals and bleed nipples. Despite these efforts, the issues persist. Pistons might remain stubbornly sticky, but the real bane of existence for many is the sheer difficulty in achieving a firm, consistent brake feel due to persistent air bubbles that seem impossible to purge. This isn't usually down to a lack of mechanical aptitude; rather, it appears to be an inherent characteristic of these particular calipers, making proper bleeding an arduous and often fruitless endeavour. The result? A perpetually soft brake lever that inspires anything but confidence when you need to shed speed quickly.

The Nissin Caliper Revolution for ZZR600

Having reached the end of their tether with the lacklustre Tokicos, many ZZR600 owners have turned to an incredibly effective upgrade: swapping out the problematic OE calipers for a set of Nissin calipers. These can often be sourced from various donor bikes, with popular choices including the Honda CBR954RR Fireblade or CBR600 models, which utilise four-pot Nissin calipers. The transformation in braking performance is consistently described as nothing short of staggering, providing immediate, tangible feedback and a firm lever feel that restores confidence and control.

Why Nissin Calipers?

The superiority of Nissin calipers in this application isn't just anecdotal. There are several design and material differences that contribute to their improved performance and reliability:

• Ease of Bleeding: Unlike their Tokico counterparts, Nissin calipers are generally far easier to bleed effectively, allowing technicians and DIY mechanics alike to achieve a firm lever much more quickly and reliably. This eliminates the frustrating struggle with trapped air that plagues the OE units.
• Piston Material: Many Nissin calipers feature ceramic pistons. This is a significant advantage over the metal pistons often found in older Tokico units. Ceramic pistons are less prone to corrosion and heat transfer, which reduces the likelihood of them seizing in the caliper bores. This contributes to smoother operation and greater longevity, even without constant maintenance.
• Consistent Performance: The combination of easier bleeding and more resilient piston materials means that Nissin calipers tend to offer more consistent and reliable braking performance over time, requiring less frequent intervention to maintain optimal function.

Overcoming the Mounting Challenge

While the performance benefits of a Nissin caliper swap are clear, there's a minor hurdle to overcome: the mounting bolt sizes. The OE Tokico calipers on the ZZR600 typically utilise M10 mounting bolts, whereas the compatible Nissin calipers often use M8 bolts. This difference requires a clever solution to ensure a secure and safe fitment.

Mounting Bolt Solutions:

Several options have been successfully employed by enthusiasts to address this discrepancy:

1. Alloy Tubing Sleeves: One straightforward approach is to use 10mm alloy tubing as a sleeve within the M10 fork leg mounting holes, then secure the M8 Nissin calipers with M8 bolts of the correct length. This is a simple and cost-effective method, provided the tubing is robust enough and fits snugly.
2. Drilling and Tapping: A more permanent solution involves carefully drilling out the M8 mounting lugs on the Nissin calipers to 9mm, and then tapping them with an M10 thread. This requires precision and the right tools, ensuring the new threads are strong enough to withstand braking forces.
3. Shouldered Bolts (Recommended): Perhaps the most elegant and widely adopted solution involves sourcing specialised M10 shouldered bolts that feature an M8 thread at their ends. Companies like Ondrives in the UK have been known to supply these. This option eliminates the need to modify the calipers or fork legs significantly and provides a secure, engineered solution. These bolts are typically made from hardened steel and are designed to meet stringent industrial standards (e.g., ISO 7379), offering peace of mind regarding shear strength under braking loads.

Regardless of the chosen method, it's crucial to ensure the calipers are perfectly centralised on the brake disc. This often requires placing a couple of M8 washers between the fork legs and the calipers to achieve optimal alignment. Additionally, some minor filing of the overcasting on the upper fork leg mounting point might be necessary, particularly on the right fork leg, to ensure adequate clearance for the larger Nissin caliper body.

Installation and Initial Impressions

Once the mounting challenge is addressed, the rest of the installation is relatively straightforward. Swapping brake hoses from the old Tokicos to the new Nissins is a simple task. The real magic happens during the bleeding process. Many report that while initial bleeding might take a little time if air is trapped in the system, the Nissins bleed up significantly faster and more effectively than the Tokicos. The immediate result of a successful bleed is a dramatically firmer lever and instant, responsive braking. Riders consistently describe the difference as 'night and day' – suddenly, there's genuine feedback from the brakes, allowing for precise control without having to squeeze the lever halfway to the handlebars. This newfound responsiveness transforms the riding experience, making the ZZR600 feel far more capable and confidence-inspiring.

Beyond the Calipers: Complementary Upgrades

While the caliper swap itself offers a monumental improvement, there are other considerations and complementary upgrades that can further enhance your ZZR600's braking system:

• Braided Brake Lines: If your ZZR600 still has its original rubber brake lines, which could be 15 years old or more, upgrading to braided stainless steel lines is highly recommended. Rubber lines can expand under pressure, leading to a spongy feel. Braided lines resist this expansion, providing a firmer, more direct feel at the lever and ensuring maximum pressure is transferred to the calipers. This is a crucial upgrade, especially when paired with more efficient calipers.

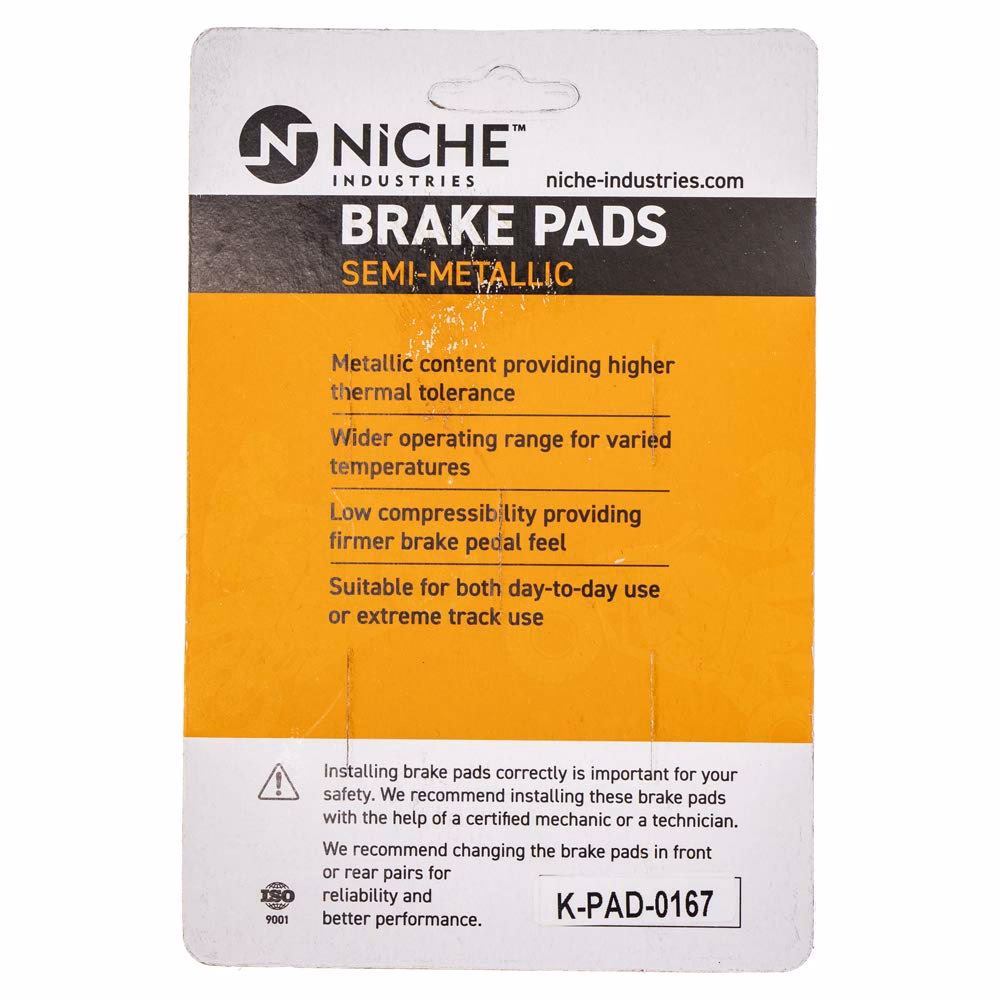

• Quality Brake Pads: Investing in good quality brake pads suitable for your riding style will also maximise the performance of your new Nissin calipers. Different compounds offer varying levels of initial bite, fade resistance, and longevity.
• Master Cylinder Condition: Ensure your brake master cylinder is also in good condition. A worn master cylinder can contribute to a spongy lever regardless of the calipers. While less common than caliper issues, it's worth checking if issues persist after a caliper upgrade and thorough bleeding.

It's worth noting that while this upgrade is a staple for the ZZR600, the situation can be different for other models. For instance, some Kawasaki ZZR1100 owners actually upgrade their factory Nissin 4-pot calipers to Tokico 6-pot units (often from Suzuki GSX-R models) to gain more stopping power. This highlights that 'Tokico' isn't universally bad, but the specific OE Tokico units on the ZZR600 are widely considered to be a weak point.

Comparison: OE Tokico vs. Nissin Calipers

Frequently Asked Questions (FAQs)

Q1: Are all ZZR600 models affected by poor Tokico calipers?

While the problem is widely reported across various ZZR600 models, especially those from the late 90s and early 2000s, individual experiences can vary. Some rare cases report no issues, but the general consensus points to these OE Tokicos as a common weak link in the braking system.

Q2: Where can I source suitable Nissin calipers for the upgrade?

Nissin calipers from Honda CBR954RR Fireblades and CBR600 models are popular choices and can often be found at motorcycle breakers, online auction sites, or specialist used parts dealers. Always check the condition of any used calipers thoroughly before purchase.

Q3: Is the shouldered bolt solution safe for braking applications?

Yes, reputable manufacturers of shouldered bolts (like Ondrives mentioned in the community) produce them from hardened steel, complying with international standards such as ISO 7379. When properly selected and installed, they are designed to safely handle the shear loads associated with braking.

Q4: Do I need to upgrade my master cylinder as well?

In most cases, the OE master cylinder will be perfectly adequate once the caliper issues are resolved. The primary problem lies with the calipers themselves. However, if you experience persistent sponginess or poor performance after the caliper upgrade and thorough bleeding, then inspecting or upgrading the master cylinder might be a subsequent step.

Q5: How much does this upgrade typically cost?

The cost can vary depending on where you source the Nissin calipers and the method you choose for the mounting bolt adaptation. Used Nissin calipers can be found for a relatively low price, and shouldered bolts are typically inexpensive (e.g., around £12 for a set). Compared to the significant improvement in safety and performance, it's considered a highly cost-effective modification.

Q6: Can I use different calipers, like those from a different brand or a 6-pot setup?

While other calipers might theoretically fit, the Nissin 4-pot swap is popular due to its proven compatibility, widespread availability, and significant performance improvement relative to effort. Six-pot calipers might offer more power but can also be more challenging to bleed and might introduce further fitment complexities not covered by the common Nissin swap.

In conclusion, for any Kawasaki ZZR600 owner suffering from the notoriously poor performance of the OE Tokico front calipers, the upgrade to Nissin units is not just an option, it's arguably a mandatory improvement. The transformation from a soft, unresponsive lever to a firm, confidence-inspiring brake is profound. With relatively straightforward modifications to address the mounting differences, and the added benefit of easier bleeding and more reliable operation, this upgrade offers an unparalleled return on investment in terms of safety, control, and sheer riding enjoyment. Ditch those troublesome Tokicos and discover the true braking potential of your ZZR600 – you won't regret it!
