Zongshen Engine Oil Cooler: Do You Need One?

The Zongshen Engine: A Popular Choice for Performance and Value

Zongshen engines have become a familiar sight in the world of motorcycles, particularly among custom builders and those looking for a more affordable yet capable powerplant. Known for their robust design and a good balance of power and reliability, Zongshen engines, such as the Z140 and Z155, are frequently chosen for projects ranging from cafe racers to pit bikes and even some classic restorations. However, like any engine, understanding their specific requirements is crucial for ensuring longevity and optimal performance. One common question that arises, especially when considering these air-cooled units, is the necessity of an oil cooler.

Understanding Zongshen Engine Variants: Z140 and Z155

The Zongshen Z140 and Z155 represent popular displacement options within the Zongshen range. The Z140 typically refers to a 140cc engine, while the Z155 is a 155cc variant. Both are generally air-cooled, often featuring a simple and reliable overhead camshaft (OHC) design. Their popularity stems from their relatively compact size, ease of maintenance, and the availability of performance parts. Many users find these engines to be a significant upgrade over smaller, stock engines, offering a noticeable boost in torque and top-end speed.

The Role of an Oil Cooler

Before delving into whether Zongshen engines *need* an oil cooler, it's important to understand what an oil cooler does. In an engine, oil serves multiple critical functions: it lubricates moving parts to reduce friction and wear, it helps to cool components by carrying heat away, and it cleans the engine by suspending contaminants. In air-cooled engines, the primary method of heat dissipation is through the fins on the cylinder head and barrel, which are exposed to airflow. However, under strenuous conditions, such as prolonged high-speed riding, aggressive acceleration, or when the engine is working hard in hot weather, the oil temperature can rise significantly. An oil cooler is an auxiliary heat exchanger that circulates the engine oil through a series of fins, allowing it to dissipate heat more effectively into the surrounding air. This helps to maintain a more stable and lower overall oil temperature, which can:

• Prevent Oil Breakdown: High temperatures can degrade engine oil, reducing its lubricating properties and its ability to protect the engine.
• Reduce Wear: Cooler oil provides better lubrication, leading to less friction and wear on critical engine components like bearings, pistons, and camshafts.
• Improve Performance: In some cases, excessively hot oil can lead to power loss. Maintaining optimal temperatures can help preserve peak performance.
• Extend Engine Life: By reducing thermal stress and wear, an oil cooler can contribute to a longer overall lifespan for the engine.

Do Z140 & Z155 Engines Need an Oil Cooler? The Verdict

The straightforward answer is that Zongshen Z140 and Z155 engines, in their standard, air-cooled configuration as typically supplied, do not strictly *require* an oil cooler for basic operation. They are designed to function adequately with air cooling alone under normal riding conditions. The engines feature well-designed cooling fins to dissipate heat effectively.

However, the necessity of an oil cooler becomes highly dependent on how the motorcycle is used and the operating environment. Here are the key factors to consider:

Usage Scenarios Where an Oil Cooler is Highly Recommended:

• Aggressive Riding: If you frequently engage in hard acceleration, high-speed riding, or track days, your engine will generate more heat. An oil cooler can be a very beneficial addition to manage this increased thermal load.
• Hot Climates: In regions with consistently high ambient temperatures, air-cooled engines will struggle more to dissipate heat. An oil cooler will help keep oil temperatures in check.
• Heavy Loads: Carrying a passenger or significant cargo puts additional strain on the engine, leading to higher operating temperatures.
• Stop-and-Go Traffic: While air-cooled engines rely on airflow, prolonged periods of idling or slow-speed riding in traffic can reduce the effectiveness of air cooling, especially in warmer weather.
• Performance Modifications: If you have significantly modified your engine for increased power output (e.g., higher compression, more aggressive camshafts, performance exhaust systems), it will likely generate more heat. An oil cooler becomes more important in these scenarios.
• Custom Builds with Restricted Airflow: If your Zongshen engine is installed in a custom frame or bodywork that restricts natural airflow to the cylinder and head, an oil cooler can compensate for the reduced cooling efficiency.

When an Oil Cooler Might Be Optional:

• Leisurely Riding: For casual cruising, short commutes, and riding in cooler temperatures, a standard air-cooled setup will likely suffice.
• Standard Engine Specification: If the engine is running stock components and is not subjected to extreme conditions.

Common Zongshen Engine Issues and Considerations

While Zongshen engines are generally reliable, users sometimes encounter specific issues, often related to setup, modifications, or the inherent characteristics of these engines. Understanding these can help in maintaining your bike.

Carburettor Tuning: As evidenced by the forum discussion, carburettor jetting is a frequent point of attention. The user "coachkyle89" mentions struggling with jetting on a Mikuni VM28 after fitting it to their Zongshen engine, experiencing cutting out issues. This highlights the importance of proper carburettor selection and meticulous jetting to match the engine's air intake, exhaust, and intended use. Chinese-made carbs, like the PE28 mentioned by another user, often require significant tuning. Jet sizes (main and pilot jets) and needle position play a crucial role in achieving a smooth power delivery and preventing issues like hesitation or cutting out.

Exhaust Systems: The exhaust system significantly impacts engine performance and heat. A restrictive or poorly designed exhaust can hinder performance and increase engine temperatures. Conversely, a free-flowing exhaust can improve breathing but may require re-jetting the carburettor. The user considering a custom exhaust or a double-pipe system for better "breathing" is on the right track. As they note, the design of the exhaust, particularly how the pipes merge, can affect performance and noise levels. Achieving a balance between performance and a "civilised" noise is a common goal.

Gearbox and Clutch Components: The terms and conditions provided mention that gearbox components, including bearings, shift drum forks, kickstart gears, and the clutch basket, are not covered under warranty. This suggests that these parts can be susceptible to wear or damage, particularly if the engine is used aggressively or if the kickstart mechanism is misused. The advice to use an EVR Slipper Clutch and the electric starter motor to prevent gearbox and crankcase damage is significant. A slipper clutch helps to mitigate engine braking forces when downshifting aggressively, reducing stress on the gearbox. Relying on the electric starter minimizes wear on the kickstart mechanism, which can be a weaker point on some engines.

Engine Mounting: As seen in the DAX modification example, fitting a Zongshen engine into a different frame (like a Japanese STxx) might require minor modifications to ensure proper mounting. This is common in custom builds where engines are swapped or upgraded.

Installing an Oil Cooler: What's Involved?

If you decide an oil cooler is necessary for your Zongshen Z140 or Z155, the installation process generally involves a few key steps:

1. Obtain a Kit: Purchase a universal or Zongshen-specific oil cooler kit. These typically include the oil cooler itself, oil lines (hoses), and adapter fittings.
2. Locate a Suitable Spot: Find a location on the motorcycle frame where the cooler can be mounted securely and receive adequate airflow. Often, this is near the front of the motorcycle or alongside the engine.
3. Modify Oil Circulation: The engine's oil system needs to be tapped into. This usually involves replacing the standard oil drain plug or an existing oil gallery plug with a special fitting that has outlets for the oil lines. Some kits might tap into the oil pressure sender port.
4. Run the Oil Lines: Connect the oil lines from the engine adapter fitting to the inlet and outlet ports on the oil cooler. Ensure the lines are routed safely, away from hot exhaust components and moving parts, and are secured properly.
5. Fill and Check: After installation, fill the engine with the correct amount of oil. Start the engine and carefully check for any leaks at the fittings and connections. Monitor the oil temperature if possible.

It's advisable to consult a qualified mechanic if you are unsure about any part of the installation process, especially regarding the engine's internal oil circulation.

Frequently Asked Questions (FAQ)

Q1: Is fitting an oil cooler to my Zongshen Z140/Z155 engine mandatory?
No, it is not mandatory for basic operation under normal conditions. However, it is highly recommended for aggressive riding, hot climates, or modified engines to ensure longevity and prevent overheating.

Q2: Will an oil cooler improve my engine's performance?
Directly, an oil cooler's primary function is temperature management, not power enhancement. However, by preventing oil breakdown and maintaining optimal operating temperatures, it can help the engine perform more consistently and potentially prevent power loss due to heat.

Q3: What kind of oil should I use with my Zongshen engine?
Always refer to the manufacturer's recommendations if available. Generally, a good quality motorcycle-specific mineral or semi-synthetic oil with the appropriate viscosity (e.g., 10W-40 or 20W-50, depending on operating temperature) is suitable. If you install an oil cooler, using an oil with a higher thermal stability can be beneficial.

Q4: My Zongshen engine is cutting out. What could be the cause?
This is often related to carburettor tuning. Issues with the main jet, pilot jet, air-fuel mixture screw, or float height can cause the engine to cut out, especially during acceleration or deceleration. Other potential causes include ignition system problems (spark plug, coil) or fuel delivery issues.

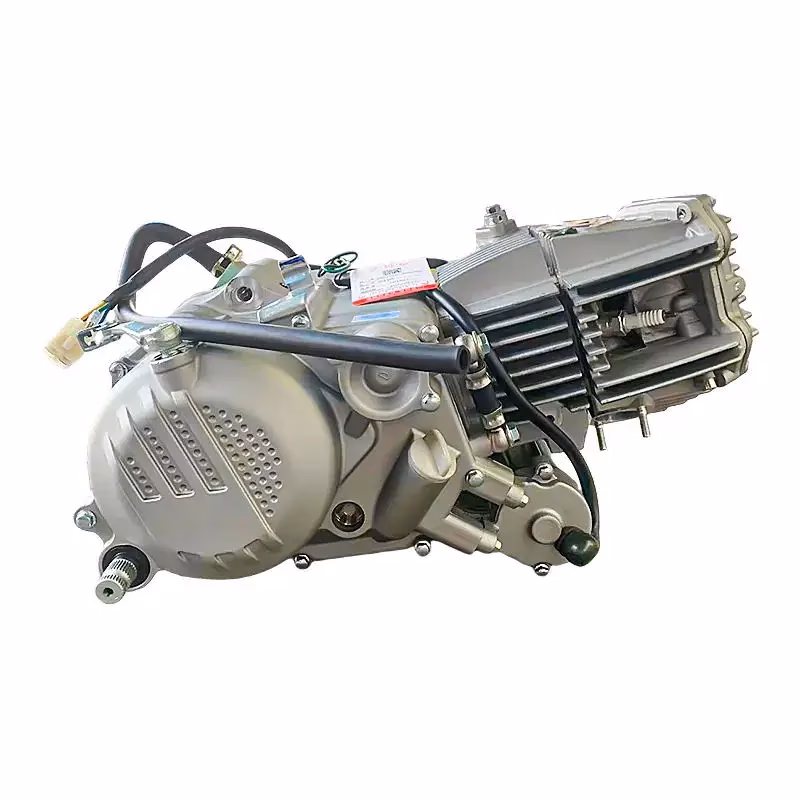

Q5: Does a 1969 Honda S90 have a Zongshen 190cc engine?
No, a 1969 Honda S90 would have originally come with a Honda-manufactured engine, likely a 90cc OHV or OHC unit. Zongshen engines are modern aftermarket or replacement engines, not original equipment for vintage motorcycles like the S90.

Conclusion

In summary, while Zongshen Z140 and Z155 engines are designed to operate effectively as air-cooled units, the decision to fit an oil cooler should be based on your specific riding habits and environmental conditions. For those who push their machines or operate in demanding situations, an oil cooler is a wise investment to protect your engine and ensure reliable performance. Understanding common issues like carburettor tuning and the importance of proper gearbox care will also contribute to a positive ownership experience with these capable engines.
