Understanding the ZF 4HP20 Automatic Transmission
The ZF 4HP20 is a highly regarded automatic transmission, known for its smooth shifting, reliability, and performance. Developed by ZF Friedrichshafen AG, a leading global supplier of driveline and chassis technology, this four-speed automatic gearbox has been fitted to a wide range of vehicles from various manufacturers, including Peugeot, Citroën, BMW, and Jaguar. Its robust design and advanced electronic control systems have made it a popular choice for many automotive applications. However, like any mechanical component, the ZF 4HP20 requires proper maintenance to ensure its longevity and optimal performance. This guide aims to provide a comprehensive overview of the maintenance procedures and common considerations for this transmission.
Key Maintenance Intervals and Checks
Regular maintenance is crucial for the health of your ZF 4HP20 transmission. Adhering to recommended service intervals will help prevent premature wear and potential costly repairs. The following are the key maintenance aspects to consider:
1. Automatic Transmission Fluid (ATF) Changes
The ATF is the lifeblood of your automatic transmission. It lubricates, cools, and provides hydraulic pressure for gear changes. Over time, ATF can degrade due to heat and contamination, losing its effectiveness. Therefore, regular ATF changes are paramount. The recommended interval for changing the ATF in a ZF 4HP20 typically varies depending on the manufacturer's specific recommendations and driving conditions, but a general guideline is every 60,000 to 100,000 kilometres, or sooner if subjected to severe driving (e.g., towing, frequent stop-start traffic, aggressive driving).

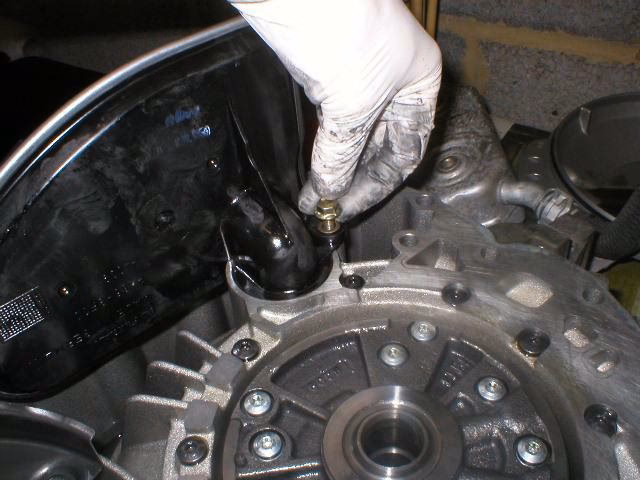

When changing the ATF, it is also highly recommended to replace the transmission filter. The filter removes debris and contaminants from the fluid, and a clogged filter can restrict fluid flow, impacting performance. The process usually involves draining the old fluid, replacing the filter, and refilling with the correct type and amount of ATF. It's important to use only the specified ATF for the ZF 4HP20, as using the wrong type can cause significant damage.
2. Checking the ATF Level and Condition
Regularly checking the ATF level and condition is a simple yet effective way to monitor the transmission's health. The procedure for checking the ATF level can vary depending on the vehicle, as some transmissions have a sealed system with no dipstick. In such cases, a special procedure involving specific temperature ranges and a level-checking plug is required. Always refer to your vehicle's specific service manual for the correct procedure.
The condition of the ATF can also provide valuable insights. Fresh ATF should be clear and red (or the manufacturer's specified colour). If the fluid is dark, burnt-smelling, or contains metal particles, it indicates potential internal wear or damage within the transmission, and a professional inspection is advised.

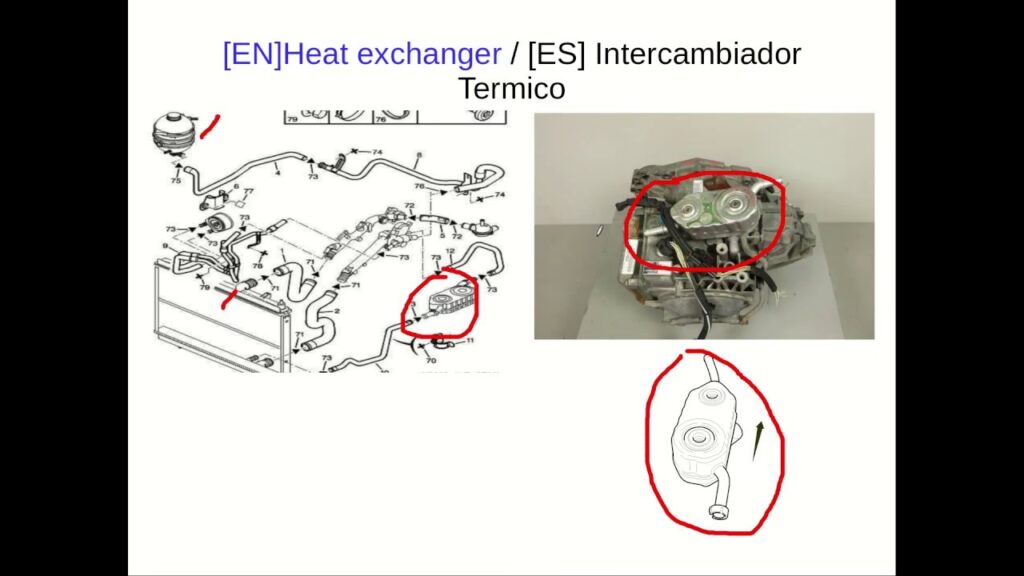

3. Inspecting the Transmission Cooler and Lines
The transmission cooler plays a vital role in dissipating heat generated during operation. Overheating can significantly reduce the lifespan of the transmission. Inspect the cooler and its associated lines for any signs of leaks, damage, or blockages. Ensure that the cooling fins of the external cooler (if fitted) are clean and free from debris that could impede airflow.
4. Checking for Leaks
Periodically inspect the transmission for any external leaks. Leaks can occur from seals, gaskets, or cooler lines. Even a small leak can lead to a significant loss of ATF over time, potentially causing damage. If you notice any signs of fluid leakage, address it promptly by identifying the source and repairing it.
Common Issues and Troubleshooting
While the ZF 4HP20 is a durable unit, like all transmissions, it can experience issues. Understanding common problems can help in early detection and resolution.
1. Harsh Shifting or Delayed Engagement
This can be caused by low ATF level, degraded ATF, a clogged filter, or issues with the valve body or solenoids. Checking the fluid level and condition is the first step. If these are satisfactory, further diagnosis by a qualified technician may be necessary.
2. Slipping Gears
Slipping occurs when the transmission fails to engage a gear properly, causing the engine to rev without a corresponding increase in vehicle speed. This is often a sign of worn clutch packs or low hydraulic pressure. It's a serious symptom that requires immediate attention.
3. Overheating
As mentioned earlier, overheating can be detrimental. Signs of overheating include a burning smell, erratic shifting, or a transmission warning light. Ensuring the transmission cooler is functioning correctly is vital.
4. Solenoid Malfunctions
The transmission control module (TCM) uses solenoids to control hydraulic pressure to engage different gears. If a solenoid fails, it can lead to specific shifting problems or a complete loss of gear engagement. Diagnostic trouble codes (DTCs) can help identify faulty solenoids.
Repair and Rebuild Considerations
For more complex issues or significant wear, a transmission repair or rebuild may be necessary. This is a job best left to experienced transmission specialists. A rebuild typically involves disassembling the transmission, inspecting all components for wear or damage, replacing worn parts (such as seals, clutch packs, and bands), and reassembling with new fluid and filter.
Table 1: Common ZF 4HP20 Transmission Issues and Potential Causes
| Symptom | Potential Cause(s) | Recommended Action |
|---|---|---|
| Harsh Shifting | Low ATF, degraded ATF, clogged filter, faulty solenoids | Check ATF level and condition, replace filter and ATF, scan for DTCs |
| Delayed Engagement | Low ATF, internal leaks, worn clutch packs | Check ATF level and condition, professional diagnosis |
| Slipping Gears | Low ATF, worn clutch packs, low hydraulic pressure | Check ATF level and condition, immediate professional inspection |
| Overheating | Blocked cooler, low ATF, internal transmission issues | Inspect cooler, check ATF level, professional diagnosis |
| No Drive | Low ATF, faulty solenoids, internal damage | Check ATF level, scan for DTCs, professional diagnosis |
Important Safety and Technical Notes
When working on any vehicle transmission, safety should be your top priority. Always ensure the vehicle is properly supported on jack stands before working underneath it. Disconnect the battery before performing any electrical work. When dealing with hot fluids, wear appropriate protective gear.
CAUTION: Always follow the manufacturer's recommended procedures and specifications when performing maintenance or repairs. Failure to do so can result in damage to the transmission or personal injury.
IMPORTANT: Use only the specified Automatic Transmission Fluid (ATF) for the ZF 4HP20. Using an incorrect fluid can lead to severe internal damage and costly repairs. Consult your vehicle's owner's manual or a reputable ZF service centre for the correct ATF specification.
Note: The ZF 4HP20 transmission often has a sealed system, meaning there is no external dipstick to check the fluid level. Checking and topping up the fluid requires specific tools and procedures, usually involving reaching the level plug on the transmission casing. This task is best performed by a qualified mechanic.
Frequently Asked Questions (FAQs)
Q1: How often should I change the transmission fluid in my ZF 4HP20?
A1: While the exact interval can vary, a general recommendation is every 60,000 to 100,000 kilometres. However, it's always best to consult your vehicle manufacturer's service schedule or a specialist for their specific recommendations, especially if you drive in severe conditions.
Q2: Can I use any ATF for my ZF 4HP20?
A2: No, it is crucial to use only the specific type of ATF recommended by ZF and your vehicle manufacturer. Using the wrong ATF can cause significant damage to the transmission's internal components.
Q3: My ZF 4HP20 is making strange noises. What could it be?
A3: Strange noises can indicate a variety of issues, from low fluid levels to worn bearings or internal component damage. It's advisable to have the transmission inspected by a qualified technician as soon as possible to diagnose the exact cause.
Q4: Is it possible to check the ATF level myself?
A4: Many ZF 4HP20 transmissions are sealed and do not have a dipstick. Checking the fluid level requires a specific procedure and tools, usually performed by a mechanic. If you suspect a fluid level issue, it's best to seek professional assistance.
Conclusion
The ZF 4HP20 is a robust and reliable automatic transmission that, with proper care and maintenance, can provide many years of trouble-free service. By adhering to recommended service intervals, regularly checking fluid levels and condition, and addressing any unusual symptoms promptly, you can ensure your transmission performs optimally. For any complex repairs or diagnostic work, always rely on the expertise of qualified and experienced transmission specialists.
