ZD30 Engine: Unlocking Performance & Longevity

The Nissan ZD30 engine, often found powering the popular Patrol in the UK and beyond, has garnered a reputation over the years – sometimes for its quirks, other times for its formidable potential. For enthusiasts and mechanics alike, understanding its intricacies is key to unlocking its true performance and ensuring its longevity. This article delves into the core aspects of the ZD30, from its unique ability to run lean to strategic power modifications and essential rebuild considerations, offering a comprehensive guide for anyone looking to get the most out of this diesel workhorse.

Understanding the ZD30's Lean Running Capability

One of the most significant advantages of diesel engines, including the ZD30, is their inherent ability to run lean without the detrimental effects seen in petrol engines. Unlike petrol engines, which are limited by the octane rating of their fuel and prone to 'knock' or detonation if the air-fuel mixture is too lean or ignition timing is off, diesels operate on a compression-ignition principle. This means they are not constrained by fuel octane and are highly tolerant of lean mixtures.

This characteristic is a tremendous asset for tuning, especially when considering forced induction. While petrol engines require precise air-fuel ratios to prevent catastrophic engine damage, a diesel engine can handle significant amounts of excess air. This 'gift' allows tuners to dramatically increase airflow through turbocharging without immediately needing to match it with an equivalent increase in fuel, although for optimal power and efficiency, balancing the two is eventually necessary. It means you can set up a larger turbo for future fuel upgrades, knowing the engine will still run safely in the interim. This flexibility makes forced induction tuning a very attractive and relatively safe pathway for power gains in the ZD30.

Unlocking ZD30 Power: The Forced Induction Advantage

When it comes to extracting more power from your ZD30, the overwhelming consensus among experts is to focus on forced induction tuning. This approach offers the most substantial gains without compromising engine longevity or reliability, provided it's executed correctly. The core principle is simple: more air equals more potential for power.

Why Forced Induction is King

Increasing the volume of air entering the engine is the most effective way to boost power in a diesel. This can be achieved through various turbocharger setups:

• Larger Single Turbocharger: A common upgrade, a bigger turbo can push significantly more air into the engine. However, selecting the right turbo isn't as simple as picking the largest one available. It requires understanding and interpreting compressor maps, which illustrate a turbo's efficiency, surge line (where airflow becomes unstable), and choke line (maximum airflow). A well-matched turbo will operate within its most efficient range across your desired RPM band.
• Compounding Turbochargers: For the more adventurous and well-funded, a compound turbo setup (e.g., a smaller turbo feeding a larger one) can provide excellent boost response at low RPMs combined with high-end power, effectively broadening the engine's power band. This is a complex undertaking but yields impressive results.

What to Avoid for Power Gains

While the temptation might be to explore all avenues for power, some modifications are simply not worth the effort or risk for a ZD30:

• Cam and Valve Operation Modifications: In forced induction diesel engines, fiddling with cam profiles and valve events is generally not recommended. It can lead to undesirable consequences such as increased loading on the valvetrain, which is already a known area of concern for Japanese trucks (hence standards like JASO DH-1). Furthermore, torque off idle is crucial for 4x4 vehicles, and without multi-stage cam profiles, any changes will inevitably involve a compromise.
• Seeking Higher RPM: This is a critical point. Power equations involve factors like Brake Mean Effective Pressure (BMEP) and RPM. However, inertial loads on engine components rise to the square of the RPM. This means that even a small increase in RPM can dramatically increase stress on pistons, connecting rods, and the crankshaft, making it impractical and risky to seek power through higher revs.
• Improving Volumetric Efficiency (Cost vs. Gain): While gains can be found in areas like inlet manifolds, exhaust manifolds, and head porting/polishing, these improvements are often costly and yield relatively small power increases compared to the massive airflow gains achievable with forced induction. It's simply not the most efficient use of your budget for significant power boosts.

Thermal Management: Battling the Gremlins

With increased power comes increased heat, and managing thermal loads is paramount for ZD30 longevity. Two key methods stand out:

• Water Injection: Injecting a fine mist of water into the intake charge (often post-intercooler) dramatically cools the air, effectively increasing its density. This not only aids in power production but also significantly lowers Exhaust Gas Temperatures (EGTs), protecting critical engine components.
• Better Oil Squirters: These direct a stream of oil onto the underside of the pistons, providing crucial cooling. Upgrading or ensuring the optimal function of these squirters is vital in a high-performance ZD30, helping to prevent piston overheating and potential failure.

Ultimately, a scientific and practical approach points towards forced induction tuning as the most effective and reliable path for ZD30 power enhancement, always keeping thermal management and piston integrity at the forefront.

Addressing the Piston Predicament: Enhancing ZD30 Durability

While the ZD30 offers great tuning potential, it's notorious for a particular Achilles' heel: its pistons. Specifically, cracking in the #3 piston is a commonly reported issue. This limitation means that any serious power modifications must go hand-in-hand with piston reinforcement to ensure the engine's long-term durability. Investing in stronger pistons is arguably the most critical upgrade for a high-performance ZD30.

The Piston as the Weak Link

The original ZD30 pistons, particularly the #3, are susceptible to cracking under sustained high thermal and mechanical stress, often exacerbated by aggressive tuning or poor maintenance. To overcome this, a multi-faceted approach to piston enhancement is recommended:

• Genuine Nissan Pistons as a Base: Starting with a genuine Nissan piston ensures a foundation of quality and correct dimensions. While aftermarket options exist, the consistency and design integrity of genuine parts are often preferred.
• Specialised Piston Processing: Once you have genuine pistons, further processing can dramatically improve their strength and thermal resistance:
1. Shotpeening: This process involves blasting the piston surface with small, high-velocity media. It creates a compressive residual stress layer on the surface, which significantly improves the piston's fatigue strength and resistance to cracking.
2. Deep Cryo Treatment: By subjecting the pistons to extremely low temperatures (often below -180°C), the molecular structure of the metal is refined. This process enhances wear resistance, dimensional stability, and overall toughness, making the piston more resilient to the harsh environment inside the combustion chamber.
3. Ceramic Coating the Dome: Applying a ceramic thermal barrier coating to the piston crown (dome) reduces heat transfer from the combustion gases into the piston material. This keeps the piston cooler, reducing thermal stress and protecting against hot spots that can lead to detonation or melting.
4. Anti-Scuff Coat on the Skirt: A low-friction coating applied to the piston skirt reduces friction against the cylinder walls, minimising wear and improving lubrication. This contributes to smoother operation and extended piston and cylinder bore life.
• Piston Rings: While rings don't offer huge differences in power, their function is binary – they either seal or they don't. Ensuring new, high-quality piston rings are correctly fitted is essential for maintaining optimal compression and preventing oil consumption.

By addressing the piston limitation proactively, you can build a ZD30 that not only performs exceptionally but also withstands the rigours of increased power, preventing the dreaded 'grenade' scenario.

Rebuilding Your ZD30: A Practical Guide

A ZD30 rebuild can be a rewarding project, turning a tired or damaged engine into a reliable powerhouse. Whether you're dealing with a minor head crack or a more serious piston issue, a systematic approach is key. The example of a 2005 ZD30 Di with a crack in #3 piston highlights the common challenges and the meticulous process required.

Common Rebuild Motivations and Initial Assessment

Typical reasons for a ZD30 rebuild include:

• Cracked Cylinder Head: Often manifesting as bubbles in the cooling system and requiring frequent coolant top-ups.
• Cracked Piston: As discussed, #3 piston is a common failure point, leading to loss of compression and performance.
• General Wear and Tear: High mileage engines naturally accumulate wear on bearings, rings, and other components.

The first step in any rebuild is a thorough assessment. This involves complete disassembly of the engine to inspect every component. For the block, assess whether it requires machining (honing or boring for oversize pistons) or if it's suitable for new standard-size pistons after a light hone. Professional cleaning of all parts is crucial; it not only makes the assembly process easier but also allows for better inspection of components for hidden damage or wear.

The Rebuild Process Step-by-Step

1. Disassembly and Inspection: Carefully dismantle the entire engine. Inspect all components for wear, cracks, or damage. Pay close attention to cam lobes for surface rust (which will need linishing and clearance checks), crankshaft journals, connecting rods, and cylinder bores.
2. Cleaning and Preparation: Send all metal parts (block, head, crankshaft, connecting rods) for professional cleaning. This removes carbon, oil residue, and rust, preparing surfaces for painting and assembly. Paint the block and other cast iron parts for protection and a 'new' look.
3. Machining (if necessary): Based on your assessment, the block might need honing or boring to accommodate oversized pistons. The crankshaft may need grinding if journals are worn.
4. Component Acquisition: Purchase all necessary new parts, including pistons, rings, main and conrod bearings, thrust bearings, a full gasket set, timing chain kit, new injectors (or have yours tested), and glow plugs. A new head bolt set is essential as these are typically 'stretch-to-yield' bolts and cannot be reused.
5. Assembly: Reassemble the engine meticulously, using new seals and following torque specifications precisely. This includes fitting pistons, crankshaft, connecting rods, and the cylinder head. Ensure all clearances (e.g., valve clearances, bearing clearances) are checked and set correctly.
6. Ancillary Components: Reinstall components like the harmonic balancer (which requires a 41mm socket – plan ahead!), vacuum pump, A/C compressor, and manifolds.

Budgeting Your Rebuild

Rebuilding on a budget often means making smart choices about what to reuse. Items like the water pump and timing kit can sometimes be reused if they are in excellent condition, as these are relatively easy to replace later if issues arise. Similarly, an existing injector pump that was recently rebuilt can be reused, and injectors can be re-used if they pass testing. However, never compromise on critical sealing components, bearings, or piston integrity.

A key piece of foresight during disassembly is to remove the ring gear and backing plate *before* mounting the engine on a stand. The bottom bell housing bolt holes, often used for stand mounting, are part of the sump, which can cause significant issues if not anticipated.

Essential ZD30 Rebuild Components & Kits

For those embarking on a ZD30 rebuild, sourcing a comprehensive kit can simplify the process and ensure you have all the necessary components. Reputable suppliers, such as North Vic Engines, offer kits that include critical parts that have been tried and tested in actual engine builds. Quality counts, and using parts that mechanics trust is paramount.

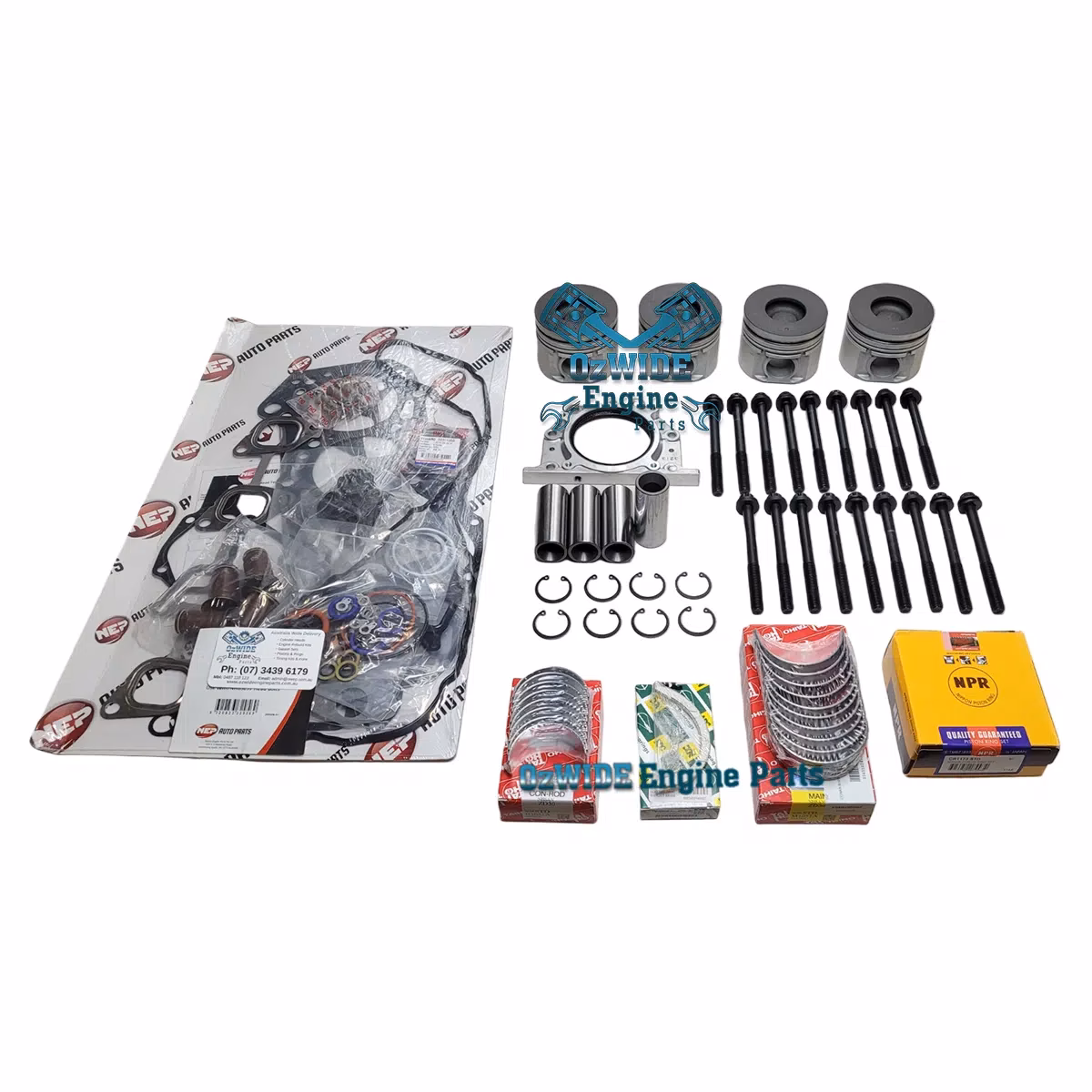

A typical ZD30 engine rebuild kit will contain:

Many suppliers also offer ZD30 head kits separately, which might include valves, valve guides, and seals if a full head overhaul is needed. The option for ceramic coated piston crowns, while an additional cost, is a highly recommended investment for enhanced durability, especially if you plan to increase power.

Frequently Asked Questions About the ZD30

Is the ZD30 a reliable engine?

The ZD30 has a mixed reputation. While some early models suffered from design flaws leading to failures (often dubbed the 'grenade' issue due to piston #3 cracking), later direct injection (Di) models and particularly common rail (CRD) versions saw improvements. With proper maintenance, proactive thermal management, and addressing known weaknesses like the pistons, a ZD30 can be a very reliable and capable engine, especially when tuned correctly.

What causes the ZD30 'grenade' issue?

The 'grenade' issue primarily refers to the failure of the #3 piston, often due to excessive heat and stress. This can be exacerbated by issues like overfuelling (leading to high EGTs), poor turbo performance, or inadequate cooling. Addressing these factors and reinforcing the pistons are key to preventing this.

Can I just chip my ZD30 for more power?

While a 'chip' or tuning module can increase power by modifying fuel delivery and boost, it's crucial to understand the underlying limitations. Simply increasing power without addressing the ZD30's inherent weaknesses (like piston strength and thermal management) can accelerate wear and lead to premature failure. For significant and reliable power gains, a comprehensive approach focusing on airflow, thermal control, and piston reinforcement is essential.

What's the best oil for a ZD30?

For diesel engines like the ZD30, it's vital to use engine oil that meets the appropriate specifications. For Japanese trucks, the JASO DH-1 standard was specifically written to address valvetrain life issues, among other concerns. Always refer to your vehicle's owner's manual for the recommended oil type and viscosity, and choose a high-quality oil that meets or exceeds the specified standards.

In conclusion, the Nissan ZD30 engine, despite its historical challenges, presents a fantastic platform for those willing to understand and invest in its potential. By leveraging its lean-running capability for forced induction tuning, proactively strengthening its pistons, and meticulously executing rebuilds with quality components, you can transform a temperamental workhorse into a truly robust and high-performing vehicle. The science and practicalities clearly point towards intelligent forced induction tuning without chasing high RPMs, coupled with diligent thermal management, as the surest bet for ZD30 excellence. Cheers.
