Yamaha VStar 1100 Starter Clutch Fix

The Yamaha VStar 1100, a beloved cruiser known for its torquey V-twin engine and classic styling, can occasionally suffer from a worn starter clutch. This vital component is responsible for engaging the starter motor with the engine's crankshaft, allowing it to spin and begin the combustion process. When it fails, you might experience symptoms like the starter motor spinning freely without engaging the engine, a clicking noise, or an inability to start the bike altogether. Fortunately, with the right tools and a bit of patience, replacing the starter clutch on your VStar 1100 is a manageable DIY task. This guide will walk you through the process, from identifying the issue to getting your bike back on the road.

Understanding the Starter Clutch

The starter clutch, also known as a one-way clutch or sprig clutch, is essentially a mechanical device that allows power to be transmitted in one direction only. In a motorcycle's starting system, it's designed to engage the starter motor when you press the start button and then disengage once the engine is running. This prevents the engine's rotational force from being fed back into the starter motor, which could damage it. Over time, the internal rollers or sprags within the clutch can wear down, become damaged, or the springs that hold them in place can weaken, leading to slippage and the symptoms mentioned earlier.

Symptoms of a Failing Starter Clutch

Before diving into the replacement process, it's crucial to confirm that the starter clutch is indeed the culprit. Common signs include:

• Grinding or Whirring Noise: When you attempt to start the bike, you might hear a loud grinding or whirring sound, but the engine doesn't turn over. This indicates the starter motor is spinning, but the clutch isn't engaging.
• Clicking Sound: A single, loud click without any engine cranking can also point to a starter clutch failure.
• Starter Motor Spins Freely: The starter motor operates, but the crankshaft doesn't rotate.
• Intermittent Starting Issues: The bike might start sometimes and not others, suggesting a partially failed clutch.

It's worth noting that other issues, such as a weak battery, faulty starter solenoid, or starter motor problems, can mimic these symptoms. A thorough diagnosis is always recommended.

Tools and Parts You'll Need

Gathering all necessary tools and parts before you begin will make the process smoother. You'll likely need:

Essential Tools:

• Socket set (metric)
• Wrenches (metric)
• Torque wrench
• Screwdrivers (Phillips and flathead)
• Pliers
• Oil drain pan
• New engine oil
• New oil filter (recommended)
• Gasket scraper or razor blade
• RTV sealant or new gasket for the transmission cover
• Shop rags or towels
• Service manual for your specific Yamaha VStar 1100 model (highly recommended for torque specifications and detailed diagrams)
• A sturdy workbench or flat surface
• Gloves and eye protection

Replacement Parts:

• Starter Clutch Assembly: Ensure you purchase the correct part for your VStar 1100 model year. It's often sold as a complete assembly.
• Transmission Cover Gasket: It's best practice to replace this to ensure a proper seal.

Step-by-Step Replacement Guide

Step 1: Prepare the Motorcycle and Drain the Oil

Begin by parking your VStar 1100 on a level surface and ensuring the engine is cool. Locate the engine oil drain plug, usually found at the bottom of the crankcase. Place your oil drain pan beneath it and remove the plug. Allow all the old oil to drain completely. While the oil is draining, you can proceed with other preparatory steps.

Step 2: Remove the Starter Motor

Consult your service manual for the exact location of the starter motor. It's typically a cylindrical component bolted to the crankcase. Remove the bolts securing the starter motor and carefully withdraw it from its housing. Be mindful of any wiring connectors attached to the starter motor and disconnect them if necessary. Inspect the starter motor for any obvious damage while it's out.

Step 3: Access the Transmission Cover

The starter clutch is located within the transmission housing. To access it, you'll need to remove the transmission cover. This often involves removing the kickstand first, as it can obstruct access. Locate all the bolts securing the transmission cover. Some bolts might be longer than others, so it's a good idea to keep track of their positions, perhaps by drawing a diagram or placing them in a labeled container.

Once all bolts are removed, you may need to gently tap the cover with a rubber mallet or pry it carefully with a flathead screwdriver to break the seal. Be cautious not to damage the mating surfaces. As you remove the cover, be aware of any oil that might still be trapped within the transmission.

Step 4: Locate and Remove the Old Starter Clutch

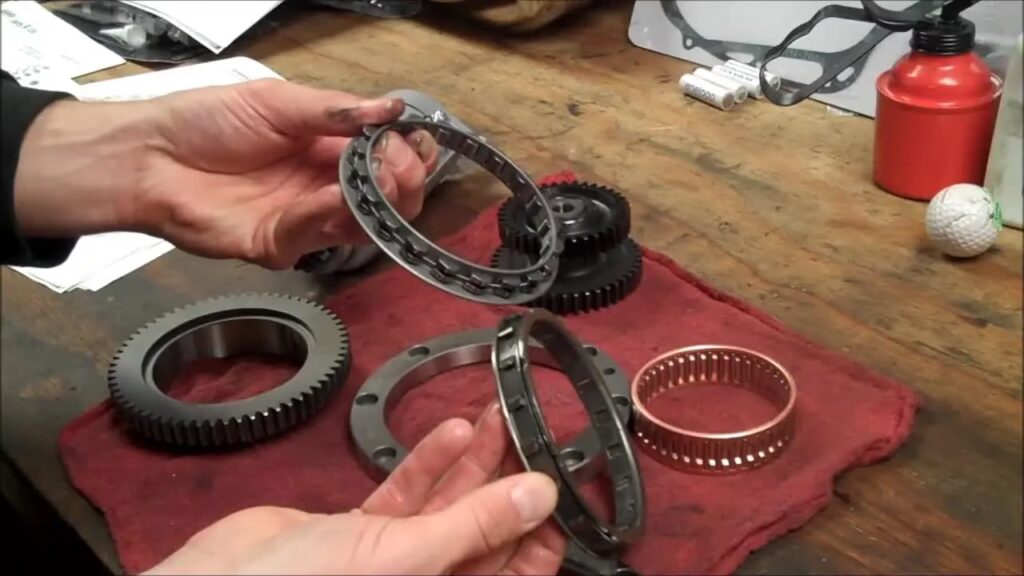

With the transmission cover removed, you should now be able to see the starter clutch assembly. It's usually mounted on the end of the crankshaft or a related shaft. The starter clutch assembly typically consists of a housing, rollers or sprigs, and springs. Remove any retaining bolts or clips that hold the old starter clutch in place. You may need a specialized tool or a puller to remove the clutch from the shaft, depending on its design.

Important: Pay close attention to the orientation of the old starter clutch and any washers or spacers that might be present. Documenting this with photos can be very helpful during reassembly.

Step 5: Install the New Starter Clutch

Clean the mating surfaces on the crankshaft and the new starter clutch assembly thoroughly. Ensure there is no old gasket material or debris. Install the new starter clutch assembly, ensuring it is correctly oriented and seated properly. If your new clutch came with new hardware, use that. If not, ensure you use the original bolts and any washers or spacers in the correct order.

Torque the retaining bolts to the specifications outlined in your service manual. Overtightening or undertightening can lead to premature failure.

Step 6: Reassemble the Transmission Cover

Clean the mating surface of the transmission cover and the engine crankcase meticulously. Remove all traces of old gasket material. Apply a thin, even bead of RTV sealant or install a new gasket onto the transmission cover. Carefully position the transmission cover back onto the crankcase, ensuring it's properly aligned. Reinstall all the cover bolts, tightening them gradually and in a criss-cross pattern to ensure even pressure. Again, refer to your service manual for the correct torque specifications for these bolts.

Remember to reattach the kickstand if you removed it.

Step 7: Reinstall the Starter Motor

If you removed the starter motor, now is the time to reinstall it. Ensure the O-ring or gasket on the starter motor housing is in good condition; replace it if necessary. Bolt the starter motor back into its position and reconnect any wiring harnesses. Torque the starter motor mounting bolts to the manufacturer's specifications.

Step 8: Refill Engine Oil and Final Checks

With the transmission cover and starter motor back in place, it's time to refill the engine with the correct type and amount of fresh engine oil. Refer to your owner's manual for the recommended oil viscosity and capacity. Ensure you also replace the oil filter if you haven't already. Once filled, start the engine and let it run for a few minutes. Listen for any unusual noises and check for any oil leaks around the transmission cover. Once you're confident everything is sealed and running smoothly, you can reattach any bodywork that was removed.

Troubleshooting Common Issues

Even with careful work, you might encounter minor issues. Here are a few common ones:

Frequently Asked Questions (FAQs)

Q1: How long does a starter clutch typically last?

A1: The lifespan of a starter clutch can vary significantly depending on riding habits, maintenance, and the quality of the original part. With regular maintenance and avoiding excessive use of the starter, they can last for many thousands of miles. However, some may fail sooner due to manufacturing defects or harsh usage.

Q2: Can I replace just the rollers or springs, or do I need the whole assembly?

A2: While it might be possible to source individual components for some starter clutches, it's generally recommended to replace the entire starter clutch assembly. This ensures all components are new and working in harmony, providing the best reliability. The springs can weaken, and the rollers or sprags can wear unevenly, making a partial replacement less effective.

Q3: Is this a job I can do if I'm not a professional mechanic?

A3: Yes, with the right tools, a service manual, and a methodical approach, replacing the starter clutch is a feasible DIY project for many home mechanics. The most critical aspects are cleanliness, attention to detail during disassembly, and following torque specifications precisely.

Q4: What are the most common mistakes people make when replacing a starter clutch?

A4: Common mistakes include not draining the oil completely, losing or mixing up bolts, damaging the transmission cover or crankcase mating surfaces, not properly cleaning surfaces before re-sealing, and failing to torque bolts to the correct specifications. Also, not checking for leaks after the repair is a common oversight.

Q5: Do I need any special tools for this job?

A5: While a standard metric socket and wrench set will cover most of the work, you might need a specialized puller to remove the old clutch from the shaft, depending on how tightly it's seated. A torque wrench is essential for proper reassembly. Always consult your service manual to see if any specific tools are recommended.

Conclusion

Replacing the starter clutch on your Yamaha VStar 1100 is a rewarding repair that can bring your beloved cruiser back to its reliable starting glory. By following these steps, using the correct parts, and working meticulously, you can successfully tackle this job and avoid costly shop fees. Remember, patience and attention to detail are your greatest allies. Happy wrenching!
