Rear Brake Pad Replacement Guide

Your Essential Guide to Replacing Rear Brake Pads

Embarking on the task of replacing your rear brake pads might seem daunting, especially if you're new to car maintenance. However, with a little patience and the right guidance, it's a perfectly achievable DIY job that can save you money and give you a real sense of accomplishment. This guide will walk you through the process, from identifying the necessary components to addressing common sticky situations, ensuring your braking system is in tip-top condition.

Understanding Your Rear Braking System

Before we dive into the 'how-to', it's crucial to understand the basic components involved. Your rear brakes typically consist of the brake caliper, brake pads, a brake rotor (or disc), and various bolts and springs. The caliper is the housing that contains the brake pads and hydraulic piston. When you press the brake pedal, hydraulic fluid forces the piston to push the pads against the rotor, creating friction and slowing your vehicle. Replacing the pads involves retracting the piston, removing the old pads, installing the new ones, and then re-engaging the caliper. It’s a fundamental aspect of vehicle safety.

Tools and Materials You'll Need

Gathering the right tools beforehand will make the process much smoother. Here’s a typical list:

• New rear brake pads (ensure they are the correct ones for your vehicle model)
• Jack and jack stands
• Wheel chocks
• Lug wrench
• Socket set (including appropriate sizes for caliper bolts)
• Allen wrenches (as you've discovered, these are often essential)
• Brake caliper piston compression tool or C-clamp
• Brake cleaner
• Wire brush
• Gloves and safety glasses
• Brake grease (high-temperature, silicone-based)
• A sturdy piece of metal (like a pry bar or a large screwdriver) for piston retraction
• Torque wrench (recommended for re-tightening bolts)

Step-by-Step Guide to Replacing Rear Brake Pads

Let's get started. Remember to work on a flat, stable surface and always use jack stands for safety.

1. Prepare the Vehicle

Begin by loosening the lug nuts on the rear wheel you'll be working on. Don't remove them completely yet. Engage the parking brake if you're working on the front wheels, or place wheel chocks behind the opposite wheels if you're working on the rear. Then, use your jack to lift the rear of the vehicle and secure it with jack stands. Once the vehicle is safely supported, remove the lug nuts and the wheel.

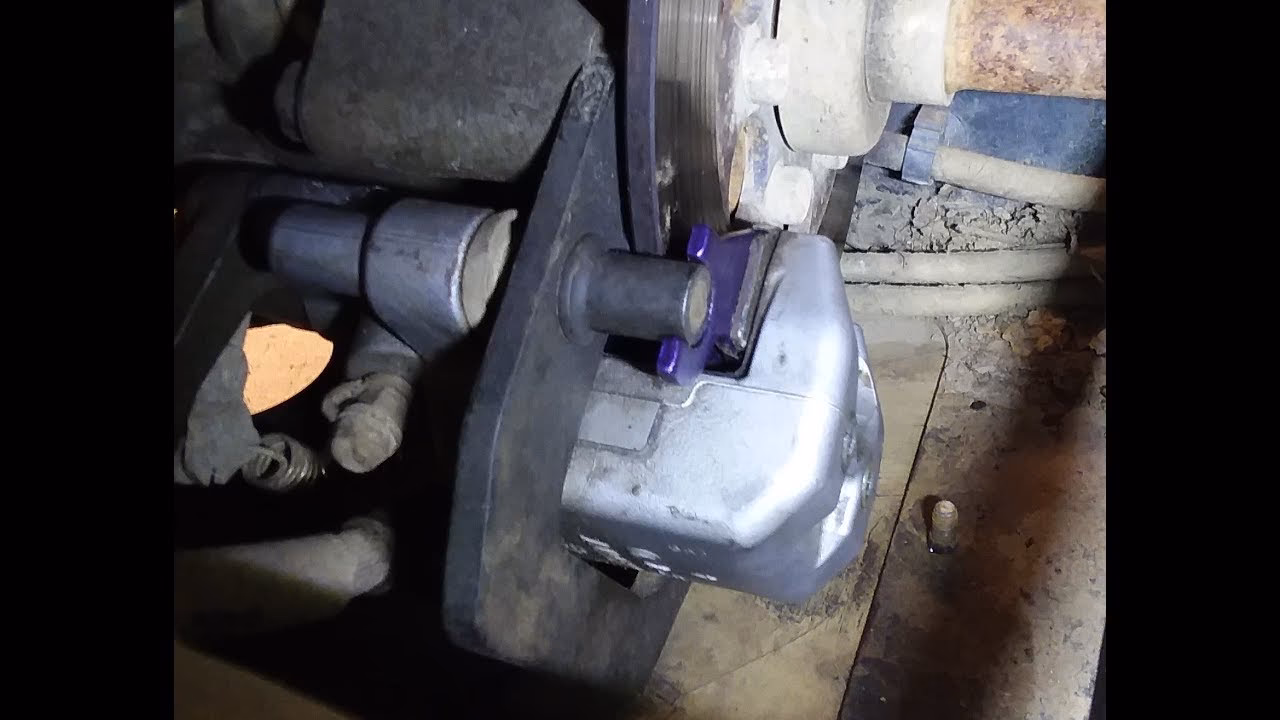

2. Locate and Access the Caliper

You should now see the brake caliper covering the brake rotor. The caliper is usually held in place by two bolts, often referred to as caliper carrier bolts or slider pins. These are typically located on the back of the caliper assembly. As you've found, these can sometimes be obscured by dirt and grime, so a bit of cleaning with a wire brush might be necessary.

3. Remove the Caliper Bolts

Using the appropriate socket or Allen wrench, carefully remove the two caliper bolts. You might need to hold the slider pin with another wrench to prevent it from spinning. Once the bolts are removed, you should be able to gently pry the caliper off the rotor. In some cases, you might only need to remove the lower bolt and pivot the caliper upwards. Be careful not to let the caliper hang by the brake line; support it with a piece of wire or hang it from the suspension.

4. Remove the Old Brake Pads

With the caliper out of the way, you can now see the old brake pads. They are usually held in place by clips or simply sit in the caliper bracket. Carefully remove the old pads. Note their orientation, as the new ones will need to be installed in the same way. You might also want to inspect the brake hardware (clips and springs) and replace them if they look worn or damaged.

5. Retract the Caliper Piston

This is where you'll need to address your first question. The component with the large '+' or a slot on it is indeed part of the caliper piston assembly. It’s designed to be rotated, not just pushed back. This is particularly common in rear brake calipers because they often incorporate a parking brake mechanism. You'll need to use a brake caliper piston compression tool, or a C-clamp with an old brake pad inserted, to push the piston back into the caliper. However, for many rear calipers, you'll need a specific tool that fits into the slots and allows you to screw the piston back in. This might be why a chisel or crowbar was used previously, though a proper tool is recommended to avoid damaging the piston or seals. Ensure you have the correct adapter for your caliper if using a dedicated tool. As you screw the piston back, keep an eye on the brake fluid reservoir under the bonnet; it might overflow if it's already full. You may need to remove some fluid using a syringe.

6. Install New Brake Pads

Before installing the new pads, clean the caliper bracket and any clips with brake cleaner and a wire brush. Apply a small amount of brake grease to the back of the new pads and to the contact points where the pads meet the caliper bracket. Do not get grease on the pad friction material or the rotor. Fit the new brake pads into the caliper bracket, ensuring they are seated correctly and in the same orientation as the old ones.

7. Reassemble the Caliper

Carefully place the caliper back over the new brake pads and rotor. Reinstall the caliper bolts and tighten them to the manufacturer's specified torque. If you don't have a torque wrench, tighten them firmly but avoid overtightening. If you pivoted the caliper, lower it back down and secure the bolts.

8. Reinstall the Wheel and Lower the Vehicle

Put the wheel back on, thread the lug nuts, and tighten them by hand. Lower the vehicle off the jack stands and then use your lug wrench to tighten the lug nuts fully, usually in a star pattern.

9. Pump the Brakes

Before driving, it's crucial to pump the brake pedal several times. This will push the caliper piston back out and seat the new pads against the rotor. You'll feel the pedal become firm. If the pedal goes straight to the floor, there might be an issue with your installation or a leak.

Troubleshooting Common Issues

It's not uncommon to encounter minor problems during a brake pad replacement. Let's address your second question about the pads not releasing the rotor:

Pads Sticking to the Rotor

You mentioned that after compressing the pads, they still didn't release the rotor, even with a slight gap. This is a common symptom, and here are the most likely causes and solutions:

• Insufficient Piston Retraction: The piston may not have been retracted far enough. Even if you think you left a gap, the pads might still be lightly touching the rotor. Try retracting the piston a little further.
• Sticking Caliper Piston: The caliper piston itself might be sticking. This can happen if the dust boot is damaged or if the piston is corroded. If you suspect this, you might need to remove the piston entirely, clean it thoroughly with brake cleaner and a soft cloth, lubricate the seal and piston with brake grease, and then reinsert it. If the piston is badly damaged or corroded, it may need to be replaced.
• Sticking Slider Pins: The caliper slider pins (the bolts you removed earlier) are essential for allowing the caliper to move freely. If these pins are corroded or not properly lubricated, the caliper can bind, causing the pads to drag. Ensure the slider pins are clean, lubricated with silicone brake grease, and that their rubber boots are intact.
• Deformed Rotor: While less common, a severely warped or glazed rotor can cause issues. However, this usually manifests as vibration or pulsation when braking, rather than the pads not releasing.
• Incorrect Pad Installation: Double-check that the new pads are installed correctly in the caliper bracket and that any anti-rattle clips or springs are in place and functioning as intended.

Given your description, the most probable cause is either the piston not being fully retracted or sticking slider pins. Focus on ensuring the piston is fully seated and that the caliper can move freely on its slider pins. Releasing the brake fluid reservoir cap while retracting the piston can sometimes help, but be mindful of overflow. If the problem persists after re-checking these points, it might indicate a more significant issue with the caliper itself.

Brake Pad Bedding-In

Once your new brake pads are installed and functioning correctly, it’s important to 'bed them in'. This process ensures that the new pads mate properly with the rotor surface, leading to optimal braking performance and longevity. The specific procedure can vary depending on the pad manufacturer, but a common method involves a series of moderate to firm stops from various speeds without coming to a complete halt. Avoid harsh, panic stops for the first few hundred miles. This allows the heat to dissipate evenly and prevents glazing of the new pads. This is a critical step for performance.

When to Seek Professional Help

While this guide aims to empower you to perform this maintenance yourself, there are times when professional assistance is advisable. If you encounter seized bolts, significant rust, or if you're uncomfortable at any stage of the process, it’s best to consult a qualified mechanic. Brake systems are critical for safety, and ensuring they are correctly maintained is paramount.

Frequently Asked Questions

Q1: What is the part with the 'plus' sign used for?
A1: That component is part of the caliper piston. It has slots or a plus (+) shape to allow you to rotate it as you push it back into the caliper. This is common in rear calipers, often to engage or adjust the parking brake mechanism within the caliper. A specific tool is designed for this purpose.

Q2: My new pads are sticking to the rotor after installation. What should I do?
A2: This usually means the caliper piston isn't fully retracted or the caliper isn't moving freely. Ensure the piston is screwed all the way in and that the caliper slider pins are clean, lubricated, and allow the caliper to slide easily. If the problem persists, the caliper itself might be faulty.

Q3: How often should I replace my rear brake pads?
A3: The lifespan of brake pads varies greatly depending on driving habits, vehicle weight, and conditions. A general guideline is every 25,000 to 70,000 miles, but it's best to inspect them regularly during tire rotations. You'll know they need replacing when you hear a squealing noise (from the wear indicator) or if the brake pedal feels spongy.

Q4: Can I replace just the brake pads, or do I need to replace the rotors too?
A4: Ideally, you should replace pads and rotors together if the rotors show significant wear, glazing, or warping. If the rotors are in good condition, you can often just replace the pads. However, it's wise to inspect the rotors carefully.

Q5: Do I need to bleed the brakes after replacing the pads?
A5: In most cases, simply retracting the piston to accommodate new pads does not require bleeding the brake system, as you're not introducing air into the lines. However, if you had to disconnect any brake lines or if the brake fluid level drops significantly, bleeding might be necessary.

Replacing your rear brake pads is a rewarding task that keeps you in control. By following these steps and understanding the potential pitfalls, you can confidently maintain your vehicle’s braking system.
