Replacing Your E-bike Speed Sensor Magnet

E-bikes have revolutionised personal transport, offering a fantastic blend of pedal power and electric assistance. At the heart of this seamless experience lies a sophisticated system of sensors, and one of the most critical is the speed sensor. This clever little device, often working in tandem with a small magnet, is what tells your e-bike’s motor how fast you’re going, ensuring you get the right amount of assistance at the right time. Without it, your e-bike might feel sluggish, provide inconsistent power, or simply refuse to assist you at all. Knowing how to maintain or replace this tiny but mighty component is key to keeping your electric steed running smoothly. While some advanced systems, like those found on certain Yamaha models, integrate the magnet more deeply into the hub, many e-bikes feature a user-serviceable magnet typically mounted on a spoke.

This guide will walk you through the process of changing the most common type of e-bike speed sensor magnet – the one attached to your wheel spoke. We’ll cover why you might need to change it, the tools you’ll require, a clear step-by-step process, and some handy troubleshooting tips to ensure your e-bike is back to its optimal performance in no time.

Understanding Your E-bike's Speed Sensor System

Before you dive into replacing a magnet, it’s helpful to understand how your e-bike’s speed sensing system typically works. Most e-bikes use a hall-effect sensor, which detects changes in a magnetic field. As your wheel spins, a small magnet attached to a spoke passes by this stationary sensor, creating a pulse. Your e-bike’s controller counts these pulses to calculate your speed. This is crucial for regulating motor assistance, displaying your speed on the console, and calculating crucial metrics like range and distance.

There are generally a few common configurations for these sensors and magnets:

• Spoke-Mounted Magnet: This is the most prevalent setup. A small, often cylindrical or disc-shaped magnet is clamped onto one of your wheel spokes, usually on the rear wheel, but sometimes on the front. The corresponding sensor is typically mounted on the chainstay or fork, positioned to allow the magnet to pass very closely. This is the type of magnet we will primarily focus on replacing.
• Crank-Mounted Magnet (for Cadence Sensors): While not directly a speed sensor, cadence sensors also use magnets. These are usually small magnets attached to the crank arm or bottom bracket, passing by a sensor on the frame. These measure pedal rotation, not wheel speed, but it’s easy to confuse the two.
• Integrated Hub Magnets: Some e-bike systems, particularly mid-drive systems like certain Yamaha models, incorporate the speed sensor and its magnet directly into the rear hub or the motor casing. The information provided to us highlights that Yamaha has patented its hub speed sensor, which contributes to their "Zero Cadence support." In these cases, the magnet isn't a separate, user-replaceable component. If there's an issue with an integrated system, it usually means the entire sensor unit within the hub or motor needs professional attention, not just a magnet swap. This guide will focus on the more common user-serviceable spoke magnet.

Identifying which type of system your e-bike uses is the first step. Look for a small magnet clamped onto one of your spokes. If you find one, you're in luck, as replacing it is a relatively straightforward DIY task.

Why You Might Need to Change Your E-bike Magnet

Even though they are small, e-bike speed sensor magnets can encounter issues that necessitate replacement. Here are the most common reasons:

• Lost Magnet: This is perhaps the most frequent reason. Due to vibrations, knocks, or simply improper installation, the magnet can become loose and fall off during a ride. Without the magnet, your speed sensor has nothing to detect, and your e-bike will register zero speed.
• Damaged Magnet: While robust, magnets can be brittle. A hard impact, such as hitting a pothole or during transport, can crack or chip the magnet, reducing its magnetic field strength or causing it to misalign.
• Incorrect Placement/Alignment: Sometimes, the magnet itself isn't faulty, but it's been knocked out of its optimal position relative to the sensor. While not strictly a 'change', it often requires readjustment or re-securing, which can be similar to installing a new one.
• Weakened Magnetism: Though rare, over a very long period, or due to extreme heat/cold, a magnet's strength can degrade, leading to intermittent or inaccurate readings.
• Upgrade/Replacement Part: You might be replacing a lost original magnet with a new, potentially more robust or better-designed aftermarket one.

Recognising these symptoms – erratic speed readings, no speed displayed, or a complete lack of motor assistance despite pedalling – often points to a magnet or sensor issue.

Tools You'll Need

Changing an e-bike spoke magnet is a relatively simple job that doesn't require a vast array of specialist tools. Here's what you'll typically need:

• Replacement Magnet: Ensure you have the correct type for your e-bike. Most are universal spoke magnets, but some may have specific designs.
• Small Screwdriver or Allen Key: Depending on how your magnet is secured (some use a small screw, others might just snap on).
• Measuring Tape or Ruler: For precise alignment between the magnet and the sensor.
• Marker Pen (Optional): To mark the old magnet's position if you're just adjusting, or to mark the optimal sensor position.
• Clean Rag: To wipe down the spoke and sensor area.

Having these basic bits of kit ready will make the process much smoother.

Step-by-Step Guide: Replacing a Spoke Magnet

Follow these steps carefully to replace your e-bike’s speed sensor magnet:

1. Prepare Your E-bike

• Power Off: Always start by turning off your e-bike’s power and, if possible, remove the battery for safety.
• Position the Bike: Place your e-bike on a stand or lean it against a wall so that the wheel with the speed sensor (usually the rear wheel) is easily accessible and can spin freely.
• Locate the Sensor: Identify the speed sensor. It's usually a small, black plastic unit mounted on the chainstay (the frame part running from the crank to the rear axle) or the fork, positioned very close to the wheel spokes.

2. Locate and Remove the Old Magnet (If Present)

• Find the Magnet: If the old magnet is still there but damaged or loose, locate it on one of the spokes. It will be directly opposite the sensor.
• Loosen and Remove: Use your screwdriver or Allen key to loosen the screw that secures the magnet to the spoke. If it's a snap-on type, simply unclip it. Be careful not to damage the spoke.
• Clean the Area: Once the old magnet is off, use a clean rag to wipe down the spoke and the sensor area. This removes any grime that might interfere with the new installation.

3. Install the New Magnet

• Choose the Right Spoke: Select a spoke that aligns well with the speed sensor. The magnet needs to pass within a few millimetres of the sensor for it to register properly.
• Attach the Magnet: Slide the new magnet onto the chosen spoke. Most spoke magnets have a groove that fits snugly around the spoke.
• Secure the Magnet: Tighten the screw on the magnet clamp (if it has one) until it's firmly secured to the spoke. It should not be able to slide up or down the spoke easily, nor should it rotate. Don't overtighten, as this could damage the spoke or the magnet.

4. Precise Alignment and Testing

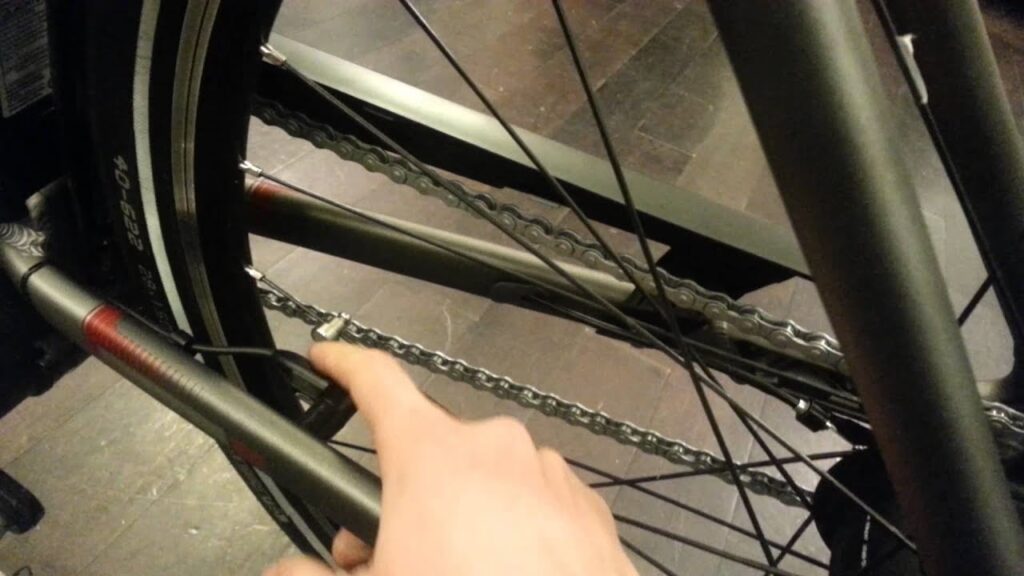

• Position the Magnet: This is the most crucial step. The magnet needs to be positioned at the same height as the active part of the speed sensor. The ideal gap between the magnet and the sensor is typically between 3mm and 5mm (about 1/8 to 1/4 inch). Too far, and the sensor won't detect it; too close, and it might rub.
• Adjust Sensor Position (if necessary): Some speed sensors can also be adjusted on their mounting bracket. If you're struggling to get the magnet close enough, you might be able to slightly adjust the sensor's position on the chainstay or fork. Ensure the sensor is also firmly secured once adjusted.
• Initial Test: With the e-bike still on its stand, gently spin the wheel by hand. Watch your e-bike display. If the magnet and sensor are correctly aligned, you should see a speed reading appear as the wheel rotates. Spin it faster to confirm the reading increases.
• Fine-Tune: If you're not getting a reading, or it's intermittent, make small adjustments to the magnet's position on the spoke (up/down or rotating it slightly) or the sensor's position. A millimetre can make a big difference. Keep spinning the wheel and checking the display until you get a consistent reading.
• Road Test: Once you're confident with the static test, put the battery back in (if removed) and go for a short ride. Check your speed display and ensure the motor assistance is engaging smoothly and consistently. Pay attention to any erratic readings.

Take your time with the alignment. It’s often a process of trial and error, but getting it right ensures reliable performance.

Troubleshooting Common Issues After Magnet Replacement

Even after carefully following the steps, you might encounter issues. Here's a quick troubleshooting guide:

Always double-check the simplest things first, like the magnet-to-sensor gap and secure connections. Often, a small adjustment is all that's needed.

The Importance of Accurate Speed Readings

You might wonder why such a fuss over a tiny magnet and a speed reading. The accuracy of your e-bike's speed sensor is paramount for several reasons:

• Motor Assistance: The e-bike's controller uses speed data to determine how much power to deliver. Incorrect readings can lead to inconsistent or non-existent assistance.
• Legal Compliance: E-bikes in the UK have a legal speed limit for motor assistance (15.5 mph or 25 km/h). An accurate speed sensor ensures your bike complies with these regulations.
• Display Information: Your display relies on this data to show your current speed, average speed, max speed, and calculate distances (trip and odometer) and estimated range. Without it, these functions are useless.
• Safety: Knowing your true speed is vital for safe riding, especially in traffic.

A properly functioning speed sensor and magnet contribute significantly to a safe, efficient, and enjoyable e-bike experience.

Cadence Sensor Magnets: A Brief Overview

While this article focuses on speed sensor magnets, it's worth briefly touching on cadence sensor magnets, as they also play a role in how your e-bike provides assistance. Cadence sensors detect when and how fast you are pedalling. They typically use a ring of magnets attached to the crank arm or spindle, which passes by a sensor on the frame near the bottom bracket. If your e-bike is providing assistance even when you're not pedalling, or not providing assistance when you are, it might be a cadence sensor issue rather than a speed sensor one. The process for replacing a cadence magnet (if it's a separate component) is similar: locate the sensor, position the magnet correctly, and ensure proper clearance.

What About Integrated Systems? (e.g., Yamaha)

As mentioned earlier, some e-bike manufacturers, notably Yamaha, utilise highly integrated speed sensing systems. The information provided to us specifically highlights that the "hub speed sensor IS patented by Yamaha" and that "The placement of the sensor on the hub is what gives Yamaha bikes the Zero Cadence support." This implies that the magnet is not a separate, easily user-replaceable component on these systems. Instead, it's often built directly into the motor or hub assembly. For such integrated systems:

• User Replacement is Unlikely: You generally cannot simply 'change the magnet'. The magnet is an intrinsic part of a larger sensor unit.
• Professional Service Required: If you suspect an issue with the speed sensor or its integrated magnet on a system like Yamaha's, it's highly recommended to consult a qualified e-bike technician or your nearest authorised dealer. They have the specialised tools and knowledge to diagnose and repair or replace these complex components.
• Warranty Considerations: Attempting to tamper with integrated systems could also void your warranty.

So, while changing a spoke magnet is a straightforward DIY task, always understand your e-bike's specific speed sensing setup before attempting repairs. When in doubt, seek professional advice.

Preventative Maintenance Tips

A little care goes a long way in preventing future magnet-related woes:

• Regular Checks: Periodically inspect your speed sensor magnet. Give it a gentle wiggle to ensure it's still firmly attached to the spoke.
• Cleanliness: Keep the magnet and sensor free from excessive dirt, mud, and debris. A quick wipe down after a muddy ride can prevent build-up that might interfere with readings.
• Avoid Impacts: Be mindful of where your magnet is positioned, especially when transporting your e-bike or navigating tight spaces. A knock can dislodge or damage it.
• Proper Storage: If storing your e-bike for extended periods, ensure it's in a stable position where the magnet isn't vulnerable to accidental knocks.

These simple steps can significantly extend the life and reliability of your speed sensor magnet.

Frequently Asked Questions (FAQs)

Can I use any magnet as a replacement?

No, it's highly recommended to use a magnet specifically designed for e-bike speed sensors. These are typically neodymium magnets, which are strong and compact. Generic magnets might not have sufficient strength or be the correct size and shape for accurate detection by your e-bike's sensor.

How do I know if my magnet is faulty or missing?

The clearest sign is a lack of speed reading on your e-bike's display, or intermittent/erratic readings, especially when you know you're moving. If your motor assistance cuts out or doesn't engage when it should, and you've ruled out other issues (like battery charge or mode settings), check your speed sensor magnet first. Visually inspect the spoke opposite the sensor to see if the magnet is present and correctly positioned.

What's the difference between speed and cadence magnets?

Speed magnets (usually on a wheel spoke) measure how fast your wheel is spinning, which directly translates to your road speed. Cadence magnets (usually on the crank arm) measure how fast you are pedalling. Both are crucial for different aspects of e-bike assistance, but they serve distinct functions.

Is changing the magnet a difficult job?

For a spoke-mounted magnet, it's generally a very easy and quick job, often taking only a few minutes once you have the right tools and replacement part. The most challenging part is often the precise alignment to ensure the sensor picks up the magnet consistently.

Where can I buy a replacement magnet?

Replacement e-bike speed sensor magnets are widely available online from e-bike parts retailers, or you can often find them at your local bike shop. Ensure you specify it's for an e-bike speed sensor, as they are specifically designed for this purpose.

My e-bike still isn't working after changing the magnet, what next?

If you've replaced the magnet and carefully aligned it, but still have no speed reading or assistance, the issue might lie elsewhere. Double-check the sensor's cable for any damage or loose connections. The speed sensor unit itself might be faulty, or there could be an issue with the e-bike's controller or display unit. At this point, it's best to consult a professional e-bike technician for a diagnostic check.

Changing your e-bike’s speed sensor magnet is a straightforward repair that can quickly resolve common issues with your bike's speed detection and motor assistance. By following these simple steps and understanding the basics of your e-bike’s system, you can keep your ride performing optimally, ensuring a smooth, reliable, and enjoyable experience on every journey. Don't let a tiny magnet hold you back from your next adventure!
