In the intricate world of modern vehicle maintenance, few components spark as much debate and confusion as the Exhaust Gas Recirculation (EGR) valve. Designed with the noble aim of reducing harmful emissions, this seemingly simple device can, over time, become a significant source of frustration and expensive repairs for many car owners across the UK. The question often arises: can an EGR valve simply be removed, or is it an indispensable part of your vehicle's complex ecosystem? This comprehensive guide delves deep into the purpose, problems, and potential solutions surrounding the EGR valve, exploring the often-considered option of removal or deletion.
Understanding the EGR Valve: Its Purpose and Operation
The EGR valve is a critical component within your vehicle's emissions control system. Its primary purpose is to help your vehicle burn fuel more effectively and completely, thereby reducing toxic emissions. It achieves this by recirculating a precise proportion of your exhaust gases back into the engine's intake manifold. By reintroducing these inert gases into the combustion process, the temperature within the cylinders is lowered. This reduction in peak combustion temperature is crucial because it significantly curtails the formation of nitrogen oxides (NOx), a major pollutant. The EGR valve itself is typically an electronically controlled device that opens and closes at specific moments during different engine rev ranges, precisely metering the amount of exhaust gas that re-enters the combustion chamber. This continuous recirculation process, while beneficial for the environment, unfortunately introduces a fundamental flaw that often leads to common issues.
The Inevitable Issues with EGR Valves: A Carbon Conundrum
Despite their environmental benefits, EGR valves are notoriously prone to problems. The very nature of their function – recirculating exhaust gases – means they are constantly exposed to soot and carbon deposits. Over time, these carbon deposits build up within the valve and its associated pipework. This accumulation can cause the EGR valve to malfunction, either becoming partially or completely blocked. When the valve gets stuck, it can be in an open or closed position, both of which lead to adverse effects on engine performance.
The symptoms of a failing or blocked EGR valve can be varied and often mimic other engine problems, making diagnosis challenging. Common indicators include poor idling speed, where the engine might idle roughly or inconsistently. You might also experience a distinct knocking or 'thumping' sound from the engine, a noticeable loss of power, or an engine that feels lethargic and unresponsive during acceleration. Other tell-tale signs can include visible smoke from the exhaust pipe, which can range from white to black depending on the specific issue. Crucially, the illumination of the yellow engine management light (EML) on your dashboard is a strong signal that something is amiss within the engine's control systems, often pointing to an EGR fault. If these issues are left unaddressed, the continuous poor combustion and increased engine stress can lead to more severe and significantly more expensive damage, such as turbo failure, a part that costs a considerable sum compared to a mere EGR replacement.
The Allure of EGR Removal and Deletion Services
Given the persistent problems and high costs associated with EGR valve failures, many vehicle owners and workshops are turning to EGR removal or 'deletion' services as a permanent solution. The core argument for EGR removal centres on eliminating the root cause of carbon build-up within the engine's intake system. By preventing exhaust gases from being recirculated, you effectively stop the continuous introduction of soot and carbon into critical engine components like the intake manifold.
The reported benefits of EGR removal are compelling:
- Lowered Engine Temperatures: With exhaust gases no longer being recirculated, the overall operating temperature of the engine can be reduced.
- Improved Fuel Economy: A cleaner intake system and more efficient combustion can lead to better fuel efficiency.
- Enhanced Throttle Response: Without the restriction or unpredictable flow caused by a faulty EGR, the engine's throttle response can become sharper and more immediate.
- Extended Engine Life: By significantly reducing carbon deposits and oil contamination, the engine's internal components are subjected to less wear and tear, potentially lengthening its overall lifespan.
- Reduced Maintenance Costs: Eliminating the EGR system means no more costly valve replacements or extensive carbon cleaning procedures.
These benefits paint a clear picture for owners of high-mileage engines or those frequently plagued by EGR-related issues, where the continuous build-up of carbon can even lead to the ultimate nightmare: total engine failure.
Is EGR Deletion Legal in the UK?
One of the most pressing questions for any UK car owner considering an EGR deletion is its legality. Currently, in the United Kingdom, the removal or disabling of the EGR system is legal and does not constitute a failure during the annual MOT test. This is because the MOT test, while comprehensive, does not currently include a specific check for the presence or functionality of the EGR system. However, it's important to note that environmental regulations are constantly evolving, and while it's our best guess that any future tightening of rules would not be applied retrospectively, the landscape could change. For now, it remains a permissible modification.
The Process: How EGR Removal and ECU Remapping Work
The physical removal of an EGR valve and system typically involves several steps, coupled with essential electronic reprogramming. The process generally includes:

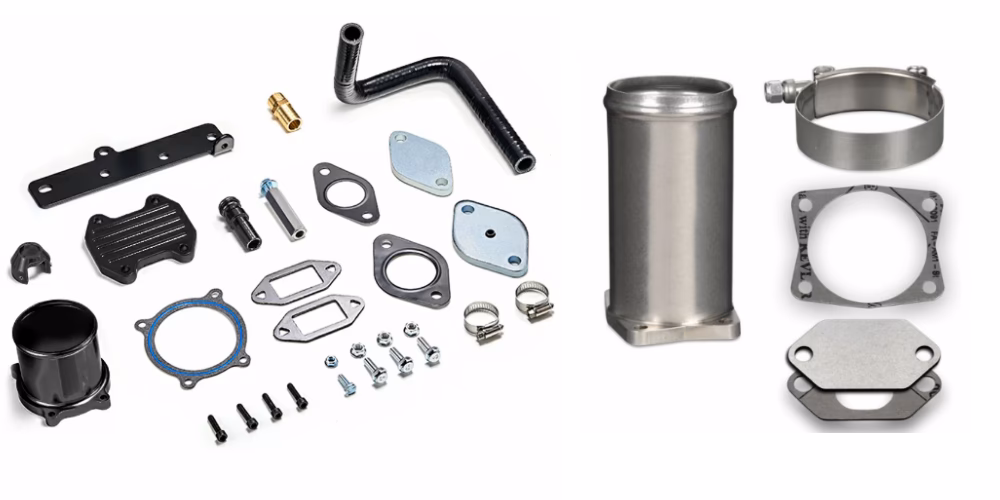

- Physical Blanking: This involves installing 'blanking plates' to seal off the exhaust input and intake manifold ports where the EGR valve once connected. This physically prevents exhaust gases from entering the intake system.
- Coolant Line Management: The EGR cooler (if present) often has coolant lines running to it. These lines need to be safely disconnected and then joined together using a suitable fitting (like a 90-degree elbow) to maintain the coolant circuit without draining the entire system. Clamping them off with needle-nose vise grips can help prevent coolant loss during this step.
- Component Removal: The EGR valve itself, and often the associated EGR cooler, are removed from the engine bay. This can sometimes be challenging due to surrounding components like the turbo's oil drain line, which may need temporary disconnection.
- Vacuum Line Capping: Any vacuum lines that previously connected to the EGR valve must be securely capped off to prevent vacuum leaks in the engine system.
- Electronic Plug Disconnection: The electronic plug that provided power and signals to the EGR valve is disconnected.
- ECU Reprogramming (Remapping): This is arguably the most crucial step. Simply blanking off the EGR without reprogramming the Engine Control Unit (ECU) will almost certainly lead to the engine management light coming on, as the ECU will detect the absence of the EGR signal. ECU remapping involves modifying the vehicle's software to bypass the EGR system's functions, preventing error codes and ensuring the engine operates optimally without it. This ensures that while the physical valve is gone, the car's computer isn't constantly looking for it or throwing fault codes. This remapping also allows for adjustments to engine parameters, often leading to the aforementioned benefits of improved throttle response and economy.
It is important to note that after a successful EGR deletion and ECU remapping, the engine management light may still illuminate due to the missing EGR signal, but this typically does not affect the drive, other than potentially a slight performance gain and, crucially, significantly less soot build-up within the engine.
EGR System Present vs. EGR System Removed: A Comparative Look
To help you weigh your options, here's a comparative table highlighting the key differences between a vehicle with an active EGR system and one where it has been successfully removed:
| Feature | EGR System Present (Standard) | EGR System Removed (Modified) |
|---|---|---|
| Emissions (NOx) | Reduced due to exhaust gas recirculation | Potentially higher NOx emissions (though other emissions may be lower) |
| Carbon Deposits | Prone to significant build-up in intake and EGR valve | Significantly reduced carbon build-up |
| Engine Performance | Can be hampered by clogged valve (poor idle, power loss) | Improved throttle response, smoother running, potential power gain |
| Fuel Economy | Can be negatively impacted by inefficient combustion due to valve issues | Often improved due to cleaner intake and efficient burn |
| Engine Longevity | Risk of reduced lifespan due to carbon contamination, turbo/engine failure | Potentially extended lifespan due to reduced internal wear |
| Maintenance Costs | High, due to frequent EGR cleaning/replacement, potential turbo damage | Lower, as EGR-related issues are eliminated |
| Engine Management Light (EML) | Illuminates if EGR malfunctions | May illuminate if ECU not properly remapped, but often no drive impact |
| MOT Test (UK) | Currently passes if no EML for EGR-specific fault | Currently passes, as EGR not specifically checked |
Frequently Asked Questions About EGR Removal
Q: What does EGR mean in a car?
A: EGR stands for Exhaust Gas Recirculation. It's a system designed to reduce harmful nitrogen oxide (NOx) emissions by recirculating a controlled portion of engine exhaust gases back into the intake air.
Q: Why do EGR valves fail?
A: EGR valves commonly fail due to the build-up of carbon deposits from the recirculated exhaust gases. These deposits can cause the valve to stick open or closed, preventing it from functioning correctly and leading to various engine problems.
Q: What are the symptoms of a bad EGR valve?
A: Symptoms can include poor or rough idling, engine knocking or thumping sounds, noticeable loss of power, a sluggish or unresponsive engine, smoke from the exhaust pipe, and the illumination of the engine management light on the dashboard.
Q: Does deleting an EGR cause an engine management light (CEL)?
A: If the EGR valve is physically removed or blanked off without proper ECU remapping, it will almost certainly cause the engine management light to illuminate. However, with a professional ECU remapping, the software is adjusted to ignore the missing EGR, preventing the light from coming on or ensuring it doesn't affect driveability if it does.
Q: Is EGR removal permanent?
A: Yes, once the EGR system is physically removed and the ECU is remapped, the change is permanent unless the components are reinstalled and the ECU is returned to its original settings.
Q: Will EGR removal affect my MOT in the UK?
A: Currently, in the UK, EGR removal does not cause an MOT failure. The MOT test does not specifically check for the presence or functionality of the EGR system.
Q: What are the main benefits of EGR removal?
A: The key benefits include reduced carbon build-up in the engine, improved throttle response, potential gains in fuel economy, lower engine temperatures, and a potentially longer engine lifespan due to reduced internal contamination and wear.
In conclusion, while the EGR valve plays a role in reducing specific emissions, its inherent design often leads to costly maintenance and performance issues due to carbon build-up. For many UK car owners, particularly those with older or high-mileage vehicles, the option of professional EGR removal and ECU remapping presents a compelling, legal, and often beneficial solution to these recurring problems, offering a path to improved engine health and reduced running costs.
