Precision Wheel Alignment: Your Workshop Guide

In the dynamic world of automotive maintenance, ensuring a vehicle's wheels are perfectly aligned is not merely a nicety; it's a fundamental requirement for safety, performance, and the longevity of components. Misaligned wheels can lead to premature tyre wear, compromised handling, increased fuel consumption, and even strain on suspension components. As technology advances, so too do the tools available to achieve this precision, with modern wheel alignment machines offering unparalleled accuracy and efficiency. This guide delves into the importance of proper wheel alignment, the cutting-edge capabilities of 3D aligners, and even the vital role of often-overlooked components like angular contact ball bearings that enable such sophisticated machinery.

The Critical Role of Wheel Alignment for Your Vehicle

Wheel alignment, often referred to as tracking, involves adjusting the angles of the wheels so they are perpendicular to the ground and parallel to each other. It's a complex process that takes into account three primary angles: camber, caster, and toe. Each of these plays a crucial role in how a vehicle handles, steers, and wears its tyres. Proper alignment ensures that your vehicle tracks straight, responds accurately to steering inputs, and maximises tyre life. Ignoring alignment can lead to a host of issues, from a steering wheel that isn't straight when driving in a straight line, to a vehicle pulling to one side, and most visibly, uneven and rapid tyre wear. Investing in regular wheel alignment checks, therefore, is an investment in your vehicle's overall health and your safety on the road.

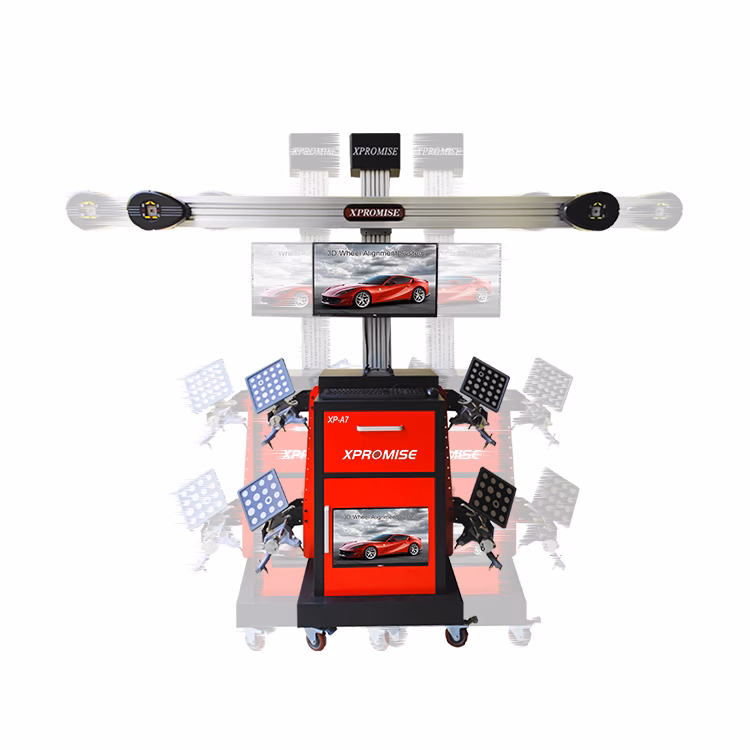

Embracing Innovation: The Advantages of 3D Wheel Aligners

For years, traditional 2D wheel aligners were the standard, relying on optical sensors and precise levelling of the vehicle. While effective, they often required meticulous setup and were susceptible to inaccuracies if the lift was not perfectly level. Enter the 3D wheel aligner, a revolutionary leap in automotive diagnostic technology. Unlike their predecessors, 3D aligners take measurements in three-dimensional space, removing the stringent requirement for a perfectly levelled lift. This feature alone significantly streamlines the alignment process, making it faster and more accessible for workshops.

Beyond the reduced reliance on a level lift, 3D aligners boast several other compelling advantages. Their advanced camera systems capture precise data from targets mounted on the wheels, allowing for real-time adjustments and highly accurate readings. Many models come equipped with intelligent self-diagnostic functions, meaning the software can automatically detect and signal hardware defects or operational errors. This self-monitoring capability reduces downtime and enhances the reliability of the measurements. The intuitive graphical interfaces and comprehensive databases of vehicle specifications further simplify the process, enabling technicians to achieve precise alignments with greater ease and confidence. For modern workshops aiming for efficiency and accuracy, the transition to a 3D system is a clear step forward.

Comparative Table: Conventional (2D) vs. 3D Wheel Aligners

Sourcing Your Equipment: Where to Find Wheel Alignment Machines, Including Chinese Manufacturers

When it comes to acquiring a wheel alignment machine, workshops have a global marketplace to navigate. While established European, American, and Japanese brands have long dominated, Chinese manufacturers have emerged as significant players, offering a wide range of options that often combine advanced features with competitive pricing. The question of "where to buy a Chinese wheel aligning machine" doesn't have a single answer, as the market is diverse.

Many workshops explore large B2B e-commerce platforms such as Alibaba or Made-in-China.com, which host numerous Chinese manufacturers and suppliers. These platforms allow for direct communication with factories, often providing a cost advantage by cutting out intermediaries. However, caution is advised: thorough due diligence is paramount. Verifying supplier credentials, checking certifications (e.g., CE, ISO), and scrutinising customer reviews are crucial steps. It's also wise to inquire about after-sales support, warranty terms, and the availability of spare parts, as these can vary significantly between manufacturers.

Another avenue is attending international trade shows focused on automotive aftermarket equipment. Events like Automechanika (held globally in various locations) are excellent opportunities to see machines in person, speak directly with manufacturers, compare models, and negotiate prices. This direct interaction can provide a much clearer picture of product quality and supplier reliability than online interactions alone.

Alternatively, many Chinese manufacturers have established international distribution networks. This means you might find their products available through local distributors in the UK or Europe. Buying from a local distributor often provides the benefit of local support, easier warranty claims, and quicker access to spare parts, albeit potentially at a slightly higher price than direct import. Regardless of the source, prioritising after-sales service and technical support should be as important as the initial purchase price, ensuring your investment remains operational and profitable for years to come.

Behind the Scenes: The Importance of Angular Contact Ball Bearings

While the sophisticated camera systems and software of a 3D wheel aligner capture the limelight, the precision and smooth operation of such equipment, and indeed many other high-speed machinery applications in the automotive industry, rely heavily on the unsung heroes of mechanical engineering: angular contact ball bearings. These specialised bearings are a standout component in any high-precision mechanical system, including the intricate mechanisms within a wheel aligner itself, or perhaps within the vehicle's own transmission or wheel hubs.

Angular contact ball bearings are distinct from standard radial ball bearings due to their unique internal design. They feature raceways in the inner and outer rings that are displaced with respect to each other in the direction of the bearing axis. This specific raceway offset allows them to accommodate not only radial loads (forces perpendicular to the shaft) but also significant axial loads (forces parallel to the shaft) simultaneously. This dual load-carrying capability is critical in applications where components experience forces from multiple directions, ensuring stability and reducing friction.

Key Characteristics of Angular Contact Ball Bearings

The design of angular contact ball bearings makes them exceptionally suited for demanding applications:

• Combined Load Capacity: Their primary advantage is the ability to handle both radial and axial loads. The contact angle determines the proportion of axial load they can sustain; a larger contact angle supports higher axial loads, while a smaller angle is better for higher speeds.
• High Speed Capability: Engineered for precision and minimal friction, these bearings are widely used in high-speed machinery applications, ensuring smooth rotation and reduced heat generation.
• Rigidity and Accuracy: Often mounted in pairs or sets (e.g., back-to-back, face-to-face, or tandem arrangements), they can be preloaded to increase system rigidity and achieve very high running accuracy, which is paramount in precision measurement equipment like wheel aligners.
• Variety of Designs: Available in single row, double row, and matched pair configurations, allowing engineers to select the optimal solution for specific load and stiffness requirements.

In a wheel aligner, angular contact ball bearings might be found in rotating parts of the camera heads, the precision mechanisms of calibration jigs, or even in the robust turntables that support the vehicle's wheels. Their ability to maintain precise alignment under varying loads and speeds is fundamental to the accuracy and reliability of the alignment process.

Choosing the Right Wheel Aligner for Your Workshop

Selecting the ideal wheel alignment machine involves more than just budget. Consider your workshop's space, the volume of vehicles you service, and the types of vehicles you typically work on. Look for features like user-friendly software, comprehensive vehicle databases, and robust hardware. The reputation of the manufacturer and the availability of local technical support and training should also heavily influence your decision. A good aligner is an investment that, when chosen wisely, will pay dividends in efficiency, customer satisfaction, and increased revenue.

Maintaining Your Wheel Alignment Machine for Longevity

To ensure your wheel alignment machine continues to deliver accurate results for years to come, regular maintenance is essential. This includes keeping cameras and targets clean, performing routine calibrations as recommended by the manufacturer, and ensuring software updates are applied promptly. Regularly checking the condition of cables, power supplies, and any moving parts will prevent unexpected downtime. A well-maintained machine not only provides accurate readings but also instils confidence in your technicians and, crucially, your customers.

Frequently Asked Questions About Wheel Alignment and Equipment

Q: How often should a vehicle's wheel alignment be checked?

A: It's generally recommended to have your wheel alignment checked every 12,000 to 15,000 miles or at least once a year. However, if you hit a significant pothole, curb, or notice any signs of misalignment (like uneven tyre wear or the vehicle pulling), it should be checked immediately.

Q: What are the primary signs of poor wheel alignment?

A: Key indicators include uneven or rapid tyre wear (e.g., one side of the tyre wearing faster), the vehicle pulling or drifting to one side, a crooked steering wheel when driving straight, or squealing tyres.

Q: Are Chinese wheel alignment machines reliable?

A: The reliability of Chinese wheel alignment machines varies considerably between manufacturers. Many reputable Chinese companies produce high-quality, reliable equipment that competes effectively with Western brands. However, it's crucial to conduct thorough research, check for international certifications (like CE), read reviews, and verify after-sales support and warranty terms before purchasing.

Q: Can angular contact ball bearings be replaced easily?

A: While the bearings themselves are standard components, their replacement often requires specialised tools and expertise. Correct installation, including setting the proper preload, is critical for their performance, lifespan, and the overall accuracy of the machinery they support. It's usually a job for a trained technician.

Q: What is the main benefit of a 3D wheel aligner over older models?

A: The primary benefit of a 3D wheel aligner is its superior accuracy and efficiency. By taking measurements in three-dimensional space, it significantly reduces the impact of an unlevel lift and often speeds up the measurement process, leading to more precise and consistent alignment results with less setup time.

Q: Does wheel alignment affect fuel economy?

A: Yes, absolutely. When wheels are misaligned, the tyres drag instead of rolling freely, which increases rolling resistance. This forces the engine to work harder, leading to increased fuel consumption and reduced fuel economy. Proper alignment ensures your tyres roll optimally, contributing to better miles per gallon.
