Understanding Your Car's Head Gasket

The head gasket is a crucial component within your car's internal combustion engine, often described as the silent guardian of engine integrity. While it might not be a part that drivers typically think about on a day-to-day basis, its failure can lead to significant and costly engine damage. Essentially, it's a seal that sits between the engine block and the cylinder head, two of the most critical and complex parts of your engine. Its primary function is to seal the combustion chambers, preventing the escape of gases, and also to prevent coolant and oil from mixing with each other or entering the combustion chambers. Without a properly functioning head gasket, your engine simply cannot operate efficiently, or in many cases, at all. This article will delve into the intricacies of the head gasket, its importance, common failure symptoms, and what you need to know if you suspect yours might be compromised.

The Crucial Role of the Head Gasket

To truly appreciate the head gasket, we must first understand the environment it operates within. Your engine's cylinder head houses vital components like the valves, spark plugs (in petrol engines), and injectors (in diesel engines). The engine block contains the cylinders where the pistons move up and down, driven by the controlled explosions of fuel and air. The head gasket's job is to create a perfect seal between these two massive metal components. This seal is vital for several reasons:

• Sealing Combustion Chambers: During the combustion cycle, immense pressure and heat are generated within the cylinders. The head gasket must withstand these extreme conditions to prevent combustion gases from escaping into the coolant passages or the crankcase.
• Preventing Coolant and Oil Mixing: The engine block and cylinder head have separate passages for engine oil and coolant. The head gasket prevents these vital fluids from mixing, which would be catastrophic for lubrication and cooling.
• Maintaining Compression: A good seal ensures that the air-fuel mixture remains compressed within the cylinder during the compression stroke, which is essential for efficient power generation.

Think of it as the umpire in a high-stakes game, ensuring that each element stays in its designated area and performs its function without interference. The pressures involved are immense, and the temperatures can soar, making the head gasket a component engineered to perform under extreme duress.

Materials and Construction

Head gaskets are not simple pieces of rubber. They are complex, engineered components made from advanced materials designed to withstand the harsh environment of an engine. The most common types of head gaskets include:

The choice of gasket material depends on the engine's design, intended use, and performance requirements. For high-performance or turbocharged engines, MLS gaskets are often the preferred choice due to their superior strength and resistance to extreme conditions.

Common Signs of a Failing Head Gasket

Recognising the symptoms of a blown head gasket is crucial to preventing further engine damage. A failing head gasket can manifest in a variety of ways, often subtle at first, but escalating as the problem worsens. Here are some of the most common indicators:

• White Smoke from the Exhaust: This is a classic sign. If coolant is leaking into the combustion chamber, it will be burnt along with the fuel, producing thick, white, sweet-smelling smoke. This is often mistaken for a blown head gasket, but it's essential to differentiate it from normal exhaust fumes.
• Coolant Loss with No Visible Leaks: If your coolant level is consistently dropping, but you can't find any puddles or leaks under the car, the coolant might be escaping internally – often into the combustion chambers or the oil system.

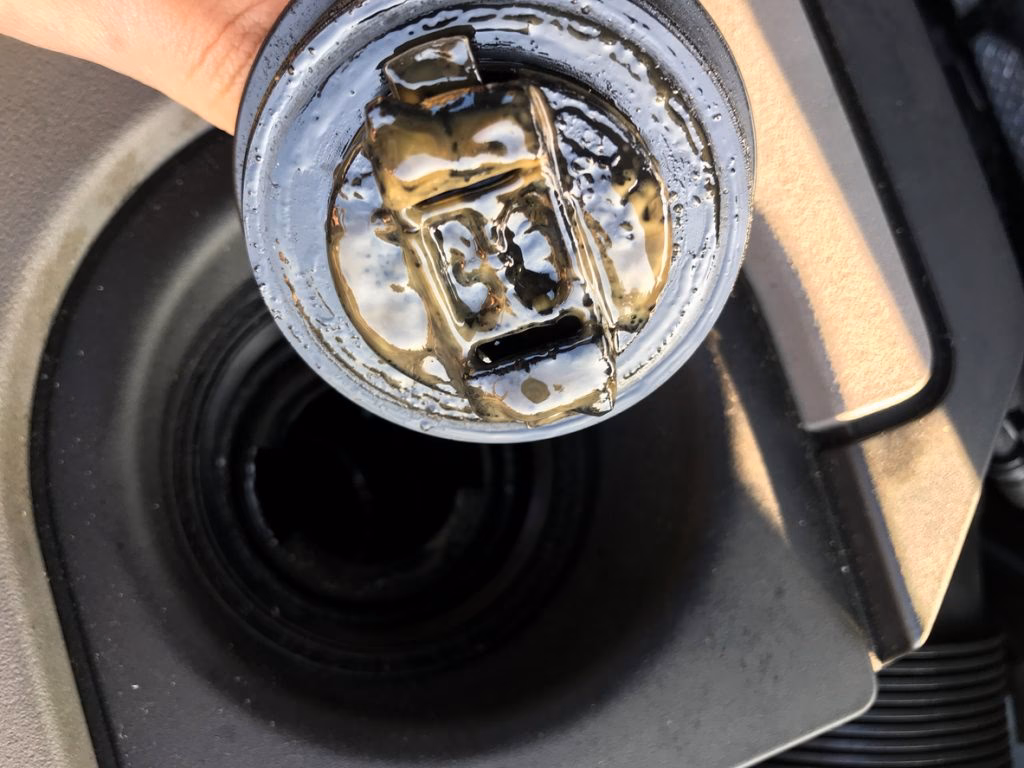

• Milky or Foamy Oil: When oil and coolant mix, the oil can take on a milky, frothy appearance, often described as looking like a latte or mayonnaise. This is a serious sign and indicates a breach between the oil and coolant passages. You can often check this on the dipstick or under the oil filler cap.
• Overheating Engine: A compromised head gasket can disrupt the coolant flow, leading to the engine overheating. This can also be caused by other cooling system issues, but when combined with other symptoms, it points strongly towards a head gasket problem.
• Loss of Engine Power: If the head gasket is failing to seal the combustion chamber properly, you'll experience a loss of compression, leading to a noticeable drop in engine power and performance. The engine might run rough, misfire, or feel sluggish.
• Bubbles in the Coolant Reservoir: Combustion gases can sometimes leak into the coolant system, causing bubbles to appear in the coolant reservoir. This indicates pressure is escaping into the cooling system.
• External Leaks: In some cases, the head gasket can fail externally, allowing coolant or oil to leak out from between the engine block and the cylinder head. These leaks might be visible as wet spots or drips on the outside of the engine.

It's important to note that not all these symptoms will necessarily appear at once, and some can be indicative of other engine problems. However, if you notice a combination of these signs, it's wise to have your vehicle inspected by a qualified mechanic.

Why Do Head Gaskets Fail?

Head gasket failure isn't usually a sudden, inexplicable event. It's often the result of a combination of factors, wear and tear, or specific engine stresses. Common causes include:

• Overheating: This is perhaps the most common culprit. Repeated or severe overheating can cause the metal components of the engine block and cylinder head to expand and contract at different rates, stressing the gasket and leading to cracks or breaches.
• Age and Wear: Like any component, head gaskets have a finite lifespan. Over time, the materials can degrade, lose their sealing ability, or become brittle.
• Manufacturing Defects: While rare, a faulty gasket from the factory can lead to premature failure.
• Improper Installation: If a head gasket is not installed correctly, or if the cylinder head or block surfaces are not properly prepared, it can lead to leaks and premature failure. This includes incorrect torque settings on the head bolts.
• Engine Stress: High-performance engines, or engines subjected to excessive stress (e.g., towing heavy loads, aggressive driving), can put greater demands on the head gasket, increasing the likelihood of failure.
• Corrosion: If the coolant is not maintained properly, or if the wrong type of coolant is used, corrosion can occur, attacking the gasket materials.

The Repair Process: A Complex Undertaking

Replacing a head gasket is one of the more labour-intensive and expensive repairs a vehicle can undergo. It's not a DIY job for the faint of heart and typically requires significant mechanical expertise and specialised tools. The general process involves:

1. Disassembly: The mechanic will need to remove many components from the top of the engine to access the cylinder head. This can include the intake manifold, exhaust manifold, spark plugs, wiring, fuel injectors, and various hoses and pipes.
2. Cylinder Head Removal: The cylinder head bolts, which are often torqued to very specific specifications, are loosened in a particular sequence. The cylinder head is then carefully lifted off the engine block.
3. Inspection and Machining: Both the cylinder head and the engine block surfaces where the gasket sits are thoroughly cleaned and inspected for flatness. Warped heads or blocks will need to be sent to a machine shop for skimming (machining) to ensure a perfect sealing surface.

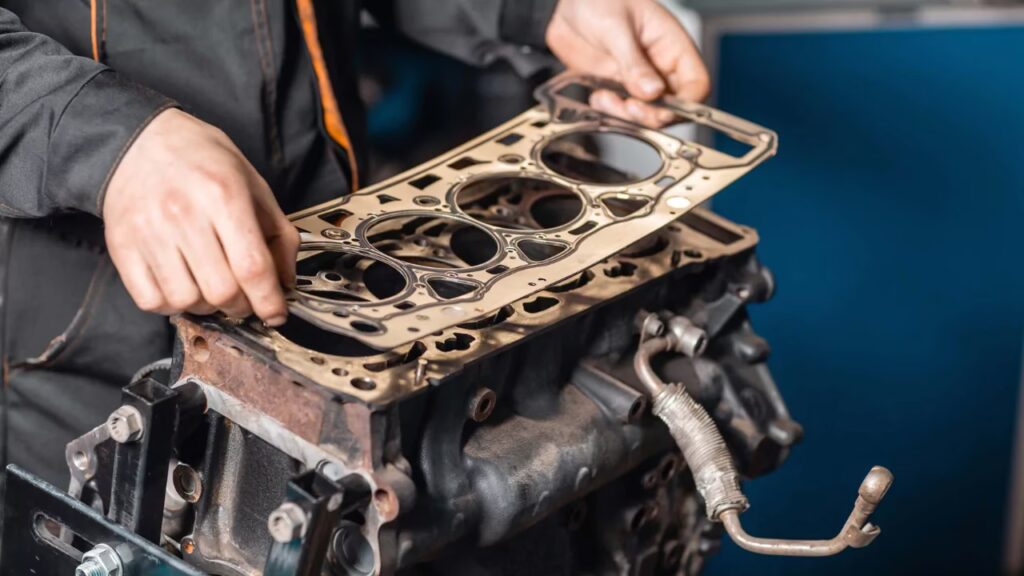

4. New Gasket Installation: A new, high-quality head gasket is carefully placed onto the engine block.
5. Cylinder Head Reinstallation: The cylinder head is placed back onto the block, and new cylinder head bolts are typically used. These bolts are tightened in a specific sequence and to precise torque specifications, often in multiple stages, to ensure even pressure distribution.
6. Reassembly: All the components that were removed are reinstalled.
7. Testing: After reassembly, the engine is started and checked for leaks and proper operation. The cooling system is refilled and bled.

The cost of this repair can vary significantly depending on the make and model of the vehicle, the labour rates in your area, and whether the cylinder head requires machining. It's not uncommon for head gasket replacements to cost upwards of £800 to £1500, and sometimes significantly more for specialist vehicles or if other damage is discovered.

Preventative Measures: Can You Avoid Head Gasket Failure?

While not all head gasket failures can be prevented, adopting good maintenance practices can significantly reduce the risk:

• Regularly Check and Maintain Coolant Levels: Ensure your coolant is at the correct level and that it's replaced according to your vehicle manufacturer's service schedule. Using the correct type of coolant is also vital to prevent corrosion.
• Monitor Engine Temperature: Pay attention to your temperature gauge. If it starts to climb higher than normal, pull over safely and investigate. Don't ignore an overheating engine; it's a primary cause of head gasket failure.
• Address Leaks Promptly: If you notice any coolant leaks, even small ones, get them repaired immediately. A minor leak can lead to overheating and subsequently, a blown head gasket.
• Avoid Excessive Engine Stress: If your vehicle isn't designed for extreme use, avoid consistently pushing it to its limits, especially in hot weather or when towing heavy loads.

Frequently Asked Questions

Q1: How long does a head gasket repair take?
A: The repair typically takes several days, as it involves extensive disassembly, potential machining, and careful reassembly.

Q2: Can I drive my car with a blown head gasket?
A: It is strongly advised against driving a car with a blown head gasket. Continued driving can lead to severe and irreversible engine damage, such as warped cylinder heads, damaged pistons, or even a seized engine, turning a costly repair into a complete engine replacement.

Q3: Is it worth repairing a blown head gasket?
A: The decision depends on the age and condition of the vehicle, as well as the cost of the repair relative to the vehicle's value. For newer or valuable cars, the repair is often worthwhile. For older, less valuable vehicles, it might be more economical to replace the car.

Q4: What's the difference between a blown head gasket and a cracked block?
A: A blown head gasket is a failure of the seal between the cylinder head and engine block. A cracked block means the engine block itself has developed a fracture, which is a more severe and often irreparable issue.

In conclusion, the head gasket is a vital, yet often overlooked, component of your engine. Understanding its role, the signs of failure, and the implications of its malfunction is essential for any car owner. Regular maintenance and prompt attention to any engine anomalies can help extend the life of your head gasket and prevent costly repairs down the line.
