In the complex symphony of a modern engine, numerous sensors work in unison to ensure every combustion cycle is as efficient and powerful as possible. One of these vital components is the camshaft position sensor, often abbreviated as the CMP sensor. Its role is crucial for your vehicle's performance, and understanding the signs of a failing CMP sensor is key to maintaining your car's health. This guide will delve into what happens when your camshaft position sensor malfunctions, its fundamental function, typical locations, and the associated costs of replacement. By the end, you'll be equipped to identify a faulty CMP and have your most pressing questions answered.
The Hallmarks of a Failing Camshaft Position Sensor
When a camshaft position sensor begins to falter, the consequences can manifest in several noticeable ways. The most common indicators include an engine that refuses to start or, more commonly, the illumination of the Check Engine Light. Beyond these, you might experience a general decline in engine performance, your vehicle entering "limp mode," or noticeable engine misfires. If your car does manage to run, you could also encounter issues with gear shifting or a significant increase in fuel consumption. Let's explore these seven potential symptoms in greater detail:
1. The Engine Refuses to Start
A primary function of the CMP sensor is to provide a critical timing signal to the Engine Control Unit (ECU). If this signal is absent or corrupted, the ECU cannot accurately determine the engine's timing, which can lead to starting problems. This issue can be particularly frustrating as it often presents itself intermittently. One day your car might fire up without a hitch, only to become stubbornly unresponsive the next. If you find yourself unable to start your vehicle, it may necessitate a tow to a repair facility.
2. The Illuminating Check Engine Light
The Check Engine Light is the universal signal that your vehicle's onboard diagnostics system has detected a problem. While it broadly indicates an engine-related issue, it's important to understand that this light can be triggered by a wide array of faults, including a malfunctioning camshaft position sensor. When a CMP sensor fails, specific diagnostic trouble codes (DTCs) are typically stored in the ECU. Common codes associated with CMP sensor issues include:
- P0340 – Camshaft Position Sensor “A” Circuit
- P0341 – Camshaft Position Sensor “A” Circuit Range/Performance
- P0342 – Camshaft Position Sensor “A” Circuit Low
- P0343 – Camshaft Position Sensor “A” Circuit High
- P0344 – Camshaft Position Sensor “A” Circuit Intermittent
- P0345 – Camshaft Position Sensor “A” Circuit
- P0346 – Camshafts Position Sensor “A” Circuit Range/Performance
- P0347 – Camshaft Position Sensor “A” Circuit Low
- P0348 – Camshaft Position Sensor “A” Circuit High
- P0349 – Camshaft Position Sensor “A” Circuit Intermittent
It's crucial to remember that the presence of one of these codes doesn't definitively pinpoint the CMP sensor as the sole culprit. Electrical faults within the wiring harness or even a problem with the Engine Control Module (ECM) itself could be the underlying cause.
3. Degraded Engine Performance
A failing camshaft position sensor can transmit inaccurate data to the ECM. This misinformation can lead the ECM to incorrectly adjust the fuel and air mixture within the combustion chambers, causing an imbalance that negatively impacts performance. You might notice your vehicle hesitating when you accelerate, or it may feel sluggish to respond when you press the accelerator pedal. Such issues can be particularly dangerous if they occur when you need to merge into traffic or perform a manoeuvre requiring immediate power.
4. Engagement of Limp Mode
Modern vehicles are equipped with sophisticated safety systems designed to protect the engine and transmission from further damage in the event of a critical fault. When the ECM detects a situation that could lead to significant mechanical harm, it may engage "limp mode." This is a fail-safe mechanism to prevent catastrophic failure and potentially costly repairs. In limp mode, your vehicle's power output is significantly reduced, and it will typically be locked in a single gear, often second gear. While this severely limits your speed and acceleration, it usually allows you to drive your car to the nearest service centre without requiring a tow truck.
5. Engine Misfires and Rough Idling
Most car engines are designed to idle smoothly within a specific revolutions per minute (RPM) range, typically between 600 and 1,000 RPM. However, when the CMP sensor malfunctions, the signals it sends to the engine management system can become erratic. This inconsistency leads to an improper balance of fuel and air entering the combustion chambers, resulting in a rough or uneven idle. If the rough idle becomes severe enough, the engine may even stall. In such scenarios, restarting the engine might become a challenge.
6. Transmission Shifting Irregularities
The data provided by the camshaft position sensor is also vital for the smooth operation of the transmission. Faulty signals can disrupt the transmission's control module, leading to shifting problems. Beyond the engagement of limp mode, you might experience harsh or erratic gear changes between gears. If you notice your transmission behaving unusually, it's advisable to reduce driving and seek professional diagnosis, as continued driving could exacerbate wear on the transmission components.
7. Increased Fuel Consumption
To achieve optimal fuel economy, as advertised by manufacturers, all engine components must be functioning perfectly. The camshaft position sensor plays a critical role in providing the feedback necessary for the ECM to precisely adjust ignition timing and fuel delivery. When the sensor fails, these crucial adjustments become inaccurate or imbalanced, leading to inefficient combustion. Consequently, any time your engine isn't running optimally, you can expect to see a noticeable increase in your fuel bills. While the individual increase might seem small, it can add up significantly over time.
The Fundamental Role of the Camshaft Position Sensor
As its name suggests, the camshaft position sensor (CMP) is responsible for monitoring and reporting the exact position of the camshaft to the ECM or Powertrain Control Module (PCM). This information is indispensable for the ECU to accurately determine the precise timing of the opening and closing of the intake and exhaust valves within the cylinder head. This timing data is then used by the fuel injection system and the ignition system to orchestrate when fuel is injected into the cylinders and when the spark plugs ignite the air-fuel mixture. In essence, the CMP sensor acts as a crucial timing reference, ensuring that fuel injection and ignition sparks occur at the correct moments for efficient and powerful combustion.

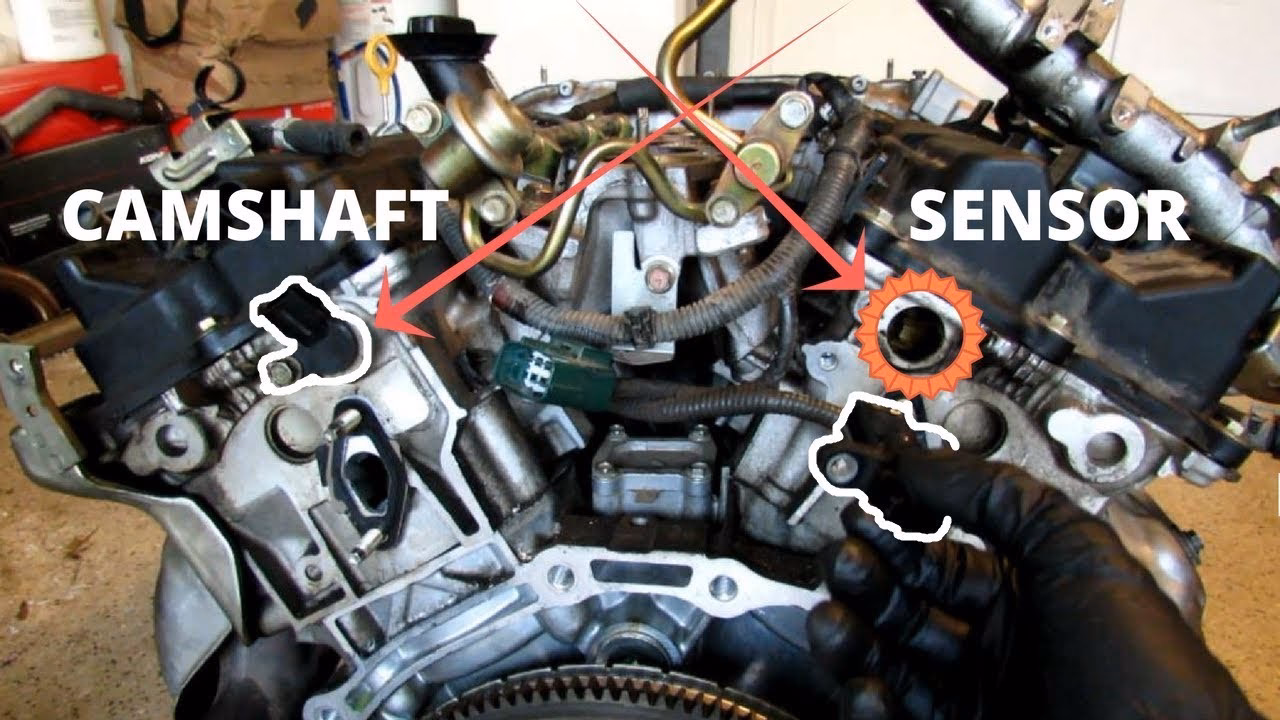

Locating Your Camshaft Position Sensor
The specific location of the camshaft position sensor can vary depending on the engine's design and the placement of the camshaft itself. In vehicles employing an overhead camshaft (OHC) configuration, where the camshaft resides within the cylinder head, the CMP sensor is typically mounted near the camshaft. Common mounting points include the front timing cover, directly onto the cylinder head, or sometimes within the valve cover. If you're unsure about the exact location in your specific vehicle, consulting your car's factory service manual is the most reliable method to find it.
Diagnosing a Faulty Camshaft Position Sensor
Fortunately, diagnosing a potentially faulty camshaft position sensor doesn't necessarily require a trip to the mechanic. By following a few systematic steps, you can often pinpoint the issue yourself. Begin by consulting your vehicle's service manual for specific diagnostic procedures. Here are some general steps to guide you:
- Scan for Diagnostic Trouble Codes (DTCs): Use an OBD-II scanner to retrieve any stored fault codes. Familiarise yourself with the codes related to CMP sensor faults (as listed earlier). Many online resources can help you understand the meaning of these codes.
- Test Sensor Wiring: Locate the CMP sensor and identify its power, signal, and ground wires. Using a multimeter and following the specific testing procedures outlined in your factory service manual, test these wires for proper voltage and continuity. Deviations from the specified readings often indicate a problem with the wiring or the sensor itself.
- Visual Inspection: Carefully remove the CMP sensor from its mounting location. Examine it for any signs of physical damage, such as cracks or corrosion, or contamination from oil or debris.
If these diagnostic steps don't reveal a clear issue with the camshaft position sensor, the symptoms you're experiencing might stem from other related components. Issues with a stretched or worn timing belt or a faulty tensioner can mimic the symptoms of a bad CMP sensor, so it's worth considering these possibilities as well.
The Cost of Replacing a Camshaft Position Sensor
On average, you can expect the cost of replacing a camshaft position sensor to range from approximately £75 to £200. This figure typically includes the cost of the part itself, which can vary from £50 to £100, and the labour charges, which usually fall between £25 and £100. The final price will be influenced by the make and model of your vehicle, as well as the prevailing labour rates in your local area. If you're comfortable performing basic automotive repairs, replacing the CMP sensor yourself can be a cost-effective option, allowing you to save on labour expenses and only pay for the replacement part.
DIY Camshaft Position Sensor Replacement: A General Guide
Replacing a camshaft position sensor is generally a straightforward task for most DIY enthusiasts. While specific steps may vary by vehicle, here's a general outline to follow:
- Disconnect the Battery: Always begin by disconnecting the negative battery terminal. This is a crucial safety step to protect the vehicle's sensitive electronic components from short circuits.
- Locate the Sensor: Identify the CMP sensor. It's typically found at the front, top, or rear of the engine, often with a two or three-wire electrical connector attached.
- Disconnect the Electrical Connector: Carefully release the locking tab on the electrical connector and detach it from the sensor.
- Remove the Mounting Bolt: Use the appropriate socket or wrench to remove the bolt securing the sensor to the engine block or cylinder head.
- Remove the Old Sensor: Gently pull the sensor free from its mounting. A slight twisting motion may be necessary.
- Prepare the New Sensor: Apply a small amount of clean engine oil or dielectric grease to the O-ring seal on the new sensor. This helps ensure a proper seal and eases installation.
- Install the New Sensor: Insert the new camshaft position sensor into its mounting location, ensuring it's seated correctly.
- Secure the Sensor: Reinstall and tighten the mounting bolt to the manufacturer's specified torque.
- Reconnect the Electrical Connector: Attach the electrical connector to the new sensor, ensuring it clicks securely into place.
- Reconnect the Battery: Reconnect the negative battery terminal.
In some instances, after replacing the sensor, your vehicle's computer may require a relearning or recalibration process for the new sensor to function correctly. These procedures are highly vehicle-specific, so it's essential to consult your service manual for detailed instructions.
Frequently Asked Questions About Camshaft Position Sensors
Can I drive with a faulty camshaft position sensor?
While it might be possible to drive your vehicle for a short period with a malfunctioning camshaft position sensor, it is strongly discouraged. Not only will you likely experience increased fuel consumption, but the erratic signals can also lead to further engine damage over time. Furthermore, there's always the risk of the engine stalling unexpectedly, leaving you stranded. For your safety and to prevent more extensive repairs, it's best to have the sensor replaced as soon as possible.
What causes a camshaft position sensor to fail?
Like most electrical components, camshaft position sensors can fail due to age and wear. However, premature failure can also occur due to physical damage, such as impact or vibration, or an electrical short within the sensor's circuit. In many cases, a CMP sensor can last the entire lifespan of the vehicle.
What happens if the camshaft sensor fails while the engine is running?
If the camshaft position sensor completely fails while the engine is running, it can cause the engine to stall. You may also encounter difficulties restarting the engine, potentially requiring it to be towed. However, many sensors tend to provide inaccurate data before failing completely, giving you a window of opportunity to diagnose and replace the component before a complete breakdown occurs.
Can a bad camshaft sensor cause the car to jerk?
Yes, a faulty camshaft position sensor can certainly lead to a jerking sensation while driving. This can be caused by an erratic engine idle, which makes the vehicle feel unstable. Engine misfires, a common symptom of a bad CMP sensor, can also contribute to this jerky feeling. Additionally, if the transmission is experiencing shifting issues due to incorrect sensor data, this can also result in a jerky driving experience.
Is a camshaft position sensor easy to replace?
In many cases, the most time-consuming part of replacing a camshaft position sensor is locating it. Once found, the actual replacement process is typically quite straightforward, especially if you have access to your vehicle's service manual, which provides step-by-step instructions. Occasionally, a new sensor may require a recalibration or relearning procedure, which will be detailed in the manual. Overall, dealing with a bad camshaft position sensor is a manageable issue, making it one of the less daunting and costly repairs you might face. It's understandable to want to avoid the problems caused by a faulty camshaft position sensor. The good news is that this is usually a relatively simple fix. However, if left unaddressed, the continued operation of the engine with an imbalanced fuel and air mixture can lead to permanent engine damage. Therefore, addressing a failing CMP sensor promptly is essential for maintaining your vehicle's long-term health and drivability.
