Fuel Properties & Diesel Injection Rate

The intricate dance between fuel and engine begins long before combustion, specifically during the fuel injection process. The efficiency of diesel combustion and the level of associated pollutant emissions are profoundly influenced by this critical phase. Understanding the subtle yet significant ways in which fuel properties affect the injection process is paramount for engineers and enthusiasts alike, as it directly impacts in-nozzle flow characteristics and, consequently, engine performance. This article delves into the fascinating world of fuel injection, exploring how various physical properties of diesel and alternative fuels dictate the flow dynamics within the injector itself.

The Pivotal Role of Fuel Injection in Diesel Engines

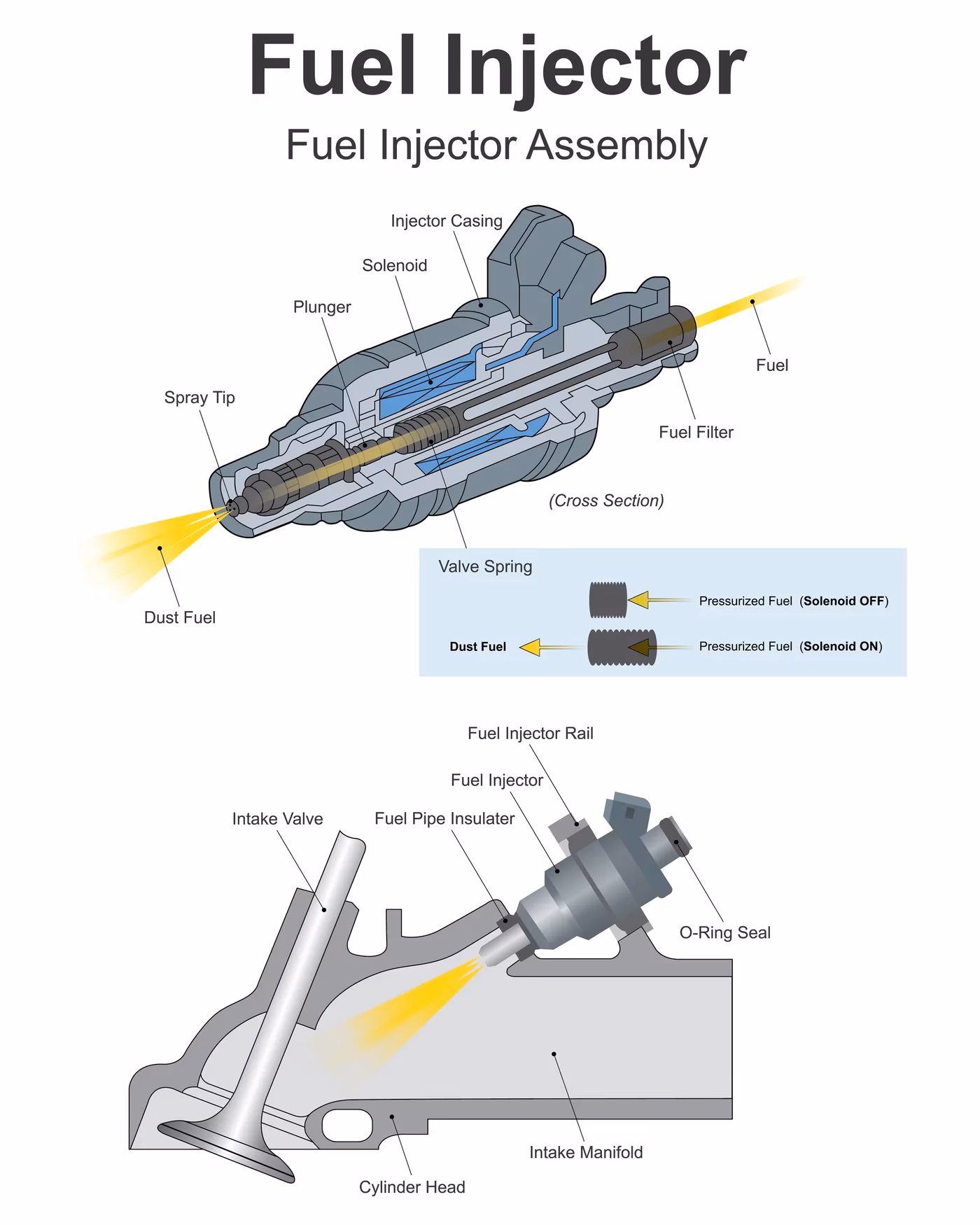

Fuel injection is not merely about delivering fuel; it's about delivering it precisely, at the right moment, and with the optimal spray characteristics for efficient combustion. Before the fuel even enters the combustion chamber, it undergoes a journey through the injector, where its physical properties begin to exert their influence. The flow characteristics inside the injector are a complex interplay of pressure, injector geometry, and the inherent properties of the fluid itself. Any variations here can have a cascading effect on atomisation, air-fuel mixing, and ultimately, the formation of pollutants.

Key Fuel Properties and Their Impact on Injection Rate

Several physical properties of fuel play a critical role in determining the injection rate and internal nozzle behaviour. The most prominent among these are density, viscosity, and vapour pressure.

Density: The Driver of Mass Flow Rate

Fuel density is a primary determinant of the mass flow rate through a diesel injector. Research has consistently shown a direct correlation. For instance, Suh and Lee observed that Dimethyl Ether (DME), which has a lower density than conventional diesel fuel, exhibited a lower mass flow rate through a diesel injector. This makes intuitive sense: for a given volumetric flow, a less dense fluid will result in a lower mass delivered. Desantes et al. further reinforced this, concluding that density is the unique property primarily driving both the mass flow rate and the effective velocity of the fuel exiting the nozzle. This highlights density as a fundamental characteristic dictating how much fuel, by mass, is actually delivered into the combustion chamber per injection event.

Viscosity: Affecting Flow Resistance and Discharge

Fuel viscosity, a measure of its resistance to flow, has a multifaceted impact on the injection process. Higher viscosity generally leads to increased resistance, which can reduce flow rates. Park et al. and Seykens et al. reported a decrease in the volumetric flow rate when Rapeseed oil Methyl Ester (RME) was used instead of diesel fuel, attributing this to RME's higher density and, crucially, higher viscosity. This increased resistance means the fuel moves slower through the constricted passages of the injector.

The discharge coefficient, a measure of the actual flow rate compared to the theoretical flow rate, is also significantly affected by viscosity. Kim et al. found that in non-cavitating conditions, DME had a higher discharge coefficient than diesel fuel due to its lower viscosity. This suggests that less viscous fuels flow more efficiently through the injector orifices. Interestingly, they observed that in cavitating conditions, the discharge coefficient became the same for both fuels, indicating that cavitation dynamics can sometimes override the individual effects of viscosity on discharge efficiency.

The effect of temperature on viscosity is also noteworthy. Soteriou et al. analysed this relationship, observing that when fuel temperature increases, its viscosity decreases. This reduction in viscosity, in turn, leads to an increase in the discharge coefficient, allowing for a more efficient flow. Similarly, Vergnes et al. depicted a strong decrease in the discharge coefficient when viscosity was increased, particularly at low operating temperatures. This underscores the importance of maintaining optimal fuel temperature for consistent injection performance. While density drives mass flow rate, Desantes et al. also noted that viscosity primarily impacts the opening and closing dynamics of the injector needle, influencing the transient phases of the injection event rather than the steady-state flow.

Vapour Pressure and Cavitation: Hidden Influencers

Vapour pressure, the pressure at which a liquid turns into a gas, is a key factor in the phenomenon of cavitation within the injector nozzle. Cavitation occurs when the pressure of the flowing fuel drops below its vapour pressure, leading to the formation of vapour bubbles. These bubbles can collapse violently as pressure recovers, potentially causing erosion and affecting the spray characteristics.

Research has shown varying impacts of cavitation depending on fuel properties and nozzle geometry. Kim et al. and Park et al. observed that cavitation onset occurred at similar pressure differences for diesel and alternative fuels like DME or biodiesel, suggesting the initial conditions for cavitation might not be vastly different across fuels. However, the *extent* and *nature* of cavitation can differ. Studies on biodiesel fuels, for instance, have indicated that their lower vapour pressure and higher viscosity compared to diesel can help reduce the occurrence and magnitude of cavitation. This is a significant finding, as reduced cavitation can lead to more stable and predictable spray patterns.

For certain nozzle geometries, such as conical convergent orifices, Soteriou et al. explained that the effect of cavitation can be insignificant, allowing a stronger interaction between the orifice wall and the flow. In such cases, fuel viscosity and the Reynolds number (a dimensionless quantity indicating the relative importance of inertial and viscous forces in a fluid flow) play a much more significant part in determining the flow characteristics. This highlights that the interplay between fuel properties and injector design is complex and highly interdependent.

In-Nozzle Flow Characteristics and Engine Performance

The internal dynamics of the nozzle, influenced by fuel properties, directly determine the boundary conditions at the injector orifice exit. These conditions include the rate of injection (ROI) profile, as well as the levels of cavitation and turbulence present in the exiting fuel stream. These factors, in turn, have a profound influence on the atomisation process (breaking the fuel into fine droplets) and the overall spray characteristics. Poor atomisation and spray can lead to inefficient combustion, increased pollutant formation, and reduced engine performance.

Modern engine strategies, such as Low Temperature Combustion (LTC) and Gasoline Compression Ignition (GCI), are highly sensitive to these in-nozzle flow characteristics. For instance, in GCI, where gasoline-like fuels are direct-injected and auto-ignite, the physical properties of the fuel that influence injection and spray mixing are extremely important. Fuels like naphtha, with different thermo-transport properties (vapour pressure, surface tension, viscosity) compared to traditional diesel, are expected to exhibit distinct cavitation and turbulence behaviours inside the injector. Understanding these differences is crucial for optimising engine efficiency and robustness.

The Complexity of Transient Conditions

Beyond steady-state flow, the transient conditions within the injector are also critical. The movement of the injector needle, particularly its in- and off-axis motion, can significantly influence the local fuel density fluctuations in the near-nozzle region. Research utilising advanced imaging techniques, such as X-ray phase-contrast imaging by Powell et al. and Kastengren et al., has demonstrated the importance of accurately representing these needle trajectories. Our own research group's simulations have been able to capture how in-nozzle geometry and injection transients (due to needle motion) impact the subsequent fuel spray development. The combined effect of fuel properties and these needle motion transients, especially at low needle lifts, remains an active area of study, further complicating the picture but offering avenues for optimisation.

Summarising Fuel Property Effects

To provide a clearer picture, here's a summary of how key fuel properties influence various aspects of diesel injection:

Frequently Asked Questions (FAQs)

What is the most important fuel property affecting injection?

While all properties play a role, density is generally considered the unique property driving the mass flow rate and effective velocity of the fuel. However, viscosity significantly impacts flow resistance and the discharge coefficient, especially in non-cavitating conditions, and influences injector opening and closing dynamics. For cavitation, vapour pressure is paramount.

How does temperature influence fuel injection?

Temperature primarily influences injection by altering fuel viscosity. As fuel temperature increases, its viscosity decreases, leading to less flow resistance and a higher discharge coefficient. This can result in a greater mass flow rate for a given injection pressure. However, higher temperatures also increase vapour pressure, which could potentially influence cavitation.

Does cavitation always negatively impact injection?

Cavitation can indeed have negative impacts, such as nozzle erosion and disruption of the spray pattern, leading to less efficient combustion. However, some researchers suggest controlled cavitation might aid in fuel atomisation. Nevertheless, uncontrolled or excessive cavitation is generally undesirable due to its potential for damage and unpredictable spray behaviour. The impact can also vary significantly with nozzle geometry.

Why are different fuels (like biodiesels or naphtha) studied for their injection characteristics?

With increasing environmental regulations and the drive for greater fuel efficiency, alternative fuels are becoming more prevalent. These fuels often have significantly different physical properties (density, viscosity, vapour pressure, surface tension) compared to traditional diesel. Studying their injection characteristics is crucial to optimise engine design and operation for these new fuels, ensuring they perform efficiently and cleanly without compromising engine durability.

How do these findings help improve modern diesel engines?

By understanding how fuel properties affect injection, engineers can design more robust and efficient injection systems. This knowledge allows for better prediction of fuel behaviour, optimisation of injector geometry, and development of control strategies that compensate for variations in fuel properties. Ultimately, this leads to improved fuel efficiency, reduced emissions, and enhanced engine performance and longevity, supporting the transition to cleaner and more sustainable transportation.

Conclusion

The injection process in a diesel engine is a complex phenomenon, intricately linked to the physical properties of the fuel. Density, viscosity, and vapour pressure emerge as critical factors, each influencing different aspects of the in-nozzle flow, from mass flow rate and discharge efficiency to the onset and behaviour of cavitation. Research, spanning from fundamental observations of flow rates to advanced visualisations of internal nozzle dynamics and needle motion, continues to deepen our understanding. As the automotive industry pushes towards more efficient and cleaner engines, particularly with the advent of alternative fuels and advanced combustion strategies, a comprehensive grasp of these fuel-property interactions remains indispensable. This ongoing research is vital for optimising fuel delivery, enhancing combustion efficiency, and ultimately, paving the way for a new generation of high-performing, low-emission diesel engines.
