Brake Grease: Pads, Pistons & Quiet Stops

Are you plagued by incessant brake squeals every time you slow down? It's a common complaint that can turn any drive into an irritating symphony of high-pitched noises. While often attributed to worn pads, sometimes the solution is much simpler: proper lubrication. One of the most frequently asked questions among DIY mechanics and car owners alike is whether brake grease should be applied between the brake pads and caliper pistons. The answer, when done correctly, is a resounding yes, and it can make a significant difference to your vehicle's braking performance and quiet operation.

Understanding the intricacies of brake grease application is crucial for anyone looking to maintain their vehicle's braking system effectively. It's not just about stopping noise; it's about ensuring components move freely, preventing premature wear, and ultimately, contributing to the overall safety and longevity of your braking system.

Why Brake Grease Matters: Beyond Just Lubrication

Brake systems operate under extreme conditions, generating immense heat and pressure. The various components, from the caliper pistons to the brake pads, are constantly moving and vibrating against each other. Without proper lubrication, these interactions can lead to several issues, most notably the dreaded brake squeal. Brake grease serves multiple vital functions:

• Noise Dampening: This is perhaps the most immediate benefit. Brake grease can dampen vibrations between disc brake pads and caliper pistons, preventing the high-frequency oscillations that cause squealing and grinding noises. It acts as a cushion, absorbing the energy that would otherwise translate into sound.
• Corrosion Prevention: Exposed metal parts in the brake system are susceptible to rust and corrosion, especially in the damp and often salty UK climate. A good quality brake grease creates a protective barrier, shielding components from moisture and contaminants, thus prolonging their lifespan.
• Smooth Operation: Lubricating the contact points allows components to slide smoothly, ensuring even pad wear and consistent braking performance. This is particularly important for caliper slide pins, which allow the caliper to float and apply even pressure to both sides of the rotor.
• Heat Resistance: The extreme temperatures generated during braking require a specialised grease that won't break down or melt under heat. This is why using the correct type of high-temperature brake grease is paramount.

The Right Grease for the Job: Not All Greases Are Created Equal

It's absolutely critical to use the right type of grease for brake components. Standard multi-purpose greases, or even wheel bearing grease, are not designed to withstand the extreme temperatures and pressures of a braking system. They can melt, wash away, or even damage rubber components, leading to dangerous brake failure. Look for greases specifically labelled as 'brake grease', 'caliper grease', or 'disc brake quiet'.

For application between the brake pads and caliper pistons, a silicone-based or ceramic brake grease is generally recommended due to their excellent temperature stability and compatibility with brake system materials. These greases are designed to withstand the intense heat without carbonising or losing their lubricating properties.

Precision Application: Where to Grease and Where to Absolutely Avoid

Correct application is key to success and safety. Applying brake grease to the wrong areas can severely compromise your braking performance and create a hazardous situation. Here’s a breakdown of where to apply it:

Where to Apply Brake Grease:

• Back of the Brake Pad: This is the primary area for addressing noise and vibration. Apply a thin, even layer to the metal backing plate of the brake pad where it makes contact with the caliper piston. This allows the pad to move slightly against the piston without generating noise.
• Between the Pad Shim and Caliper: If your brake pads come with metal shims (noise suppression shims), the grease should be applied between the pad shim and the caliper housing, or on the back of a bare pad if no shim is present. This helps to dampen vibrations between these surfaces.

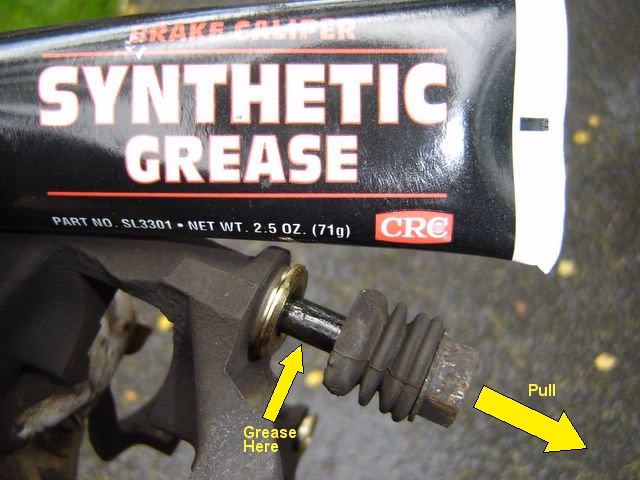

• Caliper Slide Pins: These pins allow the caliper to float freely. A thin coat of silicone-based grease on these pins ensures smooth operation and prevents sticking, which can lead to uneven pad wear and pulling.
• Caliper Abutment Clips/Pad Ears: The metal clips (abutment clips) in the caliper bracket where the brake pad ears slide should be cleaned and then lightly greased. This allows the pads to move freely within the caliper, preventing binding and ensuring even pad wear.

Where to Absolutely Avoid Brake Grease:

• Friction Material (Pad Surface): NEVER apply grease to the actual friction material of the brake pad or the rotor surface. This will contaminate the braking surfaces, severely reduce braking effectiveness, and create an extremely dangerous situation. If grease accidentally gets on these surfaces, the pads must be replaced immediately.
• Between the Pad and Noise Suppression Shims: As per expert recommendations, brake grease should not be applied directly between the pad and any noise suppression shims that may be used. The shims themselves are designed to work intimately with the pad to manage noise, and grease in this specific interface can interfere with their intended function. Instead, apply it to the back of the bare pad or between the pad shim and the caliper housing.
• Rubber Components (Unless Specified): While silicone-based greases are generally safe for rubber, some petroleum-based greases can cause rubber seals and boots to swell or degrade. Always check the product label for rubber compatibility before applying to any rubber parts, such as piston seals or caliper boots.

Step-by-Step: Applying Grease to Your Brake Components

Before you begin, ensure you have the correct tools and safety gear, including gloves and eye protection. This process is typically performed during a brake pad replacement or inspection.

1. Lift and Secure the Vehicle: Use a jack and jack stands to safely lift the vehicle and remove the wheel.
2. Remove Caliper and Pads: Carefully unbolt the caliper and remove the old brake pads. Inspect the caliper, rotor, and other components for wear or damage.
3. Clean All Surfaces: Thoroughly clean all contact points where grease will be applied. Use a wire brush and brake cleaner to remove old grease, rust, and dirt from the caliper bracket, abutment clips, and the back of the brake pads (if reusing or new pads are not pre-greased). Ensure these surfaces are dry before proceeding.
4. Apply Grease to Caliper Slide Pins: Remove the slide pins, clean them, and apply a thin, even coat of silicone-based brake grease. Reinsert them into the caliper.
5. Apply Grease to Abutment Clips: If removable, clean the clips. Apply a light film of grease to the areas where the pad ears will rest and slide. Reinstall them if removed.
6. Apply Grease to Back of Brake Pads: Apply a thin, even layer of brake grease to the metal backing plate of the new brake pads, specifically where they will contact the caliper pistons. Also, apply a thin layer to the outside edges (ears) of the pads where they slide in the caliper bracket. Remember, keep grease OFF the friction material.
7. Reassemble Brakes: Carefully install the new pads, reassemble the caliper, and tighten all bolts to the manufacturer's specifications.
8. Test Brakes: Once the wheel is reinstalled and the vehicle is lowered, pump the brake pedal several times to seat the pads and ensure firm pedal feel before driving. Perform a short test drive at low speed to confirm proper braking function and listen for any remaining noises.

The Benefits of Correct Brake Grease Application

Beyond the immediate satisfaction of silent brakes, correct brake grease application offers several long-term advantages:

• Extended Pad Life: By allowing pads to move freely and apply even pressure, you prevent uneven wear, thus extending the lifespan of your brake pads.
• Consistent Braking Performance: Properly lubricated components ensure that your brakes engage smoothly and consistently every time, contributing to predictable stopping distances.
• Prevention of Seizing: Grease helps prevent components from seizing due to corrosion or lack of movement, making future brake service much easier.
• Reduced Wear on Other Components: When pads can move freely, less stress is placed on other brake system components, potentially reducing wear on rotors and calipers.

Potential Pitfalls: The Dangers of Misapplication

While the benefits of proper brake grease application are significant, the risks of misapplication are equally severe and can be dangerous:

• Brake Failure: Getting grease on the friction material of the pads or rotors will drastically reduce the braking efficiency, leading to extended stopping distances or even complete loss of braking power. This is the most critical safety concern.
• Attracting Dirt and Debris: Over-application or applying grease to exposed areas can cause it to pick up road dust and grit, turning it into an abrasive paste that accelerates wear rather than preventing it.
• Damage to Rubber Components: Using petroleum-based greases on rubber seals can cause them to swell, crack, or soften, leading to fluid leaks and caliper malfunction.
• Uneven Braking: If components are over-greased or grease is applied unevenly, it can cause pads to stick or move inconsistently, leading to uneven braking, pulling to one side, or premature wear.

Frequently Asked Questions About Brake Grease

How often should I re-grease my brakes?

It's generally recommended to inspect and re-grease your brake components during every brake pad replacement or at least during annual brake inspections. The frequency can also depend on your driving conditions and climate.

Can I use regular grease for my brakes?

Absolutely not. Regular greases are not formulated to withstand the extreme temperatures of a braking system and can melt, contaminate the pads, or damage rubber components. Always use a dedicated brake grease.

What happens if I get grease on the brake pad friction surface?

If brake grease gets on the friction material of your pads or rotors, it will severely reduce their ability to create friction, leading to a dangerous loss of braking power. The contaminated pads must be replaced immediately, and the rotor should be thoroughly cleaned or replaced if contamination is severe.

Is brake grease the same as anti-seize?

While some ceramic brake greases have anti-seize properties and can be used on certain metal-to-metal contact points, they are not strictly the same. Dedicated anti-seize compounds are designed specifically to prevent seizing of threaded fasteners and typically contain more metallic particles. For general brake lubrication, a dedicated brake grease is more appropriate.

Do all brake pads need grease?

Most brake pads benefit from appropriate grease application on their backing plates and contact points to reduce noise and ensure smooth operation. Some premium pads may come with integrated shims or coatings that reduce the need for external grease on the backing plate, but caliper slide pins and abutment clips still require lubrication.

What tools do I need for brake greasing?

You'll need a jack, jack stands, wheel nut wrench, caliper wrench set, brake cleaner, a wire brush, and a small brush or applicator for the grease. Safety gloves and eye protection are also essential.

Conclusion: Smooth Stops and Silent Rides

Properly applying brake grease between your brake pads and caliper pistons, along with other key contact points, is a small but significant step in comprehensive vehicle maintenance. It's a simple procedure that, when done correctly, can eliminate frustrating brake noise, extend the life of your brake components, and most importantly, contribute to a safer and more enjoyable driving experience. Always use the correct type of high-temperature brake grease and pay close attention to the areas of application and avoidance. Your quiet, reliable stops will thank you for it.
