The Resurgence of Fuel Injection: A Corvette Saga

Today, fuel injection is an ubiquitous feature in nearly every vehicle on the road, a technology so commonplace it scarcely warrants a second thought. Yet, cast your mind back over six decades, and you'll discover a time when this sophisticated fuel delivery system was nothing short of revolutionary, a cutting-edge marvel that marked the pinnacle of automotive engineering. Its initial forays were fraught with complexity and expense, primarily confined to high-performance military aircraft and elite racing machines. The story of its re-emergence, particularly in the realm of American sports cars, is a testament to visionary designers, brilliant engineers, and an unwavering pursuit of performance excellence.

The earliest successful mechanical application of gasoline fuel injection can be traced back to the formidable V-12 engines powering the Messerschmitt Bf 109 fighter planes during World War II. This pioneering use demonstrated the clear advantages of precise fuel delivery for enhanced power and efficiency in demanding conditions. Post-war, the technology found its way into the highly competitive world of motorsport, with Mercedes-Benz leading the charge. Their W. 196 Grand Prix racer, the legendary 300 SLR racing car, and the iconic 300 SL sports car all featured a sophisticated 'timed direct-port injection' system. While remarkably efficient and performance-enhancing, this system was inherently complex and prohibitively expensive, making it unsuitable for mass-market production at the time. It was a glimpse into the future, but one that seemed, for a time, out of reach for the average motorist.

An American Vision: The Birth of a Legend

In the nascent years of the 1950s, the burgeoning sports car world was predominantly a European affair, dominated by sleek, high-performing machines from across the Atlantic. However, the winds of change were stirring in Detroit. Fortunately for American automotive enthusiasts, one of the most powerful and influential designers in the industry, Harley Earl of General Motors, harboured a profound fascination with sports cars. Earl envisioned an American equivalent, a vehicle that could rival the European elite, leading to the genesis of the Chevrolet Corvette. The initial iterations of the Corvette, while undeniably beautiful, were often perceived as more 'beauty queen' than 'street brawler.' This perception was about to change dramatically with the arrival of key personnel.

As fate would have it, Chevrolet's chief engineer, Ed Cole, made a pivotal decision: he hired a crucial player with extensive sports car engineering and racing experience – Zora Arkus-Duntov. Duntov, a Belgian-born engineer, was a fervent advocate for performance and a driving force behind the Corvette's transformation into a true performance machine. Crucially, GM also possessed an engineer who possessed a profound understanding of the intricacies of fuel injection: John Dolza, from the Rochester Division. Dolza's expertise would prove invaluable in bringing this advanced technology to an American production car.

The Drive for Innovation: Ed Cole's Vision and the Rochester F-I Project

In July 1956, Ed Cole was promoted to the prestigious position of vice president and general manager of the Chevrolet division. With this newfound authority, Cole harboured a specific ambition for his first full production year: he wanted fuel injection to be available across all 1957 Chevrolet cars, believing it would provide that crucial 'extra kick' in performance. To accelerate the development and refinement of the fuel injection system, Cole assigned Duntov to work alongside Dolza on the project. Cole, an engineer at heart, famously remarked that if he weren't running a division, he would have loved nothing more than to be directly involved in the Rochester F-I project himself. This level of enthusiasm from the top underscored the importance and potential of the technology.

Duntov, already a name of considerable repute within GM, had previously demonstrated his engineering prowess and racing acumen by utilising his vacation time to race a Porsche at Le Mans and setting impressive records at Pikes Peak in a modified 1956 Chevy. He was, unequivocally, the ideal candidate to spearhead the fuel injection project. At the time, two primary approaches to fuel injection existed: 'timed injection' and 'continuous spray injection.' The former, while precise, was exceedingly complex and costly. The latter, though more cost-effective, still presented significant engineering challenges. Duntov was thrilled to collaborate with Dolza, whom he held in the highest regard, once stating, “John Dolza is a splendid man, brilliant and clear thinking. I can spare no words to say how powerful this man is intellectually.” Their combined intellect and dedication were instrumental in overcoming the formidable hurdles.

Overcoming Adversity: The Engineering Journey

The ambitious fuel injection project faced a significant setback in April 1956 when Duntov suffered a broken back after a crash at the test track while driving a Corvette. After several months of recuperation, Cole, ever the pragmatist, asked Duntov to return to assist with another Pikes Peak run. Subsequently, Harry Barr, Chevrolet’s chief of engineering, successfully coaxed Duntov back to work on the F-I system. In a testament to his dedication and perhaps his unique character, Duntov complied, famously returning to the engineering floor wearing both a body cast and a Scottish kilt.

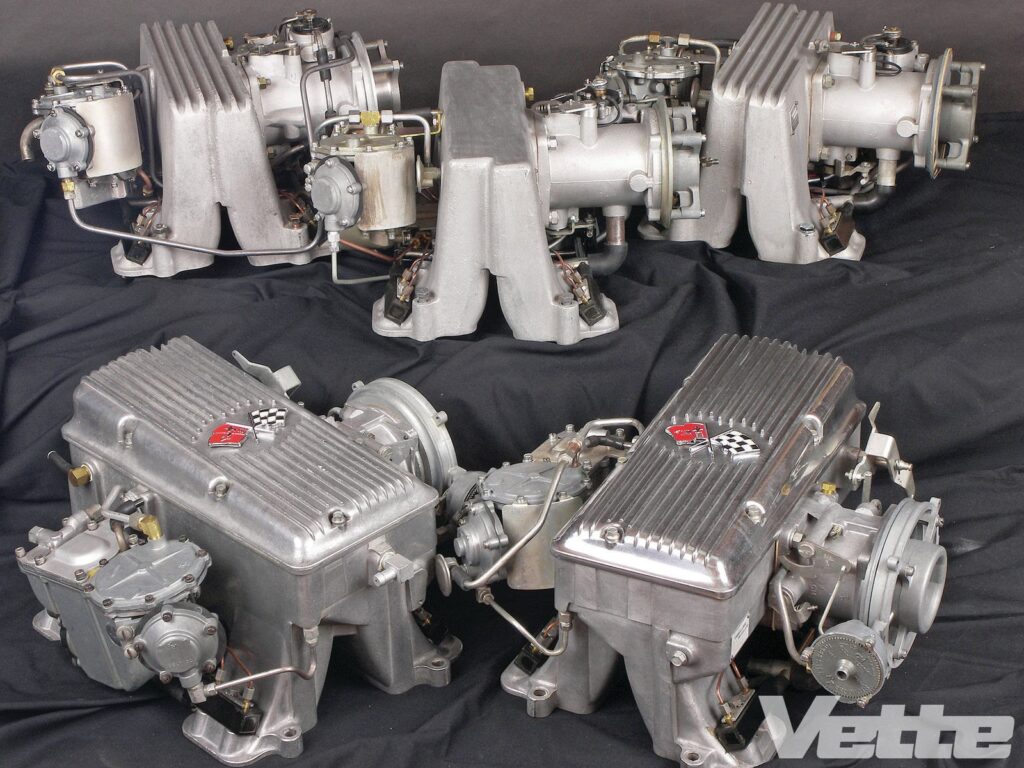

While the internal workings of the Rochester mechanical fuel injection system were incredibly intricate, a testament to the brilliance of the mechanical engineers who designed it, its core function can be understood through its three main components:

• The Air Meter: This component was responsible for sensing fluctuations in engine vacuum and supplying corresponding control signals to the fuel meter. It acted as the brain, determining the engine's air intake.
• The Fuel Meter: Receiving the vacuum control signals from the air meter, the fuel meter precisely regulated the flow of fuel to the eight individual injection nozzles. This ensured the correct fuel-air mixture for optimal combustion.
• The Intake Manifold: Beyond its traditional role, the intake manifold in this system provided a sophisticated distribution network for the 'rammed' airflow, ensuring even and efficient delivery to each cylinder.

This elegant, albeit complex, mechanical system represented a significant leap forward from carburettors, offering superior throttle response, fuel economy, and power output, particularly at higher RPMs.

The 'Fuelie' Era: A Performance Benchmark (1957-1965)

From its introduction in 1957 through to 1963, Chevrolet engineers relentlessly adjusted and fine-tuned the mechanical Rochester Division fuel injection system. The 'Fuelie' option, as it became affectionately known, was offered in several variations, each tailored to different performance levels and driver aspirations. Initially, there were four distinct variations and two primary horsepower ratings:

The RPO 579B and 579E configurations were the true performance juggernauts, boasting a higher 10.5:1 compression ratio, solid lifters, and crucially, the legendary Duntov cam – a camshaft designed by Zora himself to maximise high-RPM power. When the RPO 579E racing version was combined with the RPO 684 racing suspension option ($780), the new four-speed transmission ($188), and the 'wide' 5.5x15 steel wheels ($15), a customer could acquire a near-race-ready B/Production Corvette for approximately $4,682. This potent combination allowed the 1957 Corvette Fuelie to dominate SCCA B/Production racing well into the early 1960s, solidifying its reputation as a formidable track weapon.

The basic design of the mechanical fuel injection setup remained largely consistent from 1957 to 1965. However, engineers continued to refine it. In 1963, the plenum chamber was revised, an incremental improvement aimed at optimising airflow. The final iteration, released in 1964, was the L84 Fuelie, which achieved an impressive rating of 375 horsepower – a truly remarkable output for a small-block V8 of that era.

Challenges and a Temporary Retreat

Despite its undeniable performance advantages, the fuel-injected Corvette was not without its drawbacks. The sheer complexity of the system proved to be a significant hurdle for many Chevrolet service departments. Dealership mechanics, accustomed to the simpler carburettor setups, often lacked the specialised knowledge and tools required to properly diagnose and repair the intricate mechanical fuel injection system. This led to widespread frustration among customers, and as a result, numerous Fuelie Corvettes were retrofitted with carburettor setups at the request of disgruntled owners. The advanced technology, while brilliant, was simply too far ahead of its time for the existing service infrastructure.

By the time the big-block engines arrived on the scene in 1965, it became abundantly clear that achieving substantial horsepower was far easier and more cost-effective through sheer cubic inches than through the complex and temperamental fuel delivery system. Consequently, mechanical fuel injection took a prolonged hiatus from the Corvette lineup, effectively disappearing for over a decade and a half.

The True Comeback: From Cross-Fire to Modern Precision

Fuel injection eventually made its triumphant return to the Corvette after a 16-year absence, albeit in a significantly simplified and electronically controlled form. In 1982, Chevrolet introduced the 'Cross-Fire Injection' system. This system, while still rudimentary by today's standards, represented a crucial step forward. It utilised two injectors and a basic computer to regulate the fuel delivery, offering a more manageable and reliable solution compared to its mechanical predecessor. It was a bridge between the past and the future, a necessary intermediate step towards widespread electronic control.

A full-fledged, electronically controlled fuel injection system finally arrived in 1985 with the introduction of the L98 engine. This marked a true renaissance for fuel injection in the Corvette, offering unparalleled precision, reliability, and performance. The L98 engine, with its advanced fuel injection, served as the base Corvette engine until the arrival of the formidable LT1 in 1992, which further refined the electronic fuel injection system. From that point onwards, fuel injection became an indispensable component of the Corvette's engineering, continually evolving and improving.

Today, as previously noted, fuel injection is simply taken for granted. It's an invisible, yet vital, component of modern automotive design, ensuring optimal performance, fuel efficiency, and reduced emissions. However, there was a specific era, particularly with the groundbreaking 1957 Corvette, when the phrase 'Fuel Injection' was a powerful statement, providing owners with unmatched bragging rights and a tangible connection to cutting-edge automotive innovation. It was a period when this complex technology was a symbol of ultimate performance, a testament to the relentless pursuit of speed and precision in American engineering.

Frequently Asked Questions (FAQs)

Q1: What was the primary reason for fuel injection's initial disappearance from the Corvette?
A1: The primary reasons were the system's significant complexity, leading to difficulties for dealership service departments in maintenance and repair, and the fact that achieving high horsepower became easier and more cost-effective through larger displacement (big-block engines) by the mid-1960s.

Q2: Who were the key figures behind the 1957 Corvette's fuel injection system?
A2: Ed Cole, Chevrolet's chief engineer and general manager, was the driving force behind its inclusion. Zora Arkus-Duntov provided critical sports car engineering and racing experience, and John Dolza from the Rochester Division was the brilliant engineer who understood and developed the complex mechanical system.

Q3: How did the 1957 Fuelie Corvette perform in racing?
A3: The 1957 Fuelie Corvette, especially with the RPO 579E racing option and supporting performance packages, went on to dominate SCCA B/Production racing well into the early 1960s, proving its superior performance capabilities on the track.

Q4: What was the 'Cross-Fire Injection' system?
A4: The 'Cross-Fire Injection' system, introduced in 1982, was the first return of fuel injection to the Corvette after a 16-year hiatus. It was a simplified, early electronic system that used two injectors and a basic computer to regulate fuel, serving as a transitional technology towards more advanced electronic fuel injection.

Q5: Why was the 'Fuelie' option so expensive for its time?
A5: The mechanical fuel injection system was inherently complex and required precise manufacturing and assembly, making it significantly more expensive to produce than traditional carburettor setups. Its advanced nature and performance benefits justified the premium price for enthusiasts seeking the ultimate performance. The most potent version, RPO 579E, cost $726, a substantial amount in 1957.
