Understanding Rear Toe Adjustment for Your Car

When discussing car maintenance, terms like 'wheel alignment' and 'toe adjustment' frequently come up, often leaving many motorists scratching their heads. While the front wheels usually get most of the attention, the rear wheels play an equally vital role in your vehicle's stability and performance. Understanding what rear toe adjustment is, why it's important, and how it impacts your driving experience is crucial for any car owner. It's not just about keeping your tyres healthy; it's fundamentally about your car's safety and handling dynamics.

Unravelling Toe Alignment: The Core Concepts

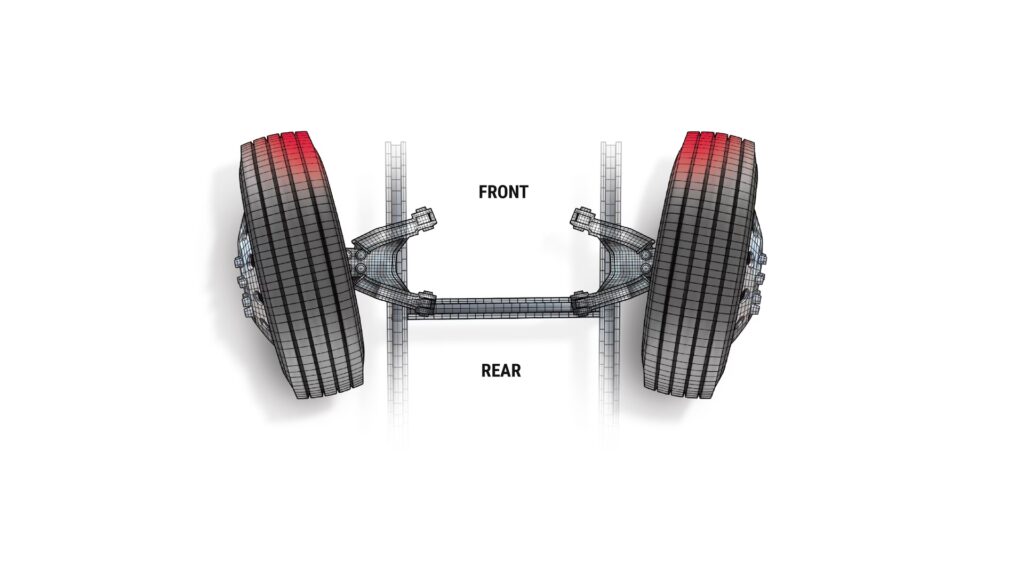

At its heart, toe adjustment, or toe alignment, refers to the subtle difference in distance between the front and rear edges of your wheels. Imagine looking down at your car's wheels from above: if the front edges of the wheels are closer together than their rear edges, this is known as toe-in. Conversely, if the front edges are further apart than the rear, it's called toe-out. These differences are often minuscule, typically ranging from a mere 0.3mm to 1.6mm, yet their impact on your vehicle is profound.

It might come as a surprise, but your car's wheels are not designed to be perfectly parallel. In fact, most vehicles, especially front-wheel-drive (FWD) cars, are designed with a slight toe-in. This seemingly counter-intuitive design serves a critical purpose. As a car accelerates, the forces generated by the wheels attempt to pull the vehicle in their respective directions. While these forces are generally balanced, hitting a bump or an uneven patch can momentarily increase grip on one side, leading to instability and a tendency for the car to swerve. A slight toe-in helps to pre-load the suspension components and generate opposing forces that counteract this instability, keeping the car tracking straighter and enhancing overall stability.

The Critical Importance of Rear Toe Adjustment

While often overshadowed by front wheel alignment, incorrect rear toe adjustment can have equally, if not more, detrimental effects on your vehicle. The repercussions extend beyond just minor annoyances, impacting crucial aspects of your car's operation:

Impact on Vehicle Handling and Safety

One of the most immediate and noticeable effects of incorrect rear toe is on your car's handling. Misaligned rear wheels can cause the car to pull to one side, making it difficult to maintain a straight line without constant steering correction. This can be particularly dangerous at higher speeds or in adverse weather conditions, as it diminishes your control over the vehicle. Imagine having to constantly fight your steering wheel just to stay on course – it's not only exhausting but also severely compromises safety. In extreme cases, a misaligned toe can even lead to the steering shaft bending, further restricting driver control and potentially triggering an unsolicited reaction from the Electronic Stability Program (ESP), as the software might misinterpret straight-line driving for a slide or skid.

The Link to Uneven Tyre Wear

Beyond handling, incorrect toe adjustment is a leading cause of uneven tyre wear. When wheels are out of alignment, they are essentially being dragged sideways across the road surface, even if only by a fraction of a millimetre. This constant scrubbing action causes the edges of the tyres to wear down much faster than the rest of the tread. Not only does this significantly reduce the lifespan of your expensive tyres, but it can also lead to premature tyre failure, which is a serious safety concern. Recognising patterns of uneven wear can be an early indicator that your toe alignment needs attention.

Beyond Handling: Fuel Economy and Tyre Longevity

The impact of misaligned toe isn't limited to handling and immediate tyre wear. The constant scrubbing action also leads to increased rolling resistance. This means your engine has to work harder to propel the vehicle forward, resulting in greater fuel consumption. Over time, this can add up to a significant increase in your running costs. Furthermore, the accelerated wear means you'll be replacing tyres more frequently, adding another financial burden. Monitoring your toe alignment is therefore vital not just for safety, but also for the longevity of your vehicle's components and your wallet.

Why Does Rear Toe Alignment Go Awry?

It's a common misconception that once a car's alignment is set, it stays that way forever. In reality, several factors can cause your rear toe adjustment to drift out of specification over time:

• Impacts and 'Kerbing': One of the most common culprits is hitting a kerb or a large pothole hard. Even seemingly minor impacts can be enough to knock the delicate alignment settings out of whack.
• Incorrect Initial Setting: Sometimes, the alignment might not have been set correctly during a previous service or after a suspension repair. A reputable garage with calibrated equipment is essential for accurate adjustments.
• Wear and Tear of Suspension Components: Over time, components within your car's suspension system, such as ball bearings, steering shaft joints, and bushings, can wear out. This wear introduces play into the system, which can directly affect toe alignment. Even if your car has never been in an accident, normal wear can gradually shift the alignment parameters.

Spotting the Signs: Symptoms of Misaligned Wheels

Being able to identify the symptoms of incorrect toe alignment can save you from costly repairs and enhance your driving safety. Pay attention to these common indicators:

Handling Peculiarities

• Vehicle Pulling to One Side: If your car consistently drifts to the left or right when driving on a straight, level road, it's a strong sign of misalignment. This is particularly noticeable if it happens after hitting a pothole or kerb.
• Continuous Steering Correction: Do you find yourself constantly making small adjustments to the steering wheel to keep the car going straight? This 'nervous' steering is a classic symptom of incorrect toe.
• Uneven Turning: If your car turns more easily to one side than the other, or if the steering feels 'off-centre' when driving straight, your toe alignment might be asymmetrical.
• Hesitant Response and Jittery Movement: The car might feel less responsive to steering inputs, or exhibit a subtle jittery movement, especially at higher speeds.

Uneven Tyre Wear Patterns

As mentioned, uneven tyre wear is a tell-tale sign. Regularly inspect your tyres for patterns such as:

• Feathering: Where the tread blocks are worn higher on one side and lower on the other, giving a 'feathered' edge.
• Scalloping or Cupping: Irregular dips or scoops worn into the tyre tread, often indicating a combination of alignment and suspension issues.
• Excessive Wear on One Edge: If only the inner or outer edge of your tyre is significantly more worn than the rest, it's a clear indicator of toe misalignment.

The Steering Wheel Test

One of the simplest diagnostic checks you can perform is the 'hands-off' steering wheel test (on a safe, straight, and deserted road, of course). If you briefly let go of the steering wheel, a properly aligned car with a slight toe-in should maintain a straight trajectory. If it immediately pulls to one side, or if the steering wheel isn't perfectly centred when driving straight, it's time for an inspection.

Can You Check Rear Toe at Home? A DIY Guide

While a professional garage with specialised equipment will provide the most accurate measurement and adjustment, you can perform a basic check at home to determine if your rear toe setting is significantly off. This isn't for precise calibration, but rather to establish if there's a noticeable issue.

Preparation is Key:

1. Empty the Car: Remove any heavy luggage or items from the boot that might affect the car's natural stance.
2. Tyre Pressure: Ensure all four tyres are inflated to the correct pressure as specified in your car's handbook.
3. Steering Components: Visually check that your track rods (if applicable) appear straight and are of equal length on both sides.
4. Level Surface: Park your car on a perfectly flat, even surface. Avoid driveways or roads with any camber (slope).
5. Centre Steering: Ensure your steering wheel is perfectly centred and locked in place if possible.
6. Settle Suspension: Release the handbrake and gently push the car forward so it rolls and comes to a natural, gentle stop without any brake assistance. Then, bounce the car a few times at each corner to ensure the suspension settles evenly.

The String/Wire Method Step-by-Step:

This method requires two people for accuracy.

1. Find Measuring Points: Consult your car handbook to find the specified measuring points on each wheel, typically between the inner wheel rims at their front and rear edges, at the level of the hub.
2. Front Measurement: Take a long piece of strong, non-stretching string or thin wire. With the help of another person, hold the string taut across the front of the two rear wheels, aligning it with the specified measuring points.
3. Mark the String: While keeping the string taut, use chalk or a marker to make a clear mark on the string where it touches the measuring point on the first wheel. Then, stretch the string over to the second wheel, ensuring it remains taut and at the same height. Mark the string again where it touches the second measuring point.
4. Rear Measurement: Carefully move the string to the rear of the two rear wheels, ensuring you use the exact same measuring points and maintain the same tension as you did for the front measurement. Repeat the marking process on the string.
5. Calculate the Difference: Now, measure the distance between the two marks you made on the string for the front measurement. Do the same for the rear measurement. The difference between these two measurements is crucial.

Interpreting Your Findings:

The total distance between the two marks on the wire (front vs. rear) is double the actual toe-in or toe-out. For instance, if the front measurement on the string is 2mm less than the rear measurement, your total toe-in is 1mm. Don't be overly concerned with achieving precise accuracy with this home method; its primary purpose is simply to establish whether there's a noticeable toe-in or toe-out, and crucially, if it appears significantly out of normal range or asymmetrical.

Professional Adjustment vs. Performance Tuning

While a home check can flag an issue, precise toe adjustment requires professional equipment and expertise.

How Garages Rectify Toe Issues

A professional garage uses specialist equipment, such as computerised and laser wheel aligners, often in conjunction with platforms and scissor lifts, to accurately measure and adjust your car's toe settings. This ensures the alignment is within the manufacturer's precise specifications. Toe-in or toe-out is adjustable on all cars, though the method and specific components involved may vary.

Symmetry: The Unsung Hero of Alignment

Crucially, the numerical value of toe is not as significant as the symmetry between the wheels. Consider two cars:

As the table illustrates, even with the same overall toe value, Car B, with its symmetrical alignment, will offer a far superior and safer driving experience. This principle applies equally to rear toe alignment, particularly for vehicles with multi-link suspensions (like the Volkswagen Passat B6), where toe alignment can be freely adjusted and symmetry becomes even more critical.

Toe Alignment in Motorsport: A Different Beast

For the average consumer, the default factory-calibrated toe alignment is an all-purpose setting designed to emphasise safety and predictability across various road surfaces. However, in advanced motorsports, toe adjustments are part of a highly specialised setup to extract maximum performance.

• Racing Cars: Tend to favour toe-out alignment, particularly on the front axle, to enhance cornering ability and steering responsiveness.
• Rallying: Toe settings are dynamically adjusted based on the road surface. On smooth tarmac with wide curves, the front axle toe might be positive (toe-in), while the rear is zeroed. On loose gravel roads, where the car rarely moves in a straight line, both axles might be set to negative (toe-out) to provide more responsive steering and aid in controlled slides.

These aggressive settings are impractical and unsafe for regular road use, but they highlight how toe alignment can be manipulated to influence vehicle dynamics for specific performance goals. Suspension mechanics in motorsport often dedicate days to finding the optimal wheel alignment for a particular event, making adjustments at pit stops before special rally sections.

Frequently Asked Questions (FAQs)

Does toe alignment affect tyre performance?

Absolutely. Incorrect toe alignment significantly impacts tyre performance and lifespan. It causes increased rolling resistance, leading to faster and uneven tread wear, which in turn diminishes the durability of the tyre itself. It can also compromise the tyre's ability to grip the road effectively, especially during cornering or braking.

How often should I check my toe alignment?

It's generally recommended to have your wheel alignment, including toe, checked annually or every 10,000 to 15,000 miles. However, you should definitely have it checked sooner if you:

• Hit a significant pothole or kerb.
• Notice any of the symptoms of misalignment (pulling, uneven wear, off-centre steering).
• Replace any suspension or steering components.
• Buy new tyres (it's good practice to ensure alignment before fitting new rubber).

Is toe-in or toe-out better for my car?

For standard road vehicles, a slight toe-in is generally preferred on the front axle as it promotes better straight-line stability and helps to compensate for the natural forces on the wheels during acceleration. For the rear axle, a slight toe-in or zero toe is common, depending on the vehicle's design, to enhance stability. Toe-out is typically used in performance or racing applications to improve turn-in and cornering responsiveness, but it can lead to instability and increased tyre wear on regular roads.

Can I drive with incorrect toe alignment?

While you might be able to drive a car with incorrect toe alignment, it's strongly advised against. Driving with misaligned wheels leads to rapid and uneven tyre wear, reduced fuel efficiency, compromised handling, and significantly increased safety risks. The hesitant response and jittery movement caused by misalignment might become something you get used to, but it doesn't make it acceptable or safe. Always address alignment issues promptly.

Final Thoughts

Rear toe adjustment is a critical, yet often overlooked, aspect of vehicle maintenance. Think of the toe as the subtle angle at which your wheels point inwards or outwards. Ensuring it's correctly set is fundamental to your car's stability, handling, tyre longevity, and even fuel economy. If you suspect your car's handling is suspect, or you notice any signs of uneven tyre wear, it's wise to ask your garage to check the rear toe adjustment, as well as the camber. A professional alignment service, utilising advanced equipment, can restore your vehicle to its optimal performance, ensuring a safer and more enjoyable driving experience.
