Adjusting Your Front Tie Rods: A DIY Guide

When you're experiencing uneven tyre wear, a steering wheel that's off-centre, or your vehicle pulling to one side, it's often a sign that your wheel alignment needs attention. While a professional alignment is always recommended, in a pinch, you might need to make some temporary adjustments yourself. Adjusting your tie rods is a key part of this process, specifically controlling the 'toe' of your wheels – how they point inwards or outwards. This guide will walk you through the steps to adjust your front tie rods, helping you to get your vehicle driving straighter and preventing further tyre damage before you can get to a repair shop.

Understanding Tie Rods and Alignment

Tie rods are crucial components of your vehicle's steering system. They connect the steering rack to the steering knuckle, which in turn moves the wheels. The tie rod itself is often adjustable, typically via a threaded sleeve with locking nuts (jam nuts). By rotating this sleeve, you change the length of the tie rod, which alters the angle of the wheel relative to the vehicle's chassis. This adjustment is what we call 'toe' adjustment.

Proper wheel alignment is vital for several reasons:

• Tyre Wear: Incorrect alignment is a leading cause of premature and uneven tyre wear. If your wheels are pointing in the wrong direction, they'll scrub against the road surface, wearing down the tread much faster.
• Handling and Stability: Misaligned wheels can make your vehicle feel unstable, pull to one side, or wander, making it harder to keep straight.
• Fuel Efficiency: Increased rolling resistance from misaligned wheels can also negatively impact your vehicle's fuel economy.
• Steering Wheel Position: If your steering wheel isn't centred when driving straight, it's a clear indicator of an alignment issue.

Symptoms Indicating a Need for Tie Rod Adjustment

Before you start adjusting, it's good to know the common signs that your tie rods might need attention:

• Uneven Tyre Wear: Excessive wear on the inner or outer edges of your tyres is a strong indicator.
• Vehicle Pulling: If your car consistently pulls to the left or right when you're driving on a flat, straight road, it's a classic symptom.
• Crooked Steering Wheel: The steering wheel is off-centre when the car is travelling in a straight line.
• Loose or Vague Steering: The steering feels imprecise, or there's a lot of play in the steering wheel before the wheels respond.
• Tyre Squealing: Tyres may squeal during turns even at low speeds, indicating they aren't tracking correctly.

Preparing for the Adjustment

Before you get your hands dirty, ensure you have a safe and suitable workspace.

What You'll Need:

Gathering the right tools beforehand will make the process smoother:

• Wrench Set: You'll likely need a combination of open-ended and socket wrenches. The size will vary by vehicle, but 17mm, 19mm, 21mm, and 22mm are common for jam nuts and tie rod ends.
• Socket Set: For loosening and tightening nuts.
• Jack and Jack Stands: To safely lift and support the vehicle. Never work under a vehicle supported only by a jack.
• Wheel Chocks: To prevent the vehicle from rolling.
• Tape Measure: A reliable tape measure is essential for checking toe.
• Marker Pen: To mark the current position before adjusting.
• Cardboard or Sliders (Optional but Recommended): Placing cardboard or specialised alignment sliders under the front wheels can make it easier to move the vehicle slightly without affecting the alignment setup.
• Safety Glasses: Always protect your eyes.

Setting Up Your Workspace:

• Flat, Level Surface: Ensure the ground is as flat and level as possible. This is critical for accurate measurements.
• Parking Brake and Wheel Chocks: Engage the parking brake firmly and place wheel chocks behind the rear wheels.
• Tyre Pressures: Check that all tyres are inflated to the correct pressure as specified in your vehicle's manual.

Method 1: Using Strings for a Rough Alignment

This method uses strings to create a reference line and get a basic measurement of your toe setting.

Step-by-Step Guide:

1. Position the Vehicle: Back the vehicle up slightly so it's centred. If using cardboard, place it under the front wheels.
2. Centre the Steering Wheel: Turn the ignition key to the 'on' position (without starting the engine) and turn the steering wheel until it's as close to centred as possible. Shut off the ignition.
3. Set up the String System:
   • Take two sturdy, identical objects like step stools, milk crates, or jack stands. Place one on each side of the vehicle, roughly aligned with the front and rear of the tyres.
   • The objects should be positioned so the string will run parallel to the vehicle's centreline, passing by the tyres. Ideally, they should be about arm's length from the tyres to allow for easier string adjustment.
   • Wrap a piece of string around the first object (e.g., the rear one). Run the string past the outside of the tyre.
   • Measure from a consistent point on the wheel (like the centre cap or a specific spoke) to the string. Aim for an equal distance for both the front and rear strings. For instance, aim for about an inch away from the wheel.
   • Repeat this on the other side of the vehicle. Ensure the string is taut and not touching the car.
4. Measure the Toe:
   • Using your tape measure, measure the distance between the two strings at the front of the front tyres.
   • Then, measure the distance between the strings at the rear of the front tyres.
   • The Goal: You want the distance at the front of the tyres to be roughly the same as, or slightly less than, the distance at the rear of the tyres. A slight 'toe-in' (front measurement smaller than rear) is common for stability, but excessive toe-in or toe-out will cause problems.

Adjusting the Right Front Tie Rod

Now, let's get to the actual adjustment for the right front tie rod. This procedure often requires turning the steering wheel to allow access to the tie rod components.

Accessing the Tie Rod:

1. Turn the Steering Wheel: To access the right front tie rod, you'll typically need to turn the steering wheel all the way to the left. This moves the wheel assembly and exposes the tie rod end and its associated hardware.

The Adjustment Process:

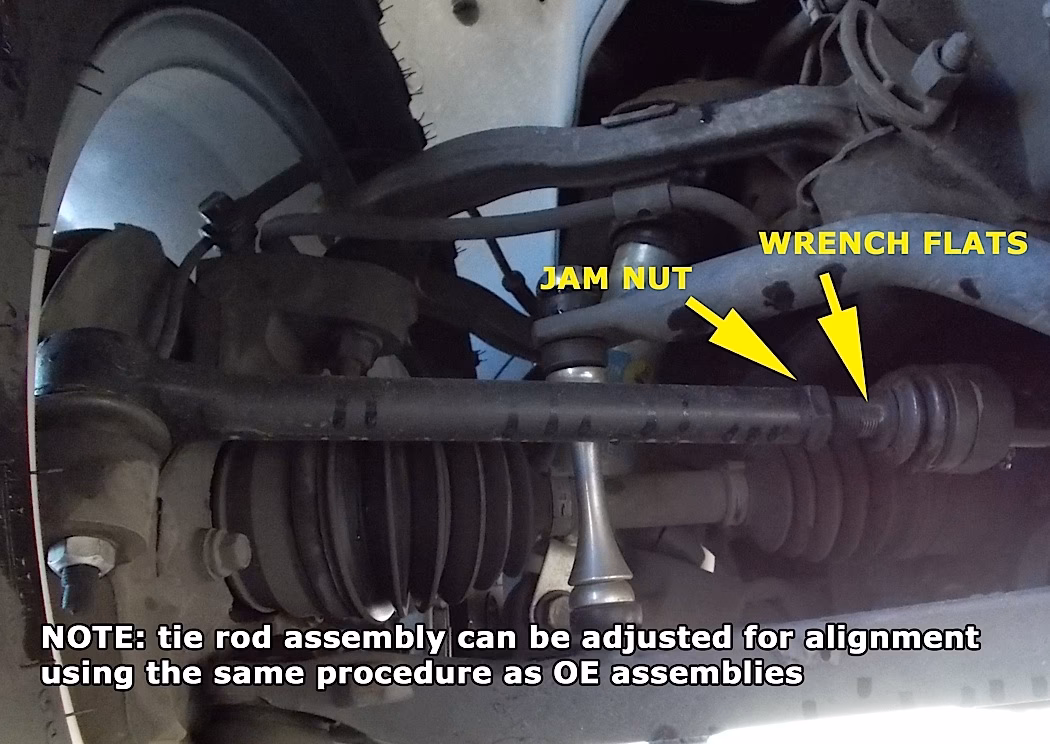

1. Locate the Tie Rod: Underneath the vehicle, you'll see the tie rod end connected to the steering knuckle. It will have a threaded shaft that screws into the tie rod body. There will be a jam nut that locks the tie rod in place.
2. Mark the Current Position: Use a marker to draw a line across the jam nut and onto the threaded sleeve. This gives you a visual reference for how much you're turning it.
3. Loosen the Jam Nut: Using the appropriate size wrench (e.g., 21mm), loosen the jam nut. You usually only need to loosen it enough to allow the threaded sleeve to turn, perhaps half a turn to a full turn.

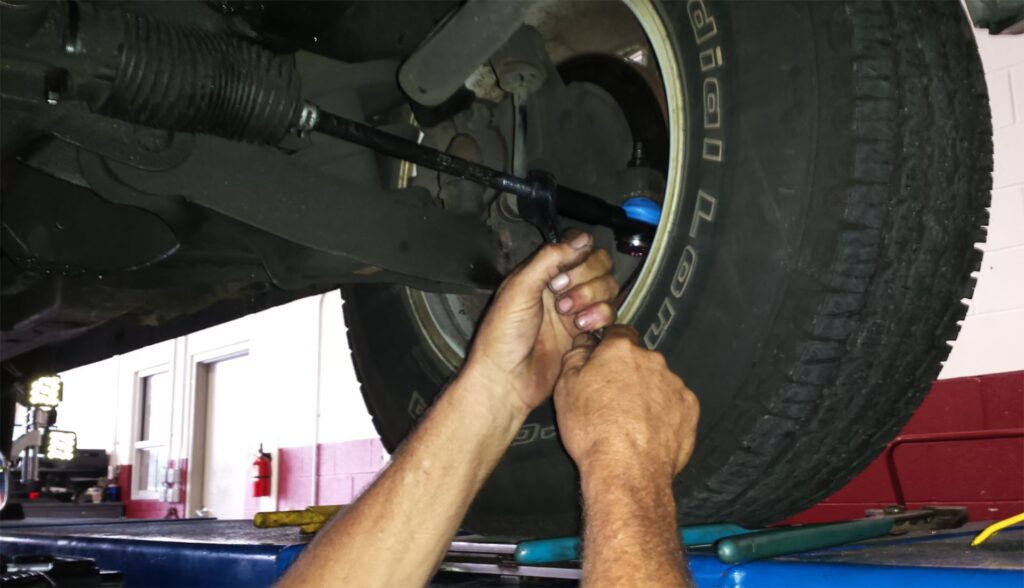

4. Adjust the Tie Rod:
   • To adjust the toe, you need to rotate the threaded sleeve.
   • To adjust toe-in (making the front of the tyre point inwards): Tighten the tie rod (turn the sleeve clockwise when viewed from the outer end).
   • To adjust toe-out (making the front of the tyre point outwards): Loosen the tie rod (turn the sleeve counter-clockwise when viewed from the outer end).
   • Make small adjustments, typically in quarter-turn increments. Since you're trying to correct a significant issue, you might need more. The video example shows making about a quarter turn, then a full turn after re-checking.
   • Use pliers or a wrench on the tie rod sleeve itself to turn it. Be careful not to damage the rubber boot if present.
5. Snug Up the Jam Nut: Once you've made your adjustment, snug the jam nut back up against the sleeve. You don't need to torque it fully at this stage, just enough to hold the sleeve in place.
6. Check and Repeat:
   • Turn the steering wheel back to the straight position.
   • Re-measure the toe using your string method or tape measure.
   • If still not aligned, repeat steps 1-5, making further small adjustments.
7. Tighten the Jam Nut: Once you're close to your desired setting, fully tighten the jam nut against the sleeve. Ensure it's securely locked.

Method 2: Using a Tape Measure Directly

This method is a bit more direct and can be done with a partner.

Step-by-Step Guide:

1. Position the Vehicle: Ensure the vehicle is on a flat surface with correct tyre pressures and the steering wheel is centred.
2. Find Reference Points: With a partner on the other side of the vehicle, agree on a consistent reference point on each tyre, ideally near the centreline of the tread.
3. Measure the Rear: Have your partner hold one end of the tape measure on their reference point. You hold the other end on your vehicle's corresponding reference point on the rear of the tyre. Ensure the tape measure is straight and not bowing. Record the measurement.
4. Measure the Front: Now, move the tape measure to the front of the tyres, keeping the reference points consistent. Record this measurement.
5. Calculate the Difference: The difference between the rear and front measurements tells you the toe setting.
6. Adjust as Needed: Use the tie rod adjustment procedure described above to make corrections. Remember to turn the steering wheel to access the correct tie rod.

Common Tie Rod Problems and Solutions

Here are some issues you might encounter:

When to Replace Tie Rods

If your tie rod ends feel loose, have play, or make knocking sounds when turning, they likely need replacement. Worn tie rod ends are a significant safety hazard and will prevent you from achieving a proper alignment. If the tie rod itself is bent or damaged from an impact, it must be replaced.

Final Checks and Test Drive

After making your adjustments:

• Final Tightening: Ensure both jam nuts are securely tightened.
• Test Drive: Drive the vehicle slowly and carefully in a safe area. Check if the steering wheel is now centred when driving straight and if the pulling sensation has reduced or disappeared.
• Re-measure: Perform your toe measurements again to confirm your adjustments.

Important Considerations

• Temporary Fix: Remember that these methods provide a temporary adjustment. They are designed to get you by and prevent further damage.
• Professional Alignment: It is highly recommended to visit a qualified mechanic or alignment shop as soon as possible to have a professional four-wheel alignment performed. They have specialised equipment for precise adjustments.
• Vehicle Specifics: Adjustment procedures and nut sizes can vary between vehicle manufacturers. Always consult your vehicle's service manual if you're unsure.
• Safety First: If you're uncomfortable with any part of this process, or if you suspect a more serious issue, leave it to the professionals. Faulty steering components can be extremely dangerous.

Frequently Asked Questions

Q: What happens if you don't adjust the tie rod ends?

A: If your tie rods are misaligned, you'll likely experience uneven tyre wear, poor handling, a crooked steering wheel, and potentially difficulty controlling the vehicle. This can lead to increased costs due to premature tyre replacement and potential damage to other suspension components.

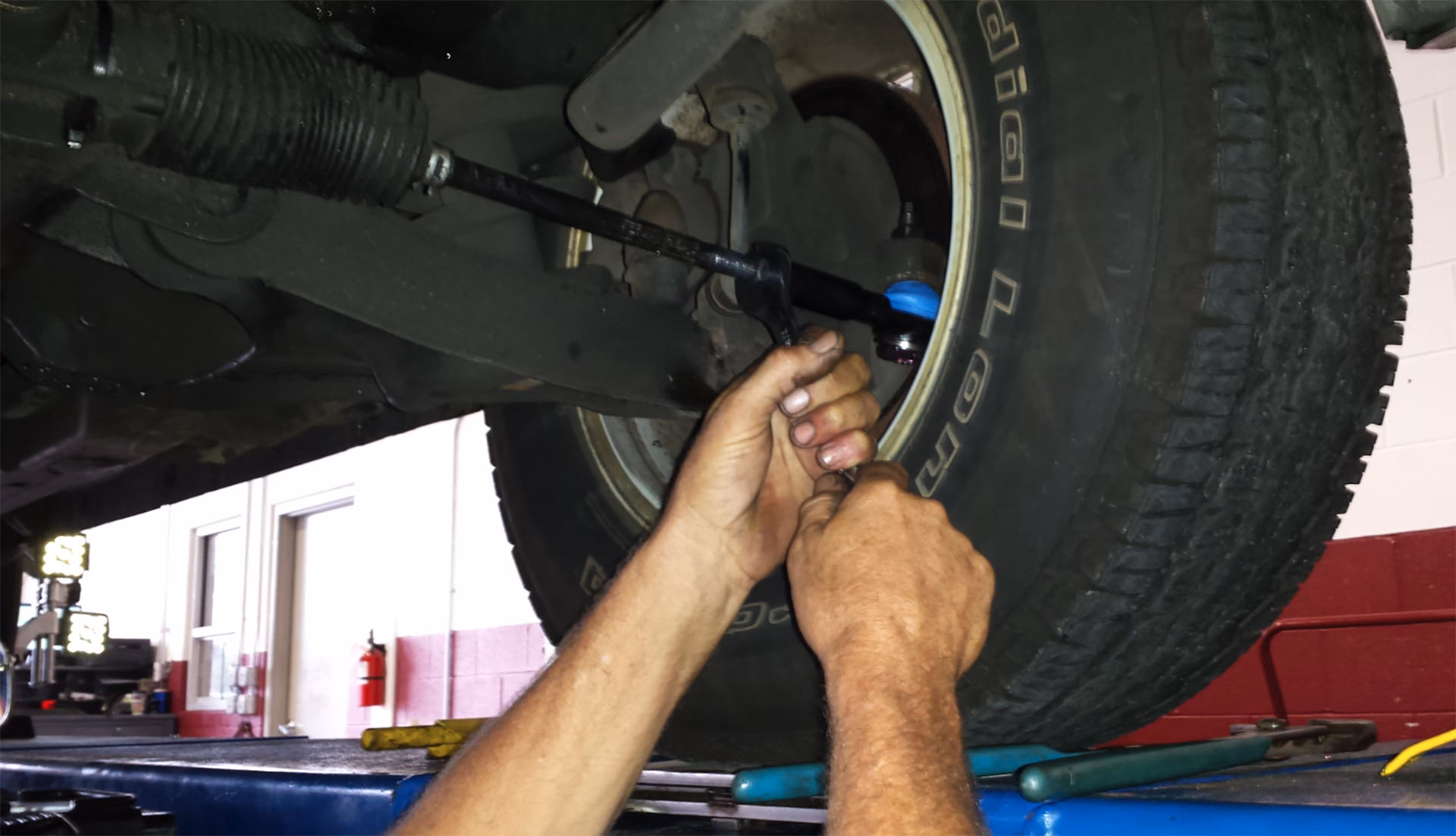

Q: How do you tighten a tie rod?

A: To tighten a tie rod (adjusting for toe-in), you loosen the jam nut and then rotate the threaded sleeve clockwise (when viewed from the outer end). Once the desired adjustment is made, you re-tighten the jam nut.

Q: Do bad tie rod ends make noise?

A: Yes, worn tie rod ends often make a knocking or clunking sound, especially when turning at low speeds or going over bumps. This is due to play in the ball joint within the tie rod end.

Q: Do you need an alignment after replacing ball joints?

A: While replacing ball joints doesn't directly alter the tie rods, it's part of the steering and suspension system. It's generally a good practice to get a wheel alignment after replacing ball joints or any other significant suspension components to ensure everything is tracking correctly.

By understanding these steps and precautions, you can make temporary adjustments to your front tie rods to improve your vehicle's alignment and driving experience. Always prioritise safety and seek professional help for critical repairs.
