The Revolution of Fuel Injection in Outboards

For decades, the roar of an outboard motor on the water was synonymous with the simple, yet often smoky, operation of a carburettor. While effective, carburetted engines were far from perfect, often suffering from inconsistent performance, poor fuel economy, and higher emissions. The advent of fuel injection technology marked a pivotal moment in marine propulsion, ushering in an era of cleaner, more efficient, and more reliable outboards. This shift wasn't a sudden event but a gradual evolution, with various manufacturers introducing their own takes on this transformative technology over several years. Understanding this journey not only sheds light on the technical advancements but also on the industry's response to growing environmental concerns and consumer demands for superior boating experiences.

The Early Spark: Mercury's Pioneering Steps

While the mainstream adoption of fuel injection in outboards largely occurred in the mid-to-late 1990s, Mercury Marine was notably ahead of the curve, experimenting with fuel injection systems for some years prior. Their initial foray into this complex technology involved analogue-based systems. These early analogue setups, while innovative for their time, were often plagued with issues. They could be temperamental, difficult to calibrate, and prone to reliability problems, which sometimes led to frustration for boat owners and mechanics alike. The complexity of managing fuel delivery electronically without the robust processing power available today presented significant challenges.

Recognising the limitations of their early designs, Mercury quickly pivoted to a digital setup. This transition was a game-changer. Digital fuel injection systems offered a level of precision and control that was simply impossible with analogue counterparts. By leveraging digital processors, Mercury's systems could more accurately meter fuel, adapt to varying engine conditions, and provide more consistent performance. This move laid crucial groundwork, proving the viability of electronic fuel delivery in the demanding marine environment and setting the stage for broader industry adoption. The shift from analogue to digital was a clear indication that for fuel injection to truly succeed, reliability and precision were paramount.

The Mid-90s Surge: A New Era Begins

The year 1997 stands out as a landmark year for fuel injection in the outboard market. It was during this period that several major manufacturers simultaneously launched their advanced fuel-injected models, signalling a definitive shift away from carburettors as the primary fuel delivery system for new engines. This confluence of releases indicated a maturation of the technology and a collective industry push towards more sophisticated propulsion systems.

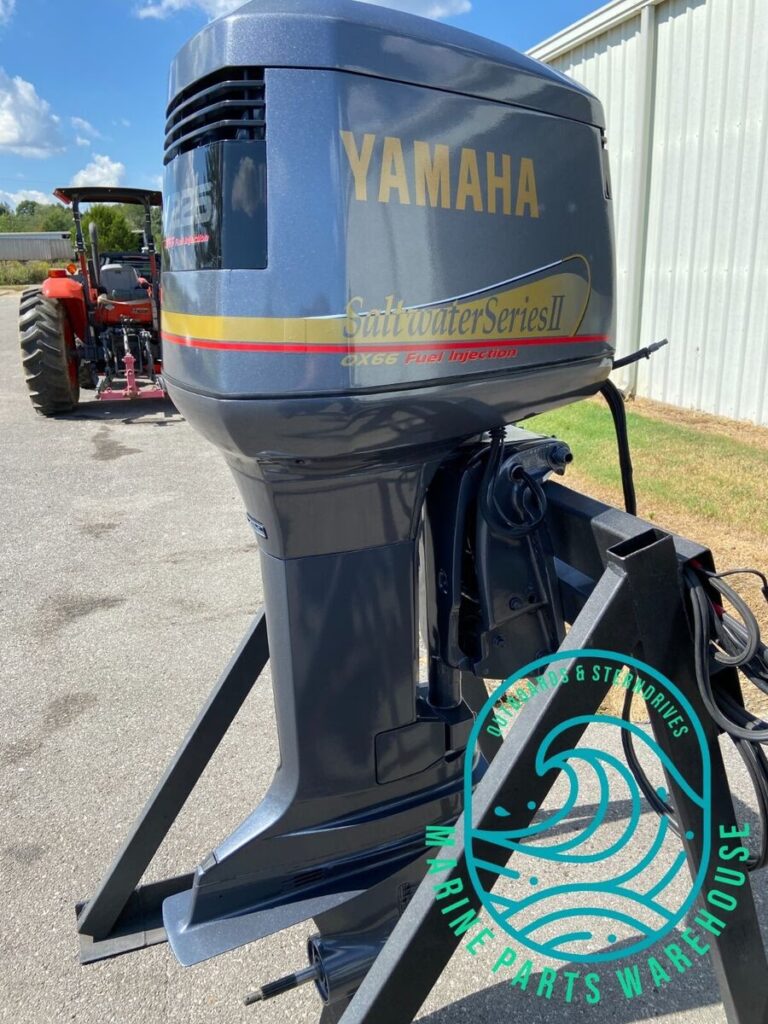

Yamaha's Entry into Traditional Fuel Injection

Yamaha, a dominant force in the outboard market, introduced its traditional fuel injection systems in 1997. These systems significantly improved upon carburettor designs by precisely injecting fuel into the intake manifold, leading to better atomisation and more efficient combustion. This move allowed Yamaha to offer engines with improved fuel economy, smoother idle, and more responsive acceleration, addressing key areas where carburettors often fell short.

The Debut of Direct Fuel Injection (DFI) Technologies

Also in 1997, the industry saw the highly anticipated debut of direct fuel injection (DFI) technologies from other major players. Evinrude launched its FICHT (Fuel Injected Combustion Technology) system, and Mercury introduced its Optimax range. While both were theoretically fuel-injected motors, they employed a more advanced direct injection method, injecting fuel directly into the combustion chamber rather than the intake manifold. This direct approach offered even greater control over the fuel-air mixture, leading to superior efficiency and reduced emissions, particularly for two-stroke engines which historically struggled with environmental performance due to inherent design limitations.

Suzuki's Quiet Innovation

While precise dates can sometimes be elusive, anecdotal evidence suggests that Suzuki may have introduced its Electronic Fuel Injection (EFI) systems a year or two before Yamaha's 1997 launch, possibly as early as 1995 or 1996. This would position Suzuki as one of the earlier adopters of mainstream EFI in outboards, quietly contributing to the technological advancement before the widespread push in the late 90s. Suzuki's commitment to cleaner and more efficient engines would continue to be a hallmark of their product development.

Direct Injection and the Evolution of Two-Strokes

The early 2000s marked a critical juncture, particularly for two-stroke outboard engines. While traditional two-strokes were celebrated for their power-to-weight ratio and simplicity, their higher emissions and fuel consumption compared to emerging four-strokes became a significant concern, especially with tightening environmental regulations.

Yamaha's Direct Injection for Two-Strokes (Z200N)

Yamaha began experimenting with direct injection technology specifically for two-stroke outboard engines around 1999. A notable milestone was the introduction of the Z200N, a 200hp V6 engine. This model represented a substantial leap forward, offering far superior fuel economy than existing direct-injection models of the time. The Z200N was engineered with innovative features to address traditional two-stroke drawbacks. It had the unique ability to minimise the characteristic 'headshake' at low revs by selectively cutting fuel flow to two of its cylinders while idling, resulting in a much smoother and quieter operation. Furthermore, this engine was among the first to incorporate a self-diagnostics system. This system could detect faults and, if necessary, limit the outboard engine's performance, allowing for a 'limp-home' mode – a crucial innovation for safety and convenience on the water.

The Broader Context: Emissions Regulations and the Decline of Carburetted Two-Strokes

The push for fuel injection, particularly direct injection, was heavily influenced by evolving emissions laws. The late 1990s saw significant pressure from regulations in the United States, prompting manufacturers to develop cleaner-burning engines. While two-stroke technology did evolve to minimise emissions – moving from pre-mixing oil to injecting it directly into the fuel line with self-adjusting oil feeds – direct injection offered the most promising path to meet increasingly stringent standards.

This culminated in significant legislative changes, such as the ban on retail sales of new carburettor-equipped two-stroke outboard engines in Australia from July 1, 2020. This landmark decision effectively marked the end of an era for older, higher-pollution two-stroke technology in new sales. The ban underscored the global commitment to environmental sustainability and solidified the position of fuel-injected and four-stroke engines as the new standard.

The Rise of Four-Strokes and Modern Fuel Injection

While the focus of early fuel injection was often on improving two-strokes, the parallel development of four-stroke technology was equally significant. Yamaha, for instance, released its first four-stroke motor as early as 1984. This early start gave them a considerable advantage when emissions regulations began to tighten in the 1990s, as they already had over a decade of experience developing cleaner four-stroke models, unlike some competitors who had no four-stroke offerings at the time.

Key milestones in Yamaha's four-stroke journey include the 100hp F100A in 1998, which offered the highest horsepower and environmental performance in its class, and the groundbreaking 225hp F225A, released shortly after, which held the title for the highest horsepower rating of any four-stroke outboard globally at its release. These powerful four-stroke engines inherently benefited from electronic fuel injection, allowing them to achieve impressive power output alongside excellent fuel economy and low emissions, without the need for the complex direct injection systems required to clean up two-strokes.

Benefits of Fuel Injection Over Carburettors

The transition from carburettors to fuel injection brought a multitude of benefits for outboard motor users:

• Improved Fuel Economy: Fuel injection systems precisely meter the exact amount of fuel needed for combustion, reducing waste and significantly improving miles per gallon.
• Lower Emissions: More complete combustion and better control over the air-fuel mixture lead to fewer unburnt hydrocarbons and pollutants.
• Easier Starting: Cold starts are vastly improved as the system can accurately deliver fuel regardless of ambient temperature. No more choking or fiddling with primer bulbs.
• Smoother Operation: Fuel-injected engines typically run smoother and idle more consistently, with less 'sputtering' or 'headshake'.
• Better Performance: More precise fuel delivery results in better throttle response, stronger acceleration, and more consistent power delivery across the entire RPM range.
• Altitude Compensation: EFI/DFI systems can automatically adjust for changes in atmospheric pressure, ensuring optimal performance at different altitudes, whereas carburettors often require manual re-jetting.
• Enhanced Reliability and Diagnostics: With electronic control units (ECUs) monitoring various engine parameters, fuel-injected engines often come with self-diagnostic capabilities, making troubleshooting easier.

Key Milestones in Outboard Fuel Injection

This table summarises the approximate timelines for the introduction of fuel injection technologies by major outboard manufacturers based on available information:

Frequently Asked Questions About Fuel Injection in Outboards

Q: What is the main difference between EFI and DFI?
A: EFI (Electronic Fuel Injection) typically refers to systems where fuel is injected into the intake manifold, just before the cylinder. DFI (Direct Fuel Injection) injects fuel directly into the combustion chamber. DFI offers even finer control over fuel delivery, leading to better fuel economy and lower emissions, particularly beneficial for two-stroke engines.

Q: Are carburetted outboards still available for purchase?
A: In many regions, new carburetted two-stroke outboards are no longer legally sold due to emissions regulations. For example, in Australia, new carbie-equipped two-stroke outboards were banned from retail sale from July 1, 2020. However, older models can still be bought second-hand, and some smaller, low-horsepower carburetted four-strokes might still be available in certain markets.

Q: Is fuel injection more expensive to maintain than carburettors?
A: While the initial repair cost for a fuel injection component (like an injector or ECU) can be higher than a simple carburettor overhaul, fuel-injected systems generally require less frequent routine maintenance. They are less susceptible to issues like clogging from stale fuel, which is a common problem with carburettors, potentially leading to overall lower long-term maintenance hassle if properly cared for.

Q: Can I convert my carburetted outboard to fuel injection?
A: While technically possible in some highly specialised cases, converting a carburetted outboard to fuel injection is generally not practical or cost-effective. It would require significant modifications to the engine, including installing fuel injectors, a high-pressure fuel pump, an ECU, and various sensors, which often exceeds the value of the engine itself.

Q: How do I know if my outboard has fuel injection?
A: Most modern outboards (post-2000s) utilise fuel injection. If your engine has an Electronic Control Unit (ECU), a high-pressure fuel pump, and no visible carburettors, it's almost certainly fuel-injected. The engine's specifications or owner's manual will also explicitly state whether it uses EFI or DFI.

Conclusion

The journey of fuel injection in outboard motors is a testament to the continuous pursuit of better performance, efficiency, and environmental responsibility in marine propulsion. From Mercury's early analogue experiments to the widespread adoption of EFI and advanced DFI systems by Yamaha, Evinrude, and Suzuki, this technology has fundamentally reshaped the boating landscape. It has not only made outboards more user-friendly and reliable but has also played a crucial role in enabling them to meet increasingly strict environmental standards. As we look to the future, fuel injection remains a cornerstone of outboard design, constantly evolving to deliver even greater power, cleaner operation, and an unparalleled experience on the water.
