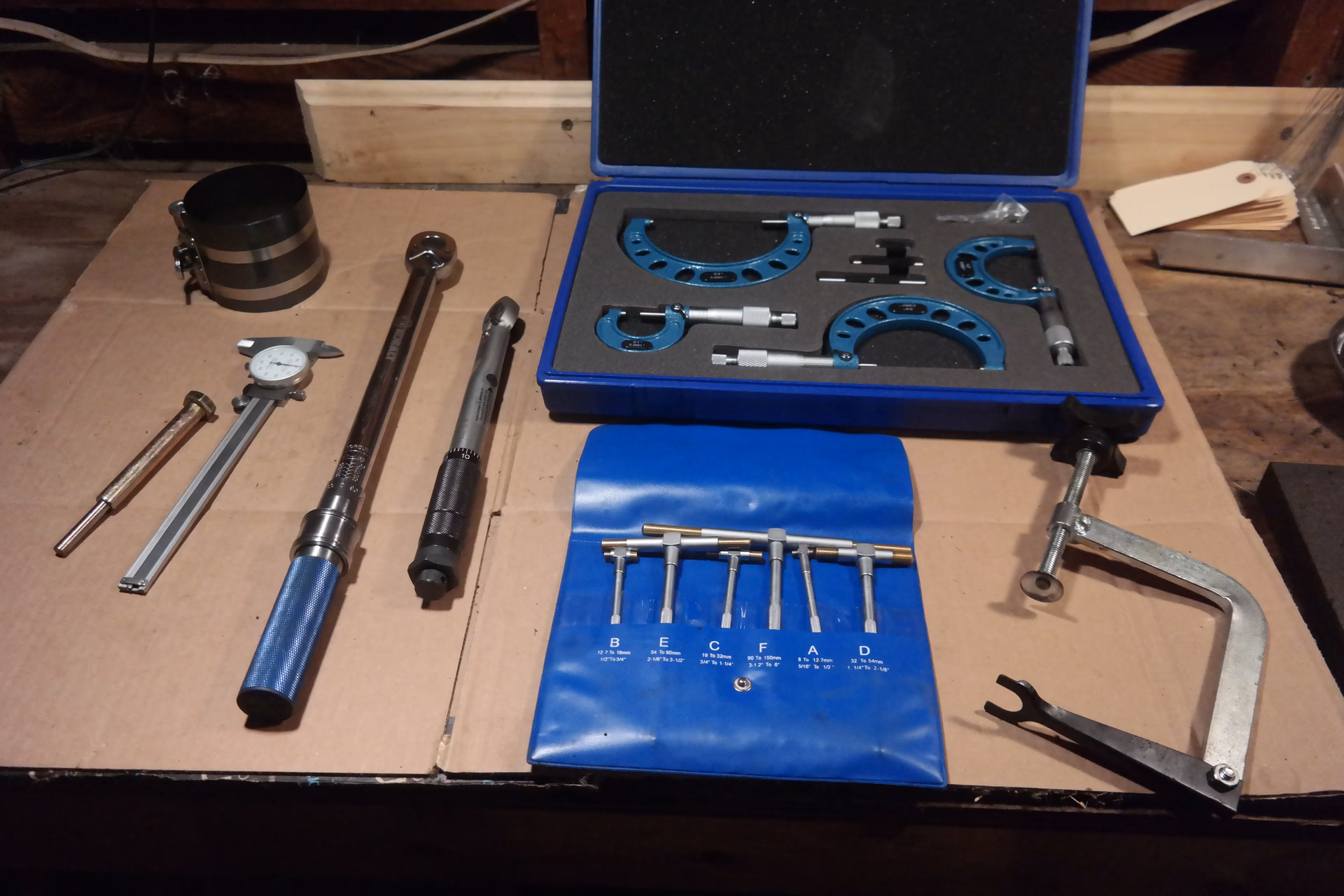

Essential Tools for Your Engine Rebuild Journey

Undertaking an engine rebuild is a significant endeavour, a true test of mechanical skill and patience. Whether you're aiming to fine-tune a beloved classic or construct a high-performance beast, the success of your project hinges not just on your knowledge, but crucially, on having the right tools at your disposal. Precision, efficiency, and the longevity of your engine are directly influenced by the quality and suitability of your equipment. This guide will walk you through the essential gear required to achieve a professional-grade engine build, ensuring every component fits perfectly and performs optimally.

The Foundation: Precision Piston Installation Tools

Installing piston and connecting rod assemblies can be one of the most delicate stages of an engine build. Without the correct tools, you risk damaging critical components, leading to costly setbacks and compromised performance. Accuracy here is paramount.

Tapered Ring Compressor

Struggling to guide piston assemblies into cylinder bores without snagging or breaking rings? The tapered ring compressor is your indispensable ally. These cleverly designed tools gently compress the piston rings, creating a funnel effect that guides the entire assembly smoothly into the cylinder. This prevents damage to the rings, pistons, and cylinder walls, ensuring a perfect fit. It's vital to remember that these aren't universal; each compressor is specifically designed for a certain cylinder bore size. Choosing the right one for your engine is critical for a damage-free installation, with some models even offering enhanced grip for added security. A precise fit here ensures proper sealing and optimal compression.

Piston Ring Squaring Tool

Achieving accurate measurements of ring end gaps is non-negotiable for engine longevity and performance. An incorrectly gapped ring can lead to blow-by or excessive wear. The piston ring squaring tool simplifies this critical task by ensuring the piston ring is perfectly square within the cylinder bore. By pushing the ring evenly a half-inch down the bore, it allows you to easily reach through and square the ring to the deck, providing a consistent and precise measurement point. These tools are available for various cylinder bore sizes, underscoring the importance of matching the tool to your specific engine dimensions for unparalleled accuracy.

Piston Ring Filer

While some replacement piston ring sets come pre-gapped, high-performance engines almost always require hand-fitting. This means the end gap must be meticulously measured and filed to match the specific cylinder bore. A piston ring filer transforms this otherwise tedious and imprecise job into a straightforward process. These robust tools clamp securely to a workbench, allowing you to steadily crank a carbide wheel to file the piston ring. The carbide wheel’s efficiency means swift material removal, but caution is advised: over-filing can render a ring unusable. Precision and patience are key to achieving the perfect gap, which directly impacts engine efficiency and power output.

Ensuring a Clean and Calibrated Build

Cleanliness and precise calibration are the unsung heroes of a successful engine build. Neglecting these aspects can lead to premature wear or catastrophic failure.

Engine Brushes

The importance of cleanliness during engine assembly cannot be overstated. Even the smallest speck of dirt or residue can compromise bearing surfaces, oil passages, or sealing effectiveness, ultimately impacting engine performance and lifespan. Engine brushes come in an array of sizes and shapes, designed to reach into the tiniest, most inaccessible nooks and crannies of your engine block. Professional builders often clean the block multiple times throughout the build process and once more upon completion to eliminate all traces of contaminants. Regularly replacing worn brushes ensures maximum cleaning effectiveness, protecting your investment.

Crank Socket

Turning your engine over manually is a frequent requirement during a build, whether for torquing fasteners, degreeing the camshaft, or simply inspecting components. A crank socket offers the easiest and safest method for this task. Designed to fit securely onto the end of the crankshaft, it allows for effortless rotation using a ratchet or breaker bar. This prevents damage that can occur from attempting to turn the engine using other less suitable methods, making it a simple yet highly effective tool for most high-performance engine models.

Degree Wheel

One of the most critical tasks in building a high-performance engine is degreeing the camshaft. This process ensures that the camshaft's timing is precisely matched to the engine's specifications, optimising valve lift and duration for maximum power and efficiency. A degree wheel is indispensable for this. Available in various sizes and colours, the key is to select one that is highly visible, adjustable, and appropriately sized for your engine. Accurate cam timing is a cornerstone of engine performance, and this tool ensures you achieve it with precision.

Specialised Tools for Complex Assemblies

Some engine components require specific tools for installation or measurement to prevent damage and ensure correct operation.

Harmonic Balancer Installation Tool

Installing harmonic dampeners is notoriously challenging, often leading to frustration if attempted without the correct equipment. Crucially, a harmonic dampener must be pressed on, never hammered, as striking it can cause internal damage to the dampener or the crankshaft. The harmonic balancer installation tool simplifies this demanding task considerably. It works by screwing into the threaded nose of the crankshaft; its integrated thrust bearing then gently and evenly presses the dampener onto the crank snout as you turn, preventing any damage to these critical components. This ensures a secure and properly seated dampener, vital for reducing engine vibrations.

Pushrod Length Checker

For overhead valve engines, any modifications that alter the distance between the rocker arm cup and the lifter seat – such as decking the engine block or milling cylinder heads – necessitate checking pushrod length. An incorrect pushrod length can disrupt valve train geometry, leading to premature wear, reduced performance, or even component failure. A pushrod length checker is an easy-to-use tool that replaces a standard pushrod, allowing you to adjust its length until the correct valve train geometry is achieved. Measuring the tool's final length with a caliper then ensures you order pushrods of the exact dimension required for your bespoke build, maintaining optimal valve train function.

Dial Bore Gauge

Accurately determining the size, straightness, and taper of main bearings and cylinder bores is fundamental to a durable and high-performing engine. The dial bore gauge provides a level of precision and ease of use far superior to traditional snap gauges. These instruments offer highly accurate readings, allowing builders to identify and address any imperfections that could lead to uneven wear, oil consumption, or a loss of power. Despite their precision, they are not prohibitively expensive, making them an essential addition to any serious engine builder's toolkit. Their accuracy ensures components fit within extremely tight tolerances, which is vital for engine longevity.

Oil Pump Primer

One of the most critical steps before starting a newly built engine is priming the oil pump. Failing to do so can result in the engine igniting without oil reaching vital moving parts, leading to immediate and potentially catastrophic damage. The oil pump primer is designed to prevent this devastating scenario. Featuring a drive tip that fits snugly into an electric drill and a bottom end that engages with your oil pump's drive shaft, it allows you to spin the oil pump manually. You continue until your oil pressure gauge registers pressure, confirming that oil has circulated throughout the engine. Only then is your engine truly ready for its first start, safeguarding all newly assembled components.

Support and Maintenance for Your Engine Project

Beyond the assembly process, proper storage and ongoing maintenance tools play a crucial role in the success and longevity of your engine project.

Engine Storage Cradle

Engine stands, even high-quality ones, can sometimes be unstable. Given the considerable weight of an engine, entrusting your meticulously built project to anything less than absolute stability is a risk. If your engine build isn't immediately being installed in a vehicle, an engine storage cradle provides a dedicated, highly stable solution. These cradles feature easy-to-access mounting points that offer a secure and reliable grip on your engine block, preventing accidental tipping or damage during storage or transport. This investment protects your hard work from unforeseen mishaps.

Valve Spring Height Micrometer

Precisely determining the installation height of your valve springs is paramount to matching them correctly with your camshaft. This ensures they deliver maximum pressure without coil binding, which can lead to valve train failure. The valve spring height micrometer offers the most accurate way to achieve this. Installed just like a valve spring, it expands until the valve is seated. This simulated pressure allows for pinpoint readings, often accurate to one one-thousandth of an inch. Achieving the correct spring height is vital for optimal valve control and preventing valve float at high RPMs.

Stud Removal Tool

Removing stubborn threaded studs by hand can be a frustrating and time-consuming battle. A stud removal tool is a cheap yet invaluable addition to your toolkit, saving you considerable time and effort during your engine build. These tools, driven by a standard ratchet, grip threaded studs of most sizes, allowing for their easy removal or installation without damaging the threads. It’s a simple solution to a common workshop headache.

Valve-Checking Springs

Flow testing cylinder heads is a critical step in building a high-horsepower engine, as engine airflow directly correlates with power output. To effectively test airflow, low-tension valve-checking springs are indispensable. These springs hold your valves open at precise increments (typically 0.05- or 0.1-inch), allowing for slow, controlled valve opening while you test the airflow characteristics of your cylinder heads. They temporarily replace your engine's actual valve springs during testing, working with most hardware configurations and engine types to provide crucial data for optimising performance.

Tap and Die Kit

Poorly aligned or damaged bolt threads can transform a simple fastening task into a time-wasting nightmare, potentially damaging components and delaying your project. A tap and die kit is an invaluable safeguard against such issues. These kits provide the necessary tools to rethread and clean up both internal and external bolt threads, ensuring smooth, secure fastening. Most kits come with a range of sizes to handle common bolt threads and holes. They are an inexpensive investment that can save significant frustration and prevent costly damage during your build.

Comparative Look at Engine Building Tools

Understanding the specific role of each tool can highlight its importance in the overall precision of an engine build. Here's a quick comparison of some critical instruments:

Frequently Asked Questions About Engine Rebuild Tools

Do I really need all these specialised tools for a basic engine rebuild?

While some basic rebuilds might get by with fewer specialised tools, for any high-performance or precision build, these tools are highly recommended. They ensure accuracy, prevent damage, and ultimately save you time and money in the long run by avoiding costly mistakes and reworks. Investing in the right tools is investing in the quality and longevity of your engine.

Can I use universal tools instead of specific ones for each cylinder bore size?

For tools like tapered ring compressors and piston ring squaring tools, universal options are often not precise enough. Each cylinder bore size requires a tool designed to fit it perfectly to ensure even compression and accurate measurements. Using an ill-fitting universal tool can lead to damage or inaccurate results, compromising your build.

How often should I replace my engine brushes?

Engine brushes should be replaced as they wear down and become less effective at cleaning. If the bristles are splayed, broken, or significantly shortened, their ability to reach into tight spaces and remove contaminants will be reduced. Regularly inspecting and replacing them ensures your cleaning efforts remain efficient and thorough.

Is it possible to damage my engine by using these tools incorrectly?

Yes, like any tool, improper use can lead to damage. For example, over-filing with a piston ring filer can ruin a ring, and hammering a harmonic dampener instead of pressing it can damage the crank or dampener. Always follow instructions carefully and, if unsure, seek guidance or watch reputable tutorials before proceeding.

Where can I typically find these types of specialised engine building tools in the UK?

Specialised engine building tools can be found at dedicated automotive performance shops, online automotive tool retailers, and sometimes at larger industrial tool suppliers. It's always best to source from reputable suppliers who can guarantee the quality and accuracy of their tools.

Conclusion

Building an engine is a rewarding experience, and having the correct toolkit transforms a challenging task into a precise, efficient, and enjoyable process. Each tool described above plays a crucial role in ensuring that every component of your engine is assembled correctly, fits perfectly, and performs to its maximum potential. From the delicate installation of piston rings to the critical priming of the oil pump, these specialised instruments are designed to prevent damage, enhance accuracy, and ultimately deliver a robust, high-performance engine that will stand the test of time. Equip yourself wisely, and embark on your next engine build with confidence, knowing you have the right gear for a truly exceptional outcome.
