In the intricate world of automotive engineering, few components are as critical to your safety and the overall performance of your vehicle as the braking system. Among the various types of brakes, the disc brake stands out as a prevalent and highly effective design, trusted by manufacturers and drivers worldwide. This article will delve into the fundamental principles, design intricacies, and essential components of disc brakes, providing a comprehensive understanding of how these vital systems bring your vehicle to a safe and controlled stop.
At its core, a disc brake is a sophisticated wheel brake engineered to slow the rotation of the wheel by generating friction. This friction is created by forcing brake pads against a rotating brake disc using a device known as a brake caliper. This ingenious mechanism transforms the kinetic energy of your moving vehicle into heat, which is then dissipated, allowing your vehicle to decelerate or come to a complete halt.

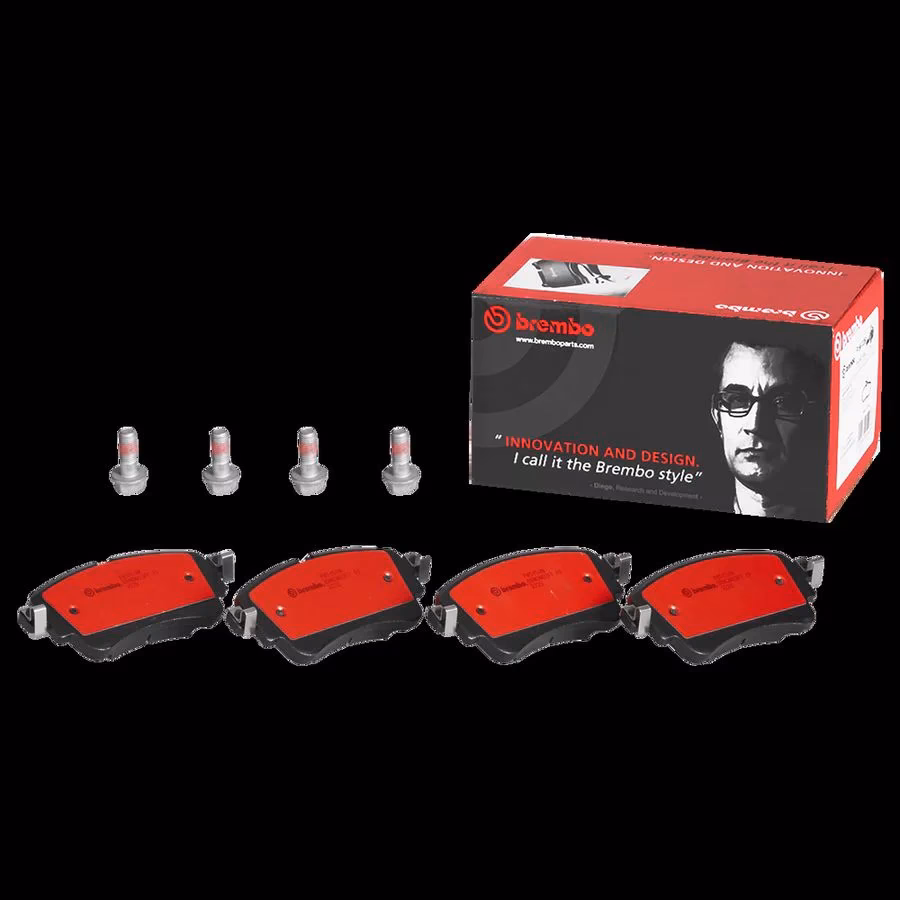

What is a Disc Brake Pad?
Central to the operation of any disc brake system are the brake pads. These are crucial components made from specialised friction material, designed to withstand immense heat and pressure while providing consistent stopping power. Mounted within the brake caliper, brake pads are the direct interface between the caliper and the brake disc.
When the brakes are applied, the pads are hydraulically, mechanically, pneumatically, or electromagnetically pressed against both sides of the rotating brake disc. The resulting friction is what slows down the disc and, consequently, the wheel to which it is attached. The performance and longevity of your braking system are heavily dependent on the quality and condition of your brake pads. Different types of brake pads exist, including organic, semi-metallic, and ceramic, each offering varying characteristics in terms of noise, dust, wear, and heat resistance.
Understanding Disc Brake Design Principles
The design of a disc brake system is a marvel of engineering, balancing the need for powerful stopping force with efficient heat dissipation. The primary principle at play is the conversion of the vehicle's kinetic energy (energy of motion) into thermal energy (heat). This heat must be effectively dispersed to prevent a phenomenon known as brake fade, where the brakes become less effective due to excessive heat build-up. While modern disc brakes are primarily associated with vehicles, their underlying principles are broadly applicable to almost any rotating shaft requiring controlled deceleration.
Key Components of a Disc Brake System
A typical disc brake assembly comprises several interconnected components, each playing a vital role:
- Brake Disc (Rotor): This is the rotating component connected directly to the wheel and/or axle. It’s typically made from robust materials such as cast iron, known for its excellent thermal conductivity and wear resistance. For high-performance or heavy-duty applications, advanced composites like reinforced carbon-carbon or ceramic matrix composites may be used, offering superior heat resistance and lighter weight.
- Brake Pads: As discussed, these are the friction materials that press against the disc. Their composition is crucial for braking performance, noise, and durability.
- Brake Caliper: This device houses the brake pads and the pistons that actuate them. Calipers can be either 'fixed' (bolted rigidly to the vehicle's suspension, with pistons on both sides of the disc) or 'floating' (which slides relative to the disc, typically with pistons on only one side). The caliper applies the clamping force that presses the pads against the disc.
- Brake Fluid: In hydraulic systems, brake fluid transmits the force from the brake pedal to the caliper pistons. It's a non-compressible fluid essential for consistent braking.
The Mechanics of Stopping Power
When you press the brake pedal, a master cylinder pressurises the brake fluid. This pressure is then transmitted through brake lines to the pistons within the brake calipers. These pistons extend, forcing the brake pads inwards to clamp onto the rotating brake disc. The resultant friction between the pads and the disc generates a braking torque, which opposes the rotation of the wheel, causing it to slow down or stop.
Engineers consider several factors when designing disc brakes to optimise performance and durability. These include:
- Force on Pad (F): The amount of force applied by the caliper pistons to the brake pads. Greater force generally means more stopping power.
- Mean Radius of Pad (r): The average distance from the centre of the disc to the point where the pad applies force. A larger mean radius can generate more torque for the same amount of force.
- Pad Area (A): The surface area of the brake pad in contact with the disc. This influences the pressure distribution and heat dissipation.
The torque capacity, which dictates the brake's ability to stop the wheel, is directly related to these factors, as is the pad pressure (p = F/A). Maintaining optimal pad pressure is crucial for even wear of the pads and consistent braking performance.
Combating Brake Fade: The Challenge of Heat
As mentioned, the conversion of motion into heat is fundamental to braking. However, excessive heat is the Achilles' heel of any braking system. When brakes become too hot, their effectiveness diminishes significantly – this is brake fade. It can manifest as a spongy pedal feel, reduced stopping power, or even complete loss of braking. Modern disc brake designs incorporate features to mitigate fade, such as vented discs (with channels between two disc surfaces to allow air circulation and cooling) and high-performance pad materials designed to operate effectively at elevated temperatures.
Historically, while the concept of a disc brake has existed for over a century, successful and widespread application in cars only truly began several decades after early experiments. Before World War II, disc brakes saw successful application in airplanes, where their superior performance and resistance to fade at high speeds were critical. Their robust design and efficiency eventually made them the preferred choice for automotive applications, largely replacing drum brakes in front-wheel positions and increasingly in rear-wheel positions as well.
Maintaining Your Disc Brakes for Optimal Safety
Regular maintenance is paramount to ensuring your disc brakes perform effectively and safely. Over time, brake pads wear down, and discs can warp or develop grooves. Ignoring these issues can lead to compromised stopping power, increased stopping distances, and potentially dangerous situations.
Signs Your Brakes Need Attention
Being aware of the warning signs can help you address brake issues before they become critical. Here’s a quick guide:
| Symptom | Possible Cause | Action Required |
|---|---|---|
| Squealing or High-Pitched Noise | Worn brake pads (wear indicator), glazing, or foreign objects. | Inspect pads, potentially replace. |
| Grinding Noise | Severely worn pads (metal-on-metal contact), disc damage. | Immediate inspection and replacement of pads/discs. |
| Vibration or Pulsation | Warped brake discs, uneven pad wear, loose components. | Inspect discs (measure run-out), replace if warped. |
| Soft or Spongy Pedal | Air in brake lines, low brake fluid, faulty master cylinder. | Bleed brake lines, check fluid level, professional inspection. |
| Vehicle Pulling to One Side | Sticking caliper, uneven pad wear, contaminated pad. | Inspect calipers, pads, and brake lines. |
| Burning Smell | Overheated brakes (brake fade), dragging caliper. | Allow brakes to cool, professional inspection if persistent. |
Regular inspection of brake pads for wear, checking brake fluid levels, and ensuring brake discs are free from excessive wear or warping are all vital aspects of automotive maintenance. Remember, your braking system is your primary safety feature, and investing in its upkeep is an investment in your safety on the road.
Frequently Asked Questions About Disc Brakes
Q1: How often should I replace my brake pads?
A1: The lifespan of brake pads varies significantly depending on driving habits, vehicle type, and pad material. Generally, they can last anywhere from 25,000 to 70,000 miles. It's best to have them inspected during routine servicing, typically every 10,000 to 15,000 miles, or immediately if you notice any of the warning signs.
Q2: What is brake fade and how can I avoid it?
A2: Brake fade is the reduction in braking power due to excessive heat build-up. This heat can cause the friction material to lose effectiveness or even boil the brake fluid. To avoid it, especially during prolonged descents or heavy braking, avoid continuous hard braking. Instead, use engine braking (downshifting) where appropriate, and apply brakes firmly but intermittently to allow them to cool.
Q3: Are disc brakes better than drum brakes?
A3: For most modern passenger vehicles, disc brakes are generally considered superior, particularly for front wheels, due to their better heat dissipation, stronger stopping power, and more consistent performance in wet conditions. They are also less prone to fade. Drum brakes are still used in some rear-wheel applications, often for cost or packaging reasons, and can provide effective handbrake functionality.
Q4: Why are my new brake pads squealing?
A4: New brake pads can sometimes squeal for various reasons, including improper bedding-in (the process of gently warming up pads and discs to ensure proper contact), cheap pad material, or lack of anti-squeal shims or paste during installation. If the squealing persists after a few hundred miles, or if it's accompanied by other symptoms, it's advisable to have them checked.
Q5: Can I replace brake pads myself?
A5: While it is possible for a mechanically inclined individual to replace brake pads, it requires specific tools, knowledge of brake system components, and adherence to safety procedures. Incorrect installation can lead to severe safety hazards. If you are unsure, it is always recommended to have a qualified mechanic perform the work.
Understanding the intricacies of disc brakes not only demystifies a crucial part of your vehicle but also empowers you to make informed decisions about its maintenance. By appreciating the principles of friction, heat dissipation, and the precise engineering that goes into every component, you gain a deeper respect for the system that ensures your safe journey on the roads.
