Car Body Restoration: From Blemishes to Brilliance

Car accidents, minor collisions, and everyday wear and tear can leave your vehicle’s body with unsightly blemishes. Fortunately, skilled technicians can restore your car’s pristine appearance and structural integrity through various repair techniques. This comprehensive guide delves into the essential aspects of car body repair, providing in-depth insights into common damage types, intricate repair methods, and crucial advice for choosing the right shop for the job. Our aim is to equip you with the knowledge needed to confidently navigate the restoration process, ensuring your cherished vehicle returns to its former glory.

Understanding Common Car Body Damage Types

Car body damage can range from minor surface imperfections to severe structural deformities. Understanding the different types of damage is crucial for determining the appropriate repair techniques and anticipating the complexity of the restoration. Here’s a detailed breakdown of some common body damage types encountered in car repairs:

Dents

These are perhaps the most common form of body damage, often caused by minor impacts such as hail storms, parking dings, or shopping trolley collisions. Dents can vary significantly in size, depth, and complexity, from shallow depressions to sharp creases. Their severity dictates the repair method, with smaller, softer dents often repairable without paintwork, while larger, more intricate damage may require traditional bodywork and repainting.

Scratches

Surface imperfections caused by abrasive contact, such as tree branches, loose gravel, car park scuffs, or even improper washing techniques. Scratches can be minor and superficial, only affecting the clear coat, or deep enough to penetrate the paint layers and expose the metal underneath. Deep scratches are particularly concerning as they can lead to rust if left unaddressed, compromising the metal's integrity and the vehicle's aesthetic.

Faded Paint

Exposure to the elements, particularly prolonged UV rays from the sun, environmental pollutants, and harsh chemicals, can cause a car’s paintwork to fade, dull, or become discoloured. Faded paint not only makes a car look old and neglected but also reduces its protective qualities. Restoring faded paint often involves a multi-stage process of compounding, polishing, and waxing, or, in severe cases, a complete respray to bring back its original lustre and vibrancy.

Rust

This is a pervasive issue, especially in vehicles exposed to moisture, road salt, and humid climates. Rust forms when the iron in the metal reacts with oxygen and water, creating a reddish-brown oxide that weakens the metal and can eventually lead to holes. Rust can begin as surface corrosion but, if left unchecked, can quickly spread and compromise the structural integrity of panels, chassis components, and even safety features. Timely rust treatment is paramount for both aesthetics and safety.

Panel Damage

Impacts or collisions can cause damage to individual body panels, such as doors, wings (fenders), bonnets (hoods), and boot lids (trunks). This damage can range from minor dents and scratches to severe bends, tears, and punctures. Depending on the extent, panel damage may be repaired through reshaping and filling, or in more severe instances, the entire panel may require replacement to ensure a perfect fit and structural alignment.

Structural Damage

Accidents involving significant force can cause damage to the car’s fundamental frame or unibody structure. This is the most severe type of damage, affecting the vehicle's core integrity and safety. Structural damage requires specialised repair techniques, often involving sophisticated frame-straightening equipment and precise measurements to restore the chassis to factory specifications. This type of repair is critical for the vehicle’s safety and handling characteristics.

Glass Damage

Broken or cracked windscreens (windshields), side windows, rear windows, and headlights are common occurrences in accidents or due to stone chips. Glass damage can severely compromise safety, visibility, and the vehicle's weather sealing. It should be repaired or replaced promptly by professionals to maintain the car's structural rigidity and occupant protection.

Identifying the type and severity of body damage is the first step in determining the most effective repair method. A professional technician can accurately assess the damage and recommend the appropriate course of action, ensuring a lasting and effective restoration.

Advanced Body Repair Techniques for Flawless Restoration

Restoring a car’s body to its original condition involves a sophisticated array of techniques, each meticulously tailored to specific damage types. From innovative dent removal to precise panel replacement and flawless paint repair, these methods aim to achieve a seamless, durable, and aesthetically perfect repair.

Dent Removal: Precision and Preservation

Dents, those unsightly depressions in your car’s bodywork, can range from minor dings to deep, complex creases. Thankfully, numerous techniques exist to address these imperfections, restoring the smooth contours of your vehicle.

Paintless Dent Repair (PDR)

This highly skilled method involves technicians using specialised tools to gently massage and manipulate the dent from the inside out. The key advantage of PDR is that it avoids the need for repainting, preserving the original factory finish. PDR is particularly effective on smaller, shallower dents where the paint surface is undamaged, especially on areas like doors, bonnets, and wings. It's often the most cost-effective and quickest solution for minor dings.

Traditional Dent Repair (Body Filler & Repainting)

For larger dents, those with sharp creases, or dents where the paint has been chipped or cracked, a more robust approach is required. This involves carefully shaping the metal back into position using various tools, or in some cases, using specialised dent-pulling equipment. Once the metal is as close to its original contour as possible, a putty-like material called body filler is applied. This filler is meticulously sanded and shaped to perfectly match the surrounding contours. This method is always followed by priming, painting, and clear coating to ensure a seamless and durable finish that protects the repaired area from corrosion.

Panel Replacement: When Repair Isn't Enough

Sometimes, the damage to a car’s body is too extensive for simple dent removal or repair, or the structural integrity of the panel has been compromised. In such cases, replacing the damaged panel entirely is the most effective and often safest solution. This process involves removing the damaged part and installing a brand-new one, ensuring a seamless and structurally sound repair.

Assessment and Selection

Before proceeding, a thorough inspection is crucial to assess the extent of damage and determine if a repair is viable or if replacement is necessary. The repair shop will typically source a new panel, ensuring it matches the vehicle’s make, model, and year. Options include Original Equipment Manufacturer (OEM) parts, which are identical to those fitted in the factory, or high-quality aftermarket parts.

Panel Removal and Installation

The damaged panel is carefully removed, often requiring specialised tools to detach it from the vehicle’s frame or unibody. The new panel is then precisely fitted and securely attached using appropriate methods such as welding, riveting, or bonding, depending on the vehicle’s construction materials and manufacturer specifications. Proper attachment is critical for both safety and long-term durability.

Alignment and Finishing Touches

Once the new panel is installed, it needs to be meticulously aligned with the surrounding bodywork to ensure proper fit, consistent panel gaps, and correct function (e.g., doors closing properly). Any gaps or misalignments are corrected using specialised tools and techniques. Following installation, the repaired area is prepared for painting, involving sanding, priming, and filling any minor imperfections before the final paint application to achieve a factory-like finish.

Paint Repair & Refinishing: The Art of Seamless Blending

After dent removal, panel replacement, or any other bodywork repair, a fresh coat of paint is often necessary to restore the vehicle’s aesthetic appeal and protect the repaired area from rust and corrosion. Paint repair involves a meticulous multi-stage process of prepping the surface, applying primer and paint, and ensuring a seamless blend with the existing finish.

Surface Preparation

The area around the repair is thoroughly cleaned, degreased, and sanded to create a perfectly smooth and uniform surface for optimal paint adhesion. Any imperfections, such as remaining scratches or minor dents, are filled with body filler and smoothed out. A high-quality primer is then applied to provide a uniform base for the paint, enhance adhesion, and offer additional corrosion protection.

Colour Matching

A critical aspect of paint repair is achieving a perfect colour match with the existing paint on the vehicle. This involves using a spectrophotometer, a highly advanced device that analyses the original paint's precise hue, metallic content, and flake size. Based on this analysis, a custom blend of pigments is created to match the exact shade, accounting for any slight fading of the existing paintwork. This meticulous process ensures the repaired area blends seamlessly with the rest of the vehicle.

Paint Application

The base coat (the colour layer) is applied in multiple thin, even coats, allowing each layer to flash off (dry) thoroughly before applying the next. This technique ensures a smooth, even finish and prevents runs or sags. Depending on the type of paint and the repair area, professional spray guns are used to achieve a consistent and high-quality application. Following the base coat, a durable clear coat is applied. This clear coat provides a protective layer against UV rays, scratches, stone chips, and environmental contaminants, while also giving the paint its glossy, deep finish.

Blending and Polishing

Once the paint has cured, it's carefully blended with the surrounding paintwork to minimise any noticeable colour differences or edges. This process involves "feathering" the new paint into the existing paint to create an invisible transition. Finally, the painted area is wet-sanded and polished to a mirror-like finish, removing any minor imperfections and ensuring a perfect sheen that matches the rest of the vehicle.

Rust Repair & Prevention: Battling the Red Menace

Rust is a car's silent killer, potentially compromising its structural integrity and value. Effective rust repair is crucial for a complete body restoration.

Surface Rust Repair

For minor surface rust, the affected area is thoroughly sanded down to bare metal, removing all traces of corrosion. A rust converter may then be applied, followed by a suitable primer and several coats of paint and clear coat to protect the metal from future oxidation.

Deep Rust and Perforations

When rust has eaten through the metal, creating holes or significant weakening, the damaged section must be cut out entirely. A new piece of metal is then fabricated or a section from a donor panel is welded into place. This requires skilled welding and metalworking to ensure structural integrity. The area is then prepped, filled, primed, and painted to match the surrounding bodywork. This type of repair is often more complex and labour-intensive.

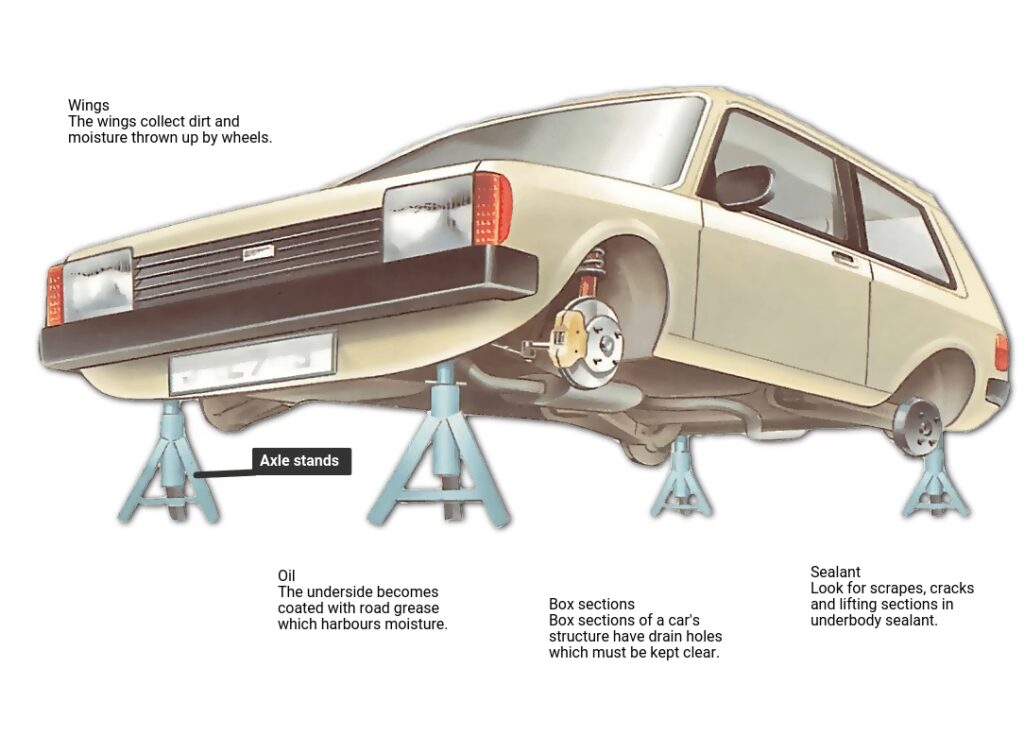

Rust Prevention

Beyond repair, prevention is key. Regular washing, especially of the underbody, helps remove road salt and contaminants. Applying a good quality wax or sealant offers a protective barrier for the paint. Promptly addressing any chips or deep scratches prevents moisture from reaching the bare metal, significantly reducing the risk of rust formation.

Choosing the Right Car Body Repair Shop: A Critical Decision

With numerous body repair shops available, selecting the right one for your car’s needs can seem daunting. However, a little research and careful consideration can help you find a shop that delivers quality workmanship, fair pricing, and excellent customer service. This decision will significantly impact the outcome of your car's restoration.

Reputation and Experience

Start by seeking recommendations from friends, family, or trusted online reviews. Look for shops with a solid reputation for delivering high-quality repairs and excellent customer satisfaction. Investigate their experience in handling various types of damage, particularly the kind your vehicle has sustained, and their expertise in working with different vehicle makes and models. A long-standing presence in the community often indicates reliability.

Certifications and Insurance

Ensure the shop holds relevant industry certifications. In the UK, look for certifications from organisations like the Vehicle Body Repairers Association (VBRA) or evidence of technicians being Automotive Technician Accreditation (ATA) certified. These certifications indicate that the shop adheres to industry standards, employs trained technicians, and uses appropriate repair methods. Crucially, verify that the shop is fully insured and bonded, providing financial protection in case of any accidents or damage to your vehicle during the repair process.

Services and Equipment

Assess the shop’s capabilities and the range of services they offer. A reputable body shop should offer a comprehensive suite of repair services, including advanced dent removal, precise panel replacement, frame straightening, and a high-quality paint booth. Inquire about their equipment, particularly the paint booth, which should be well-ventilated and equipped with advanced technology for precise colour matching and paint application. Modern diagnostic tools for structural assessment are also a good sign.

Transparency and Communication

Choose a shop that is transparent about their pricing and the entire repair process. Always request a detailed, written estimate before authorising any work. This estimate should clearly itemise parts, labour, and any supplementary charges. Ensure clear and consistent communication throughout the repair process, with regular updates on the progress and immediate notification of any unexpected issues that may arise, along with their proposed solutions.

Warranty and Guarantee

Inquire about the shop’s warranty and guarantee policies on their repairs. A reputable body shop will typically offer a warranty on their workmanship and the parts used, covering defects for a specific period (e.g., 1-5 years). This demonstrates their confidence in the quality of their work and provides you with peace of mind. Clarify what the warranty covers and for how long.

By diligently following these tips, you can significantly increase your chances of finding a reputable and reliable body repair shop that will restore your car to its former glory, ensuring both aesthetic appeal and structural integrity.

Comparative Overview of Common Body Damage & Repair Methods

Understanding the interplay between damage type and repair technique is key to informed decision-making:

Frequently Asked Questions About Car Body Restoration

Restoring a car's body can bring up many questions. Here are some of the most common ones addressed by experts:

How long does car body repair take?

The duration of car body repair varies significantly depending on the extent and type of damage. Minor dent removal (PDR) might take a few hours, while extensive collision repair involving panel replacement and structural work could take several days or even weeks. A reputable shop will provide an estimated timeline during the assessment phase.

Is it better to repair or replace a damaged panel?

This depends on the severity of the damage and the cost-effectiveness. Minor damage can often be repaired cost-effectively, preserving original parts. However, if a panel is severely bent, torn, or structurally compromised, replacement is usually the safer and more durable option. Your repair technician will assess and recommend the best course of action.

Will my car's paint match perfectly after a repair?

Professional body shops use advanced colour-matching technology (spectrophotometers) and skilled technicians to mix custom paint formulas. While achieving an absolutely 'invisible' repair is the goal, slight variations can occur due to factors like existing paint fading or metallic flake orientation. However, a high-quality shop will ensure the blend is virtually undetectable to the naked eye.

How much does car body repair cost?

Costs vary widely based on the type of damage, the vehicle's make and model, and the repair shop's labour rates. Minor scratch repair might be under £100, while a major collision repair could run into thousands of pounds. Always get a detailed, written estimate before proceeding with any work.

Does car body repair affect resale value?

A high-quality, professional repair that restores the car to its original condition will minimise the impact on resale value. In contrast, visible or poorly executed repairs can significantly reduce a vehicle's value. Disclosure of significant repairs is often required when selling a vehicle.

What's the difference between a body shop and a mechanical garage?

A body shop (or collision repair centre) specialises in repairing damage to the vehicle's exterior, frame, and paintwork. A mechanical garage focuses on the internal components of the car, such as the engine, transmission, brakes, and suspension. While some larger garages might offer minor bodywork, a dedicated body shop is equipped for comprehensive body restoration.

Can I do car body repairs myself?

Minor repairs like superficial scratches or very small, soft dents might be tackled by an experienced DIY enthusiast. However, for anything beyond cosmetic blemishes – especially deep dents, structural damage, or complex paintwork – professional intervention is highly recommended. Improper repairs can lead to further damage, rust, and compromise safety.

What is the role of insurance in car body repair?

If your car's damage is due to an accident and you have comprehensive insurance coverage, your insurance company may cover the cost of repairs, minus your excess. Your insurer might recommend approved repairers, but you often have the right to choose your own reputable body shop. Always contact your insurance provider as soon as possible after an incident.

Conclusion: The Path to a Pristine Vehicle

Car body repair is a specialised field that demands skill, expertise, and the right equipment. Understanding common damage types, the various intricate repair techniques available, and the importance of choosing the right repair shop can empower you to make informed decisions about restoring your vehicle. From minor dents that detract from your car's appeal to major collision damage that compromises its safety, skilled technicians possess the knowledge and tools to restore your car’s appearance and structural integrity.

Innovative dent removal techniques like PDR (Paintless Dent Removal) can often provide a cost-effective and swift solution for minor imperfections, preserving your original paintwork. For more significant damage, panel replacement involves carefully removing compromised panels and installing new ones, ensuring a perfect fit and finish that maintains the vehicle’s structural integrity. Furthermore, advanced paint repair techniques, including meticulous colour matching and professional application, are crucial to restoring the car’s original colour and showroom shine, providing long-lasting protection against the elements.

Choosing the right repair shop is paramount to ensuring quality workmanship and a satisfactory outcome. Thoroughly researching the shop’s reputation, verifying their certifications, understanding their services, and ensuring transparent communication practices can help you make a confident decision. Always remember to request detailed estimates, maintain clear communication throughout the repair process, and inquire about a warranty to protect your valuable investment. By following these comprehensive guidelines, you can navigate the world of car body repair with confidence, restoring your vehicle to its original beauty, ensuring its safety, and preserving its long-term value.
