Diesel Pump LDA: Boost Control for Performance

Upgrading a naturally aspirated diesel engine with a turbocharger and intercooler is a popular modification for those seeking more power and efficiency. However, many enthusiasts, like yourself, quickly discover that simply adding forced induction isn't enough. Without the correct fuel management, particularly from your fuel injection pump, you could be facing excessive fuel consumption, poor combustion, and a less-than-optimal driving experience. This article delves into why an LDA, or Manifold Pressure Compensator, is a critical component for turbocharged setups, especially when starting with a non-LDA equipped fuel pump.

When you've invested in an intercooler and tweaked your 1V 1.6 diesel engine's pump for more power, it's easy to overlook a fundamental difference in fuel delivery systems. Your current pump, designed for a naturally aspirated engine, lacks the sophisticated mechanism to dynamically adjust fuel delivery based on boost pressure. This can lead to a common and frustrating problem: your engine receives too much fuel when off-boost or at lower RPMs, resulting in wasted fuel, black smoke, and inefficient burning. The good news is, understanding the role of the LDA can pave the way for a much more refined and powerful setup.

Understanding Your Fuel Pump: LDA vs. Non-LDA

At the heart of many older diesel engines lies the Bosch VE rotary injection pump. These pumps are incredibly robust and tuneable, but they come in various configurations. The key distinction for turbocharged applications is whether the pump is equipped with an LDA (Load Dependent Adjustment) or, more accurately, a Manifold Pressure Compensator (MPC).

The Non-LDA Pump: A Simpler Approach

A non-LDA pump, sometimes referred to as a "no altitude compensating pump," is fundamentally simpler. It's designed to deliver a consistent amount of fuel relative to engine speed and throttle position, based on its internal governor settings. It doesn't have any mechanism to sense the pressure in the intake manifold. For a naturally aspirated engine, this is perfectly adequate. The amount of air entering the engine is largely predictable, so a fixed fuel map works well.

The LDA Pump: Adapting to Boost

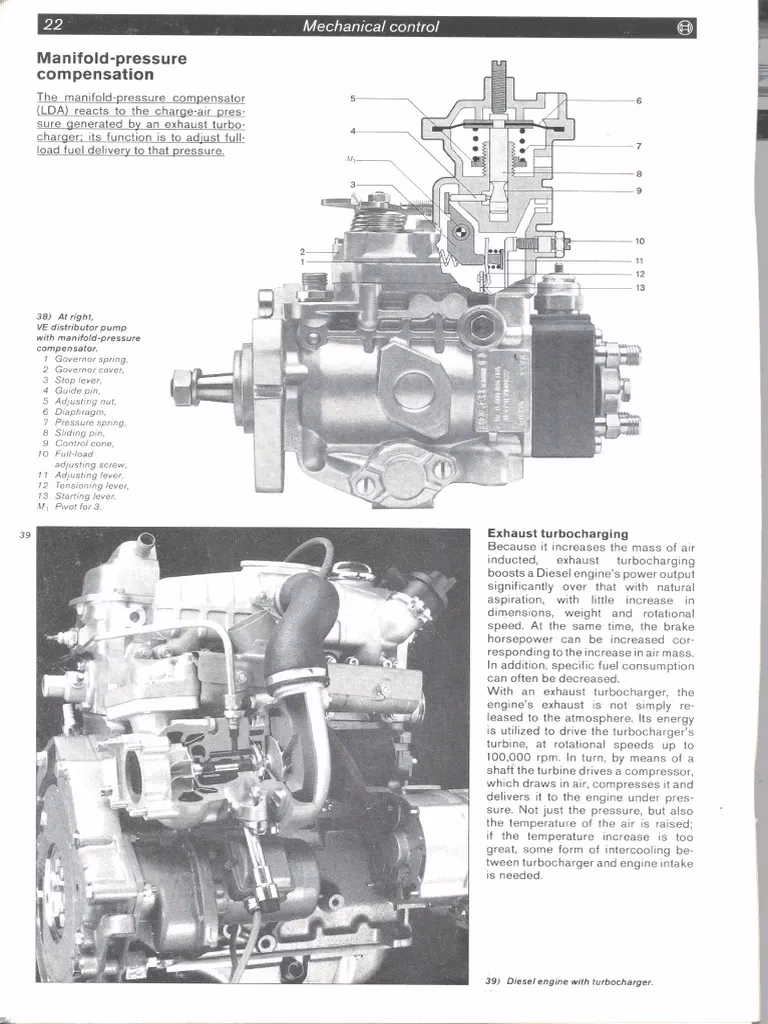

In contrast, an LDA-equipped pump features an additional unit, typically mounted on the top of the pump body. This unit contains a diaphragm and a spring-loaded pin or mechanism. A vacuum or boost line from the intake manifold connects directly to this unit. As turbo boost pressure rises, it pushes on the diaphragm, which in turn acts on the fuel metering components within the pump. This action allows the pump to inject more fuel as more air is forced into the engine, maintaining the correct air-fuel ratio under load.

The difference is crucial: without an LDA, a pump "tweaked" for high boost will inevitably over-fuel at lower boost pressures or off-boost conditions. This is precisely why you might be experiencing high fuel consumption (like 8l/100 km) and poor burning – your engine is literally being flooded with more fuel than it can efficiently combust with the available air.

The Critical Role of the LDA (Manifold Pressure Compensator)

The LDA's primary function is to optimise fuel delivery. It acts as a mechanical boost-compensator, ensuring that your engine receives an appropriate amount of fuel relative to the air mass entering the cylinders. Let's break down its internal workings:

• Boost Sensing: A hose connects the LDA unit to your intake manifold. As the turbo spools up and generates boost pressure, this pressure is fed into the LDA unit.
• Diaphragm Activation: Inside the LDA, there's a flexible diaphragm membrane. This membrane is pushed downwards by the rising boost pressure.
• Fuel Adjustment Mechanism: Attached to the diaphragm is a pin or shaft, often tapered. As the diaphragm moves, this pin pushes against or adjusts a lever within the pump's governor assembly. This adjustment effectively increases the amount of fuel delivered by the pump.
• Spring Return: A spring opposes the boost pressure, ensuring that as boost drops (e.g., when you lift off the throttle), the diaphragm returns to its resting position, reducing fuel delivery back to the base setting.

This intelligent mechanical system prevents excessive smoke and improves fuel economy by ensuring that the engine only receives the higher fuel volumes when the turbo is actively supplying the necessary air. Without it, you're essentially running a rich mixture whenever boost isn't present, which is detrimental to efficiency and can lead to excessive exhaust temperatures and carbon build-up.

Why an LDA is Indispensable with an Intercooler and Turbo Upgrade

You've already taken a significant step by adding an intercooler, which cools the compressed air from the turbo, making it denser and allowing for more power. You've also "tweaked" the pump, likely increasing its overall fuel delivery. However, without an LDA, you've created a mismatch:

• Off-Boost Over-Fuelling: At idle, low RPMs, or when decelerating, your turbo isn't producing significant boost. Yet, your "tweaked" non-LDA pump is still delivering a higher baseline amount of fuel. This results in a very rich mixture, leading to the symptoms you're experiencing: high fuel consumption and incomplete combustion.
• Inefficient Power Delivery: While you might feel a surge of power when the turbo fully spools, the transition to boost might be less smooth, and the engine could be struggling with excess fuel before the boost truly kicks in.
• Environmental Impact: More unburnt fuel means more soot and emissions, which is not ideal for your engine's longevity or the environment.

The LDA ensures that the increased fuel delivery only comes online when the engine can actually use it efficiently, matching the fuel curve to the boost curve. This leads to better throttle response, reduced smoke, and significantly improved fuel economy.

Symptoms of a Missing or Faulty LDA

If your turbocharged diesel engine is running without an LDA, or if the LDA's diaphragm is split, you'll likely observe several tell-tale signs:

• Excessive Black Smoke: Particularly noticeable at low RPMs, during acceleration, or when the engine is under light load. This is a direct sign of too much fuel for the available air.
• High Fuel Consumption: As you've noted, an 8l/100 km figure is quite high for a 1.6 diesel, especially if it's not being driven aggressively. Unburnt fuel is wasted fuel.
• Rough Idle or Poor Low-End Performance: Over-fuelling can make the engine idle unevenly or feel sluggish before the turbo properly engages.
• Reduced Power Under Load (if diaphragm split): If an LDA is present but its diaphragm is split, it won't be able to sense boost pressure correctly, leading to a significant loss of the power increase that the LDA is designed to provide. The pump will behave much like a non-LDA pump, or even worse if it's set up to rely on the LDA for its main fuel delivery.
• Increased Engine Oil Dilution: Unburnt diesel can wash down cylinder walls, diluting engine oil and potentially leading to increased wear.

The Big Question: Can You Add Just the LDA Unit?

This is a common and excellent question. Based on the design of many Bosch VE pumps, the LDA unit is often a distinct, bolt-on component located on the top of the pump. The provided information even highlights that "The major difference between this, and the turbo/altitude compensating pumps is the addition of the 'LDA' on top." This suggests modularity.

In many cases, yes, it is possible to add just the LDA unit to a non-LDA Bosch VE pump. However, there are crucial caveats:

1. Pump Body Compatibility: Your specific pump body needs to have the necessary casting, drillings, and internal governor components that interface with the LDA's pin. While many non-turbo pumps might share a common casting with turbo versions, it's not guaranteed for every single variant. You would typically look for a flat mounting surface on the top of your pump where the LDA unit would sit, along with a hole for the LDA pin to enter the pump body.
2. Sourcing the Right Part: You'll need an LDA unit (sometimes called a boost control unit or Manifold Pressure Compensator) that is compatible with your specific Bosch VE pump model. These can often be sourced from donor turbo diesel pumps or as aftermarket parts. Ensure it includes the diaphragm, spring, and pin.
3. Internal Linkage: The LDA pin interacts with a specific lever inside the pump's governor. If your non-LDA pump completely lacks this internal linkage, then simply bolting on the external unit won't work. However, many pumps, even non-turbo ones, often have the basic internal architecture, just without the external compensator.

If your pump body does not have the provisions for an LDA unit, then unfortunately, you would have to consider swapping the entire fuel injection pump for one that is factory-equipped with an LDA. This is a more involved process but ensures full compatibility and correct operation.

Step-by-Step: Converting to an LDA Setup (General Guidance)

If you determine your pump is compatible with adding an LDA unit, here's a general outline of the process:

1. Verify Compatibility: Carefully inspect the top of your existing fuel pump. Look for a flat, machined surface with a central hole where the LDA pin would enter, and typically two or three bolt holes around it for mounting the LDA housing. Compare it with images of LDA-equipped pumps for your engine family.
2. Source an LDA Unit: Acquire a complete LDA unit (housing, diaphragm, spring, tapered pin) that is known to fit Bosch VE pumps of your type. New genuine Bosch diaphragm membranes are also available as spares if your sourced unit has a damaged one.
3. Installation:
   • Ensure the engine is cool.
   • Clean the mounting area on the pump thoroughly.
   • Carefully install the LDA unit, ensuring the tapered pin correctly engages with the internal lever.
   • Use a new gasket to prevent fuel leaks and ensure a proper seal.
   • Secure the unit with the appropriate bolts, tightening to specification.
   • Connect a boost reference line from your intake manifold (after the intercooler) to the LDA unit.
4. Initial Settings: Once installed, the pump will likely require adjustment. The "smoke screw" (fuel adjustment screw) will need to be re-adjusted, as the LDA will now be providing the boost-dependent fuelling. You'll want to set the baseline fuel (off-boost) to a reasonable level and let the LDA increase it under boost.
5. Test and Tune: This is crucial. Drive the vehicle and observe performance, smoke levels, and fuel economy. Make small, incremental adjustments to the fuel screw. Remember that turning the screw clockwise increases fuel, and counter-clockwise reduces it. You may also need to adjust the idle screw, as mentioned previously.

If a pump swap is necessary, this is a more complex job, often requiring professional help to ensure correct timing and calibration.

Fine-Tuning Your Fuel Pump Post-LDA Installation

With an LDA now in place, the process of optimisation for your engine's performance becomes much more precise. The "smoke screw" or fuel adjustment screw, typically found at the rear of the pump under a tamper-proof collar, plays a vital role. This screw adjusts the maximum fuel delivery across the entire RPM range.

• Baseline Fuel Adjustment: Start by setting a reasonable baseline fuel amount for off-boost conditions. You want enough fuel for smooth running without excessive smoke.
• LDA Pin Adjustment (if applicable): Some LDA units allow for adjustment of the spring tension or the depth of the tapered pin. This fine-tunes how aggressively the LDA adds fuel under boost.
• Trial and Error: Adjustments are best done in small increments (e.g., quarter turns, then eighth turns). Drive the car, observe the smoke (a little puff on hard acceleration is acceptable, constant black smoke is not), power delivery, and listen to the engine.
• Idle and Max RPM Adjustment: As the provided information states, turning up the fuel may necessitate decreasing the idle, and vice versa. The idle adjustment screw is usually closer to the engine, while the max RPM screw is further away. Always adjust these cautiously.

The goal is to achieve a good balance of power, minimal smoke, and acceptable fuel economy. This process takes patience and a keen ear for your engine's feedback.

Ultimately, the addition of an LDA is a game-changer for a turbocharged diesel engine that was originally naturally aspirated. It transforms a crude, over-fuelling setup into a much more refined and efficient power plant.

Comparative Table: Non-LDA vs. LDA Fuel Pumps

Frequently Asked Questions (FAQs)

What exactly is the Bosch VE fuel injection pump diaphragm membrane?

The diaphragm membrane is a crucial internal component of the LDA (Manifold Pressure Compensator) unit. It's typically a flexible rubber or composite disc, approximately 70mm in diameter, that forms a seal within the LDA housing. When boost pressure is applied to one side of this diaphragm, it flexes and moves a pin or shaft. This movement then signals the injection pump to increase fuel delivery. A split or damaged diaphragm will prevent the LDA from functioning correctly, leading to a significant loss of boost-dependent fuelling and power.

Can I just block off the boost line to my LDA if I want less fuel?

No, you should not block off the boost line to an LDA. If your pump is designed with an LDA, blocking the boost line would prevent the LDA from sensing boost pressure. This would cause the pump to remain in its base (low-fuel) setting, severely limiting power under boost and potentially causing very lean running. If you want to adjust fuel, use the designated fuel adjustment screws on the pump, not by disabling the LDA.

What are the signs of a split LDA diaphragm?

A split LDA diaphragm will manifest as a significant loss of power, particularly when the engine is under boost. You might notice the engine feels sluggish, as if the turbo isn't working properly, even if boost pressure is present. The fuel consumption might also be higher than expected if the pump's base setting is rich, but the boost-enrichment isn't happening. There won't be the expected surge of power that an intact LDA provides. Occasionally, you might hear a faint hissing sound if the split is large enough, but this is rare.

Is an intercooler always necessary with a turbo?

While not strictly "necessary" for a turbo to function, an intercooler is highly recommended and almost always used in modern turbocharged applications. It cools the hot, compressed air from the turbocharger before it enters the engine. Cooler air is denser, meaning more oxygen enters the cylinders, allowing for more fuel to be burnt and thus more power. It also significantly reduces engine intake temperatures, which is vital for engine longevity and preventing pre-ignition (detonation) in petrol engines, and managing exhaust gas temperatures in diesels. For performance and reliability, an intercooler is an essential component of a turbocharged system.

What's the difference between an LDA and an altitude compensator?

While often physically the same unit on top of the fuel pump, their primary function and context differ slightly. An LDA (Manifold Pressure Compensator) primarily reacts to positive boost pressure from a turbocharger to increase fuel. An altitude compensator, on the other hand, reacts to atmospheric pressure. At higher altitudes, atmospheric pressure is lower, meaning less air enters the engine. An altitude compensator reduces fuel delivery at higher altitudes to prevent over-fuelling and excessive smoke in thinner air, even in naturally aspirated engines. Many turbo-diesel pumps use a combined unit that acts as both, sensing boost but also potentially having an atmospheric reference to adjust for altitude changes.

How much fuel can an LDA add?

The amount of fuel an LDA can add varies significantly depending on the specific pump design, the LDA unit itself, and its internal calibration. However, it's designed to provide a substantial increase in fuel delivery under full boost, typically allowing for a much richer mixture than the base setting. This enrichment is crucial for achieving the full power potential of a turbocharged engine, often increasing fuel by a considerable percentage over the off-boost setting, ensuring the engine can utilise all the extra air provided by the turbo. Fine-tuning the tapered pin profile and spring tension within the LDA can further adjust this enrichment curve.

In conclusion, for anyone looking to truly unlock the potential of a turbocharged conversion on a naturally aspirated diesel engine, incorporating an LDA into your fuel system is not just an upgrade—it's an essential step towards achieving optimal performance, efficiency, and longevity. It transforms a basic fuel delivery system into one that intelligently responds to the demands of forced induction, ensuring your engine runs cleaner, stronger, and more economically.
