The Science Behind Magnetic Stirrers

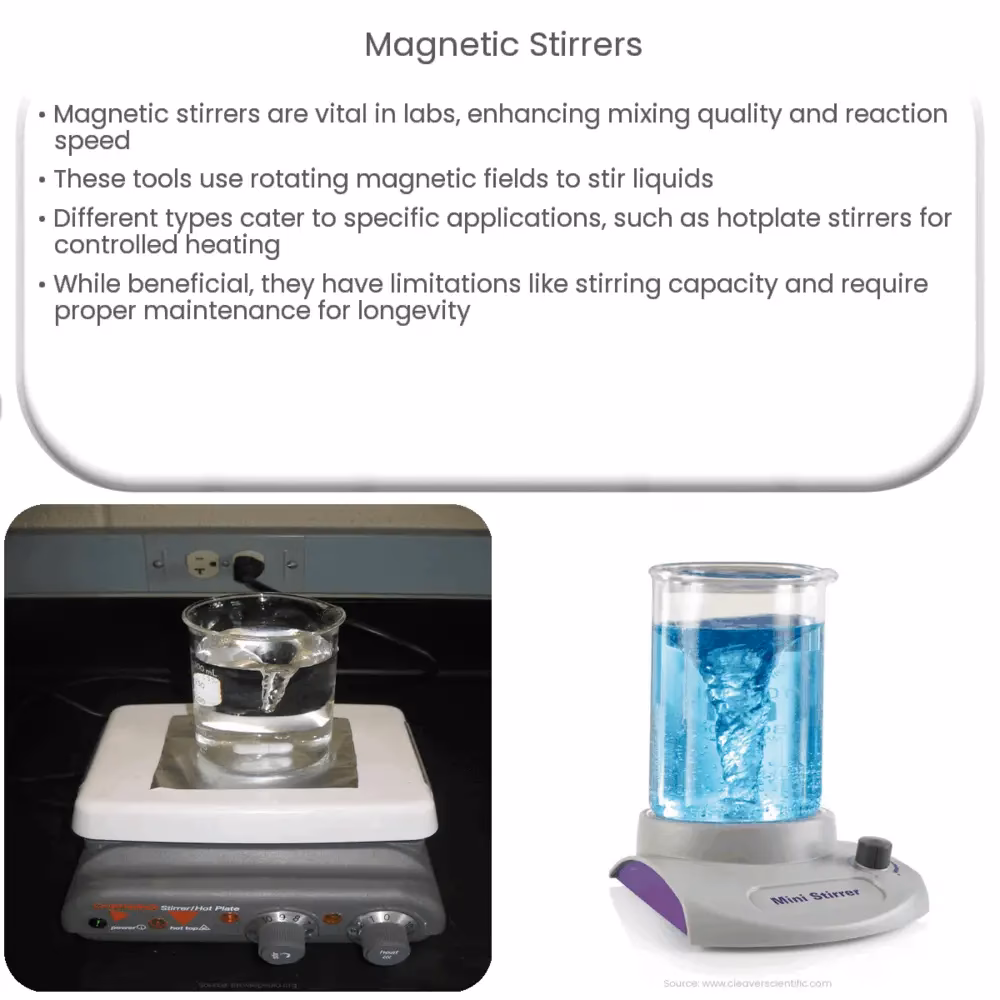

Unveiling the Magic: How a Magnetic Stirrer Works

In the intricate world of scientific laboratories, precision and efficiency are paramount. Among the array of indispensable tools, the magnetic stirrer stands out as a quiet yet powerful workhorse. This unassuming device, often found in chemistry and biology labs, plays a crucial role in ensuring the homogeneity of solutions and facilitating complex reactions. But how exactly does this seemingly simple gadget achieve its stirring prowess? Let's delve into the fascinating science behind the magnetic stirrer.

A Glimpse into History: The Evolution of Stirring

The concept of magnetic stirring isn't a recent innovation. The journey began with the first patent for a magnetic mixer, US 1,242,493, granted to Richard H. Stringham in 1917. Stringham's design ingeniously employed stationary electromagnets in the base to generate the rotating magnetic field. However, it was Arthur Rosinger who, in 1944, patented a more refined version, US Patent 2,350,534, titled 'Magnetic Stirrer'. Rosinger's patent detailed a coated bar magnet, known as a stir bar or 'flea', placed within a liquid-filled vessel. This stir bar was then driven by a rotating magnet located beneath the vessel. Rosinger also highlighted the importance of coating the magnet in plastic or glass to render it chemically inert, a crucial feature for preventing contamination of sensitive reactions. The plastic-coated bar magnet was independently developed in the late 1940s by Edward McLaughlin, who aptly nicknamed it the 'flea' due to its erratic movements when the magnetic field was applied too vigorously. A significant advancement came in 1977 when Salvador Bonet of SBS Company patented the first multi-point magnetic stirrer, revolutionising the ability to stir multiple samples simultaneously. Bonet also introduced the practice of quantifying stirring power in "litres of water," a standard that persists in the industry today.

The Anatomy of a Magnetic Stirrer: Key Components

At its core, a magnetic stirrer is a deceptively simple yet elegantly designed piece of equipment. It comprises two primary components:

• The Stir Bar: This is the small, often Teflon-coated (PTFE), magnet that is immersed directly into the liquid to be stirred. Its design is crucial; typically bar-shaped, they can be octagonal, circular, or even pointed oval, with many featuring a pivot ring in the centre to facilitate stable rotation. The coating ensures chemical inertness, preventing any reaction or contamination with the mixture. Smaller stir bars, less than about 10mm, are colloquially known as 'fleas'.
• The Stirrer Base: This unit houses the mechanism that generates the rotating magnetic field. It typically consists of a rotating magnet or a set of stationary electromagnets situated beneath the platform where the vessel is placed. Many modern magnetic stirrers also integrate a heating element into the base, creating a 'hotplate magnetic stirrer' that allows for simultaneous heating and stirring.

Additional components often found in a magnetic stirrer unit include:

• Top Plate/Heating Plate: Usually made of stainless steel or ceramic, this is the surface upon which the vessel is placed. Ceramic plates offer superior chemical resistance, ideal for corrosive substances, while stainless steel provides efficient magnetic coupling.
• Speed Control Knob: This allows the user to precisely adjust the rotational speed of the stir bar, measured in revolutions per minute (RPM). The appropriate speed is determined by the liquid's viscosity and the desired mixing intensity.
• Temperature Control Knob: Found on hotplate models, this knob regulates the heating element, allowing for controlled temperature adjustments crucial for many chemical reactions.
• Stationary Electromagnet: Located within the stirrer's base, this is the powerhouse that generates the magnetic field to drive the stir bar's rotation.
• Stir Bar Retriever: A simple yet essential tool, this is a larger magnet attached to a rod, also coated with PTFE, used to easily retrieve the stir bar from the vessel after mixing.

The Principle of Operation: Magnetic Attraction and Repulsion

The fundamental principle behind a magnetic stirrer is remarkably straightforward: the interaction of magnetic fields. The stirrer base contains a rotating magnet or an assembly of electromagnets. As this magnetic field rotates, it exerts a force on the stir bar immersed in the liquid. The stir bar, being a magnet itself, aligns with and follows the rotating field, causing it to spin. This spinning motion of the stir bar agitates the surrounding liquid, creating a vortex and thoroughly mixing the contents of the vessel. The effectiveness of the stirring is influenced by factors such as the strength of the magnetic field, the shape and size of the stir bar, the viscosity of the liquid, and the speed of rotation. For optimal performance, it is recommended to place the vessel directly over the centre of the stirrer's platform to ensure the magnetic fields align correctly.

Diverse Applications: Where Magnetic Stirrers Shine

Magnetic stirrers are ubiquitous in scientific research due to their versatility and ease of use. Their applications span numerous disciplines:

• Chemical Synthesis: Essential for mixing reagents, maintaining reaction temperatures, and ensuring the homogeneity of reaction mixtures.
• Biological Laboratories: Used for preparing growth media, dissolving buffers, and mixing samples for analysis.
• Pharmaceutical Industry: Crucial for drug formulation, quality control, and research and development.
• Food and Beverage Industry: Employed in sample preparation, quality testing, and developing new formulations.
• Environmental Science: Utilised for preparing standards, mixing soil suspensions, and analysing water samples.
• Homebrewing: Increasingly popular among homebrewers for consistent wort aeration and yeast pitching.

Their ability to stir hermetically sealed vessels without the need for external seals makes them ideal for applications where contamination must be strictly avoided or when working with volatile or hazardous substances. They are particularly favoured over mechanical stirrers for their quiet operation, lack of wearing external parts, and ease of cleaning.

Choosing the Right Magnetic Stirrer: Key Considerations

Selecting the appropriate magnetic stirrer depends on your specific laboratory needs. Several factors should be taken into account:

Mastering the Technique: How to Use a Magnetic Stirrer

Operating a magnetic stirrer is generally straightforward:

1. Preparation: Ensure the vessel and stir bar are clean. Place the required liquid into the vessel.
2. Placement: Position the vessel containing the liquid onto the centre of the stirrer's platform.
3. Stir Bar Insertion: Carefully place the stir bar into the liquid. It should be positioned so that it can easily move and rotate within the vessel.
4. Setting Parameters: If using a hotplate model, set the desired temperature using the temperature control knob. Then, gradually increase the stirring speed using the speed control knob until the desired level of agitation is achieved. Avoid starting at a high speed, as this can cause the stir bar to spin erratically or jump out of the magnetic field.
5. Monitoring: Observe the stirring process to ensure it is proceeding as expected. Adjust speed or temperature as needed.
6. Completion: Once mixing is complete, gradually reduce the stirring speed to zero. Turn off the heating element if applicable. Carefully remove the vessel, using appropriate heat-resistant gloves if the vessel is hot.
7. Retrieval: Use the stir bar retriever to easily remove the stir bar from the vessel.
8. Cleaning: Clean the stir bar and the vessel thoroughly after each use.

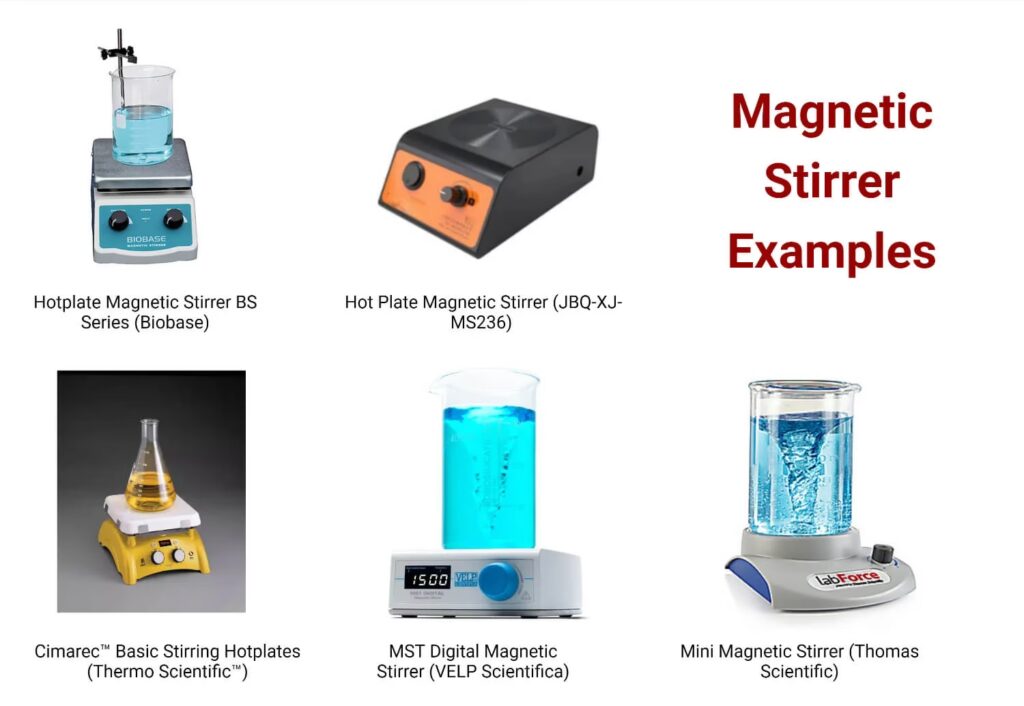

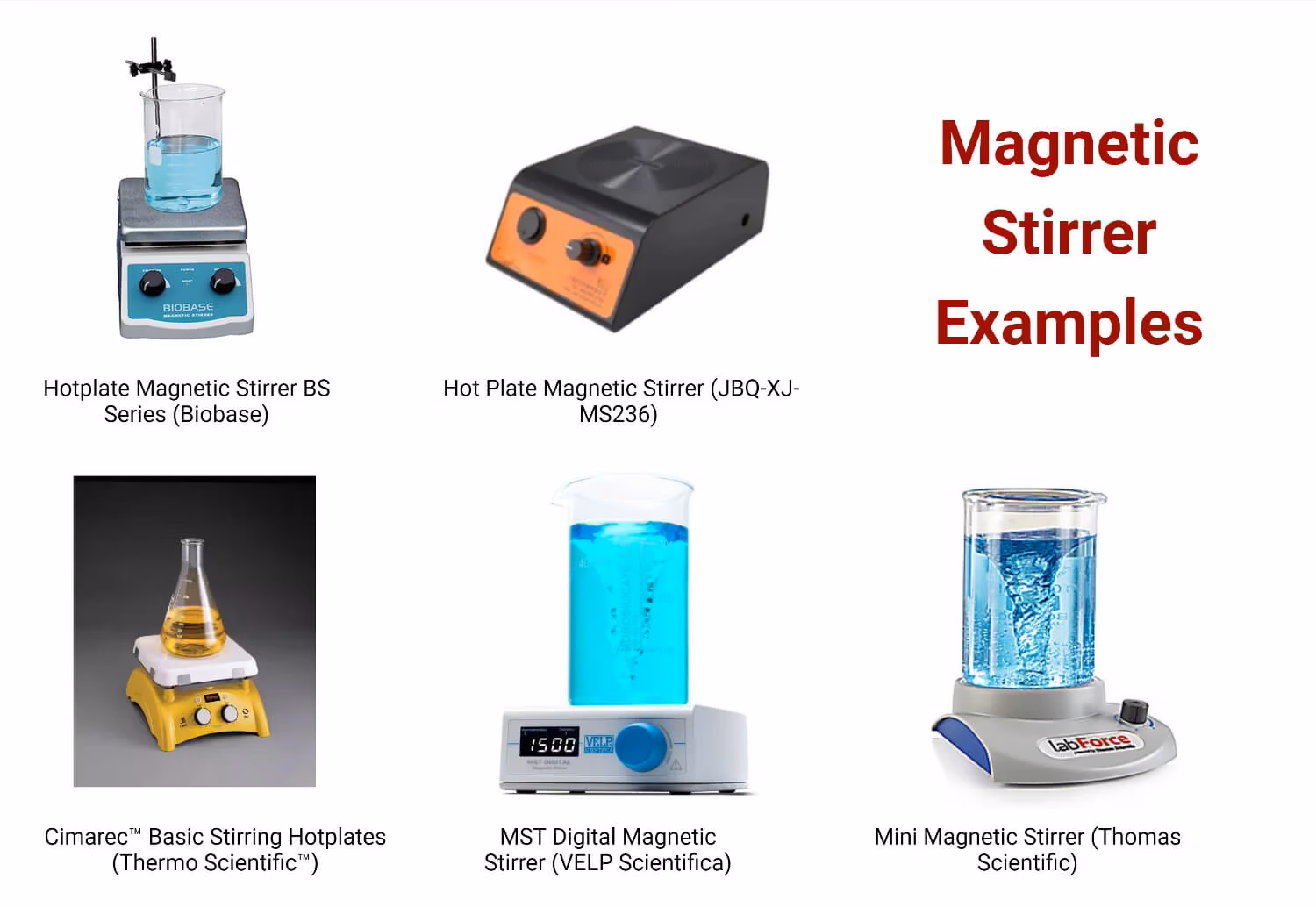

Types of Magnetic Stirrers: A Spectrum of Solutions

Magnetic stirrers come in various configurations to suit different needs:

• Conventional Magnetic Stirrers: The standard models, offering reliable stirring for a wide range of applications.
• Hotplate Magnetic Stirrers: Combining stirring and heating capabilities, these are invaluable for reactions requiring elevated temperatures.
• Mini Magnetic Stirrers: Compact and portable, ideal for small-scale experiments or when bench space is limited.
• Multi-Position Magnetic Stirrers: Equipped with multiple stirring points, allowing for simultaneous mixing of several samples, significantly increasing throughput.
• Heavy-Duty Magnetic Stirrers: Designed for more demanding applications, featuring robust construction and higher stirring capacities.
• Battery-Powered Magnetic Stirrers: Offer portability and can be used in locations without readily available power outlets, such as incubators or field settings.
• Air-Operated Turbine Magnetic Stirrers: Powered by a low-pressure air supply, these are particularly useful in environments where electrical sparks could be hazardous, such as when working with flammable vapours.

FAQs About Magnetic Stirrers

Q1: What is the purpose of a speed knob on a magnetic stirrer?
A1: The speed knob allows the user to control the rotational speed (RPM) of the stir bar, thereby adjusting the intensity of the mixing process. This is crucial for optimising stirring based on the liquid's viscosity and the experimental requirements.

Q2: Can I use any container with a magnetic stirrer?
A2: It is best to use glass or other non-metallic containers. Metal containers can interfere with the magnetic field, hindering the stir bar's rotation and the efficiency of the stirring process.

Q3: What is the difference between a stir bar and a stirring rod?
A3: A stir bar is a small, typically magnetised and coated bar that is placed inside the liquid and rotated by an external magnetic field generated by the stirrer. A stirring rod is a solid rod, often made of glass or plastic, that is manually manipulated to stir a liquid.

Q4: Why is the stir bar coated?
A4: The coating, usually made of PTFE (Teflon) or glass, makes the stir bar chemically inert. This prevents it from reacting with or contaminating the solution being stirred, ensuring the integrity of the experiment.

Q5: What are the limitations of magnetic stirrers?
A5: Magnetic stirrers are generally not suitable for highly viscous liquids or thick suspensions, as the magnetic force may not be sufficient to induce adequate rotation. They are also limited to relatively small volumes (typically under 4 litres). For dispersing nanoparticles, alternative methods or specialised stirrers might be required.

Conclusion: An Indispensable Laboratory Tool

The magnetic stirrer, from its humble beginnings to its sophisticated modern iterations, remains an indispensable tool in laboratories worldwide. Its ability to provide consistent, hands-free mixing, often coupled with precise temperature control, streamlines countless scientific processes. Understanding its principles, components, and applications empowers researchers to utilise this essential equipment to its full potential, driving innovation and discovery in the ever-evolving landscape of science.
