VW Transporter Brakes: Switches & Pad Care

The braking system is arguably the most critical safety feature of any vehicle, and your VW Transporter is no exception. Ensuring its components are in peak condition isn't just about passing an MOT; it's about safeguarding yourself, your passengers, and other road users. From the subtle click of a brake light switch to the robust stopping power provided by your brake pads, every element plays a vital role. This comprehensive guide will delve into crucial aspects of maintaining your Transporter's braking system, covering essential replacement parts like the brake light switch and offering a detailed walkthrough for replacing your front brake pads.

The Unsung Hero: Your VW Transporter's Brake Light Switch

Often overlooked until it fails, the brake light switch is a small but incredibly important component. Located near the brake pedal, its primary function is to activate your vehicle's rear brake lights when you press the pedal, signaling to drivers behind you that you are slowing down or stopping. A faulty switch can lead to your brake lights not illuminating, creating a serious safety hazard, or conversely, staying on constantly, draining your battery and confusing other motorists. Fortunately, replacement parts for the VW Transporter brake light switch are readily available.

When it comes to sourcing a new brake light switch for your Volkswagen Transporter, you'll find a variety of reputable brands offering high-quality replacements. Our customers frequently recommend several manufacturers known for their reliability and performance. Choosing a trusted brand ensures compatibility and durability, giving you peace of mind on the road.

As you can see, the price of a brake light switch for your VW Transporter typically ranges from as little as £4 up to £17. This variation depends on the specific manufacturer and the exact product specifications. Investing a little more in a reputable brand can often save you hassle and ensure greater reliability in the long run.

Brake Pads: The Foundation of Your Stopping Power

While the brake light switch signals your intentions, it's your brake pads that do the heavy lifting when it comes to stopping your vehicle. These crucial components, along with the brake discs, convert kinetic energy into thermal energy through friction, slowing your Transporter down. Over time, brake pads wear down due to this friction, necessitating periodic replacement to maintain effective braking performance.

One common question often arises: "How thick is a brake pad?" The original thickness of new brake pads varies slightly between manufacturers and vehicle models, but typically they start around 10-12mm for passenger vehicles. What's more important than the initial thickness, however, is the minimum thickness allowed before replacement. Most manufacturers specify a minimum thickness, often around 2-3mm, beyond which the pads should be replaced immediately. Driving on pads thinner than this minimum can severely compromise your braking ability, potentially damaging your brake discs and leading to dangerous situations. Regular inspection is key to identifying when your pads are approaching this critical wear limit.

DIY Front Brake Pad Replacement on Your VW Transporter

Replacing brake pads can be a rewarding DIY task, but it requires careful attention to detail and adherence to safety procedures. This guide focuses on the front brake pads, drawing from practical experience. Remember, safety always comes first.

Preparation and Initial Steps:

1. Secure the Vehicle: Begin by finding a level, stable surface. Loosen the wheel bolts slightly while the van is still on the ground. Then, using a reliable jack, lift the front of your VW Transporter. Crucially, place axle stands securely under the vehicle and use wheel chocks on the rear wheels to prevent any movement. Never rely solely on the jack.
2. Wheel Removal: Once the vehicle is safely supported, fully remove the wheel. This gives you clear access to the braking components.
3. Loosening Stubborn Bolts: Based on past experience, applying a generous amount of WD40 or a similar penetrating oil to all bolts you intend to remove – particularly the caliper bracket bolts – at the very start can save a lot of frustration. Allow it ample time to soak in.

Caliper Disassembly:

1. Slide Pin Caps & Bolts: Locate the slide pin caps on the caliper. These usually cover the bolts that allow the caliper to slide. Remove these caps. Then, using a 9mm long Allen socket (often with an impact gun for stubborn bolts), carefully remove the slide pin bolts. These bolts are critical for allowing the caliper to pivot or be removed.
2. Compressing Pistons: With the slide pin bolts out, the caliper can often be gently pried away from the old pads. Before removing the caliper fully, you'll need to compress the brake pistons back into the caliper housing. For the front brakes on the VW Transporter, there is typically no wind-back mechanism required; the pistons simply push straight back. A robust pry bar can be effectively used by leveraging it against the caliper housing and the old brake pads, slowly pushing the pistons back. Ensure the master cylinder reservoir cap is loose or removed to allow fluid to return, preventing hydraulic lock.
3. Caliper and Pad Removal: Once the pistons are fully compressed, the caliper can be carefully lifted off the disc and the old brake pads can be removed from their slots. Inspect the old pads; you'll likely find they are significantly worn down, confirming you've got your money's worth from them.

Tackling the Caliper Bracket (Optional Disc Swap):

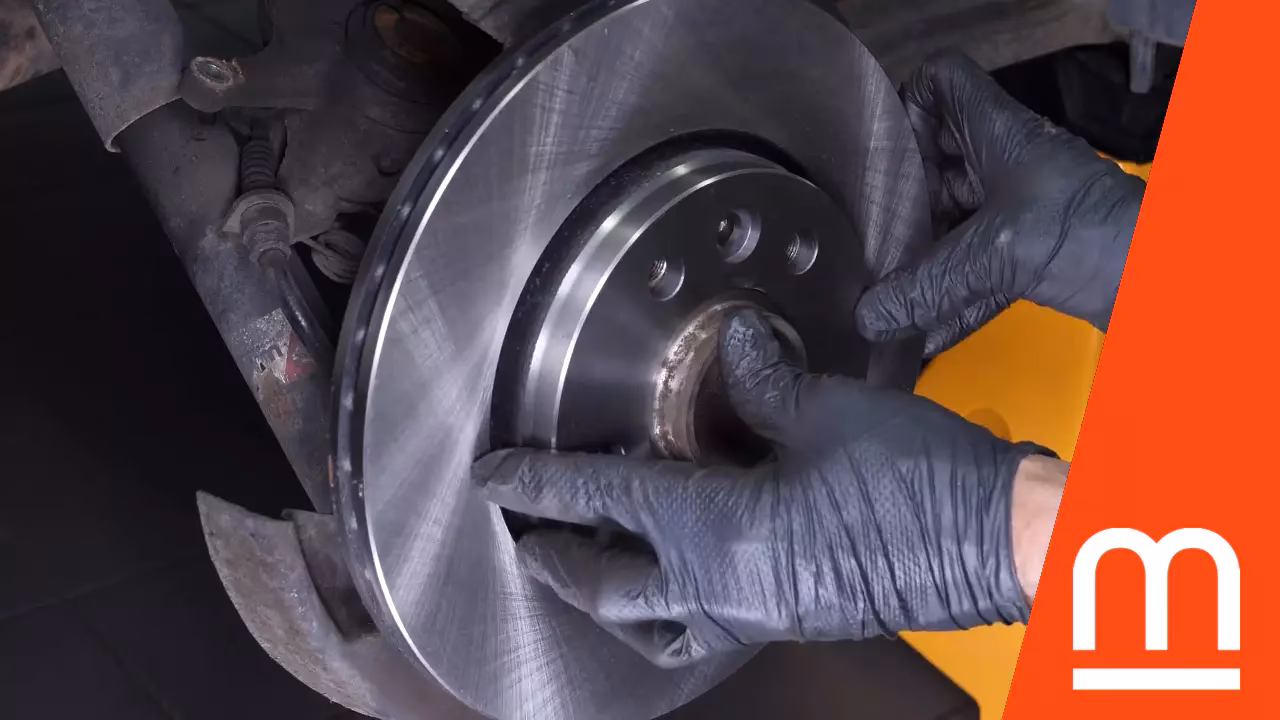

At this stage, if you intend to replace the brake discs as well, you'll need to remove the caliper bracket. This involves two substantial 21mm caliper bracket bolts. The lower bolt often comes out without much fuss, especially with an impact gun. However, the upper 21mm bolt can be notoriously stubborn. In some cases, it may not budge even with an impact gun or a long breaker bar, potentially leading to a split socket. If this happens, it's often best to pause and reconsider. The most effective solution for such a seized bolt is to heat it up with a torch (carefully, protecting surrounding components) and then attempt removal with a new, preferably impact-rated, 21mm socket. If the discs are still within a good thickness tolerance, you might opt to proceed with just a pad swap for now, deferring the disc replacement until you can properly tackle the seized bolt.

Installation of New Pads:

1. Positioning New Pads: With the pistons fully retracted, install the new brake pads. One half of the pad set typically has a backing plate that sits directly against the piston, while the other half sits securely in the caliper bracket. Ensure they are seated correctly.
2. Brake Pad Sensor: If your new pads come with a brake pad wear sensor (and your Transporter is equipped for one), ensure it is properly clipped into place on the pad before installing the caliper. This sensor triggers a warning light on your dashboard when the pads are worn down to a critical level.
3. Reinstalling the Caliper: Carefully slide the caliper back over the new pads and disc.
4. Slider Pins: Apply a thin layer of high-temperature brake grease to the slider pins. Reinsert them and torque them down to approximately 35Nm. This ensures smooth caliper operation and even pad wear.
5. Spring Plates & Disc Bolt: Reattach any spring plates or clips that hold the pads firmly in place. If you removed a disc spline bolt (which secures the disc to the hub), reinsert it and tighten it appropriately.
6. Wheel Reinstallation: Finally, refit the wheel, hand-tighten the wheel bolts, and lower the van off the axle stands. Torque the wheel bolts to the manufacturer's specified setting once the van is on the ground.

Post-Installation Checks and Bedding In

Once both sides of your VW Transporter's front brakes have been serviced, there are crucial final steps to ensure safe and effective operation.

1. Master Cylinder Fluid Level: Check the brake fluid level in the master cylinder reservoir. It may have risen slightly due to the pistons being pushed back. Ensure it's between the 'min' and 'max' marks, topping up with the correct fluid type if necessary, then securely replace the cap.
2. Pump the Brake Pedal: Before starting the engine, pump the brake pedal 5-10 times. You will feel it gradually firm up as the pistons extend and take up the slack against the new pads.
3. Engine On Pedal Pump: Start the engine and, with the engine running, pump the brake pedal another 5-10 times. This allows the power assistance to engage and ensures the pedal feels firm and consistent.
4. Test Drive and Bedding In: This is perhaps the most critical step for new brake pads. Take your Transporter for a cautious test drive. For the first 50 to 100 miles, avoid harsh or emergency braking. The new pads and discs (if replaced) need to "bed in" – this process involves transferring a thin, even layer of friction material from the pads onto the discs. This creates optimal braking efficiency and prevents premature wear or noise. Perform several moderate stops from around 30-40 mph down to 10 mph, allowing the brakes to cool slightly between stops. This gradual process ensures the pads and discs mate perfectly, providing optimal performance and longevity. Gentle braking is key during this period.

It's worth noting that brake work can be a messy job; don't be surprised if you end up covered in grime. It's all part of ensuring your vehicle is safe and sound for the road ahead. If you encountered a seized bolt, remember to acquire a new, impact-rated socket set for your next brake job, and be prepared to apply heat if necessary to ensure smooth disc replacement in the future.

Frequently Asked Questions About VW Transporter Brakes

Q: How often should I check my brake light switch?
A: While there's no fixed service interval for the brake light switch, it's good practice to check your brake lights every time you perform a walk-around inspection of your vehicle, or at least weekly. Have someone stand behind your Transporter while you press the brake pedal to confirm both lights illuminate correctly and turn off when the pedal is released. If you notice any erratic behaviour, inspect the switch immediately.

Q: What are the signs of a failing brake light switch?
A: The most obvious sign is your brake lights not working when you press the pedal, or conversely, staying on constantly even when the pedal isn't pressed. Other signs might include an illuminated warning light on your dashboard (such as an ABS or ESP light, as the switch can be integrated into these systems), or issues with cruise control engagement, as many systems rely on the brake light switch for disengagement.

Q: Can I replace brake pads myself, or should I take it to a mechanic?
A: Replacing brake pads is a common DIY task for those with mechanical aptitude and the right tools. However, it's crucial to follow safety procedures diligently and ensure all components are reassembled correctly and torqued to specification. If you're unsure at any point, lack the necessary tools (like a torque wrench or appropriate sockets), or feel uncomfortable, it's always safer to have the work performed by a qualified mechanic.

Q: Why is bedding in new brake pads important?
A: Bedding in, also known as 'burnishing,' is vital for optimising the performance and lifespan of your new brake pads and discs. It allows for the transfer of a thin, even layer of friction material from the pads onto the disc surface. This process eliminates any irregularities, reduces noise, prevents judder, and ensures maximum braking efficiency and consistent pedal feel. Skipping this step can lead to premature wear, reduced braking power, and squealing brakes.

Q: What's the main difference between replacing front and rear brake pads on a VW Transporter?
A: The primary difference, as highlighted in the guide, often lies in the brake caliper piston compression. For the front brakes on many Transporters, the pistons simply push straight back into the caliper housing. Rear calipers, particularly those with an integrated parking brake mechanism, often require a 'wind-back' tool to rotate and push the piston back simultaneously. Always confirm the specific procedure for your vehicle's rear brakes if you plan to tackle them.

Q: What should I do if a bolt won't come loose during brake work?
A: A seized bolt can be a significant hurdle. First, ensure you're using the correct size and type of socket (preferably a 6-point impact-rated socket) and a good quality breaker bar. Apply penetrating oil and allow it to soak. If it still won't budge, controlled application of heat with a propane torch directly to the bolt head or surrounding area can help expand the metal and break the rust bond. Always be extremely cautious with heat, protecting rubber and plastic components. If all else fails, professional assistance may be required to avoid further damage.

Maintaining your VW Transporter's braking system is fundamental to its safe operation. By understanding the roles of components like the brake light switch and diligently performing maintenance tasks such as brake pad replacement, you ensure your vehicle remains a reliable and safe companion on the road.
