VW Transporter T5.1/T6: Excessive Oil & Engine Concerns

It can be a worrying moment for any Volkswagen Transporter owner when the oil warning light illuminates, especially if it’s followed by a noticeable increase in oil consumption. For those with the T5.1 and T6 models, particularly those equipped with the CFCA 2.0 180hp BiTDi engine, excessive oil use can point to a specific, albeit common, underlying issue. This article delves into what might be happening, why it's occurring, and critically, what your options are for addressing it, drawing from real-world owner experiences.

Understanding Excessive Oil Consumption in the CFCA BiTDi Engine

The CFCA engine, while powerful, has a known vulnerability related to its Exhaust Gas Recirculation (EGR) cooler. In many cases, the excessive oil consumption experienced by owners is directly linked to the failure of this component. The EGR system is designed to recirculate a portion of exhaust gases back into the engine to reduce emissions. The EGR cooler, as the name suggests, cools these gases before they re-enter the combustion chamber. However, when the EGR cooler fails, it can allow coolant to leak into the exhaust system, and conversely, it can also lead to oil ingress into the exhaust or intake system. This oil can then be burned during combustion, leading to the appearance of excessive oil consumption.

A common symptom that accompanies this failure is white smoke from the exhaust, particularly on startup, and a loss of engine power. The oil light coming on after a relatively short mileage, such as 1200 miles, and consuming a litre of oil every 800 miles, as described by one owner, is a strong indicator of a significant internal issue, very likely related to the EGR cooler or associated components like the turbochargers.

The EGR Cooler Failure Explained

The EGR cooler in these engines can fail due to the materials used in its construction or due to the high temperatures and pressures it operates under. When the internal seals or the cooler matrix itself breaches, it creates a pathway for fluids to mix. In the context of oil consumption, oil can be drawn into the cooler from the turbocharger or crankcase ventilation system and then enter the intake manifold, or conversely, coolant can leak into the oil system. The more insidious issue for oil consumption is when oil from the turbo or crankcase ventilation is being drawn into the cooler and then into the exhaust/intake system.

The consequence of this failure isn't just the oil loss; it can also lead to further damage. The oil entering the exhaust system can contaminate the Diesel Particulate Filter (DPF), leading to premature clogging and potential failure. It can also put excessive strain on the turbochargers, potentially leading to their failure as well. The engine management system may also register faults related to boost pressure or exhaust gas recirculation, further complicating the diagnostic process.

Diagnostic Steps and What to Expect

If you suspect your Transporter is suffering from excessive oil consumption, the first step is a thorough diagnosis. Volkswagen main dealers have specific procedures for diagnosing oil consumption. This typically involves:

1. Draining and Weighing the Oil: The vehicle is filled with a precisely weighed amount of oil.
2. Driving Cycle: The vehicle is driven for a specified mileage (e.g., 660 miles).
3. Re-weighing: The oil is drained and weighed again to accurately measure the consumption.

If the consumption exceeds the manufacturer's acceptable limit (which can vary but is often around 1 litre per 1000 miles for a healthy engine, though some manufacturers may have different tolerances for specific models or engines), they will then investigate further. However, as one owner experienced, this process can be costly upfront, and the dealer might suggest a cascade of expensive repairs, including new turbos, DPF, and EGR systems, even if goodwill is offered.

Your Repair Options: A Comparative Look

Faced with a potential engine or major component failure, owners often have several routes to consider, each with its own cost, warranty implications, and risks:

Option 1: Volkswagen Main Dealer Repair

Pros: Uses genuine parts, performed by manufacturer-trained technicians, potentially offers a manufacturer-backed warranty (often 2 years). If there's any goodwill from VW, it's more likely here.

Cons: Typically the most expensive option. May involve replacing multiple components even if only one has failed initially. The diagnostic process itself can be costly.

Option 2: New Engine and Ancillaries from an Independent Specialist

Pros: Can be more cost-effective than a main dealer. Independent specialists may offer competitive pricing on parts and labour. Typically comes with a warranty (e.g., 2 years).

Cons: The cost can still be very high (£10,000+), especially if including new turbos and EGR. The quality of the "new" engine and components can vary depending on the supplier.

Option 3: Rebuilt Engine with Upgraded/Modified Components

Pros: Addresses the known weaknesses. For instance, using a better-designed EGR cooler (version D, though still potentially problematic) or performing an EGR delete and remap can prevent future EGR-related failures. Can be more cost-effective than a brand-new engine. Offers a potential power increase with a remap.

Cons: Warranty periods might be shorter (e.g., 1 year or 12,000 miles). The reliability of remanufactured components can be a concern for some. EGR deletion may have legal and emissions implications in certain regions.

Option 4: Remanufactured Engine from eBay/Specialist Rebuilder

Pros: Often the most budget-friendly option for a complete engine replacement, especially when combined with EGR delete and remap (~£5000 in the example). Can provide a solution for a vehicle that might otherwise be uneconomical to repair.

Cons: Significant variability in quality and reliability from online rebuilders. Warranties can be limited. The reputation of the rebuilder is paramount. Fitting two new turbos and an EGR delete with a remap adds to the cost but addresses common failure points.

Option 5: Selling the Vehicle

Pros: Avoids the significant repair bill. Allows you to exit the situation without further investment.

Cons: Selling a vehicle with a known major fault is ethically questionable and will result in a substantial financial loss. Selling privately means disclosing the issue, while selling to trade will fetch a much lower price.

Owner Experiences and Key Questions

Many owners find themselves in a difficult position, balancing the cost of repair against the value of the vehicle and the potential for future issues. The CFCA BiTDi engine's vulnerability to EGR cooler failure is a widely discussed topic within Transporter communities.

Here are some questions that often arise:

• High Mileage Survivors: Are there Transporters with the CFCA engine that have exceeded 120,000 miles without major issues? If so, what maintenance practices were followed?
• Long-Term Reliability of Refurbished Systems: For those who opted for packages like the Retro Resus rebuild with EGR delete, how have these held up after several years of use?
• Remanufactured Engine Success Stories: What has been the long-term experience of fitting a remanufactured engine from a specialist, particularly regarding the quality of the rebuild and subsequent reliability?

Seeking advice from owners who have navigated these repairs is invaluable. Their insights into the longevity of different repair strategies, the quality of work from various specialists, and the ongoing reliability of their vehicles can significantly influence your decision.

Preventative Measures and Best Practices

While a failed EGR cooler often requires significant repair, there are some practices that might help mitigate risks or prolong the life of components:

• Regular Servicing: Adhere strictly to the recommended service intervals. Use high-quality oil and filters.
• Driving Style: Avoid consistently short journeys where the engine doesn't reach optimal operating temperature. This can lead to soot buildup in the EGR system and DPF. Regular longer drives are beneficial.

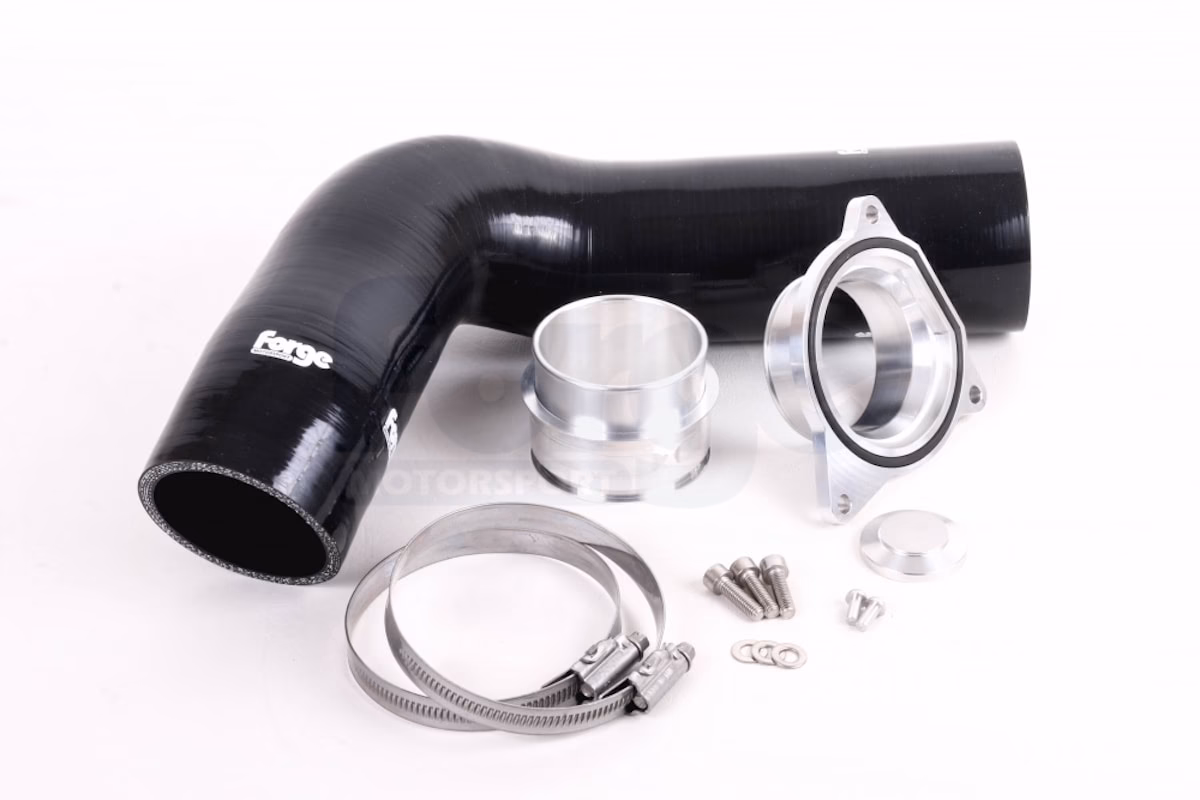

• Consider EGR Blanking (where legal): For vehicles where emissions regulations permit, blanking the EGR system and remapping the ECU can prevent EGR-related failures. However, be aware of the legal implications and potential MOT test failures in the UK if not done correctly or if the vehicle is flagged as modified.
• Oil Level Monitoring: Keep a close eye on your oil level between services. Early detection of consumption can sometimes prevent more catastrophic failures.

Conclusion

The issue of excessive oil consumption in the VW Transporter T5.1/T6 with the CFCA BiTDi engine, often linked to EGR cooler failure, presents a significant challenge for owners. The decision on how to proceed involves careful consideration of costs, warranties, and the potential for long-term reliability. Whether you opt for a main dealer diagnosis, an independent specialist, or a remanufactured engine with modifications, understanding the root cause and the available solutions is crucial. Gathering information from fellow owners and specialists can help you make the most informed choice for your beloved Transporter.

Repair Option Comparison Table

Frequently Asked Questions

Q1: What is the most common cause of excessive oil consumption in a VW Transporter T5.1/T6 CFCA engine?
A1: The most frequent culprit is a failure of the EGR cooler, which can allow oil to enter the intake or exhaust system.

Q2: How much oil is considered excessive?
A2: While tolerances vary, consuming 1 litre of oil every 800 miles is generally considered excessive and indicates a problem that needs investigation.

Q3: Is an EGR delete a viable solution?
A3: An EGR delete, combined with a remap, can prevent future EGR-related issues and may improve performance. However, it's crucial to be aware of and comply with local emissions regulations and MOT requirements.

Q4: Can I drive the vehicle if the oil light is on?
A4: Driving with the oil light illuminated is extremely risky. It usually indicates critically low oil pressure or level, and continuing to drive can cause severe and irreversible engine damage.

Q5: Which repair option offers the best long-term reliability?
A5: This is subjective and depends on the quality of the work and parts used. A properly rebuilt engine with upgraded components and a reputable specialist might offer good long-term reliability, but a new engine from VW is typically considered the safest bet, albeit at a higher cost.
