Haldex Service: Keeping Your VW Group AWD Smooth

If you're the proud owner of a Volkswagen, Audi, SEAT, or Skoda equipped with the Haldex all-wheel-drive system, you'll want to pay attention to its ongoing maintenance. The Haldex system is a sophisticated piece of engineering that plays a crucial role in delivering power to all four wheels, enhancing traction and driving dynamics. However, like any complex mechanical system, it requires regular servicing to function at its best. This is where a Haldex service kit comes into play.

What Exactly is a Haldex System?

Before delving into the specifics of a service kit, it's essential to understand what the Haldex system is. Developed by the Swedish company Haldex Traction (now part of BorgWarner), it's a type of all-wheel-drive (AWD) system that is electronically controlled. Unlike traditional permanent AWD systems, the Haldex system is primarily a front-wheel-drive biased system. This means that under normal driving conditions, most of the engine's power is sent to the front wheels. However, when slip is detected at the front, the Haldex coupling (a multi-plate clutch pack) can rapidly engage, sending power to the rear wheels as needed. This seamless transfer of power significantly improves traction, especially in slippery conditions like rain, snow, or ice, and also contributes to better handling and stability.

The Role of a Haldex Service Kit

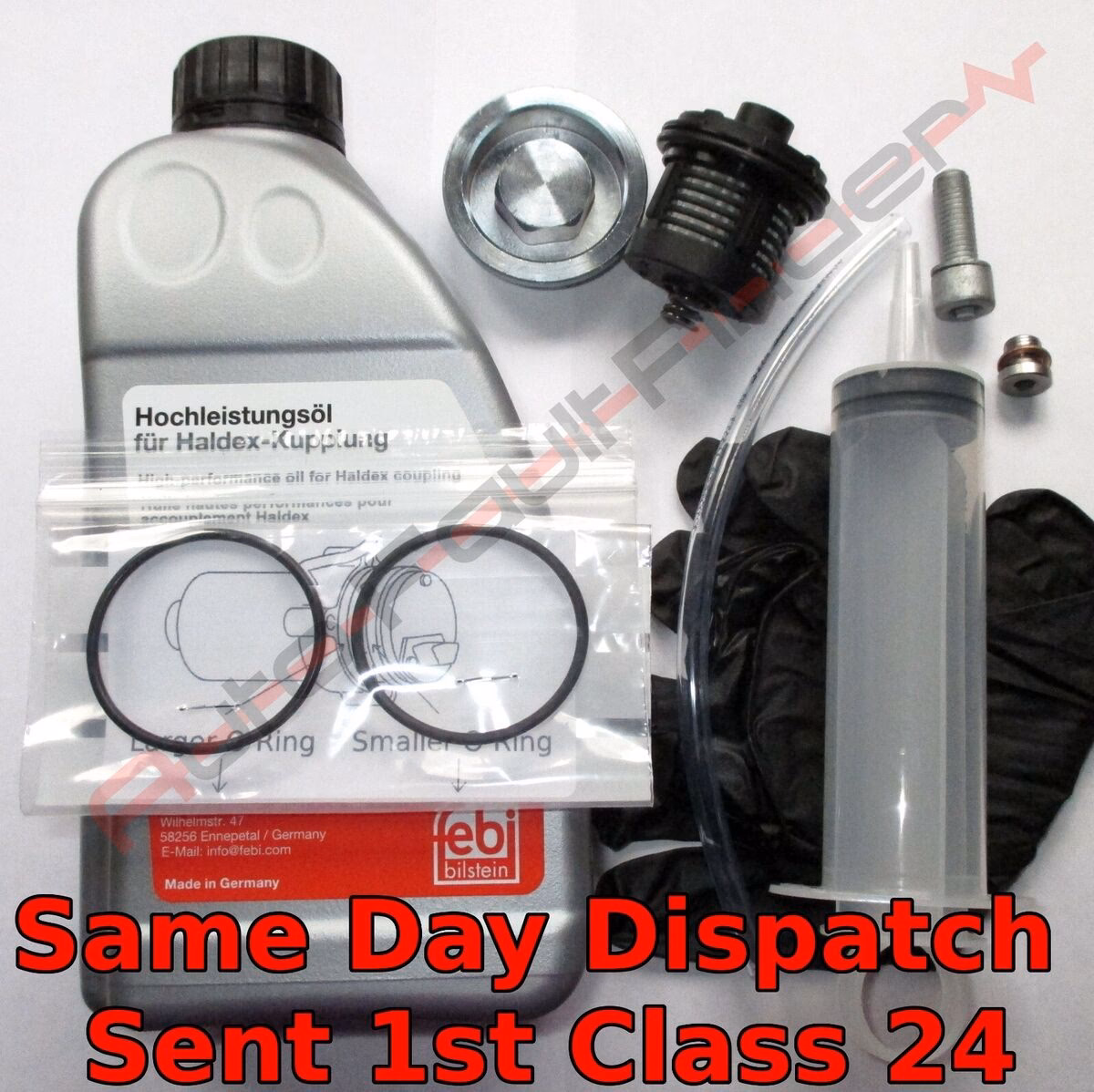

A Haldex service kit is essentially a collection of essential parts required for the routine maintenance and servicing of your vehicle's Haldex all-wheel-drive coupling. Over time, the specialised oil within the Haldex coupling can degrade due to heat and shear forces. This degradation can lead to reduced performance and, in the long run, potential damage to the unit. The service kit typically includes:

• Haldex Oil: This is a specific, high-performance synthetic oil formulated to withstand the extreme pressures and temperatures within the Haldex coupling. It's crucial to use the correct type of oil, as using the wrong fluid can cause irreversible damage.
• Haldex Filter: The Haldex system incorporates a filter to remove any microscopic debris or contaminants that may be present in the oil. This filter prevents these particles from circulating and causing wear on the internal components.
• Sealing Rings/O-rings: When draining and refilling the oil, it's often necessary to replace certain seals and O-rings to ensure a leak-free system. These are usually included in a comprehensive service kit.

Why is Regular Haldex Servicing Important?

Neglecting the maintenance of your Haldex system can lead to a cascade of problems. The primary reasons for adhering to a regular service schedule are:

1. Optimal Performance and Traction

Fresh, high-quality Haldex oil and a clean filter ensure that the coupling operates smoothly and efficiently. This means that when slip is detected, the system can react instantaneously, providing the maximum possible traction. A degraded system might be sluggish to engage, reducing the benefits of AWD.

2. Preventing Costly Damage

The Haldex coupling contains sensitive electronic and hydraulic components. If the oil is contaminated or broken down, it can lead to increased friction and heat, potentially damaging the pump, the clutch plates, and the control unit. These repairs can be extremely expensive.

3. Longevity of the System

Just like changing the engine oil and filter prolongs the life of your engine, servicing the Haldex unit will significantly extend its operational lifespan. Regular maintenance is a proactive approach to avoiding premature wear and tear.

4. Maintaining Driving Dynamics

The Haldex system is integral to the handling characteristics of your vehicle. A well-maintained system contributes to predictable and stable behaviour, especially during cornering and acceleration in adverse conditions. A neglected system could compromise these desirable driving traits.

How Often Should You Service Your Haldex System?

The service interval for a Haldex system can vary depending on the vehicle manufacturer's recommendations and driving conditions. However, a general guideline for most Volkswagen Group vehicles with Haldex AWD is:

• Every 30,000 to 40,000 miles (approximately 48,000 to 64,000 kilometres), or
• Every 2 to 3 years, whichever comes first.

It's always best to consult your vehicle's owner's manual or a trusted mechanic for the specific service schedule recommended for your model. If you frequently drive in demanding conditions, such as towing, spirited driving, or in areas with frequent snow or heavy rain, you may consider shortening these intervals.

Special Considerations for VAQ (Virtual Torque) Differentials

Some performance-oriented models within the VW Group, such as the Volkswagen Golf GTI Clubsport or certain SEAT Leon Cupra models, feature a VAQ (Virtual Torque) differential, often referred to as a VAQ or e-diff. While not a full Haldex system in the traditional sense of powering the rear wheels, the VAQ differential is an electronically controlled, mechanical limited-slip differential (LSD) that uses a hydraulic clutch pack to distribute torque between the front wheels. This system is designed to improve traction during acceleration and reduce torque steer.

The VAQ differential also requires its own specific fluid and filter maintenance. The question regarding changing the front Haldex VAQ diff oil pertains to this specific type of differential. The service interval for the VAQ differential fluid is typically similar to the main Haldex coupling, often around 30,000 to 40,000 miles. Using the correct, high-quality synthetic fluid is paramount for the longevity and performance of this advanced differential.

What's Typically Included in a VAQ Differential Service Kit?

Similar to a Haldex service kit, a VAQ differential service kit will generally contain:

• Specific VAQ Differential Fluid: This is a unique, high-performance fluid designed for the operating conditions within the VAQ differential.
• Filter: A filter to keep the fluid clean.
• Seals and Gaskets: To ensure a proper seal upon reassembly.

Can I Service My Haldex System Myself?

While it's possible for a skilled DIY mechanic to service a Haldex system, it requires a certain level of mechanical aptitude and the right tools. The process involves safely lifting the vehicle, draining the old oil, replacing the filter, and refilling with the correct amount of new oil. Specialised diagnostic tools may also be needed to reset the system's service indicator or to bleed the system properly. If you're not confident in your abilities, it's always best to entrust this job to a qualified technician who has experience with Haldex systems. Incorrectly performed servicing can cause more harm than good.

Common Signs of a Failing Haldex System

It's helpful to be aware of the symptoms that might indicate a problem with your Haldex system:

• Illuminated AWD Warning Light: This is the most obvious sign that the system has detected an issue.
• Loss of Traction: You might notice the car behaving more like a front-wheel-drive vehicle, especially when accelerating or turning on slippery surfaces.
• Clunking or Grinding Noises: These sounds, particularly when accelerating or turning, can indicate problems with the coupling or its components.
• Hesitation or Jerking: The engagement of the rear-wheel drive might feel rough or inconsistent.

Haldex Service Kit vs. Full Haldex Unit Replacement

A Haldex service kit is for routine maintenance. If your Haldex unit has suffered significant damage due to neglect or a catastrophic failure, a service kit will not be sufficient. In such cases, a complete replacement of the Haldex coupling unit might be necessary, which is a considerably more expensive procedure. Regular servicing with a quality kit is the best way to avoid reaching this point.

Where to Buy Haldex Service Kits

Haldex service kits, often branded as OEM (Original Equipment Manufacturer) or by reputable aftermarket suppliers, can be purchased from:

• Main Dealerships
• Specialist automotive parts retailers (online and physical stores)
• Independent garages that service VW Group vehicles

When purchasing, ensure you are buying the correct kit for your specific vehicle model and year, as there can be variations in the Haldex system used across different models and generations. The SKU HAL0010 mentioned is an example of a part number for such a kit.

Frequently Asked Questions

Conclusion

Maintaining your vehicle's Haldex all-wheel-drive system or its VAQ differential is not an optional extra; it's a vital part of ensuring its performance, safety, and longevity. A Haldex service kit provides the necessary components to carry out this crucial maintenance. By understanding what's involved and adhering to the recommended service intervals, you can keep your VW, Audi, SEAT, or Skoda driving confidently and reliably for many years to come, enjoying the benefits of all-wheel drive in all conditions.
