VW Golf 6 Brake Caliper Replacement Guide

Brakes are arguably the most critical safety system on your vehicle, and a properly functioning brake caliper is paramount to ensuring your VW Golf 6 stops effectively and safely. Over time, brake calipers can seize, leak, or become otherwise compromised, leading to reduced braking performance, uneven wear, or even complete brake failure. While it might seem like a daunting task, replacing a brake caliper on your Golf 6 is a manageable job for the keen home mechanic with the right tools and a careful approach. This detailed guide will walk you through the process, ensuring you understand each step to restore your Golf's braking prowess.

When is a Brake Caliper Replacement Necessary?

Identifying a failing brake caliper early can save you a lot of trouble and expense. Here are some common symptoms that indicate your brake caliper might need replacing:

• Vehicle Pulling to One Side: A seized caliper can prevent the brake pad from releasing properly, causing the car to pull towards the affected wheel during braking.
• Squealing or Grinding Noises: While often indicative of worn brake pads, these noises can also signal a caliper problem, especially if accompanied by other symptoms.
• Spongy or Soft Brake Pedal: This could indicate air in the brake lines, often introduced by a leaking caliper or during a previous brake job.
• Brake Fluid Leaks: Visible fluid around the caliper area is a clear sign of a seal failure within the caliper.
• Burning Smell: A burning smell, particularly after driving, can indicate a dragging brake pad caused by a seized caliper.
• Uneven Brake Pad Wear: If one pad on an axle is significantly more worn than the other, it could point to a caliper not applying or releasing pressure correctly.

Essential Tools and Materials You'll Need

Before you begin, gather all the necessary tools and new parts. Having everything to hand will make the job much smoother and safer.

Tools:

• Vehicle jack and jack stands
• Wheel wrench (lug nut wrench)
• Socket set and ratchet (various sizes, typically 13mm, 15mm, 17mm, 19mm)
• Combination spanners (similar sizes)
• Brake caliper wind-back tool (essential for pressing pistons back)
• Wire brush (for cleaning)
• Brake cleaner spray
• Torque wrench (critical for proper bolt tightening)
• Brake bleeder kit or a helper for bleeding the brakes
• Drain pan for old brake fluid
• Safety glasses and work gloves
• C-clamp or large pliers (as a backup for piston compression, though wind-back tool is preferred)
• Flat-head screwdriver or pry bar (for removing pads)

Materials:

• New brake caliper(s) for your VW Golf 6
• New brake pads (always replace pads when replacing calipers or discs)
• New brake discs (if they are worn beyond their minimum thickness)
• Fresh DOT4 brake fluid (check your owner's manual for the correct type)
• Copper grease or high-temperature lubricant (for contact points)
• Thread locker (for caliper mounting bolts, if not pre-applied)

Safety First!

Working on your vehicle's brakes can be dangerous if not done correctly. Always prioritise safety. Ensure your vehicle is on a flat, level surface. Use high-quality jack stands to support the vehicle, never rely solely on a jack. Wear safety glasses to protect your eyes from debris and brake fluid. If you are unsure at any point, do not hesitate to consult a professional mechanic.

Step-by-Step Guide to Replacing Your VW Golf 6 Brake Caliper

Step 1: Preparation

Park your Golf 6 on a firm, level surface. Engage the parking brake and, if working on the front wheels, place chocks behind the rear wheels. If working on the rear wheels, chock the front wheels. Use your wheel wrench to slightly loosen the lug nuts on the wheel you'll be working on while the car is still on the ground. This makes it easier to remove them once the car is raised.

Step 2: Lift and Secure the Vehicle

Using your vehicle jack, carefully lift the corner of the car high enough to remove the wheel. Once lifted, immediately place jack stands under the vehicle's frame or designated jacking points. Slowly lower the car onto the jack stands, ensuring it is stable. Remove the lug nuts completely and take off the wheel, setting it aside.

Step 3: Initial Inspection and Disassembly

With the wheel off, you'll have a clear view of the brake assembly. Before proceeding, take a moment to inspect the existing brake pads and brake disc. Measure the brake disc thickness using a micrometer. Consult your Golf 6's service manual or the disc's edge for the minimum thickness specification. Upon reaching the wear limit, the part must be replaced. It's generally good practice to replace discs if they are significantly worn, warped, or if you're installing new calipers and pads.

Next, locate the caliper guide pins (or slider bolts) at the back of the caliper. These are usually covered by rubber boots. Depending on your Golf 6 model, you might need a Hex or Torx bit to remove them. Loosen and remove these bolts. This will allow the caliper to pivot or be removed from the caliper bracket.

Step 4: Remove the Old Caliper

Carefully slide the caliper off the brake disc. If the pads are worn, it might come off easily. If the pads are pushing against the disc, you might need to gently pry the caliper to free it. Once off, do not let the caliper hang by the brake hose, as this can damage the hose. Use a wire or bungee cord to support it from the suspension strut.

Now, locate the brake hose connection on the caliper. Have your drain pan ready underneath. Using the appropriate spanner, carefully loosen the brake hose fitting. Be prepared for brake fluid to leak out. Quickly disconnect the hose from the old caliper. If your new caliper didn't come with a new banjo bolt and crush washers, ensure you have new ones on hand as these are crucial for a leak-free seal.

Finally, remove the two larger bolts that secure the brake caliper bracket to the steering knuckle. These are usually quite tight. Once these bolts are out, the entire caliper assembly (caliper and bracket) can be removed.

Step 5: Prepare the New Caliper and Bracket Area

Before installing the new caliper, it's essential to prepare the mounting surfaces. Clean the brake caliper bracket from dirt and dust. Use a wire brush to thoroughly remove any rust, corrosion, or old brake dust from the caliper bracket and the knuckle where the bracket mounts. This ensures a flat, clean surface for the new components and prevents uneven pad wear. You can also use brake cleaner to remove any remaining grime.

If you're reusing your old caliper bracket (which is common if the new caliper is just the body), clean it thoroughly, especially where the brake pads slide. Apply a thin layer of copper grease or high-temperature lubricant to these sliding surfaces and the caliper guide pins (after cleaning and inspecting them).

Step 6: Install the New Brake Caliper and Pads

If you removed the old brake disc and are installing a new one, do so now. Ensure the hub surface is clean and free of rust before mounting the new disc.

Attach the new caliper bracket to the steering knuckle, tightening the large mounting bolts to the manufacturer's specified torque wrench settings. These bolts are critical for safety, so do not overtighten or undertighten them. Apply thread locker if recommended by the manufacturer.

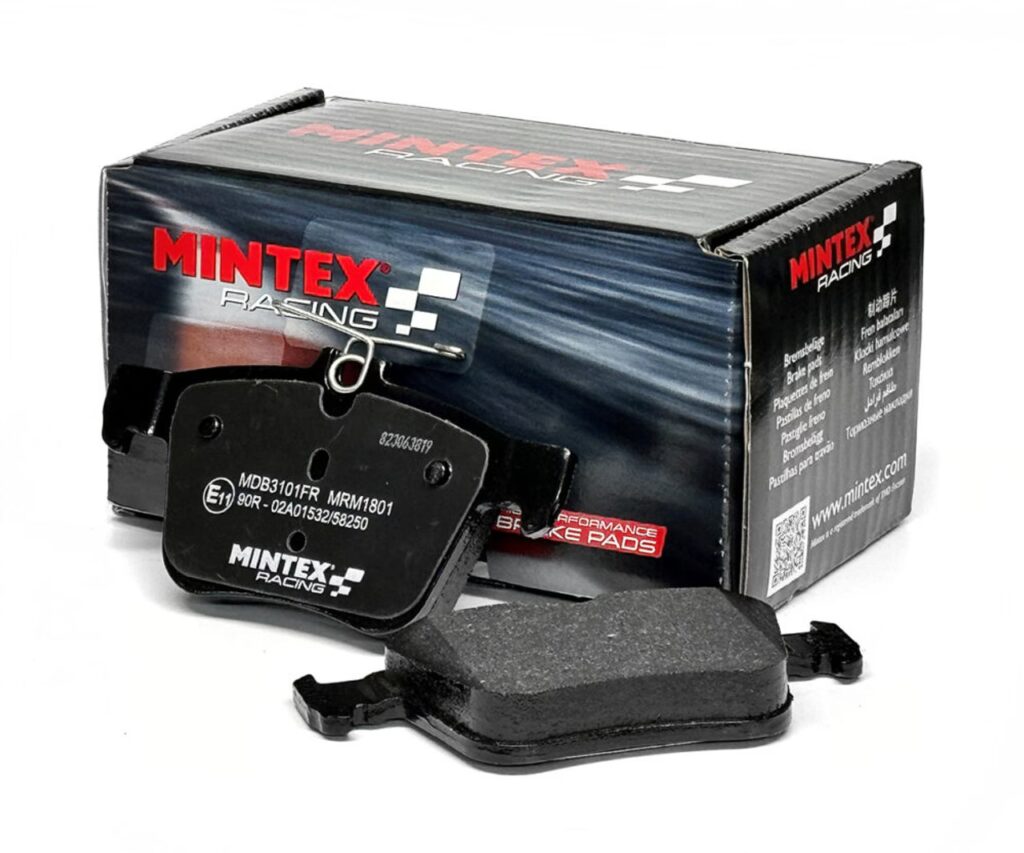

Now, install the new brake pads into the caliper bracket. Ensure they slide freely. If your new caliper came with the piston extended, you will need to press in the brake caliper piston before installing the caliper over the pads and disc. Use a brake caliper wind-back tool. This tool rotates and pushes the piston back into its bore, accommodating the thickness of the new pads. Never force the piston back without rotating if it's a screw-type piston (common on rear calipers with integrated parking brakes), as this can damage the internal mechanism.

Carefully slide the new caliper over the new pads and disc. Align the caliper with the guide pin holes and insert the guide pins, tightening them to the correct torque specification. Connect the brake hose to the new caliper, using new copper crush washers if supplied. Tighten the banjo bolt firmly, but do not overtighten, as this can strip the threads or damage the hose.

Step 7: Bleeding the Brake System

This is a crucial step. Air in the brake lines will lead to a spongy pedal and severely compromised braking. You'll need a brake bleeder kit or a helper for this. Start with the caliper furthest from the master cylinder (usually the rear passenger side for a right-hand drive car, or rear driver's side for left-hand drive), then the next furthest, and so on, ending with the caliper closest to the master cylinder. If you only replaced one caliper, you generally only need to bleed that specific caliper, but a full system bleed is always recommended for peace of mind.

Here's a general bleeding procedure:

1. Ensure the brake fluid reservoir is full. Keep an eye on the fluid level throughout the bleeding process and top it up as needed to prevent air from entering the system through the master cylinder.
2. Attach a clear hose to the bleeder nipple on the caliper and place the other end into a container with some fresh brake fluid.
3. Have your helper press and hold the brake pedal down.
4. While the pedal is held down, open the bleeder nipple about a quarter to half turn. You will see fluid and possibly air bubbles exit through the hose.
5. Close the bleeder nipple.
6. Only then should your helper release the brake pedal.
7. Repeat this process until no air bubbles are visible in the fluid coming out of the bleeder nipple.
8. Once satisfied, tighten the bleeder nipple and move to the next caliper if performing a full bleed.

Step 8: Reassembly and Final Checks

Once bleeding is complete, double-check all bolts (caliper bracket, guide pins, brake hose banjo bolt) for proper torque. Reinstall the wheel, tightening the lug nuts by hand initially. Lower the car off the jack stands. With the car on the ground, use your torque wrench to tighten the lug nuts to the manufacturer's specified torque pattern (usually a star pattern for even seating).

Pump the brake pedal several times before starting the engine. The pedal should feel firm. If it feels spongy, you likely have air in the system and need to re-bleed. Start the engine and pump the pedal again to ensure it remains firm. Check the brake fluid reservoir one last time and top up if necessary. Check for any fluid leaks around the new caliper and brake hose connection.

Step 9: Bedding-In New Brakes

New brake pads and discs need to be 'bedded in' to achieve optimal performance and longevity. This process helps transfer a layer of friction material from the pads to the disc. The exact procedure can vary, but a common method involves:

1. Perform 6-10 stops from approximately 35-40 mph (55-65 km/h) down to about 5-10 mph (8-16 km/h). Do not come to a complete stop.
2. Allow approximately 30 seconds between stops for the brakes to cool slightly.
3. After the last stop, drive for several minutes without using the brakes much to allow them to cool down completely.
4. Avoid hard braking for the first 100-200 miles (160-320 km) or so.

Common Mistakes to Avoid

Frequently Asked Questions (FAQs)

Q: How long does it take to replace a brake caliper on a VW Golf 6?

A: For an experienced DIYer, replacing a single caliper can take 1-2 hours, including bleeding. If you're new to the task, allow 3-4 hours to account for learning and meticulous work.

Q: Do I need to replace both calipers on an axle?

A: While not strictly necessary if only one caliper is faulty, it's highly recommended to replace calipers in pairs on the same axle (front or rear). This ensures balanced braking performance and prevents potential issues with the older caliper failing soon after the new one is installed.

Q: What type of brake fluid should I use for my VW Golf 6?

A: Most VW Golf 6 models use DOT4 brake fluid. Always check your owner's manual or the cap on your brake fluid reservoir to confirm the correct specification for your vehicle.

Q: How often should I check my brakes?

A: It's recommended to have your brakes inspected as part of your regular service intervals, typically every 10,000 to 12,000 miles (16,000 to 20,000 km) or annually. However, if you notice any changes in braking performance, have them checked immediately.

Q: What is brake bedding-in and why is it important?

A: Bedding-in is the process of gently using new brake pads and discs to allow their surfaces to conform to each other. This creates an even transfer layer of friction material, optimising braking performance, reducing noise, and extending component life. Skipping this step can lead to poor braking, squealing, or premature wear.

Replacing a brake caliper on your VW Golf 6 is a rewarding DIY project that can save you money and give you a deeper understanding of your vehicle. By following these steps carefully and prioritising safety, you can ensure your Golf's braking system is in top condition, providing reliable and safe stops for many miles to come. Remember, if you ever feel out of your depth, don't hesitate to seek professional assistance.
