Bosch L-Jetronic: A 1970s Innovation

The late 1970s marked a pivotal moment in automotive engineering, driven by increasing demands for improved fuel efficiency and stricter emissions standards. In this era of innovation, a groundbreaking system emerged from the German automotive supplier Bosch: the L-Jetronic. Often referred to as Air Flow Controlled (AFC) fuel injection, this sophisticated electronic fuel management system was designed to replace traditional carburettors, offering a more precise and efficient way to deliver fuel to the engine. Its introduction was a significant step forward, promising better performance, reduced emissions, and enhanced fuel economy. This article delves into the history of the Bosch L-Jetronic, exploring its development, its initial applications, and its lasting impact on the automotive industry.

The Genesis of Electronic Fuel Injection

Before the advent of electronic fuel injection (EFI) systems like the L-Jetronic, carburettors were the dominant method of fuel delivery. Carburettors, while mechanically robust, had inherent limitations. They relied on vacuum pressure and mechanical linkages to mix air and fuel, a process that was often imprecise and highly sensitive to environmental conditions such as temperature and altitude. This imprecision led to suboptimal fuel-air mixtures, resulting in lower power output, increased fuel consumption, and higher emissions of pollutants like unburnt hydrocarbons and nitrogen oxides.

Recognising these drawbacks, engineers at Bosch began researching and developing a more advanced solution. Their goal was to create a system that could electronically monitor engine conditions and precisely control the amount of fuel injected directly into the intake manifold or cylinder. This led to the development of the L-Jetronic system, a sophisticated electro-mechanical system that utilised a series of sensors to gather real-time data about the engine's operation. This data was then processed by an electronic control unit (ECU), which in turn commanded fuel injectors to deliver the optimal amount of fuel.

Key Components of the L-Jetronic System

The L-Jetronic system was a marvel of early electronic automotive technology. Its efficacy stemmed from the coordinated operation of several key components:

• Air Flow Meter (AFM): This was arguably the most distinctive feature of the L-Jetronic. Instead of measuring fuel flow, it measured the volume of air entering the engine. A flap or vane within the AFM would move in response to the incoming airflow, and a potentiometer attached to this flap would send a variable voltage signal to the ECU, indicating the amount of air being ingested. This provided a direct and accurate measure of the engine's load.
• Electronic Control Unit (ECU): The 'brain' of the system, the ECU received signals from the AFM and other sensors (such as coolant temperature, throttle position, and engine speed). It processed this information using pre-programmed maps and algorithms to calculate the precise duration for which the fuel injectors should remain open.
• Fuel Injectors: Electromagnetically operated valves, these injectors were strategically placed in the intake manifold, just before the intake valves. Upon receiving an electrical pulse from the ECU, they would spray a finely atomised mist of fuel into the intake air.

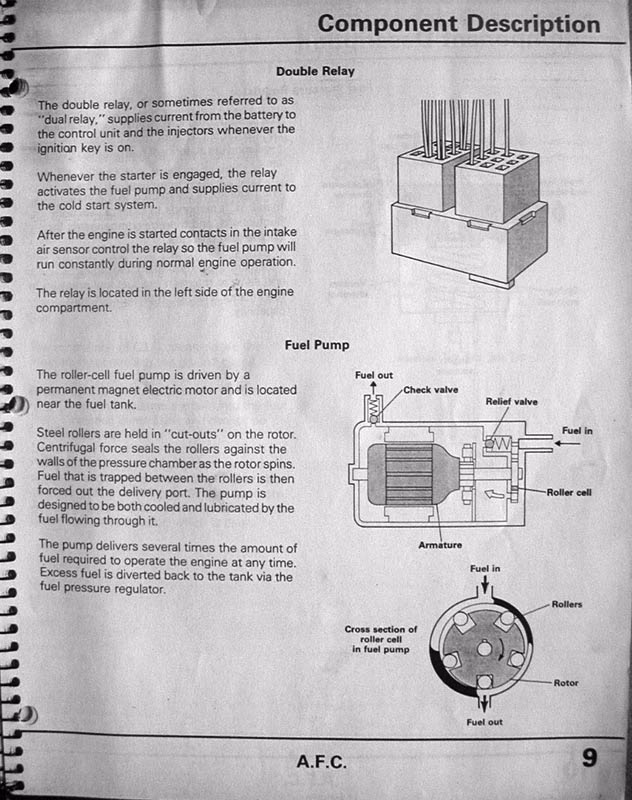

• Fuel Pump and Pressure Regulator: A high-pressure fuel pump supplied fuel from the tank to the injectors, and a pressure regulator maintained a constant fuel pressure within the system, ensuring consistent injector operation.
• Other Sensors: Depending on the specific implementation, the L-Jetronic system might also incorporate sensors for engine coolant temperature (ECT), throttle position (TPS), and sometimes even exhaust gas oxygen (lambda sensor) for more advanced closed-loop control, although this was less common in early L-Jetronic systems.

Early Adoption and the Volkswagen Type 4

While Bosch had been developing EFI systems for some time, the L-Jetronic system found one of its significant early applications in the United States with the Volkswagen Type 4. For the 1974 model year, Volkswagen made the decision to equip its US-specification Type 4 models with the Bosch L-Jetronic system. This move was a direct response to the increasingly stringent emissions regulations being implemented in the United States. While European markets continued to utilise carburetted engines, the US market necessitated a more advanced and cleaner fuel delivery method.

The adoption of the L-Jetronic on the Type 4 was a pioneering effort for Volkswagen, demonstrating their commitment to meeting evolving environmental standards. This application showcased the system's ability to manage fuel delivery more precisely, leading to a cleaner burn and reduced exhaust emissions. It was a significant technological leap for the company and a testament to the growing importance of electronic control in automotive design.

Advantages of the Bosch L-Jetronic

The introduction of the L-Jetronic system brought several notable advantages over traditional carburetted systems:

• Improved Fuel Efficiency: By precisely metering fuel based on actual engine air intake, the L-Jetronic could optimise the fuel-air mixture across a wider range of operating conditions, leading to significant improvements in fuel economy.
• Reduced Emissions: The precise control over the fuel-air ratio resulted in a more complete combustion process, drastically reducing harmful emissions such as carbon monoxide (CO), unburnt hydrocarbons (HC), and oxides of nitrogen (NOx).
• Enhanced Performance: The consistent and accurate fuel delivery contributed to smoother engine operation, better throttle response, and improved overall power output, particularly at higher altitudes where carburettors often struggled.
• Better Cold Starts and Driveability: The ECU could adjust fuel delivery to compensate for cold engine conditions, leading to easier cold starts and a more consistent driving experience from a cold engine.
• Adaptability: The electronic nature of the system allowed for easier adaptation to varying environmental conditions, such as changes in air temperature and pressure, without manual adjustment.

Limitations and Evolution

Despite its advantages, the early L-Jetronic system, like any nascent technology, had its limitations. The Air Flow Meter, while innovative, was a mechanical component susceptible to wear and fouling, which could lead to inaccurate readings and driveability issues. Furthermore, the system's ability to fine-tune the air-fuel mixture was based on relatively simple algorithms and often lacked the sophisticated closed-loop feedback control that would become standard in later EFI systems.

The evolution of fuel injection systems continued rapidly. Bosch itself would go on to develop more advanced systems, such as the K-Jetronic (a CIS - Continuous Injection System, which was a mechanical-continuous injection system and not electronically controlled in the same way) and later the Motronic series, which combined fuel injection with electronic ignition control and featured more powerful ECUs and a wider array of sensors, including oxygen sensors for precise closed-loop operation. These later systems offered even greater precision, efficiency, and emissions control.

L-Jetronic in Retrospect

The Bosch L-Jetronic system, first implemented in the mid-1970s, was a pioneering step in the journey towards modern automotive fuel management. Its application in vehicles like the Volkswagen Type 4 demonstrated the viability and benefits of electronic fuel injection, paving the way for the widespread adoption of EFI technology. While it has since been superseded by more advanced systems, the L-Jetronic remains a significant chapter in automotive history, representing a crucial technological shift that prioritised efficiency, performance, and environmental responsibility. Its legacy is evident in the sophisticated engine management systems that power our vehicles today.

Frequently Asked Questions

1. What is the primary function of the Bosch L-Jetronic system?

The primary function of the Bosch L-Jetronic system is to electronically control the amount of fuel injected into an engine's intake manifold, replacing traditional carburettors for improved efficiency and emissions.

2. When was the Bosch L-Jetronic system first introduced in the Volkswagen Type 4?

The Bosch L-Jetronic system was introduced in US-spec Volkswagen Type 4 models in the 1974 model year.

3. What made the L-Jetronic system different from older carburetted systems?

The L-Jetronic system used electronic sensors and an ECU to precisely control fuel delivery, whereas carburettors relied on mechanical means, which were less accurate and adaptable.

4. What was the main benefit of the L-Jetronic system for emissions?

The L-Jetronic system allowed for a more precise fuel-air mixture, leading to more complete combustion and a significant reduction in harmful exhaust emissions.

5. Are L-Jetronic systems still used in modern cars?

No, the L-Jetronic system has been superseded by more advanced electronic fuel injection (EFI) and engine management systems that offer greater precision, diagnostic capabilities, and emissions control.
