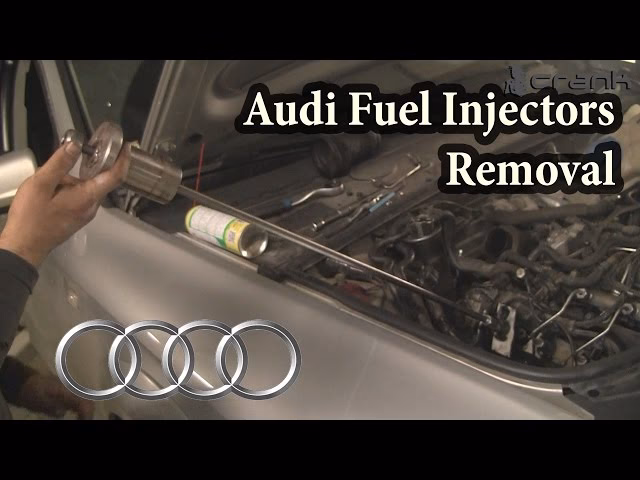

Fuel Injector Removal Guide

Fuel injectors are a vital component of your vehicle's fuel system, responsible for delivering a precise spray of fuel into the engine's combustion chambers. Over time, these can become clogged or faulty, leading to performance issues such as rough idling, poor acceleration, and decreased fuel efficiency. While replacing or cleaning fuel injectors can significantly improve your car's performance, it's a task that requires care and the right approach. This guide will walk you through the process of removing fuel injectors, ensuring you do it safely and effectively.

Safety First: Preparing for Injector Removal

Before diving into the mechanical aspect of removing fuel injectors, it's paramount to prioritise safety. The fuel system in your car operates under pressure, and fuel is highly flammable. Therefore, taking the necessary precautions can prevent injuries and potential fires. The most critical first step is to allow the engine to cool down completely. This means waiting for at least four hours after the engine has been turned off. A hot engine can spray fuel under pressure, leading to burns or fires. Additionally, ensure you are working in a well-ventilated area, away from any open flames or sparks. Have a fire extinguisher readily available. It's also a good idea to wear safety glasses and gloves to protect yourself from fuel and debris.

Gathering Your Tools and Materials

To successfully remove fuel injectors, you'll need a specific set of tools. Having the right equipment will make the job smoother and reduce the risk of damaging components. Here's a general list of what you might need:

• Socket set (with various metric sizes, particularly 10mm and potentially others depending on your vehicle)
• Wrench set (again, metric sizes are common)
• Pliers (needle-nose pliers can be helpful for disconnecting electrical connectors)
• Flathead screwdriver (for prying or detaching clips)
• Clean rags or shop towels
• Fuel injector o-rings and seals (it's highly recommended to replace these when refitting injectors)
• Gloves (nitrile or fuel-resistant)
• Safety glasses
• A container to catch any residual fuel
• A can of brake cleaner or similar degreaser for cleaning

Step-by-Step Guide to Removing Fuel Injectors

1. Accessing the Fuel Injectors

The first step in the physical removal process is to gain access to the fuel injectors. This typically involves removing the engine cover. As the provided information suggests, you'll likely need to pop your hood and remove the engine cover. This cover is often secured by bolts, sometimes hidden under plastic caps. For many vehicles, these bolts are 10mm. Carefully remove these bolts and set them aside in a safe place. Once the bolts are removed, gently lift off the engine cover. You should now be able to see the fuel rail and the injectors connected to it.

2. Cleaning the Fuel System Components

Before disconnecting any fuel lines, it's crucial to clean the surrounding area. This prevents dirt and debris from entering the fuel system, which could cause further problems. The provided text highlights the importance of cleaning the nuts on the ends of the metal fuel lines, both at the injectors and at the pump. Use a clean rag and a degreaser like brake cleaner to thoroughly clean these areas. Pay close attention to the connections where the fuel lines meet the injectors and the fuel pump. A clean workspace is essential for preventing contamination.

3. Releasing Fuel System Pressure

Working with a pressurised fuel system is dangerous. Before disconnecting any fuel lines, you must release the pressure. The method for doing this can vary between vehicle makes and models. Some common methods include:

• Disabling the Fuel Pump: Locate the fuel pump fuse or relay in your car's fuse box. Consult your owner's manual for the exact location. Remove the fuse or relay, then start the engine and let it run until it stalls. This will relieve the pressure in the lines.
• Using a Schrader Valve: Some fuel rails have a Schrader valve (similar to a tyre valve). You can use a small container and a rag to carefully depress the valve core, releasing the pressure slowly. Be prepared for a small amount of fuel to spray out.

Once the pressure is released, you can proceed with disconnecting the fuel lines.

4. Disconnecting the Fuel Lines

Carefully disconnect the fuel lines from the fuel rail and the injectors. Depending on your vehicle, these lines may be secured with fittings, clips, or nuts. Use the appropriate wrenches to loosen any nuts. If there are clips, you might need pliers or a flathead screwdriver to release them. Be prepared for a small amount of residual fuel to drip out, even after releasing the pressure. Have your container and rags ready to catch any spillage. It's important to handle these connections with care to avoid stripping threads or damaging the lines.

5. Disconnecting the Injector Electrical Connectors

Each fuel injector will have an electrical connector attached to it. These connectors typically have a locking tab that needs to be released before the connector can be pulled off. Use needle-nose pliers or a small flathead screwdriver to gently press the locking tab while pulling the connector away from the injector. Do not force these connectors, as they can be brittle. Ensure you disconnect the correct connector for each injector. It's often helpful to label them if you plan to remove more than one.

6. Removing the Fuel Rail and Injectors

The fuel injectors are usually held in place by a fuel rail, which is a manifold that distributes fuel to all the injectors. The fuel rail itself is typically secured to the engine by a few bolts or nuts. Remove these bolts or nuts, but be careful not to drop them into the engine bay. Once the securing bolts are removed, you can gently lift the fuel rail, which should bring the injectors with it. You may need to wiggle the rail slightly to free the injectors. If the injectors are stuck, you might need to gently twist them as you pull them upwards. It's often easier to remove the entire fuel rail with the injectors still attached, and then separate the injectors from the rail on a workbench.

7. Separating Injectors from the Fuel Rail

If you removed the fuel rail with the injectors attached, you'll now need to separate them. Each injector will have a rubber o-ring at the top that seals it to the fuel rail. Carefully pull each injector out of its socket in the fuel rail. Again, you might need to twist them gently. Inspect the o-rings for any signs of wear or damage. These are crucial for a proper seal and should ideally be replaced with new ones before reinstallation.

8. Inspecting and Replacing O-rings

Once the injectors are out, it's highly recommended to replace the o-rings and any other seals. Old, hardened o-rings can lead to fuel leaks, which are a serious safety hazard. Clean the injector body and the injector seats on the fuel rail. Carefully install the new o-rings onto the injectors, applying a small amount of clean engine oil or a suitable lubricant to help them slide into place without tearing. Ensure the o-rings are seated correctly.

Common Issues and Tips

Here are some common issues you might encounter and tips to help you through the process:

Injector Sticking

Sometimes, fuel injectors can become stuck in the fuel rail due to carbon buildup or dried fuel. If you're having trouble removing an injector, try gently twisting it back and forth while pulling. Avoid using excessive force, as this can damage the injector or the fuel rail.

Fuel Leaks

After reinstallation, it's critical to check for fuel leaks. Start the engine and listen for any unusual sounds. Inspect all the connections you made for any signs of fuel seepage. If you find a leak, turn off the engine immediately and re-tighten the connection or replace the faulty seal.

Contamination

The most significant risk when working with fuel injectors is contamination. Always work in a clean environment and use clean tools. Never let dirt or debris fall into the fuel rail or the injector ports.

Table: Injector Removal vs. Professional Service

Here's a quick comparison of performing the task yourself versus taking it to a professional:

Frequently Asked Questions

Q1: How long should I wait for the engine to cool down?

It's recommended to wait at least four hours, or until the engine is completely cool to the touch. This is crucial for safety due to the high pressure and flammability of fuel.

Q2: Can I reuse the old o-rings?

No, it is strongly advised to replace the o-rings and seals on the fuel injectors whenever you remove them. Old o-rings are prone to hardening and cracking, which can lead to fuel leaks.

Q3: What if I can't release the fuel pressure?

If you're unsure about releasing fuel pressure or cannot locate the fuse/relay, it's best to consult your vehicle's service manual or seek professional help. Never attempt to disconnect fuel lines without relieving pressure.

Q4: How do I know if my fuel injectors need replacing?

Symptoms of faulty fuel injectors include rough idling, misfires, poor acceleration, decreased fuel economy, and the check engine light illuminating. A diagnostic scan can often confirm injector issues.

Removing fuel injectors is a task that can be accomplished by a motivated DIY mechanic with the right knowledge and tools. By following these steps carefully and prioritising safety, you can successfully remove your fuel injectors, whether for cleaning, testing, or replacement. Remember to always work in a clean, well-ventilated area and have the necessary safety equipment at hand. If at any point you feel unsure or uncomfortable, it's always best to consult a qualified mechanic.
