Mk1 Jetta Oil Cooler Upgrades: A Comprehensive Guide

For enthusiasts of the classic Mk1 Jetta, maintaining optimal engine performance and longevity is paramount. One critical, yet often overlooked, aspect is oil cooling. When pushing your Jetta hard, whether on extended motorway journeys, hauling extra weight, or after performance modifications, the engine oil can reach dangerously high temperatures. This not only compromises the oil's viscosity, leading to a drop in crucial oil pressure, but also accelerates wear on vital engine components. Understanding the signs of overheating oil and the available upgrade paths for your oil cooler is essential for preserving your beloved vehicle.

High oil temperatures are a clear indicator that your engine is under significant thermal stress. For instance, experiencing oil temperatures around 115-117°C, particularly when cruising at sustained speeds like 125 km/h with a load, often coincides with a noticeable drop in oil pressure. Readings as low as 1.3 bar at 2500 RPM, even if measured at the head (which can read lower than actual pump pressure), signal a potential issue. Ideally, you'd want your oil temperatures to hover around 100°C during cruising. When oil overheats, its ability to lubricate effectively diminishes, leading to increased friction and wear. Returning to a more desirable 100°C and a pressure of 2.0 bar at 2500 RPM after a cool-down period highlights the direct correlation between temperature and pressure.

The Role of the Stock Oil Cooler

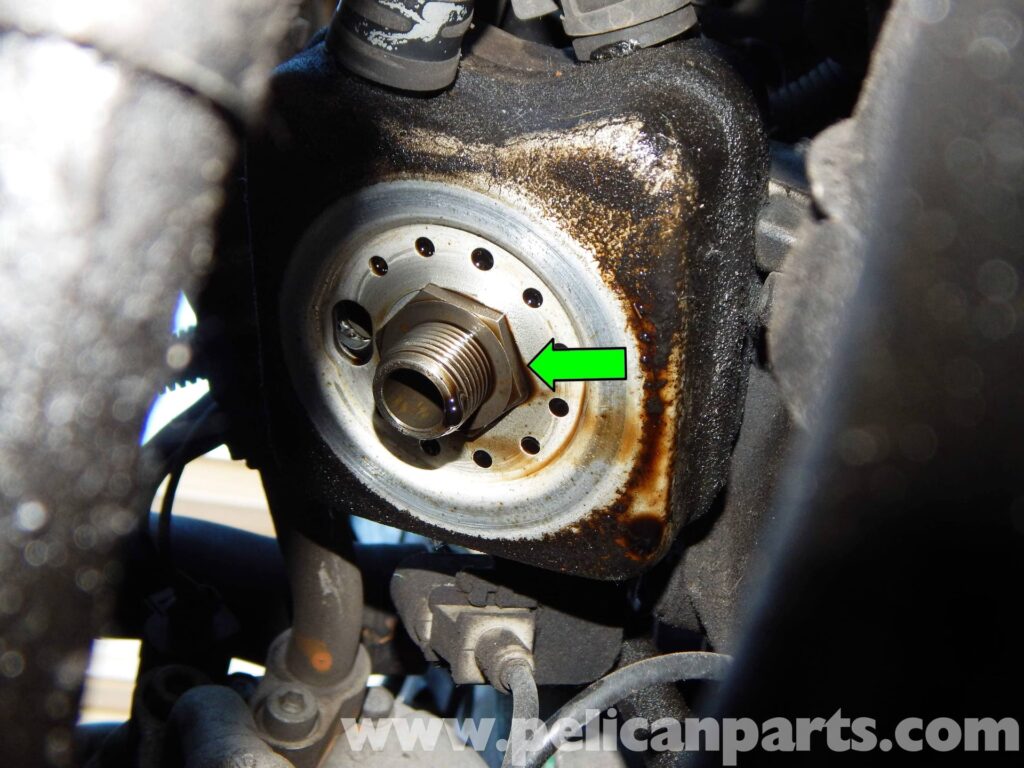

The factory-fitted oil cooler in many Mk1 Jetta models, particularly those with AHU, 1Z, AAZ, or 1.6 engines, is typically a water-to-oil heat exchanger. This clever component serves a dual purpose: it helps to warm up the engine oil quickly when cold by transferring heat from the coolant, and then, once the engine is up to operating temperature, it works to cool the oil by transferring excess heat back into the engine's cooling system. While effective for standard driving conditions, this setup can be overwhelmed under high-load scenarios, especially if the coolant system itself is already working hard or if there's a significant delta (difference) between oil and coolant temperatures, as high as 35°C or more.

Why Consider an Oil Cooler Upgrade?

Upgrading your oil cooler isn't just for heavily modified vehicles. Several scenarios can warrant a more robust cooling solution:

• Sustained High-Speed Motorway Driving: Continuous high RPMs generate more heat than the stock cooler can dissipate, leading to elevated oil temperatures and potential pressure drops.
• Hauling or Towing: Carrying extra weight, such as bicycles on a rack or a trailer, significantly increases the engine's workload and thus its heat output.
• Performance Modifications: Upgrades like larger intercoolers (AWICs), free-flowing exhausts, or upgraded camshafts, while improving engine breathing, can also push the engine harder, demanding better oil cooling.
• Hot Climates: Operating in warmer ambient temperatures naturally puts more strain on the cooling system.

Types of Oil Cooler Upgrades

When considering an upgrade, you generally have two primary options: enhancing your water-to-oil heat exchanger or adding an air-to-oil cooler.

Water-to-Oil Heat Exchanger Upgrades

These upgrades maintain the integrated design, using the engine's coolant to regulate oil temperature. They are often preferred for their simplicity and the benefit of aiding oil warm-up in colder conditions.

• Larger VW Group Coolers: Some enthusiasts successfully adapt larger heat exchangers from other VW Group vehicles. The Passat V6 cooler is a common consideration, as are units from the 3.6-3.2L Touareg, Audi Q7, or 3.2 Audi TT (VW Part Number 038117021B). These larger units offer greater heat exchange capacity.
• Fitment Challenges: A key challenge with these larger coolers, especially on engines like the AHU, 1Z, or AAZ, is the placement of the oil filter. The larger cooler might cause the filter to foul against the front crossmember. A potential solution is using a shorter oil filter, such as those designed for a 2.0L bus, which are half as tall but just as wide.
• Installation Notes: Adapting these coolers may require rotating them (e.g., 90 degrees counter-clockwise for the Touareg unit) and potentially modifying engine mounts or heater hardpipes for clearance.

Air-to-Oil Coolers

Air-to-oil coolers operate independently of the engine's coolant system, using ambient air to cool the oil directly. They are highly effective at dissipating heat, especially under extreme conditions.

• Pros: Excellent cooling efficiency, not limited by coolant temperature. Can significantly drop oil temperatures (e.g., to 82-102°C). Often adds an extra quart of oil to the system, which aids in heat absorption.
• Cons: More complex installation, requiring additional external oil lines, which introduce potential points for leaks (though many users report no issues over tens of thousands of miles). They also require significant space, typically in front of the radiator, which can be an issue if you already have components like an Air-to-Water Intercooler (AWIC) occupying that area.
• Considerations: If installing an air-to-oil cooler, you might choose to remove the factory heat exchanger, but this means losing its benefit of aiding oil warm-up when cold. If you keep both, it creates a larger 'stack' between the filter housing and the filter, potentially causing clearance issues. Some aftermarket air coolers come with a thermostatic flap to regulate temperature, preventing overcooling.

Choosing between these types depends on your specific needs, available space, and tolerance for complexity. If space is at a premium or you prefer a factory-like integration, a larger water-to-oil heat exchanger might be suitable. If maximum cooling is the priority and you have the space, an air-to-oil cooler could be the answer.

Monitoring Your System: The Importance of Gauges

Accurate monitoring of your oil temperature and pressure is crucial, both before and after any cooling upgrade. Relying solely on a stock gauge might not provide the detailed information needed to assess your engine's health under load.

• Oil Temperature Gauges: An aftermarket oil temperature gauge provides precise readings. Sensors can be installed in various locations, such as the pan drain, or even adapted into existing M10 glow plug holes in the head flange (ensure the sensor tip is well within the flow for accuracy).
• Oil Pressure Gauges: Monitoring oil pressure is vital. While the factory dynamic oil pressure warning system (often triggering at 1.8 bar) is a good safety net, a dedicated gauge gives real-time feedback. Minimum healthy oil pressure typically ranges from 18 psi (1.24 bar) for older 1.6TDs to 22 psi (1.52 bar) for NA diesels and gassers at 2000 RPM. A significant drop below these figures, especially at higher temperatures, indicates a problem.
• Dual-Purposing Gauges: A clever trick is to use a 2-way toggle switch to allow a single gauge (e.g., your oil temp gauge) to display both oil and coolant temperatures by switching between sensors. Ensure you use a plain, non-illuminated switch to avoid electrical interference.

Coolant System Interaction

For water-to-oil coolers, the efficiency of your engine's coolant system directly impacts oil cooling. If your coolant temperatures are already high, the heat exchanger will struggle to cool the oil effectively. While some Mk1 Jettas might run relatively low coolant temperatures (e.g., 80°C cruising), others, especially those under heavy load, might see spikes above 90°C. The type of coolant used also plays a role. Discussions often highlight potential degradation issues with certain VW coolants like G13, which can lead to corrosion and clogging within the cooling system and components like the oil cooler. Using the correct coolant (e.g., G12++, G13) and maintaining a regular flush schedule is paramount to ensure optimal heat transfer.

Important Considerations Before Upgrading

• Space Constraints: Double-check available space in front of your radiator and around the oil filter housing. An AWIC can severely limit options for an air-to-oil cooler.
• Oil Filter Clearance: If opting for a larger water-to-oil heat exchanger, confirm that your chosen oil filter will clear the front crossmember. Shorter filters might be necessary.
• Maintaining Warm-up: If you remove the factory heat exchanger in favour of an air-to-oil cooler, be aware that your oil will take longer to reach optimal operating temperature, which can increase wear during cold starts.
• Oil Viscosity: The oil's oil viscosity plays a significant role in pressure and cooling. While a 15W-40 might be suitable for many, some drivers experiencing pressure issues under extreme conditions have found relief with a 20W-50 oil, though this should be considered carefully based on engine specifications and climate.
• Aftermarket Part Quality: Be wary of generic aftermarket parts. While some "GERMANY" stamped items might seem reputable, their performance can be subpar compared to genuine or high-quality branded components. Research reviews and brand reputation thoroughly.

Ultimately, the goal is to keep your engine's oil within its optimal operating temperature range, typically around 90-100°C, to ensure proper lubrication and prevent premature wear. A well-chosen oil cooler upgrade, combined with accurate monitoring, is a sound investment for any Mk1 Jetta owner looking to preserve their vehicle's performance and extend its lifespan.

Oil Cooler Upgrade Comparison

Frequently Asked Questions

How do I know if I need an oil cooler upgrade for my Mk1 Jetta?

If you experience consistent oil temperatures above 105-110°C, especially during sustained high-speed driving, towing, or in hot weather, or if you notice a significant drop in oil pressure when the oil is hot, an upgrade is likely beneficial. Installing an oil temperature gauge is the best way to monitor this accurately.

Can I use an air-to-oil cooler if I already have an Air-to-Water Intercooler (AWIC)?

It's challenging. Both components typically require space in front of the radiator for optimal airflow. While some compact air-to-oil coolers might fit, you'll need to carefully measure and assess the available space. It's a common dilemma, and often a larger water-to-oil heat exchanger is a more practical solution in such cases.

What oil viscosity should I use with an upgraded cooler?

Your engine's manufacturer's recommendations are always the starting point. However, if you're consistently running higher temperatures and experiencing pressure drops, some owners find a slightly heavier oil, like a 20W-50, can help maintain pressure. Conversely, if your new cooler is highly effective and keeps oil temperatures consistently low, sticking to the recommended viscosity is best. Always consider the oil's specifications for your engine type.

Will a larger oil cooler affect warm-up times?

A larger water-to-oil heat exchanger might slightly extend warm-up times, but its dual function (heating and cooling) minimises this impact. An air-to-oil cooler, especially if it replaces the factory heat exchanger, will definitely increase oil warm-up time as it relies on ambient air. This is why some air-to-oil setups include a thermostatic bypass to ensure the oil reaches operating temperature before full cooling capacity is engaged.

What are typical healthy oil pressure readings for a Mk1 Jetta?

While specific values can vary slightly by engine variant and oil type, a general guideline is around 1.24 to 1.52 bar (18-22 psi) at 2000 RPM when the engine is at operating temperature. At higher RPMs, pressure should increase significantly, potentially reaching 4-5 bar or more. A drop below the minimum recommended pressure, particularly at higher temperatures, is a red flag.

By understanding the nuances of oil cooling and choosing the right upgrade for your Mk1 Jetta, you can ensure your engine remains healthy and performs reliably for years to come, even under the most demanding conditions.
