DIY Engine Oil Change for Your Volvo V40 Hatchback

Performing a regular engine oil and filter change is one of the most fundamental yet crucial maintenance tasks you can undertake for your Volvo V40 Hatchback. It’s not just about keeping your car running; it’s about extending its life, maintaining peak performance, and ensuring the engine's intricate components are properly lubricated and protected from wear and tear. While it might seem daunting at first, with the right tools and a clear understanding of the process, changing your V40's oil can be a straightforward and rewarding DIY project. This guide will walk you through every step, ensuring you have the confidence to tackle this essential service.

Why Regular Oil Changes Are Non-Negotiable

Engine oil is the lifeblood of your vehicle. It lubricates moving parts, reduces friction, dissipates heat, and helps to keep the engine clean by suspending contaminants. Over time, oil breaks down, loses its viscosity, and accumulates impurities like dirt, metal particles, and sludge. When this happens, its ability to protect your engine diminishes significantly, leading to increased wear, reduced fuel efficiency, and potentially costly damage. Regular oil changes ensure that your V40's engine always has fresh, clean lubricant, operating at its optimal best.

Gathering Your Tools and Materials

Before you begin, ensure you have all the necessary items to hand. Safety first! Working under a vehicle requires caution, so always use appropriate safety gear and ensure the car is securely supported.

Essential Tools:

• Waste Oil Container: Crucially, this must have a capacity of at least 6 litres, given the V40's oil volume.
• Drive Socket #17: For the drain plug.
• Ratchet Wrench: To operate the socket.
• Oil Filter Wrench: Essential for removing the old oil filter.
• Funnel: To prevent spills when refilling new oil.
• Jack and Jack Stands: To safely lift and support the vehicle, providing adequate access. Never rely solely on a jack.
• Wheel Chocks: To prevent the car from rolling.
• Torque Wrench: For tightening the drain plug and oil filter to specification, preventing leaks or damage.
• Protective Gloves and Eyewear: For your safety.
• Rags or Shop Towels: For cleaning up any spills.

Required Materials:

• New Engine Oil: Refer to your Volvo V40's owner's manual for the correct type (e.g., synthetic, semi-synthetic) and viscosity (e.g., 5W-30, 0W-20). The quantity will also be specified there, typically around 5-6 litres.
• New Oil Filter: Ensure it's the correct filter for your specific V40 model and engine.
• New Drain Plug Washer/Gasket: It's highly recommended to replace this every time you change the oil to ensure a leak-free seal.

The Step-by-Step Oil Change Process

Follow these steps carefully to ensure a successful and safe oil change for your V40 Hatchback.

Step 1: Preparation and Warming the Engine

Firstly, ensure your V40 is parked on a level surface. It's often beneficial to run the engine for 5-10 minutes to warm the oil slightly. Warm oil flows more freely, ensuring a more complete drain and carrying more contaminants with it. However, be cautious not to make it too hot to avoid burns. Once warmed, switch off the engine.

Step 2: Lifting and Securing the Vehicle

Engage the parking brake. If your V40 has an automatic transmission, place it in 'Park'; for a manual, put it in first gear. Use your jack to carefully lift the front of the vehicle to a height that allows comfortable access to the oil pan and filter. Once lifted, immediately place sturdy jack stands under the vehicle's designated support points. Gently lower the car onto the jack stands. Give the car a slight shake to ensure it's stable and secure. Place wheel chocks behind the rear wheels for added safety.

Step 3: Locating the Drain Plug and Positioning the Waste Container

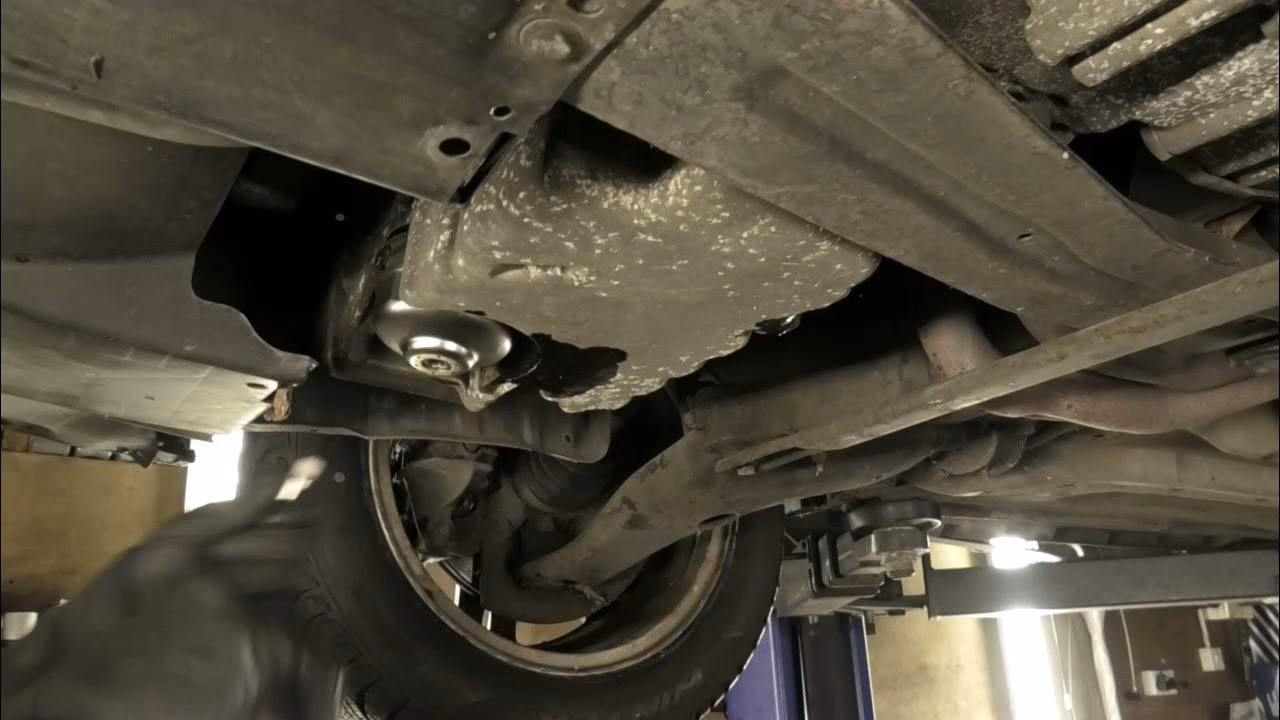

Crawl under the front of your V40. The engine oil pan is typically located towards the front or centre of the engine, and the drain plug will be a large bolt at the lowest point of the pan. Position your waste oil container directly beneath the drain plug, ensuring it's centred and has enough clearance to catch all the oil without overflowing. Remember, you need at least 6 litres of capacity.

Step 4: Draining the Used Oil

Using your drive socket #17 and a ratchet wrench, carefully unscrew the drain plug. Be prepared, as the oil will start to flow immediately once the plug is loose. Allow the used oil to drain completely into the container. This can take anywhere from 10 to 20 minutes, depending on the oil's temperature and viscosity. While the oil is draining, inspect the old drain plug and replace its washer or gasket. Look for any metal shavings in the old oil, which could indicate potential engine issues, though a small amount of fine particles is normal wear.

Step 5: Replacing the Oil Filter

While the oil is draining, locate the oil filter. Its position can vary slightly on different V40 engine variants, but it's generally on the side or front of the engine block. Place a small drip pan or rags underneath the filter housing to catch any residual oil. Use your oil filter wrench to loosen and remove the old filter. Be aware that more oil will likely leak out when the filter is removed. Once the old filter is off, clean the filter mounting surface on the engine block. Take your new oil filter and apply a thin film of new engine oil to its rubber gasket. This helps create a good seal and makes future removal easier. Screw the new filter on by hand until the gasket makes contact with the engine block, then tighten it according to the manufacturer's specifications, usually a further 3/4 to 1 full turn, or use a torque wrench to the specified torque. Do not overtighten, as this can damage the filter or housing.

Step 6: Reinstalling the Drain Plug

Once the oil has completely drained, clean the area around the drain plug opening on the oil pan. Install the new drain plug washer onto the drain plug and screw the plug back into the oil pan. Hand-tighten it first to ensure it's not cross-threaded, then use your ratchet wrench and torque wrench to tighten it to the manufacturer's specified torque. Overtightening can strip the threads, while undertightening can lead to leaks.

Step 7: Refilling with New Engine Oil

Lower your V40 off the jack stands and jack. Open the bonnet and locate the engine oil filler cap (usually marked with an oil can symbol). Place your funnel into the filler neck. Begin pouring the new, recommended engine oil slowly into the engine. Refer to your owner's manual for the exact capacity. It's often best to add slightly less than the full capacity, then check the dipstick. Allow a few minutes for the oil to settle in the pan, then pull out the dipstick, wipe it clean, reinsert it fully, and pull it out again to check the level. It should be between the 'min' and 'max' marks. Add small amounts of oil as needed until the correct level is reached. Do not overfill.

Step 8: Final Checks and Run-Up

Replace the oil filler cap securely. Start the engine and let it run for a few minutes. This allows the new oil to circulate throughout the engine and fill the new oil filter. While the engine is running, check under the car for any signs of leaks around the drain plug or oil filter. If the oil pressure warning light on your dashboard was on, it should now extinguish. Switch off the engine and wait another 5-10 minutes for the oil to settle. Re-check the oil level with the dipstick and top up if necessary. Your V40 is now ready to hit the road with fresh oil!

Choosing the Right Engine Oil for Your V40

Selecting the correct engine oil is paramount for the longevity and performance of your Volvo V40. Always consult your owner's manual for the precise specifications, which typically include the API (American Petroleum Institute) or ACEA (European Automobile Manufacturers' Association) standards, as well as the viscosity grade (e.g., 5W-30, 0W-20). Modern Volvos often recommend synthetic oil due to its superior performance, stability, and longer drain intervals compared to conventional or semi-synthetic oils. Using the wrong oil can lead to premature engine wear and reduced efficiency.

Disposing of Used Engine Oil

Used engine oil is a hazardous waste and must be disposed of responsibly. Never pour it down drains or onto the ground. Most local council recycling centres or automotive parts stores offer facilities for disposing of used oil free of charge. Collect the old oil in a sealed container and take it to an authorised collection point. This is crucial for environmental protection.

Comparative Table: Old vs. New Oil

Frequently Asked Questions (FAQs)

How often should I change the oil in my Volvo V40 Hatchback?

The recommended oil change interval for your Volvo V40 will be specified in your owner's manual. Generally, for modern Volvos using synthetic oil, intervals can range from 10,000 to 20,000 miles or once a year, whichever comes first. However, if you do a lot of short journeys, stop-and-go driving, or drive in extreme conditions, more frequent changes might be beneficial.

What type of oil does my V40 need?

Always consult your Volvo V40's owner's manual. It will specify the exact viscosity grade (e.g., 0W-20, 5W-30) and the required ACEA or API specifications. Using the correct specification is vital for engine health.

Can I change the oil without lifting the car?

While theoretically possible on some vehicles, for the Volvo V40 Hatchback, you will almost certainly need to lift the car using a jack and secure it with jack stands to gain sufficient access to the drain plug and oil filter. Safety should always be your top priority.

What happens if I overfill the engine oil?

Overfilling the engine oil can be as detrimental as underfilling. Excess oil can cause aeration (foaming) when the crankshaft whips it up, reducing its lubricating properties. It can also lead to increased pressure, potential oil leaks, and damage to seals and gaskets. If you've overfilled, it's best to drain the excess until the level is within the 'min' and 'max' marks on the dipstick.

What are the signs that my engine oil needs changing?

Common signs include a dark or sludgy appearance of the oil on the dipstick, a burning oil smell, unusual engine noises (like knocking or ticking due to poor lubrication), reduced fuel economy, or the illumination of the oil pressure warning light on your dashboard.

By following this comprehensive guide, you've not only performed a crucial maintenance task for your Volvo V40 Hatchback but also gained valuable insight and confidence in caring for your vehicle. Regular, diligent oil changes are a small effort with significant long-term benefits for your car's performance, reliability, and lifespan.
