Mastering AC Compressor Clutch Adjustment

The air conditioning system in your vehicle is a complex network of components designed to keep you comfortable during warmer months. At the heart of this system lies the AC compressor, and a crucial element for its operation is the clutch. This clutch engages and disengages the compressor, allowing it to cycle on and off as needed. However, over time, wear and tear can lead to an excessive clutch gap, preventing proper engagement and resulting in a lack of cold air. Understanding how to correctly adjust this gap is essential for maintaining your vehicle's air conditioning performance. This guide will delve into the intricacies of AC compressor clutch adjustment and related maintenance tasks, providing you with the knowledge to diagnose and rectify common issues.

Understanding the AC Compressor Clutch Gap

The AC compressor clutch is essentially an electromagnetic device. When the AC system is activated, an electrical current is sent to a coil within the clutch assembly. This current generates a magnetic field that pulls a pressure plate, or clutch disc, towards the pulley. When these two surfaces meet, they lock together, causing the compressor shaft to spin and the compressor to operate. A small air gap is designed to exist between the pressure plate and the pulley when the clutch is disengaged. This gap allows the pulley to spin freely without driving the compressor. However, as the friction material on the clutch disc wears down over time, this gap increases.

An excessively large clutch gap means the magnetic field generated by the coil may not be strong enough to pull the pressure plate the required distance to engage the compressor. This can manifest as the AC not cooling at all, or cycling on and off very frequently, leading to inconsistent temperatures. It's important to note that while some adjustment is possible, a severely worn clutch disc may require replacement.

How to Measure the Clutch Gap

Before attempting any adjustment, accurately measuring the clutch gap is paramount. This typically involves using a set of feeler gauges. With the engine off and the AC system disengaged, you'll need to access the front of the compressor clutch.

Steps for Measuring:

• Ensure the engine is off and cool to the touch.
• Locate the AC compressor.
• Carefully insert a feeler gauge between the clutch disc (the part that spins with the pulley) and the compressor body (or the stationary clutch hub).
• Start with a small gauge and try progressively larger ones until you find the largest gauge that fits snugly into the gap without forcing it.
• Record the measurement.

Most manufacturers specify a recommended clutch gap. This can vary significantly between vehicle models, but a common range is between 0.020 inches (0.5 mm) and 0.040 inches (1.0 mm). Consult your vehicle's service manual for the exact specification.

How to Adjust the Clutch Gap

The method for closing the clutch gap typically involves removing a specific number of shims located behind the clutch pulley. These shims are thin metal discs that control the initial air gap. By removing one or more shims, you bring the pressure plate closer to the magnetic coil, reducing the gap.

Important Note: You mentioned pushing the flat disc downward toward the body of the compressor. This description can be misleading. The adjustment is made by altering the distance between the stationary coil and the rotating clutch disc. You are not physically pushing the disc; rather, you are removing material (shims) from between the pulley and the compressor body to reduce the air gap.

General Steps for Adjustment:

1. Safety First: Disconnect the negative battery terminal to prevent accidental electrical surges.
2. Access the Clutch: Depending on your vehicle, you may need to remove other components to gain clear access to the compressor clutch.
3. Remove the Center Nut/Bolt: There is typically a bolt or nut in the centre of the clutch that holds the clutch disc assembly to the compressor shaft. You will need a socket and wrench for this. Crucially, you'll need a way to counter-hold the pulley so it doesn't spin while you loosen the center fastener. Specialized tools are often required for this.
4. Remove the Clutch Disc: Once the centre fastener is removed, the clutch disc (the plate with the friction material) can be carefully removed.
5. Remove Shims: Behind the clutch disc, you will find a stack of thin metal shims. Carefully remove one or more of these shims. The number of shims to remove depends on how much you need to reduce the gap. It's best to start by removing a small number (e.g., one shim) and then re-measure.
6. Reassemble: Reinstall the clutch disc, ensuring it sits correctly. Reinstall the centre fastener and tighten it to the manufacturer's specified torque. Do not overtighten, as this can damage the clutch or compressor.
7. Re-measure: Reconnect the battery and start the engine. Turn on the AC and check if the clutch is engaging properly. Measure the gap again to confirm it's within the acceptable range.

Caution: Pushing the gap to 0.0 mm, as you described, is indeed problematic. A zero gap means the clutch will likely be permanently engaged, leading to excessive wear, overheating, and potential damage to the compressor and clutch assembly. Always maintain a small, specified air gap.

When to Replace the AC Compressor Clutch Pulley

While adjusting the clutch gap can resolve issues caused by excessive clearance, there are times when the clutch assembly itself, including the pulley, needs replacement. This is often necessary if:

• The friction material on the clutch disc is significantly worn, cracked, or burnt.
• The clutch disc is warped or damaged.
• The magnetic coil is faulty and not generating a magnetic field.
• The pulley bearing is noisy or seized.

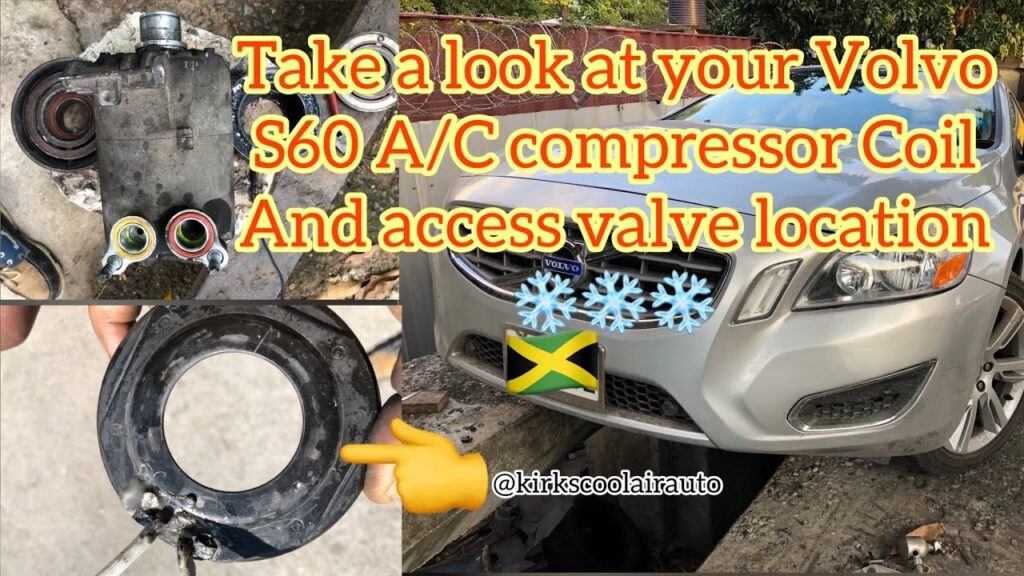

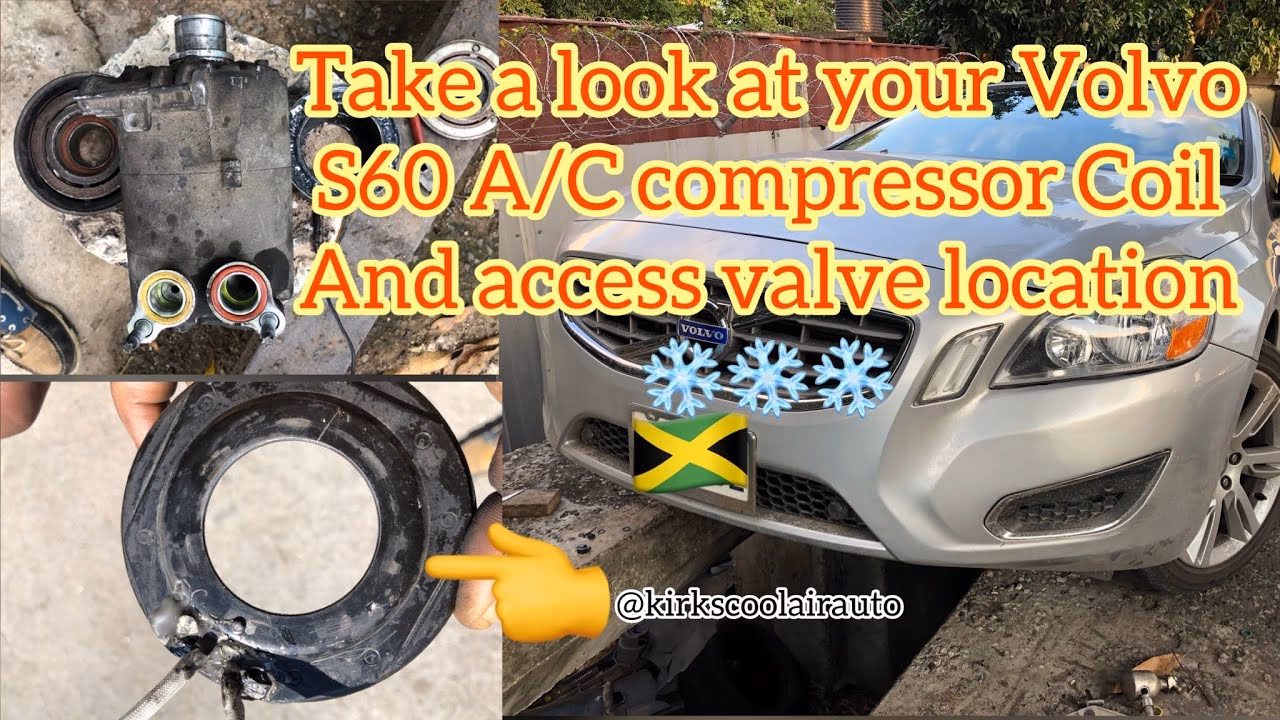

How to Replace an AC Compressor Clutch Pulley

Replacing the entire clutch pulley assembly is a more involved process. The information you provided outlines a common procedure, which we will expand upon.

Tools and Parts:

• New AC compressor clutch pulley assembly (ensure it's correct for your vehicle).
• Counterhold tool (e.g., 9995596).
• Clutch puller (e.g., 9995597).
• Clutch installer (e.g., 9995598) and appropriate socket (e.g., 9995599 for removal, 9995600 for installation).
• Snap ring pliers.
• Torque wrench.
• Appropriate socket set and wrenches.
• Safety glasses and gloves.

Replacement Procedure:

1. Safety: Disconnect the negative battery terminal.
2. Access: Gain access to the AC compressor clutch. This may involve removing drive belts or other obstructing components.
3. Counterhold the Pulley: Use the specified counterhold tool (e.g., 9995596) to prevent the pulley from rotating.
4. Remove Clutch Plate: Remove the centre fastener (bolt or nut) that secures the clutch plate to the compressor shaft.
5. Remove Clutch Disc: Use the clutch puller (e.g., 9995597) to carefully pull the clutch disc off the shaft. Keep any original shims; you may need to reuse some of them with the new clutch to achieve the correct gap.
6. Remove Snap Ring: Locate and remove the snap ring that holds the pulley assembly onto the compressor's front bearing. Snap ring pliers are essential here.
7. Pull Off the Pulley: Use a puller tool (e.g., 9995598) along with a suitable socket (e.g., 9995599) to carefully pull the old pulley assembly off the compressor body.
8. Remove Magnet Coil: The magnetic coil is typically pressed onto the front of the compressor body. You may need a specialised puller or press to remove it.
9. Install New Magnet Coil: Press the new magnet coil onto the compressor body. Ensure it is seated correctly. Tighten to the specified torque, often around 5 Nm, if a specific fastening method is involved.
10. Install New Pulley: Use the installer tool (e.g., 9995598) and the correct socket (e.g., 9995600) to press the new pulley assembly onto the compressor shaft. Ensure the pulley slides on smoothly.
11. Reinstall Snap Ring: Fit the new snap ring to secure the pulley assembly.
12. Reinstall Clutch Disc and Shims: Place the new clutch disc onto the shaft. You may need to transfer some of the original shims (or new ones if provided) to achieve the correct clutch gap. Install the centre fastener and tighten it to the specified torque.
13. Final Checks: Reinstall drive belts and any other removed components. Reconnect the battery. Start the engine, turn on the AC, and verify that the clutch is engaging correctly and the system is cooling. Measure the new clutch gap to ensure it's within specification.

Common Issues and Troubleshooting

Frequently Asked Questions (FAQs)

Q1: Can I drive my car if the AC clutch isn't engaging?
Yes, you can drive your car. The AC system not working will not affect the car's ability to drive. However, it will be uncomfortable in hot weather.

Q2: How often should the AC clutch gap be checked?
It's good practice to have your AC system inspected during regular maintenance. If you notice a decline in cooling performance, it's a good time to check the clutch gap.

Q3: Is it difficult to replace the AC compressor clutch?
Replacing the clutch pulley assembly can be challenging and often requires specialised tools. If you are not comfortable with mechanical tasks or lack the necessary tools, it's best to seek professional assistance.

Q4: What happens if the clutch gap is too small?
A clutch gap that is too small can cause the clutch to remain partially or fully engaged even when the AC is switched off. This leads to premature wear of the clutch friction material, overheating of the compressor, and potential damage to the entire AC system.

Maintaining your vehicle's air conditioning system is crucial for comfort and can prevent more costly repairs down the line. By understanding how to properly adjust and, if necessary, replace the AC compressor clutch, you can ensure your system operates efficiently and reliably.
