Toyota Venza's Advanced Braking Explained

The Toyota Venza, known for its blend of SUV practicality and car-like comfort, boasts a braking system that is both robust and technologically advanced. Understanding how it operates can not only demystify its performance but also highlight the importance of regular maintenance. At its core, the Venza's braking system is designed to provide reliable stopping power under a variety of conditions, incorporating intelligent features that enhance safety and driver control. This comprehensive guide will delve into the key components and functionalities that make the Venza's brakes a cornerstone of its secure driving experience.

The Foundation: Hydraulic Braking

Like most modern vehicles, the Toyota Venza relies on a hydraulic braking system. This system translates the force applied to the brake pedal into hydraulic pressure, which then acts upon the brake pads at each wheel. The fundamental principle involves a master cylinder, brake lines filled with brake fluid, and calipers at each wheel. When you press the brake pedal, a piston inside the master cylinder pushes brake fluid through the lines. This pressurized fluid then forces the brake caliper pistons to clamp down on the brake discs (rotors), creating friction and slowing the vehicle.

The quality and condition of the brake fluid are paramount. Over time, brake fluid can absorb moisture, reducing its boiling point and effectiveness, especially under heavy braking. This is why regular brake fluid checks and changes are crucial for maintaining optimal braking performance. The Venza, like many Toyotas, typically uses DOT 3 or DOT 4 brake fluid, but it's always best to consult your owner's manual for the specific type recommended for your model year.

Advanced Braking Technologies

Beyond the basic hydraulic operation, the Venza integrates several advanced electronic systems to further refine braking performance and safety:

Anti-lock Braking System (ABS)

The Venza is equipped with an advanced Anti-lock Braking System (ABS). ABS is a critical safety feature designed to prevent the wheels from locking up during hard braking. When ABS detects that a wheel is about to lock (i.e., stop rotating while the vehicle is still moving), it rapidly pulses the brake pressure to that specific wheel. This pulsing action allows the wheel to regain traction, enabling the driver to maintain steering control while braking. You'll often feel a pulsating sensation through the brake pedal when ABS is active, which is perfectly normal.

The ABS system uses wheel speed sensors located at each wheel hub. These sensors constantly monitor the rotational speed of each wheel. The ABS control module analyzes this data and intervenes when necessary. Without ABS, a locked wheel would simply skid, significantly reducing steering control and increasing stopping distances, especially on slippery surfaces.

Electronic Brakeforce Distribution (EBD)

Complementing ABS is the Electronic Brakeforce Distribution (EBD). EBD intelligently manages the amount of braking force applied to the front and rear wheels, based on vehicle load and road conditions. The goal of EBD is to optimise braking efficiency by ensuring that the braking force is distributed appropriately between the front and rear axles. Typically, vehicles have more weight over the front wheels, meaning they can handle more braking force. EBD automatically adjusts the brake pressure to the rear wheels to prevent them from locking up prematurely, which could lead to instability.

EBD works in conjunction with ABS. If EBD senses that the rear wheels are about to lock due to excessive braking force, it will reduce the pressure to the rear brakes, even if the driver is applying full force to the pedal. This ensures a more balanced and stable deceleration.

Brake Assist (BA)

The Venza also features a Brake Assist (BA) system. This technology is designed to help the driver achieve maximum braking performance during emergency situations. It works by detecting a sudden or forceful application of the brake pedal, which is often indicative of a panic stop. When Brake Assist senses such an event, it automatically applies additional braking force to the system, exceeding what the driver might have initially applied.

The system typically uses the speed of the brake pedal application and the amount of pedal travel to determine if a panic stop is occurring. By supplementing the driver's pedal effort, Brake Assist ensures that the brakes are applied with the full force required to stop the vehicle as quickly as possible, potentially reducing stopping distances. This feature is particularly valuable as many drivers, in a moment of panic, may not press the brake pedal hard enough.

Brake System Maintenance: Keeping it Optimal

To ensure the Venza's advanced braking system functions as intended, regular maintenance is essential. Here are key aspects to consider:

Brake Fluid

As mentioned, brake fluid is critical. It should be checked periodically for level and condition. Over time, it becomes contaminated and less effective. A common recommendation is to have the brake fluid flushed and replaced every 2-3 years, or as specified in your owner's manual. Replacing the fluid also provides an opportunity to perform a pressure bleeding, which is the recommended method for removing air from the base brake system.

Pressure Bleeding vs. Vacuum Bleeding

Pressure bleeding involves introducing new brake fluid into the master cylinder reservoir under pressure, forcing the old fluid and any air out through the bleed screws at the calipers. This method is generally considered more effective at removing air compared to vacuum bleeding, which pulls fluid and air out from the bleed screws.

| Bleeding Method | Process | Effectiveness | | :----------------- | :--------------------------------------------------------------------------- | :---------------- | | Pressure Bleeding | Pushes new fluid in under pressure, forcing old fluid and air out. | Highly Effective | | Vacuum Bleeding | Pulls fluid and air out from the bleed screws. | Effective, but can sometimes introduce air if seals aren't perfect. |

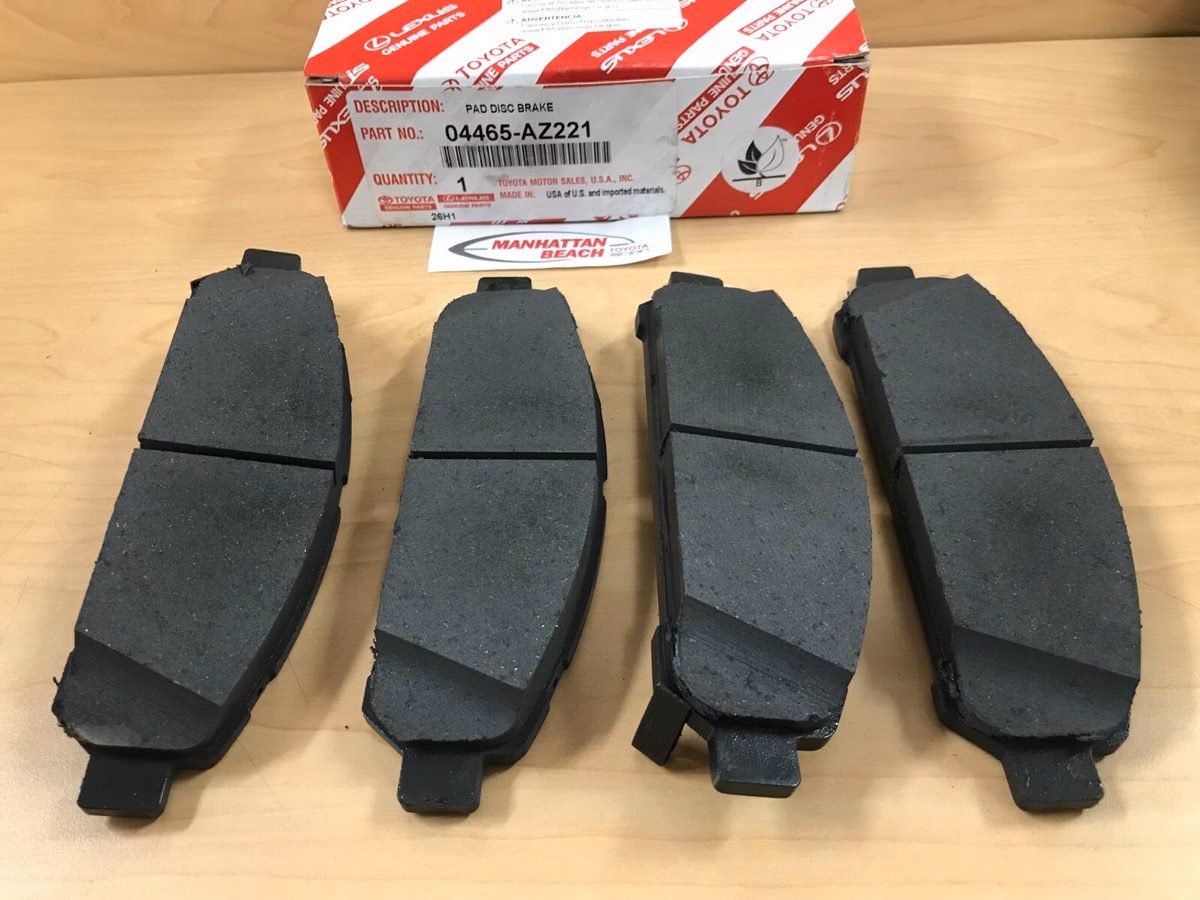

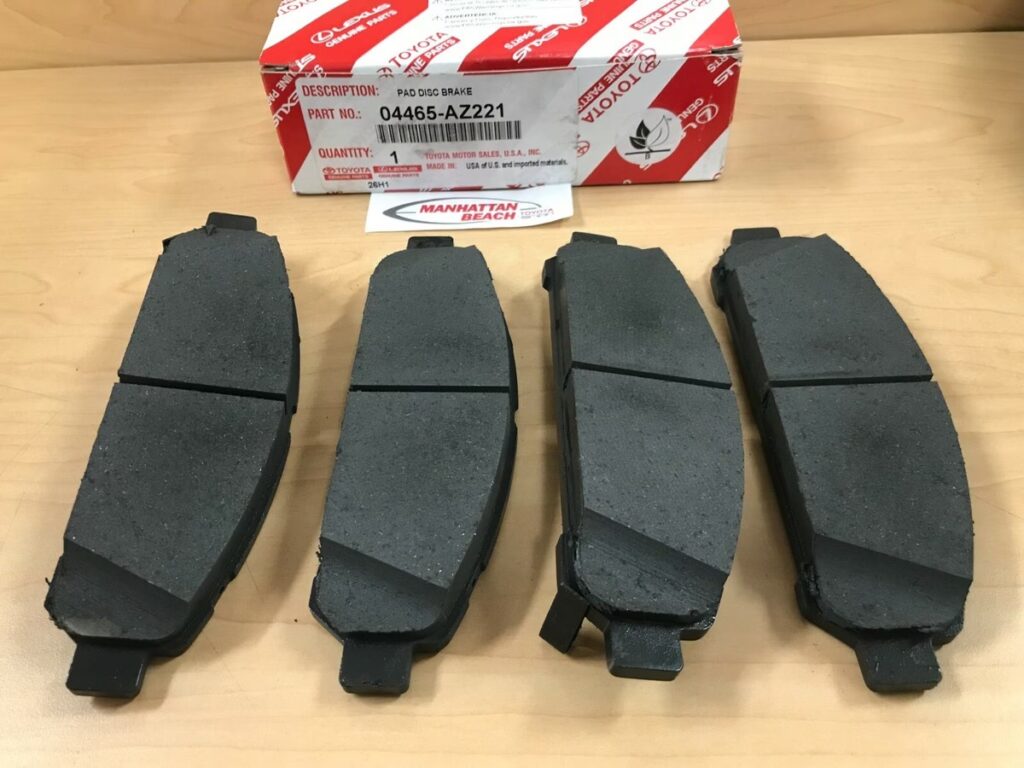

Brake Pads and Rotors

Brake pads and rotors are wear items. They should be inspected regularly for thickness and condition. Worn pads can lead to reduced braking performance and damage to the rotors. Signs of worn pads include a squealing or grinding noise when braking, and a longer stopping distance. Rotors can become scored, warped, or worn too thin, requiring replacement or resurfacing.

Brake Lines and Hoses

The brake lines and hoses carry the hydraulic fluid. They should be inspected for any signs of leaks, cracks, or damage. Damaged lines or hoses can lead to a loss of brake pressure and ultimately, brake failure. Ensure that all connections are secure and that the hoses are not rubbing against any components.

Troubleshooting Common Brake Issues

While the Venza's braking system is reliable, occasional issues can arise. Here are a few common ones:

• Spongy Brake Pedal: This often indicates the presence of air in the brake lines or a failing master cylinder. Pressure bleeding is usually the solution for air.
• Squealing or Grinding Noises: Typically a sign of worn brake pads. It's important to address this promptly to prevent further damage.
• Vehicle Pulling to One Side When Braking: This could be due to uneven wear on the brake pads or rotors, a sticking caliper, or issues with the brake hoses.
• ABS Warning Light: If the ABS warning light illuminates on your dashboard, it signifies a fault within the ABS system, potentially related to a wheel speed sensor or the ABS control module. The vehicle will still have standard braking, but the ABS and EBD functions will be disabled.

Frequently Asked Questions

What is the recommended brake fluid for a Toyota Venza?

Consult your owner's manual for the specific type of brake fluid recommended for your Venza model year. Generally, it will be DOT 3 or DOT 4.

How often should I have my Venza's brakes serviced?

Brake inspections should be part of regular vehicle maintenance, typically every 6 months or 12,000 miles. Brake fluid replacement is usually recommended every 2-3 years.

Is it normal for the brake pedal to pulsate during hard braking?

Yes, a pulsating sensation in the brake pedal during hard braking is normal and indicates that the Anti-lock Braking System (ABS) is actively working to prevent wheel lock-up and maintain steering control.

What does the Brake Assist system do?

Brake Assist (BA) detects emergency braking situations and automatically applies maximum braking force, even if the driver doesn't press the pedal hard enough, to help shorten stopping distances.

Can I drive my Venza if the ABS warning light is on?

You can drive your Venza if the ABS warning light is on, but the ABS and EBD functions will be disabled. It's recommended to have the system checked by a qualified mechanic as soon as possible.

In conclusion, the Toyota Venza's braking system is a sophisticated assembly of mechanical and electronic components working in harmony to ensure your safety. From the fundamental hydraulic principles to the advanced interventions of ABS, EBD, and Brake Assist, every element plays a vital role. Regular maintenance, including timely brake fluid flushes and inspections of wear components, is key to keeping this critical system in optimal condition, providing confidence and security on every journey.
