Vehicle Exhaust Extraction Systems Explained

In the realm of automotive maintenance and repair, ensuring a safe and healthy working environment is paramount. One of the most significant hazards faced by technicians and employees in garages, workshops, and vehicle testing facilities is exposure to harmful vehicle exhaust fumes. These emissions, laden with toxic gases and particulate matter, can have severe long-term health consequences if not managed effectively. This is where vehicle exhaust extraction systems come into play, acting as a critical line of defence. Understanding the different types of these systems and their applications is key to creating a safer and more productive workspace.

The Dangers of Vehicle Exhaust Fumes

Before delving into the solutions, it's crucial to understand the problem. Vehicle exhaust, particularly from diesel engines, is a complex cocktail of harmful substances. It contains gases like carbon monoxide, nitrogen oxides, and volatile organic compounds, as well as fine particulate matter (soot). The World Health Organisation (WHO) has classified diesel exhaust as a Group 1 carcinogen, meaning it is definitively known to cause cancer in humans. Even at lower concentrations, repeated exposure can lead to respiratory illnesses, cardiovascular problems, and other serious health issues. The speed at which these emissions can reach toxic levels in a closed environment, even from a cold-start engine, is alarming – often within minutes. This makes effective extraction not just a good practice, but a necessity.

Why Invest in an Exhaust Extraction System?

Installing a dedicated vehicle exhaust extraction system offers a multitude of benefits:

• Improved Health and Safety: The most significant advantage is the protection of employees and visitors from harmful carcinogens and irritants. This directly leads to reduced sick leave and a healthier workforce.
• Enhanced Productivity: A cleaner environment contributes to better concentration and reduced fatigue for technicians, potentially leading to improved performance and fewer errors.
• Facility Protection: Exhaust fumes can corrode sensitive electronic equipment and machinery, leading to costly repairs and downtime. Extraction systems mitigate this damage.
• Compliance with Regulations: Many regions have stringent health and safety regulations regarding workplace air quality. An extraction system helps ensure compliance.
• Customer Perception: A clean, fume-free workshop presents a professional and health-conscious image to customers.

Types of Vehicle Exhaust Extraction Systems

Vehicle exhaust extraction systems can be broadly categorised based on their application and how they capture the fumes. The most effective method is capture at source, meaning the fumes are captured as close to the exhaust pipe as possible.

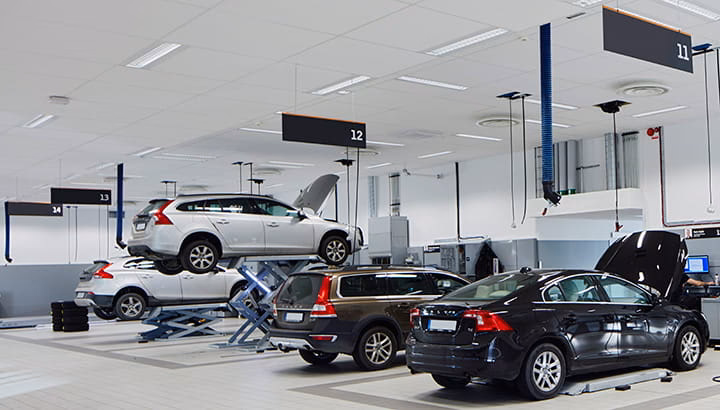

1. Stationary Vehicle Exhaust Extraction Systems

These systems are designed for situations where vehicles are stationary, typically for diagnostic checks, fault tracing, or routine maintenance. They need to be easy to handle, offer good reach, and be quickly stowed away when not in use.

a) Single Extractors

Ideal for smaller workshops or as supplementary points in larger facilities, single extractors are a straightforward solution. They usually consist of a fan and a flexible hose with an extraction nozzle that is manually positioned at the vehicle's exhaust pipe. The addition of a damper can help control airflow and reduce noise when the system is not actively extracting.

b) Exhaust Hose Reels

Hose reels offer a practical advantage by keeping the extraction hoses neatly stored and out of the way when not in use. They can be connected to individual fans or integrated into a larger ducted system with a central fan. These systems are generally considered virtually maintenance-free during normal operation and provide a clean and organised workspace.

c) Extraction Rail Systems with Hoses or Telescopic Units

These advanced systems utilise a track or rail mounted on the workshop ceiling or wall. Extraction units, equipped with either flexible hoses or telescopic arms, slide along this rail. This allows for flexible positioning and coverage across multiple work bays.

• Extraction Hose Units on Rails: These units are often fitted with balancers to keep the hose raised and easily accessible, along with automatic dampers for airflow control.
• Telescopic Extraction Units (Touchless Systems): A significant advancement, these systems are designed to capture fumes without direct contact with the exhaust pipe or vehicle body. This 'touchless' operation prevents any risk of scratching or damaging the vehicle. They typically feature a balancer for smooth height adjustment and an automatic damper. The horizontal arm is equipped with a large, efficient exhaust hood that is easily positioned using adjustable joints and a locking handle. The lightweight design and ball-bearing wheels make these units easy to move between different vehicles and work bays. Some systems can serve multiple bays, and configurations exist for vehicles with twin exhaust pipes.

d) Extension Arms

For situations involving larger vehicles or where installing standard extraction equipment is challenging, extension arms provide the necessary reach. These can cover significant areas, making them suitable for heavy-duty applications.

2. In-Motion Vehicle Exhaust Extraction Systems

This category addresses the need for fume extraction while vehicles are actually moving. This is common in areas like inspection centres, bus garages, emergency vehicle depots, or vehicle manufacturing facilities where vehicles are driven off assembly lines. Key features of these systems include:

• Easy Connection and Disconnection: The nozzle or capture device must attach and detach automatically and safely from the vehicle's exhaust as it moves.
• Automatic Return: The extraction unit should ideally retract or return to its stored position automatically after use.
• Exhaust Rail Systems for In-Motion: Similar to stationary rail systems, these are adapted for moving vehicles. Trolleys and hoses are designed to follow the vehicle's path, with the number of units determined by the specific operational layout.

Choosing the Right System

The selection of an appropriate exhaust extraction system depends on several factors:

• Type of Vehicles: Are you dealing with cars, vans, trucks, or a mix?
• Workshop Layout: The size, shape, and number of work bays will influence the system design.
• Frequency of Use: How often will vehicles be run with their engines on?
• Budget: Different systems have varying costs associated with installation and maintenance.
• Specific Operational Needs: Do you require in-motion extraction, or are stationary solutions sufficient?

Consulting with experts from specialised companies, such as Plymovent or Nederman, is highly recommended. They can assess your specific needs and help design a bespoke solution that optimises functionality and ensures a safe working environment.

System Components and Considerations

A typical vehicle exhaust extraction system comprises several key components:

• Extraction Nozzle/Hood: The part that captures the fumes directly at the source.
• Flexible Hose: Connects the nozzle to the ducting.
• Ducting: A network of pipes that transports the extracted air.
• Fan: The powerhouse that draws air through the system.
• Control System: Manages the operation of the fans and dampers.
• Filtration (Optional): In some cases, filters may be included to clean the extracted air before it is released.

When evaluating systems, consider factors like airflow capacity (CFM or m³/h), noise levels, energy efficiency, durability, and ease of maintenance. Regular maintenance, including checking hoses for leaks and ensuring fans are operating correctly, is crucial for sustained performance.

FAQ

Q1: How quickly can exhaust fumes become dangerous?
A1: Even from a cold-start, vehicle exhaust emissions can reach toxic levels in a closed building within minutes.

Q2: Are diesel exhaust fumes carcinogenic?
A2: Yes, diesel exhaust fumes have been classified as a Group 1 carcinogen by the World Health Organisation, meaning they are definitively known to cause cancer.

Q3: What is 'capture at source'?
A3: Capture at source refers to extracting fumes directly from the exhaust pipe before they can disperse into the workshop environment.

Q4: What is a 'touchless' exhaust extraction system?
A4: A touchless system captures fumes without physical contact with the vehicle's exhaust pipe or body, preventing potential damage.

Q5: Can I use a simple fan and hose instead of a dedicated system?
A5: While a basic fan and hose can offer some relief, dedicated systems are designed for optimal capture efficiency, durability, and integration into the workshop environment, providing superior protection and compliance.

In conclusion, investing in a high-quality vehicle exhaust extraction system is a vital step towards safeguarding the health of your workforce, protecting your facility, and ensuring a professional operating environment. The range of available solutions means there is a system to suit almost any automotive application, from the smallest independent garage to large fleet maintenance depots.
