Understanding Your Volvo V40's Brake Calipers
The brake caliper is a crucial component of your Volvo V40's braking system. It acts like a clamp, squeezing the brake pads against the brake disc (rotor) to slow down or stop the vehicle. When a caliper malfunctions, it can lead to reduced braking performance, uneven braking, or even complete brake failure. Common issues include seized pistons, leaking fluid, or worn mounting points. If you're experiencing symptoms like a pulling sensation to one side when braking, a spongy brake pedal, or a persistent grinding noise, it might be time to consider replacing one or both of your V40's brake calipers.
Tools and Materials You'll Need
Before you begin, ensure you have the correct tools and materials to hand. Attempting this job without the right equipment can be dangerous and may lead to further damage. Here's a comprehensive list:
- New Brake Caliper: Ensure it's the correct part for your specific Volvo V40 model and year. It's often recommended to replace calipers in pairs (both front or both rear) for balanced braking.
- Brake Fluid: Consult your V40 owner's manual for the specific type of brake fluid required (e.g., DOT 3, DOT 4).
- Wrench Set: Including metric sizes for brake line fittings and caliper mounting bolts. A socket set is also highly beneficial.
- Torque Wrench: Essential for tightening bolts to the manufacturer's specifications.
- Jack and Jack Stands: Never rely solely on a jack. Always use sturdy jack stands for safety.
- Wheel Chocks: To prevent the vehicle from rolling.
- Brake Cleaner: To clean components after installation.
- Wire Brush: For cleaning rust and debris from mounting surfaces.
- Pliers: For removing and installing cotter pins or spring clips.
- Gloves and Eye Protection: Brake fluid is corrosive and can damage skin and eyes.
- Brake Bleeding Kit: Essential for removing air from the brake system after installation.
- Penetrating Oil (e.g., WD-40): To help loosen stubborn bolts.
- Container: To catch old brake fluid during bleeding.
Step-by-Step Replacement Procedure
This guide provides a general overview. Always refer to your Volvo V40's specific service manual for the most accurate and detailed instructions. Safety is paramount, so take your time and work methodically.
1. Prepare the Vehicle
Park your Volvo V40 on a level surface and engage the parking brake. Place wheel chocks behind the wheels on the opposite end of the vehicle you'll be working on. Loosen the lug nuts on the wheel you'll be removing, but do not remove them completely yet. This makes it easier to remove the wheel once the car is jacked up.
2. Safely Jack Up the Vehicle
Locate the correct jacking point for your V40, as indicated in your owner's manual. Position the jack and carefully raise the vehicle until the wheel is off the ground. Place a jack stand securely under a strong point of the chassis or suspension to support the vehicle. Lower the vehicle onto the jack stand. Never work under a vehicle supported only by a jack.
3. Remove the Wheel
Now that the vehicle is safely supported, fully unscrew the lug nuts and remove the wheel. Set it aside.
4. Inspect the Existing Caliper
Before removing the old caliper, take a moment to observe its condition. Look for any signs of leaks, cracked rubber boots, or corrosion. This might give you clues as to why it failed.
5. Remove the Brake Pads
The brake pads are usually held in place by retaining clips or pins. Remove these using pliers or a suitable tool. Once the retaining hardware is removed, the brake pads should slide out. You may need to gently pry them out with a flathead screwdriver if they are stuck.
6. Disconnect the Brake Line
This is a critical step. Locate the brake line that connects to the caliper. You'll see a fitting where the flexible brake hose meets the rigid metal brake line or the caliper itself. Use the correct size wrench to carefully loosen and disconnect this fitting. Be prepared for some brake fluid to drip out. You can use a container to catch any spills and a rag to mop up excess fluid. Some mechanics recommend using a C-clamp or vise grips to gently squeeze the brake line to minimise fluid loss, but be careful not to damage the line.
7. Remove the Caliper Mounting Bolts
The brake caliper is typically secured to the steering knuckle or mounting bracket by two large bolts, often referred to as caliper bracket bolts or slider pins. These can be tight and may require a breaker bar or a good amount of force. If they are corroded, apply penetrating oil and let it soak for a few minutes. Once the bolts are removed, the caliper should be free.
8. Remove the Old Caliper
With the brake line disconnected and mounting bolts removed, you should now be able to carefully remove the old brake caliper. It might be heavy, so support its weight. You can hang it from the suspension using a piece of wire or a bungee cord to avoid stressing the brake line.
9. Prepare the New Caliper
Before installing the new caliper, it's a good idea to clean the mounting surfaces on the steering knuckle or bracket with a wire brush to remove any rust or debris. If your new caliper came with new slider pins, ensure they are lubricated with appropriate brake lubricant (not petroleum jelly). Some new calipers may come with a bleed screw cap; remove this.
10. Install the New Caliper
Position the new brake caliper onto the mounting bracket. Align the bolt holes. Reinstall the caliper mounting bolts and tighten them to the manufacturer's specified torque using your torque wrench. This is a crucial step for safety. Refer to your V40's service manual for the exact torque figures.
11. Reconnect the Brake Line
Carefully reconnect the brake line fitting to the new caliper. Tighten the fitting securely, but do not overtighten, as this can damage the threads. Again, refer to your service manual for torque specifications if available for this fitting.

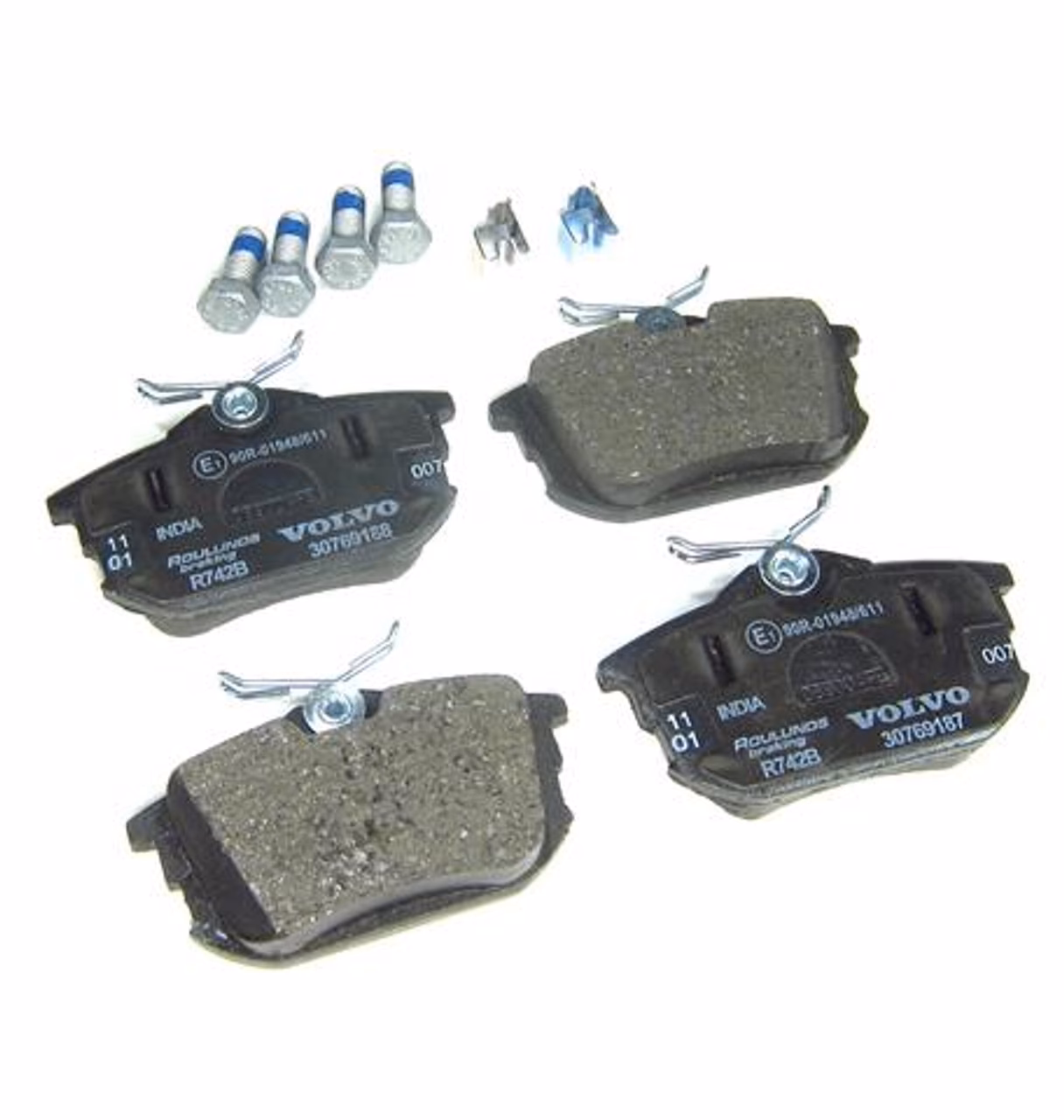

12. Install the Brake Pads
Slide the new brake pads into their designated positions within the caliper or caliper bracket. Reinstall any retaining clips or pins to secure the pads.
13. Reinstall the Wheel
Place the wheel back onto the hub and thread on the lug nuts. Tighten them by hand as much as possible. Lower the vehicle off the jack stand, then fully tighten the lug nuts in a star pattern to ensure even pressure. Torque the lug nuts to the manufacturer's specifications.
14. Bleed the Brake System
This is an absolutely critical step. Air in the brake lines will render your brakes ineffective. The process of bleeding removes this air. You'll need a helper for this. With the engine off, have your helper pump the brake pedal several times until it feels firm. Then, have them hold the pedal down. Open the bleed screw on the caliper you worked on. Brake fluid and air will escape into your container. Close the bleed screw as soon as the fluid flow slows to a drip. Have your helper release the brake pedal. Repeat this process until no more air bubbles are seen escaping from the bleed screw. It's important to keep the brake fluid reservoir topped up throughout this process to prevent more air from entering the system. Bleed each caliper in sequence, usually starting with the furthest from the master cylinder and working your way closer.
15. Top Up Brake Fluid and Check Levels
Once bleeding is complete, ensure the brake fluid reservoir is filled to the "MAX" line. Check for any leaks around the brake line connections.
16. Test the Brakes
Before driving, pump the brake pedal several times to ensure it feels firm. Slowly and carefully drive the vehicle at a low speed in a safe area (like an empty parking lot) and test the brakes. Listen for any unusual noises and feel for any pulling. If the pedal feels spongy or the braking is uneven, re-bleed the system or check for leaks. It's recommended to bed in your new brake pads and rotors according to the pad manufacturer's instructions, which usually involves a series of moderate braking applications.
Common Issues and Troubleshooting
Spongy Brake Pedal: This almost always indicates air in the brake lines. Re-bleed the system carefully.
Pulling to One Side: Could be a seized caliper on the other side, uneven pad material transfer on the rotor, or a kinked brake line. Ensure both calipers were replaced if necessary and that the brake lines are clear.
Brake Warning Light: If the brake warning light illuminates, it could indicate low brake fluid, a leak, or an issue with the anti-lock braking system (ABS). Check fluid levels and inspect for leaks.
Noisy Brakes: New pads and rotors can sometimes be noisy during the bedding-in process. However, persistent squealing or grinding could indicate improper installation, worn components, or issues with the caliper mounting.
When to Seek Professional Help
While replacing a brake caliper is a manageable DIY task for many, it's a critical safety system. If you are unsure about any step, lack the necessary tools, or feel uncomfortable performing the work, it is always best to consult a qualified mechanic. Incorrectly installed brake components can have severe consequences.
Calipers: A Quick Comparison
Here's a look at common caliper types, though your V40 likely uses one of the first two:
| Caliper Type | Description | Pros | Cons |
|---|---|---|---|
| Floating (or Sliding) Caliper | Has a single piston and the caliper body moves to apply pressure. Most common type. | Simpler design, less expensive. | Can sometimes seize if slider pins aren't maintained. |
| Fixed Caliper | Has pistons on both sides of the rotor, and the caliper body remains stationary. | More rigid, potentially better feel. | More complex, often more expensive. |
| Multi-Piston Caliper | Features multiple pistons on each side for greater clamping force. | Superior braking power and heat dissipation. | Very expensive, usually found on performance vehicles. |
Frequently Asked Questions (FAQs)
Q: Do I need to replace both brake calipers on my Volvo V40 at the same time?
A: It is highly recommended to replace brake calipers in pairs (both front or both rear) to ensure even braking performance and prevent uneven wear.
Q: How long does it take to replace a brake caliper?
A: For an experienced DIYer, it can take 1-2 hours per caliper. For a beginner, it might take longer, especially factoring in learning and potential difficulties.
Q: What happens if I don't bleed the brakes after replacing a caliper?
A: Air in the brake system will make the brake pedal feel spongy and significantly reduce braking effectiveness, potentially leading to a dangerous situation.
Q: Can I drive my V40 with a faulty brake caliper?
A: It is strongly advised not to. A faulty caliper compromises your ability to stop safely, putting yourself and others at risk.
Q: What is the typical lifespan of a brake caliper?
A: Brake calipers can last many years and miles, but they are subject to wear and tear, especially from exposure to road salt, dirt, and heat. Regular inspection is key.
Replacing your Volvo V40's brake caliper is a significant but achievable maintenance task. By following these steps carefully, using the correct tools, and prioritising safety, you can restore your vehicle's braking system to optimal condition. Remember, when in doubt, always consult a professional mechanic.
