Fixie V-Brake Adjustment Guide

Your bike’s brakes are paramount to your safety and control on the road. Whether you're navigating busy city streets, descending a challenging hill, or simply need to stop swiftly and predictably, well-functioning brakes are non-negotiable. For fixed-gear riders, while some may opt for a more minimalist approach, maintaining at least a front brake is a wise precaution. This guide will delve into the specifics of adjusting V-brakes, a common type found on many bicycles, including fixies, ensuring they perform at their best every time you squeeze the levers.

Understanding the basic mechanics of your brakes is the first step towards effective maintenance. When you pull a brake lever, it actuates a cable, which in turn pulls the brake arms. These arms are fitted with brake pads that press against the wheel's rim, creating friction to slow and stop the bicycle. The precision of this process depends on correct cable tension and precise pad alignment. A simple test to gauge your current brake responsiveness is to pull the brake lever. If it feels too loose or too tight, adjustments are needed. The barrel adjuster, a small, threaded component typically found near the brake lever or on the brake caliper itself, allows for fine-tuning of cable tension. For more significant adjustments, you might need to slightly loosen the bolt that secures the brake cable to the caliper, allowing you to pull or release more cable to achieve the desired feel.

It's crucial to remember that while DIY adjustments can save you time and money, certain critical repairs are best left to the professionals. If you're unsure about any step or dealing with complex issues, consulting a qualified bike mechanic is always the safest course of action.

What Are Bike Brakes?

At its core, a bicycle brake system is designed to provide the rider with control over the vehicle's speed. This control is vital for a multitude of riding scenarios, from managing descents to avoiding unexpected obstacles. A well-maintained brake system will react promptly and effectively, bringing the bicycle to a safe and complete stop. The effectiveness of your brakes is directly linked to the condition of their components, particularly the brake pads, which are classified as consumable items. Over time, these pads wear down and will eventually need to be replaced to maintain optimal braking performance.

Why is Bicycle Braking So Important?

The significance of functional brakes cannot be overstated. They are your primary means of slowing down and stopping, directly impacting your safety and the safety of those around you. Regular inspection and maintenance are key. Worn-out brake pads can drastically reduce your stopping power, increasing the risk of accidents. Therefore, it’s essential to regularly check the wear on your brake pads and replace them when they show signs of significant wear. This proactive approach ensures that your brakes are always ready to perform when you need them most.

Different Types of Bike Brakes

Bicycle brakes can be broadly categorised into four main types: disc brakes, rim brakes (including V-brakes), coaster brakes, and drum brakes. For fixed-gear and track bikes, rim brakes, particularly V-brakes (also known as direct-pull cantilever brakes), are a common and effective choice. Disc brakes have gained popularity for their powerful and consistent performance in various conditions, while coaster brakes are integrated into the rear hub and operated by pedalling backwards. Drum brakes are less common on modern bicycles but offer a robust and low-maintenance option.

How Do V-Brakes Work?

V-brakes are a type of direct-pull rim brake. They operate via a brake cable that extends from one brake arm to the other, typically routed through a noodle. When the brake lever is pulled, the cable draws the two brake arms together, forcing the brake pads to clamp onto the wheel's rim. This action creates friction, slowing the wheel. V-brakes are favoured for their simplicity, relatively low cost, and ease of maintenance. They are also known for not placing undue stress on the wheel hubs or spokes, unlike some other braking systems. Their straightforward design makes them relatively easy to adjust and repair, even for riders with limited mechanical experience.

How to Properly Adjust V-Brake Brakes on Your Fixie

Adjusting your fixie's V-brakes involves a few key steps to ensure they are centred, responsive, and provide adequate stopping power. Follow these steps carefully:

1. Centering the Wheel: Before you begin adjusting the brakes, ensure that your wheel is properly seated in the dropouts and is centred within the frame. A misaligned wheel will make brake adjustments more difficult and less effective. Spin the wheel to confirm it rotates freely without rubbing against the brake pads or frame.

2. Adjusting Cable Tension:
* Grip both arms of the V-brake caliper firmly with one hand. This will hold the pads away from the rim.
* With your other hand, locate the barrel adjuster (usually on the brake lever or the caliper). Turn the barrel adjuster counter-clockwise to increase cable tension (making the brake lever firmer) or clockwise to decrease tension (making the lever softer). Adjust until the brake pads are approximately 1-2mm away from the rim when the lever is not engaged.
* For more significant adjustments, you may need to loosen the cable anchor bolt on the brake caliper. This bolt secures the brake cable to one of the brake arms. Loosen it slightly.
* Pull the brake cable taut through the clamping point. You can use pliers or a dedicated cable-pulling tool to get a good grip and tension.
* While holding the cable firmly, re-tighten the cable anchor bolt. Ensure the bolt is snug to prevent the cable from slipping.
* Squeeze the brake lever to test the tension. The lever should feel firm and engage the brakes effectively without reaching the handlebar. If it's still too loose or too tight, repeat the process or fine-tune with the barrel adjuster.

3. Positioning the Brake Pads:
* Once the cable tension is set, it's time to align the brake pads with the rim. Squeeze the V-brake arms firmly against the rim, mimicking the action of applying the brakes. You can use your hand or the brake lever for this.
* With the pads held against the rim, examine their position. The goal is for the entire surface of the brake pad to make even contact with the braking track of the rim. Crucially, the pad should not be angled too low, where it might rub against the tyre, nor too high, where it might miss the braking surface.
* Locate the small bolt on each brake arm that holds the brake pad in place. Loosen this bolt just enough to allow the pad to be repositioned.
* Align the pad so it strikes the rim squarely on the centre of the braking track. Ensure that the top of the pad is slightly below the tyre.
* Once you are satisfied with the alignment, carefully re-tighten the pad bolt. Make sure it's secure but avoid overtightening, which could strip the threads.

4. Centring the Brake Arms (Addressing Rubbing):
* If one brake pad is closer to the rim than the other, or if a pad is rubbing against the rim, you'll need to adjust the spring tension.
* On the back of each V-brake arm, you'll find a small screw. This screw adjusts the tension of the internal spring that pushes the brake arm away from the rim. Tightening this screw (turning it clockwise) increases spring tension, pushing the arm outwards. Loosening it (counter-clockwise) decreases tension, allowing the arm to move inwards.
* For example, if the right brake pad is rubbing, you need to increase the spring tension on the right side. Tighten the screw on the back of the right brake arm. This will push the right brake arm outwards, away from the rim.
* Conversely, if the left pad is too far from the rim, loosen the screw on the left arm to allow it to move closer.
* Adjust these screws incrementally, checking the brake’s position after each adjustment. The aim is for both pads to be equidistant from the rim and to contact it evenly when the brake is applied.

5. Final Checks and Fine-Tuning:
* After adjusting the pad positioning and centring, squeeze the brake lever repeatedly. Check for smooth operation, even contact, and adequate stopping power. Spin the wheel and ensure no rubbing occurs when the brakes are disengaged.
* You may need to repeat steps 2 and 3 to fine-tune the cable tension and pad alignment for the perfect feel and performance.

Troubleshooting Common V-Brake Issues

| Problem | Cause | Solution | | :------------------------ | :--------------------------------------------------- | :---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- | | Brakes feel spongy | Loose cable tension, worn brake pads, or air in the system (less common for V-brakes). | Tighten cable tension using the barrel adjuster or by re-anchoring the cable. Replace worn brake pads. | | Brakes don't stop well | Worn brake pads, contaminated pads/rim, or insufficient cable tension. | Replace brake pads. Clean the rim braking surface and brake pads with isopropyl alcohol. Increase cable tension. | | One pad rubs the rim | Uneven spring tension or misaligned brake arm. | Adjust the spring tension screw on the affected brake arm. Ensure the brake arm is properly aligned. | | Brakes squeal | Misaligned brake pads, contaminated pads/rim, or worn pads. | Toe-in the brake pads (angle the front of the pad slightly away from the rim). Clean rim and pads. Replace worn pads. | | Levers hit handlebar | Excessive cable stretch or worn brake pads. | Increase cable tension via the barrel adjuster or re-anchor the cable. Replace brake pads if they are significantly worn. |

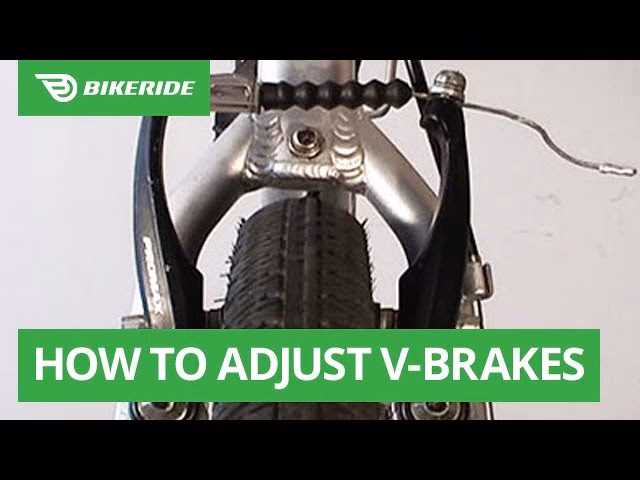

For a visual guide, watching video tutorials such as "How to Adjust Bike Brakes" can be incredibly helpful to see these steps in action.

Frequently Asked Questions (FAQ)

Why are V-brakes used on many bikes?
V-brakes, or direct-pull cantilever brakes, were developed to offer greater braking force compared to traditional cantilever brakes. Their design eliminates the need for a separate cable hanger and centre-pull bolt, simplifying installation and maintenance. They provide a powerful and reliable braking solution for a wide range of cycling disciplines.

Are V-brakes better than disc brakes?
This depends on the riding conditions and priorities. V-brakes are generally lighter, less expensive, and easier to maintain. They also do not transfer heat to the hubs and spokes, which can potentially extend the life of these components. Disc brakes, however, offer superior stopping power, especially in wet or muddy conditions, and are less affected by rim damage. For everyday riding and fixed-gear use, V-brakes are often more than adequate.

Are V-brakes any good?
Yes, V-brakes are considered very good for their intended purpose. They are cost-effective, simple to maintain, and provide reliable stopping power for general cycling. They are also less likely to cause issues with wheel alignment or hub maintenance compared to some other brake types. Their simplicity also means they are less prone to mechanical failure.

Conclusion

Ensuring your brakes are in perfect working order is paramount for safe cycling. Properly adjusted brakes can prevent accidents and injuries, especially when riding in traffic or at higher speeds. Regularly calibrating your V-brakes will give you the confidence and control needed for any ride. By understanding the importance of brake maintenance and following these adjustment steps, you can significantly enhance your bicycle's performance and your safety on the road. Remember, a little regular attention to your brakes can go a long way in ensuring a smooth and secure cycling experience.

Key Takeaways:

* Brake pads are crucial components that directly impact your braking system's effectiveness. Regularly inspect and replace them as needed.
* Bike brakes are broadly classified into disc, rim, coaster, and drum types, with V-brakes being a popular rim brake option.
* Bicycle brakes provide essential control over your speed, making them vital for safety.
* Properly adjusted V-brakes offer excellent stopping power for fixed-gear bikes and many other types of bicycles.
* The barrel adjuster is your primary tool for fine-tuning cable tension, while pad alignment and spring tension screws allow for precise positioning.

We hope this guide has provided you with all the information you need to confidently adjust your fixie's V-brakes. If you found this article helpful, be sure to explore our blog for more comprehensive bicycle maintenance tips and tricks. Ride safe!
