Copper Tubing: Your Guide to Fuel & Oil Lines

When it comes to crafting or repairing the essential oil and fuel lines on your classic vehicle, the choice of material and method can significantly impact both the aesthetics and the functionality of your system. Copper tubing often presents itself as an attractive and seemingly permanent solution, offering a clean, professional look that many enthusiasts covet. However, working with copper isn't as straightforward as simply bending it into place. This article delves into the intricacies of using copper tubing for fuel and oil lines, providing practical advice, detailing different fitting types, and addressing common challenges to ensure a successful and safe installation.

Working with New vs. Old Copper Tubing

A crucial starting point when considering copper tubing is understanding the difference between new and old material. New copper tubing is considerably softer and more pliable, making it significantly easier to bend without encountering issues like kinking. This inherent flexibility is a boon for mechanics, especially when navigating tight spaces or creating the necessary loops for connections. Conversely, old copper tubing tends to harden over time, becoming brittle and resistant to bending. Attempting to manipulate aged copper without proper preparation can lead to fractures and an unusable line. Fortunately, old copper tubing can be softened through a process of heating. This annealing process restores some of its original malleability, making it workable again. While specialized tubing benders are available on the market and can produce very neat bends, with a bit of patience and careful technique, copper tubing can also be effectively bent by hand.

The Art of Bending Copper Tubing

Achieving a clean, kink-free bend is paramount for maintaining optimal flow within your fuel or oil lines. Kinks restrict the passage of fluids, potentially leading to performance issues or even complete system failure. While hand-bending is possible, investing in a quality tubing bender is often a wise decision for those undertaking multiple projects or requiring precise bends. These tools are designed to support the tubing externally while applying pressure internally, preventing the collapse that leads to kinks. When bending by hand, it's essential to work slowly and deliberately. Using your fingers to guide the bend around a rounded object (like a can or a pipe of appropriate diameter) can help create a smoother curve. Remember, it's always better to make a series of small bends than one aggressive one. For those sharp, ninety-degree bends often required to transition between components, a tubing bender with an integrated ninety-degree bending guide is invaluable.

Tubing Connections: Fittings and Techniques

The integrity of your fuel and oil lines hinges on the quality and proper installation of the fittings. Copper tubing relies on specific types of fittings to create secure, leak-free connections. The most common types encountered in automotive and marine applications are:

Compression Fittings

A three-piece fitting comprising a female thread nut, a ferrule (also known as a sleeve), and a straight connector (or an elbow connector). The ferrule is the key component here; as the nut is tightened onto the fitting body, it compresses the ferrule onto the end of the copper tube, creating a seal. This type of fitting is advantageous as it requires no special tools to flare the tubing end.

Inverted Flare Fittings

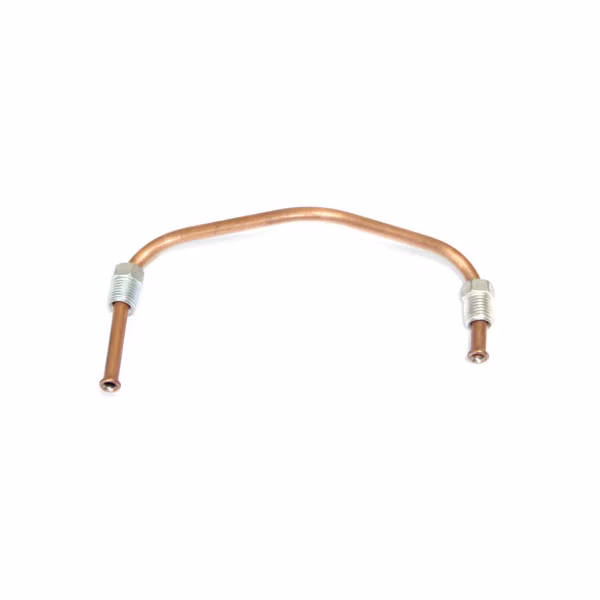

A two-piece fitting system where the copper tubing must first be flared. It consists of a male thread nut and a straight connector. The flare on the end of the tube mates with a corresponding surface on the connector, creating the seal. This system is generally considered robust and can withstand significant pressure and vibration.

Flare Fittings (SAE Flare)

Similar to inverted flare fittings, these also require the tubing to be flared. They typically consist of a long-shank female thread nut and a straight connector. The key difference lies in the angle of the flare and the mating surface. For both inverted and SAE flare fittings, a double flare is highly recommended over a single flare. A double flare provides a more robust seal, greater resistance to vibration, and is less prone to cracking during installation or over time.

The Importance of Proper Installation

Regardless of the fitting type chosen, proper installation is critical. Here are some key considerations:

• Use the Right Tools: When tightening or loosening tubing nuts, it's best to use specialized tubing wrenches. These wrenches have a larger contact surface than standard open-ended wrenches, reducing the risk of rounding off the hexagonal flats of the nut. For occasional use, a wide-jawed adjustable (crescent) wrench can suffice, but it should be used with care. Avoid using pliers, as they offer poor grip and are very likely to damage the fitting nut.
• Protecting Threads: Old engines and castings often have pipe thread fittings. These threads can be delicate and easily damaged. When removing a connection, it's advisable to leave the nut on the tubing and attempt to remove the entire fitting from the casting first. If you must remove the nut from the tubing, consider starting by hand to avoid cross-threading. For inverted flare fittings, it is particularly important to replace the nut on the fitting before attempting to remove the connection from the casting. This protects the internal threads of the fitting from damage.
• Starting Connections by Hand: Always begin tightening any tubing connection by hand. This allows you to feel the threads engaging properly and helps prevent cross-threading, which can ruin both the nut and the fitting. Once the nut has been started several threads by hand, it can be carefully tightened with a wrench.
• Temporary Repairs: In a pinch, a leaking flare type fitting can sometimes be temporarily sealed by removing the nut and wrapping a few strands of string or thread under the flare before re-tightening the nut. Similarly, for compression fittings, a small amount of thread sealant or tape around the ferrule might offer a temporary fix. However, these are not permanent solutions and should be addressed properly as soon as possible.

The Strategic Use of Loops

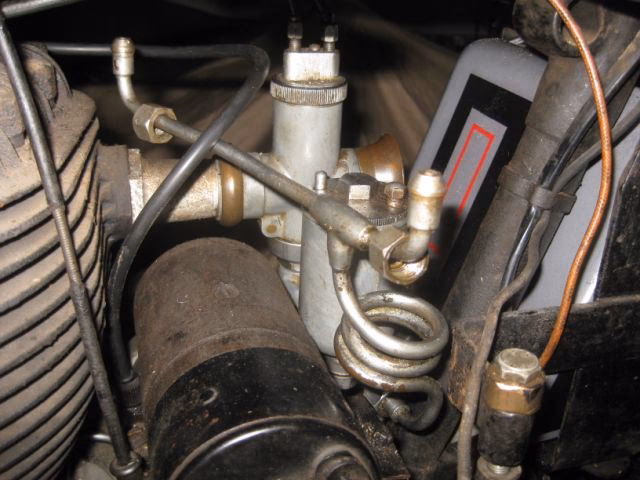

One of the most effective techniques when installing copper tubing, especially for fuel lines, is the strategic placement of a loop in the tubing. This is particularly useful when connecting points that are relatively close together, or when the two connection points are directly in line with each other. A well-placed loop provides essential flexibility. This flexibility allows for slight adjustments in length, making it easier to align the tubing with the fittings without putting stress on the connection. Crucially, this flexibility helps prevent kinking during the final tightening process and accommodates minor engine movement or vibration, thereby extending the life of the connection. Examples include connecting a fuel tank situated directly below a carburetor fitting, where a loop allows the fuel line to bridge the vertical distance with ease, or aligning two fittings that are perfectly in line, where a loop can absorb slight discrepancies in distance.

Copper vs. Hose for Fuel Lines

The debate between using rigid tubing and flexible hose for fuel lines is a common one, particularly in marine applications where Volvo Penta engineers have raised concerns about flexible hoses. One significant issue cited is the potential for flexible hoses to compress under suction, which can lead to inaccurate fuel delivery or even complete flow interruption. Furthermore, manufacturing defects in braided hoses can sometimes result in microscopic air holes that can open at different vacuum levels, introducing air into the fuel system. Tight turns with fuel hose can also be problematic, potentially restricting flow. For these reasons, many opt for a hybrid approach: using copper or metal lines for the main runs, mounted on a board for stability, with short sections of flexible hose connecting to the engine and fuel tank. This combines the rigidity and reliability of metal lines with the necessary flexibility at the connection points. For emergency situations, a separate pickup with a 12v pump and filter, predominantly made of fuel hose, can serve as a crucial backup.

Can You Use Copper Pipe for Fuel Injectors?

While copper tubing can be used for fuel lines in many automotive applications, its use for high-pressure fuel injector lines is generally not recommended. Fuel injector systems operate under extremely high pressures, and the stresses involved can exceed the capabilities of standard copper tubing and fittings. Specialized, high-pressure rated fuel lines, often made of braided stainless steel or specific polymers, are typically required for injector lines to ensure safety and reliability. The mention of 15mm pipe in a forum discussion, potentially for a large engine like a Merlin, highlights that the size of the tubing is also a factor, but the primary concern for injector lines remains the extreme pressure involved.

Common Tubing Fitting Types at a Glance

Frequently Asked Questions

Is copper tubing suitable for all fuel types?

Copper is generally compatible with most common automotive fuels, including petrol (gasoline) and diesel. However, compatibility with newer fuel blends containing higher ethanol content should always be verified, as some materials can degrade over time with prolonged exposure to certain additives.

How do I prevent kinking when bending copper tubing?

Use a quality tubing bender, bend slowly and deliberately, and consider using a bending spring or sand packing for tighter bends if a bender is not available. A strategically placed loop can also help avoid stress that leads to kinking.

Can I reuse copper tubing fittings?

While fittings can often be removed and reinstalled, the ferrule in a compression fitting is a one-time seal and should ideally be replaced if re-used. Flare fittings can generally be reused if they are not damaged, but care must be taken not to overtighten and deform the flare.

What is the difference between a single and a double flare?

A single flare creates a single outward-facing cone. A double flare folds the metal back on itself, creating a stronger, more durable seal with two layers of metal, significantly reducing the risk of cracking or leaks, especially under vibration.

In conclusion, while copper tubing offers an aesthetically pleasing and durable solution for oil and fuel lines, its successful implementation relies heavily on understanding the material's properties, employing the correct techniques for bending and fitting, and prioritizing safety through proper installation. By following these guidelines, you can ensure your copper tubing installations are both functional and long-lasting.
